Sensor-Transmission Range: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

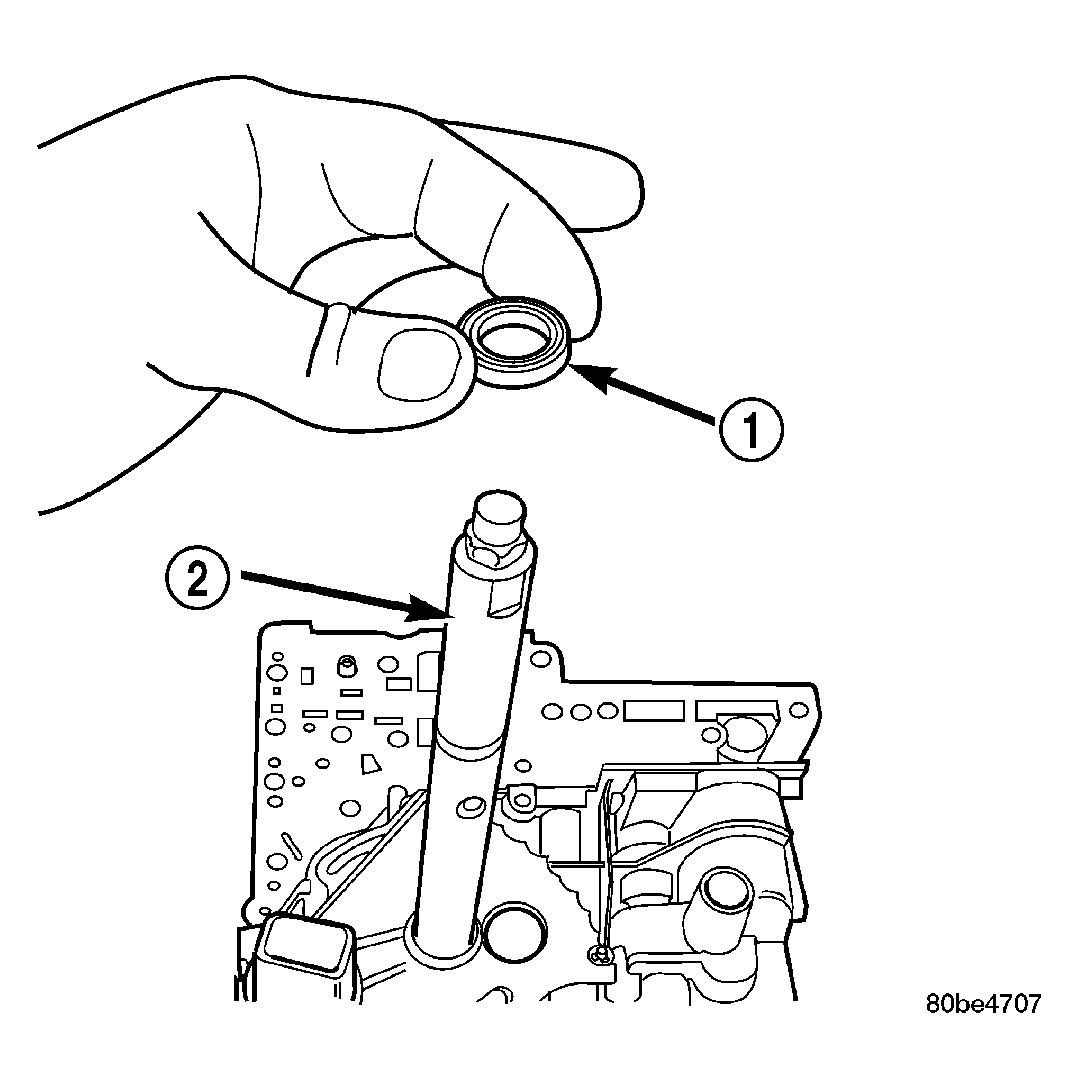

Fig 1: Manual Shaft Seal

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAL

2 - MANUAL SHAFT

Remove valve body assembly from vehicle. (Refer to TRANSMISSION/AUTOMATIC - 42RLE/VALVE BODY - REMOVAL)
Remove the manual shaft seal (1). See Fig 1.

Fig 2: Manual Shaft Retaining Screw
Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREW

2 - TRS
Remove manual shaft/TRS retaining screw (1). See Fig 2.
Slide TRS off of manual valve shaft.
