42RLE - With Variable Line Pressure

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

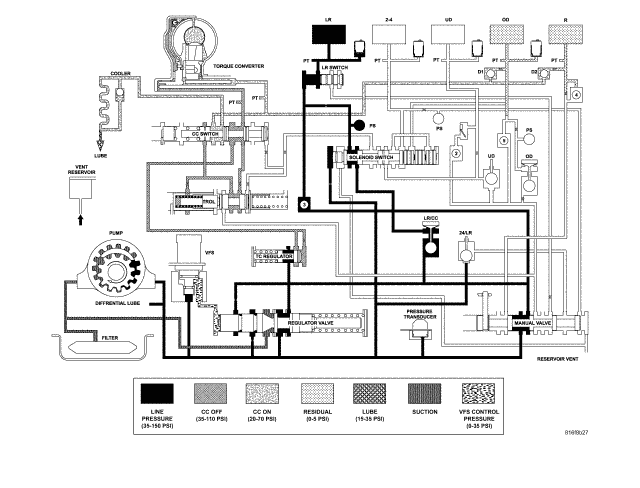

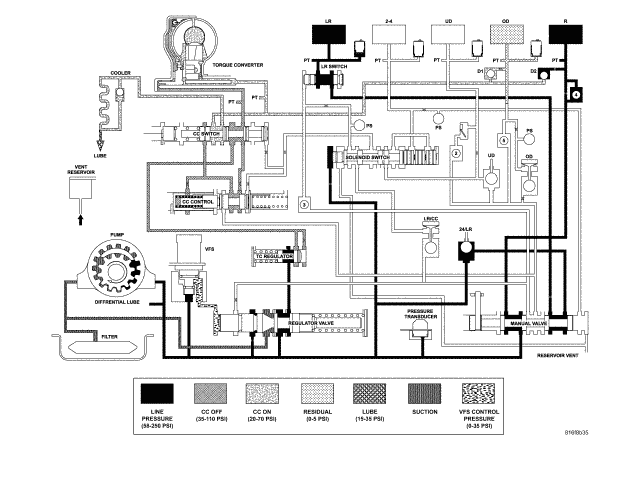

Fig 1: Park and Neutral

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Reverse

Courtesy of DAIMLERCHRYSLER CORP.

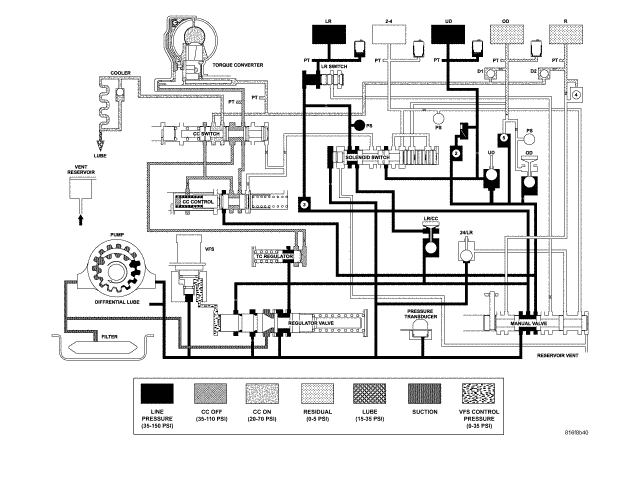

Fig 3: Drive - First Gear

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Drive - Second Gear

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Drive - Second Gear EMCC

Courtesy of DAIMLERCHRYSLER CORP.

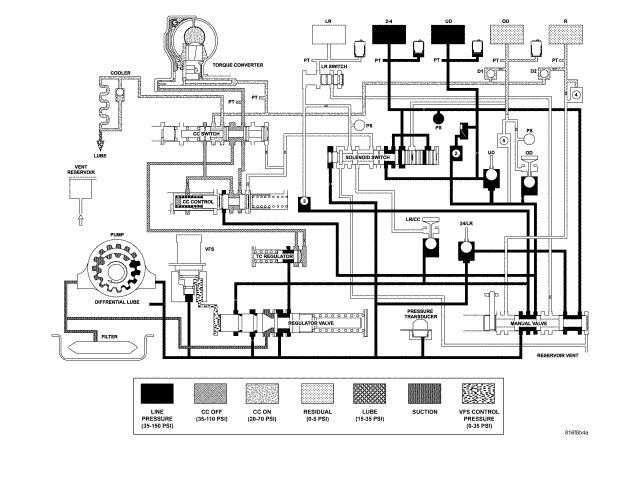

Fig 6: Drive - Direct Gear

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Drive - Direct Gear EMCC

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Drive - Fourth Gear (Overdrive)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Drive - Fourth Gear (Overdrive) EMCC

Courtesy of DAIMLERCHRYSLER CORP.
