Service Information: GEARTRAIN-Planetary: Description

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

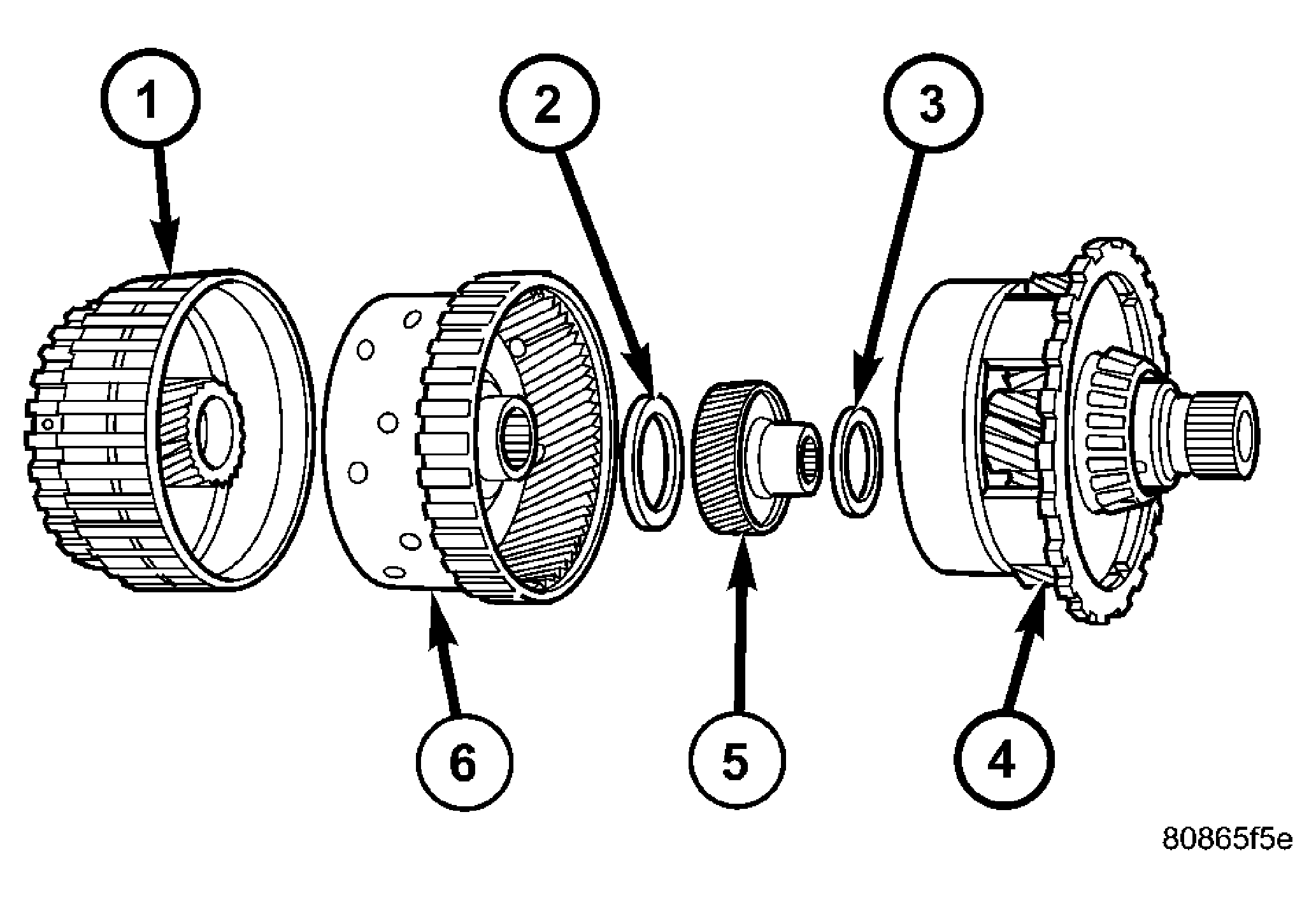

Fig 1: Planetary Geartrain Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT SUN GEAR ASSEMBLY

2 - #6 THRUST BEARING

3 - #7 THRUST BEARING

4 - REAR CARRIER FRONT ANNULUS ASSEMBLY

5 - REAR SUN GEAR

6 - FRONT CARRIER REAR ANNULUS ASSEMBLY

The planetary geartrain is located between the input clutch assembly and the rear of the transmission case. The planetary geartrain consists of two sun gears, two planetary carriers, two annulus (ring) gears, and one output shaft. See Fig 1.
