Solenoid Switch Valve
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - 2/4 CLUTCH |
| 2 - MANUAL VALVE |
| 3 - UD CLUTCH |
| 4 - LR/CC SOLENOID DE-ENERGIZED |
| 5 - MANUAL VALVE |
| 6 - LINE PRESSURE |
| 7 - CONVERTER CLUTCH SWITCH AND CONTROL VALVES |
| 8 - LR CLUTCH |

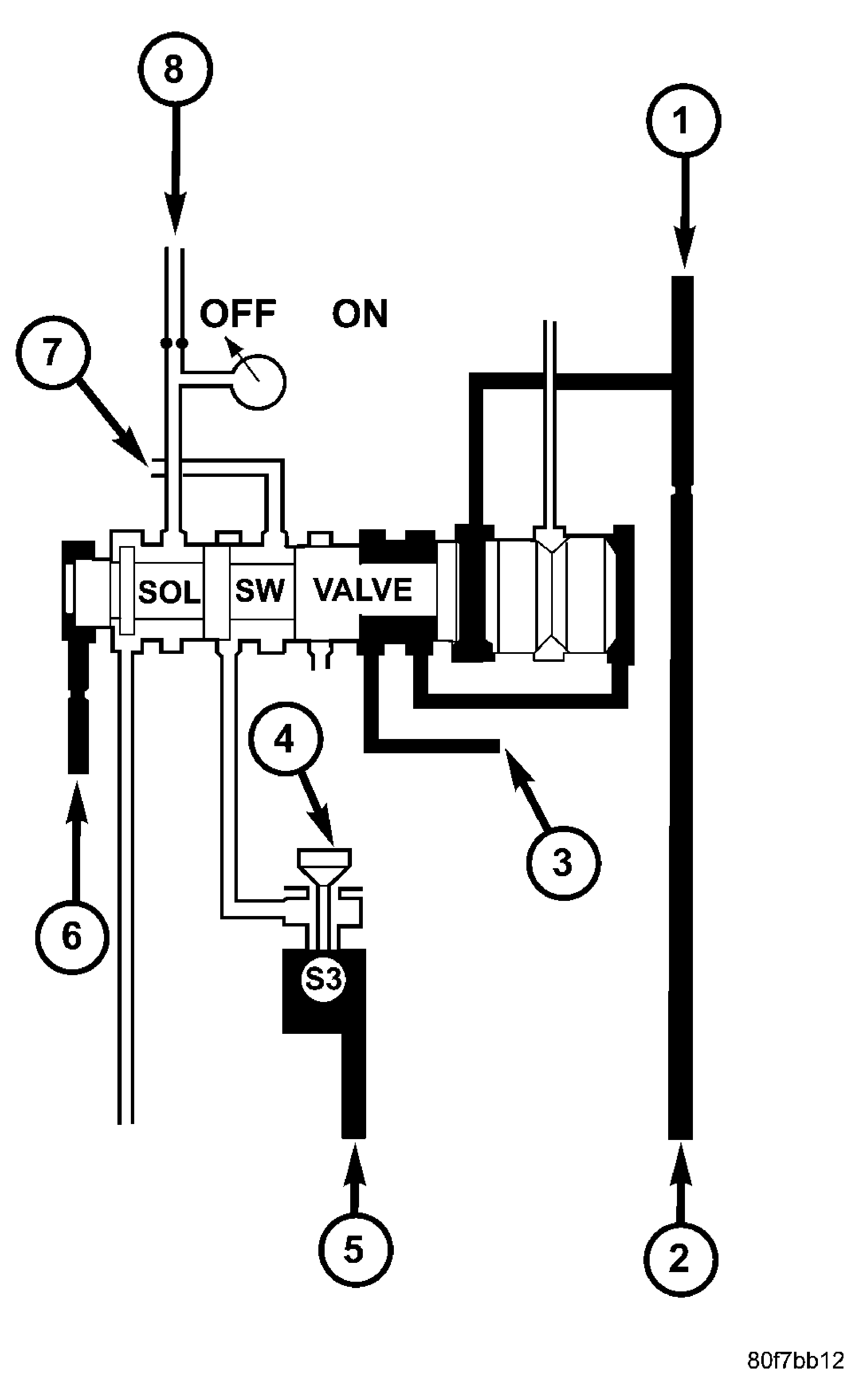

The solenoid switch valve controls line pressure from the LR/CC solenoid (4). In one position, it allows the low/reverse clutch to be pressurized. In the other, it directs line pressure to the converter control and converter clutch valves (7). See Fig 1.
