Regulator Valve
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - FROM OVERDRIVE CLUTCH CIRCUIT |
| 2 - FROM MANUAL VALVE |
| 3 - HYDRAULIC PRESSURE |
| 4 - FILTER |
| 5 - PUMP INLET |
| 6 - PUMP OUTLET |
| 7 - OIL PRESSURE REGULATED AT THIS POINT |
| 8 - SPRING TENSION |
| 9 - REGULATOR VALVE |
| 10 - TORQUE CONVERTER CONTROL VALVE |

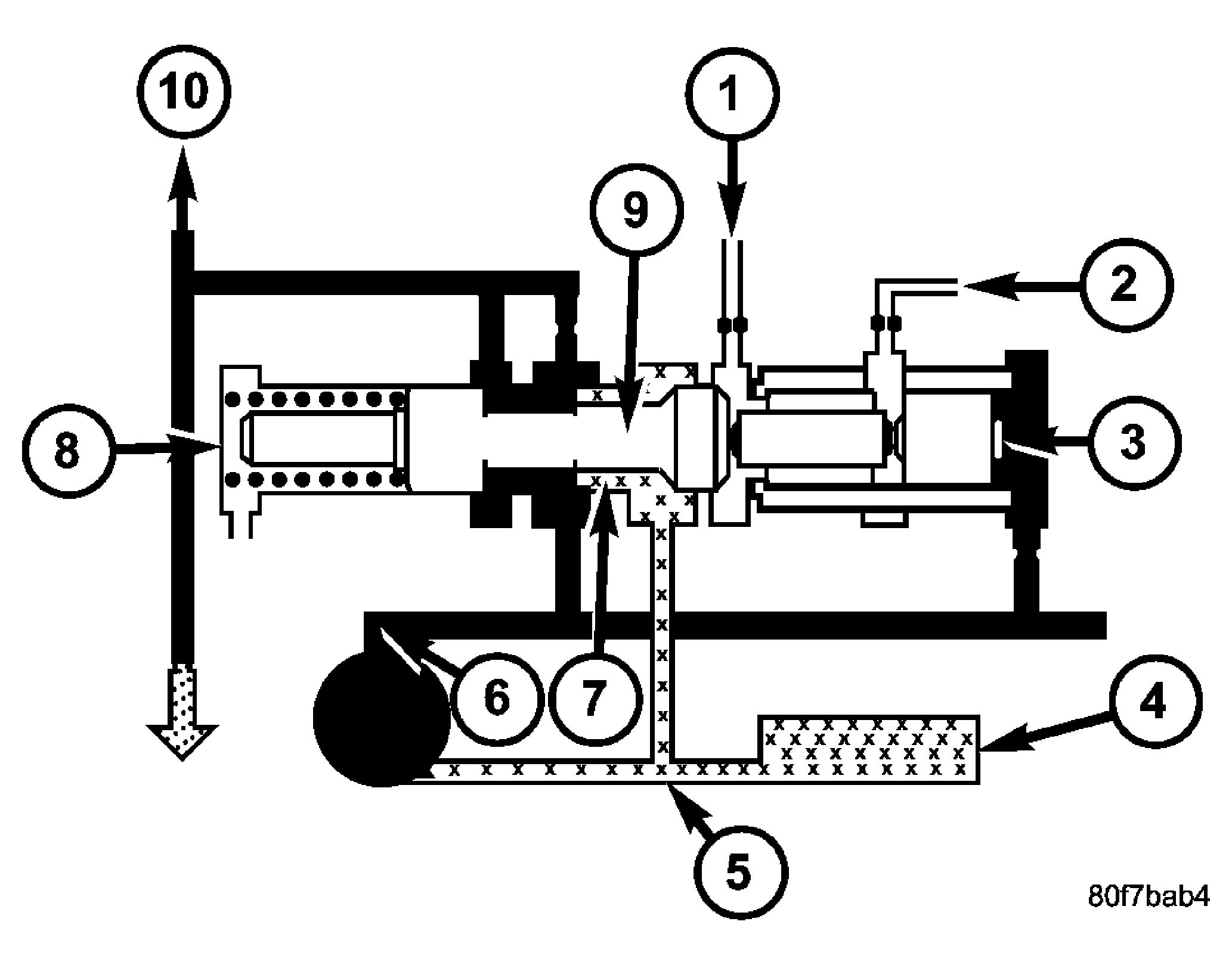

The regulator valve (9) controls hydraulic pressure in the transmission. It receives unregulated pressure from the pump (6), which works against spring tension (8) to maintain oil at specific pressures. A system of sleeves and ports allows the regulator valve to work at one of three predetermined pressure levels. Regulated oil pressure is also referred to as "line pressure." See Fig 1.
