Shift Valve Pressure Regulating Valve

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

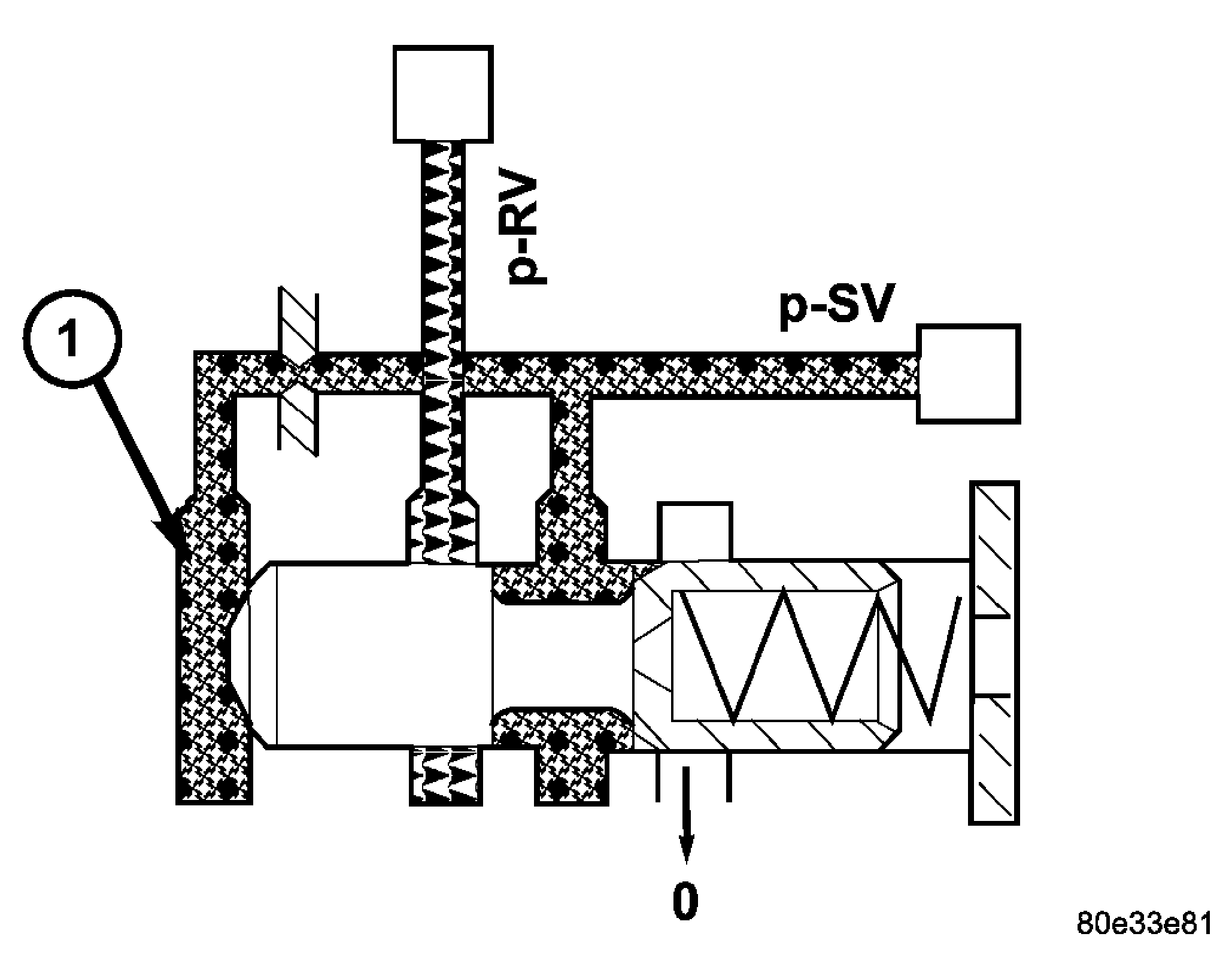

Fig 1: Shift Valve Pressure Regulating Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHIFT VALVE PRESSURE REGULATING VALVE

The non-constant regulating valve pressure (p-RV) is regulated to a constant shift valve pressure (p-SV) at the shift valve pressure regulating valve (1) and is used to supply the 1-2 and 4-5 / 3-4 / 2-3 solenoid valves and the torque converter lockup clutch PWM solenoid valve. See Fig 1.
