Lubrication Pressure Regulating Valve

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

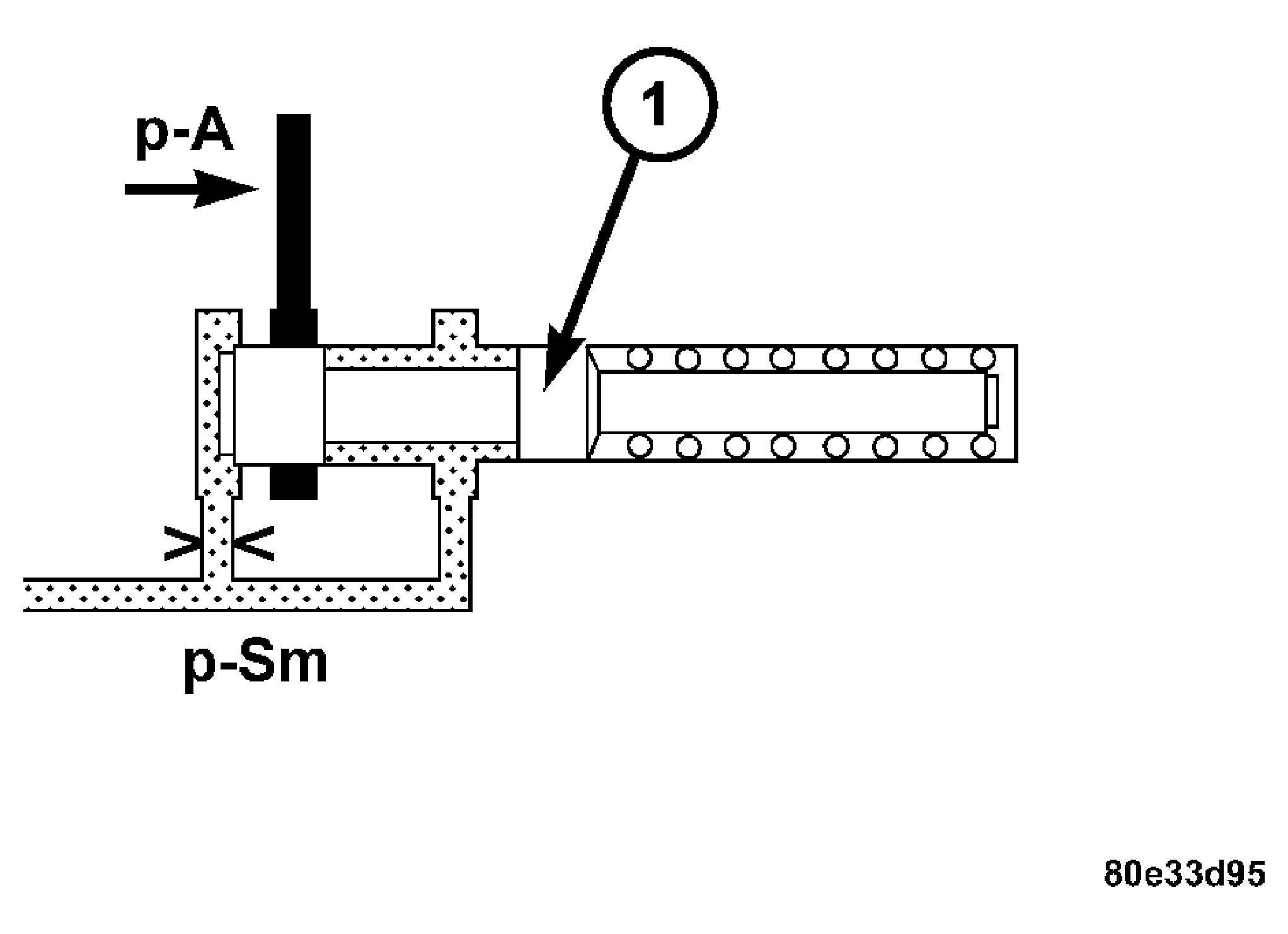

Fig 1: Lubrication Pressure Regulating Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - LUBRICATION PRESSURE REGULATING VALVE

At the working pressure regulating valve surplus oil is diverted to the lubrication pressure regulating valve (1), from where the lubrication pressure (p-Sm) is used in regulated amounts to supply the transmission lubrication system including the torque converter. See Fig 1.
