Regulating Valve Pressure Regulating Valve

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

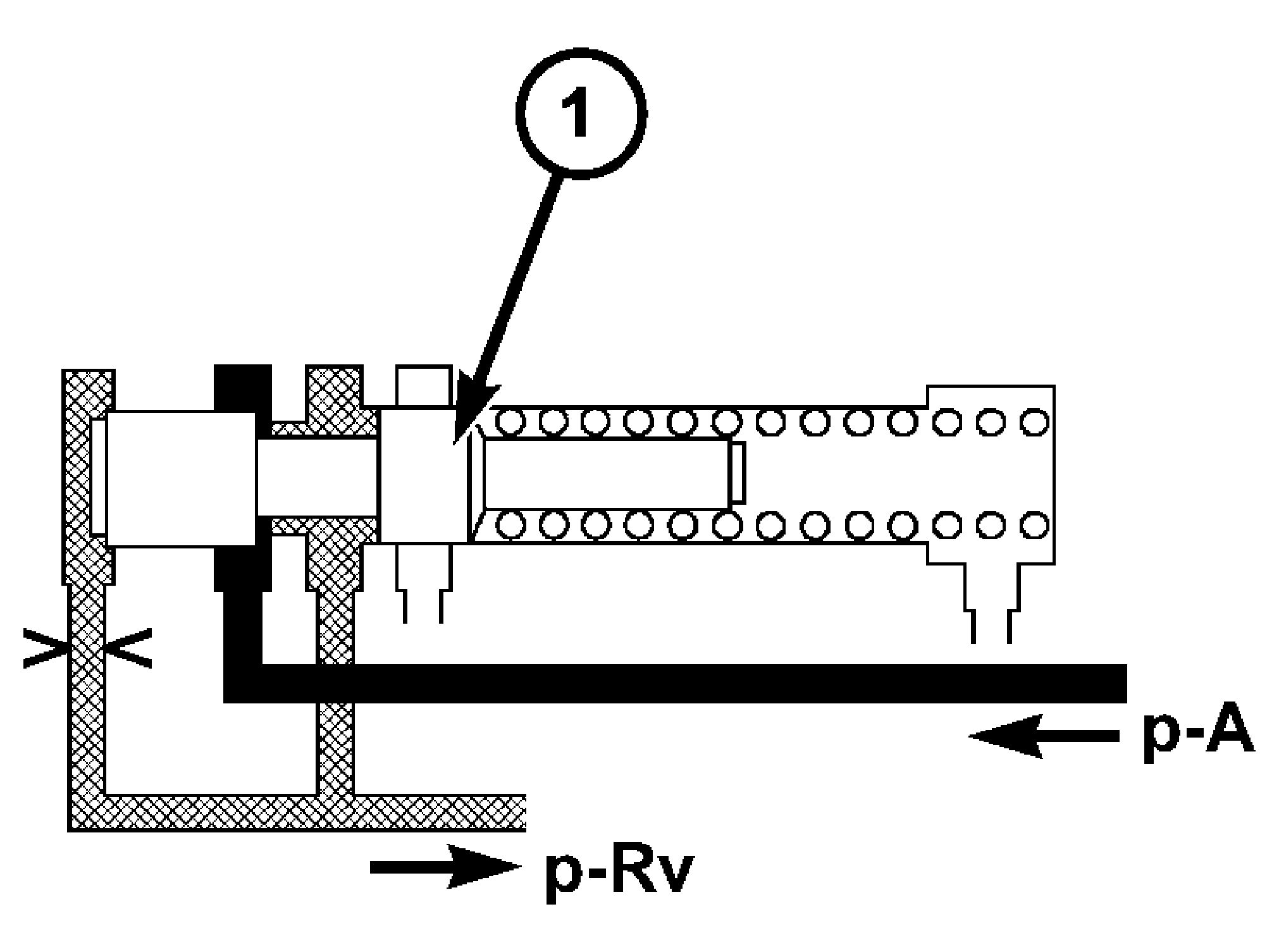

Fig 1: Regulating Valve Pressure Regulating Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - REGULATING VALVE PRESSURE REGULATING VALVE

The regulating valve pressure regulating valve (1) is located in the valve housing of the electrohydraulic control module. It regulates the regulating valve/control valve pressure (p-RV). See Fig 1.
