Overlap Regulating Valve

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

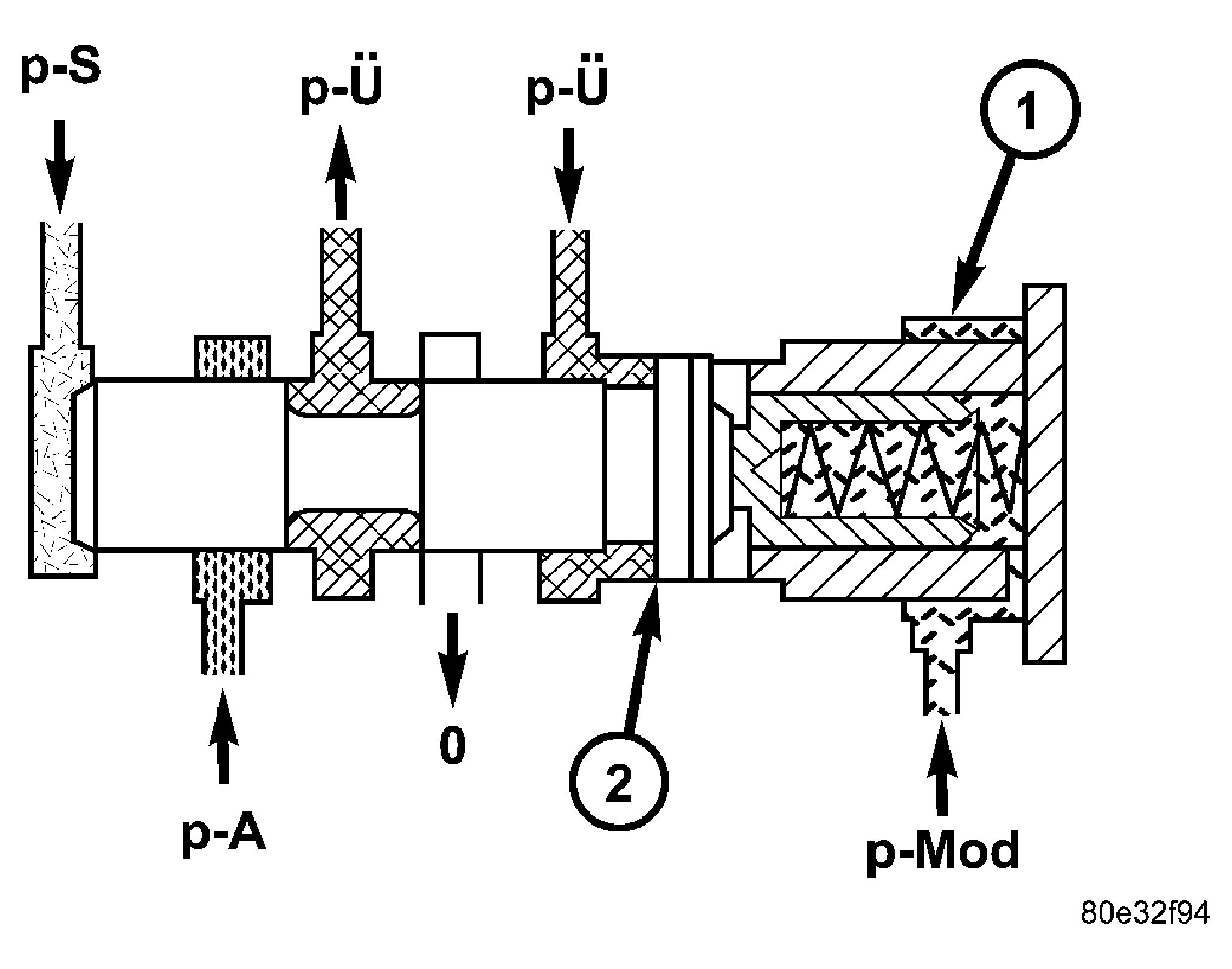

Fig 1: Cutaway View Of Overlap Regulating Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - OVERLAP REGULATING VALVE

2 - ANNULAR SURFACE ON OVERLAP REGULATING VALVE

Each shift group is assigned one overlap regulating valve (1). See Fig 1. The 1-2 / 4-5 overlap regulating valve is installed in the shift valve housing; the 2-3 and 3-4 overlap regulating valves are installed in the valve housing. The overlap regulating valve regulates the pressure reduction during a shift phase.
