Command Valve

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

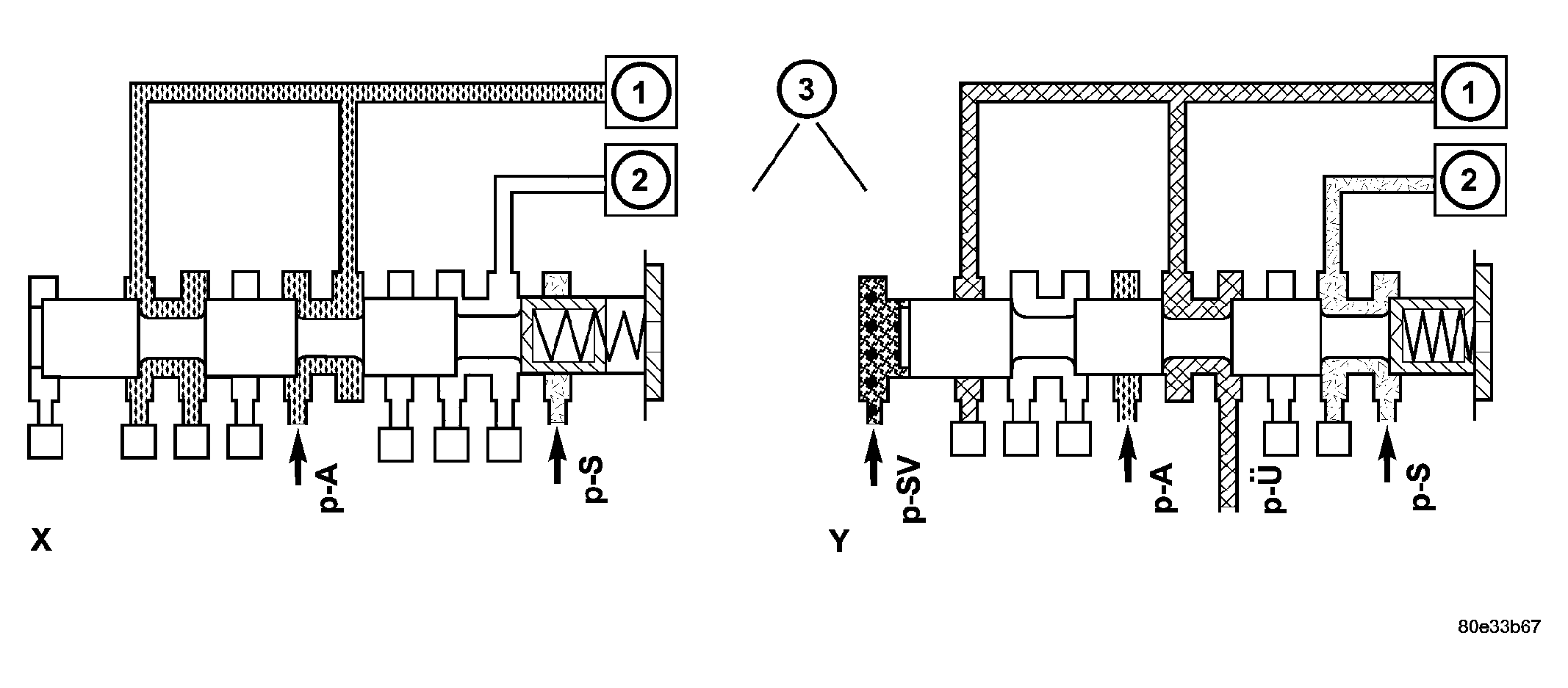

Fig 1: Cutaway View Of Command Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - HOLDING CLUTCH B1

2 - DRIVING CLUTCH K1

3 - 1-2/4-5 COMMAND VALVE

Each shift group possesses one command valve (3). See Fig 1. The 1-2 / 4-5 and 2-3 command valves are installed in the shift valve housing, the 3-4 command valve is installed in the valve housing. The command valve switches the shift group from the stationary phase to the shift phase and back again.
