Special Tools - Automatic Transmission - Nag1

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Dial Indicator C-3339

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Universal Driver Handle - C4171

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Gauge Bar - 6311

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: End Play Set - 8266

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Adapter, Geartrain End-Play - 8266-18

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Compressor, Multi-Use Spring - 8900

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Tool, Pressing - 8901

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Installer, Seal - 8902A

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Tool, Staking - 9078

Courtesy of DAIMLERCHRYSLER CORP.

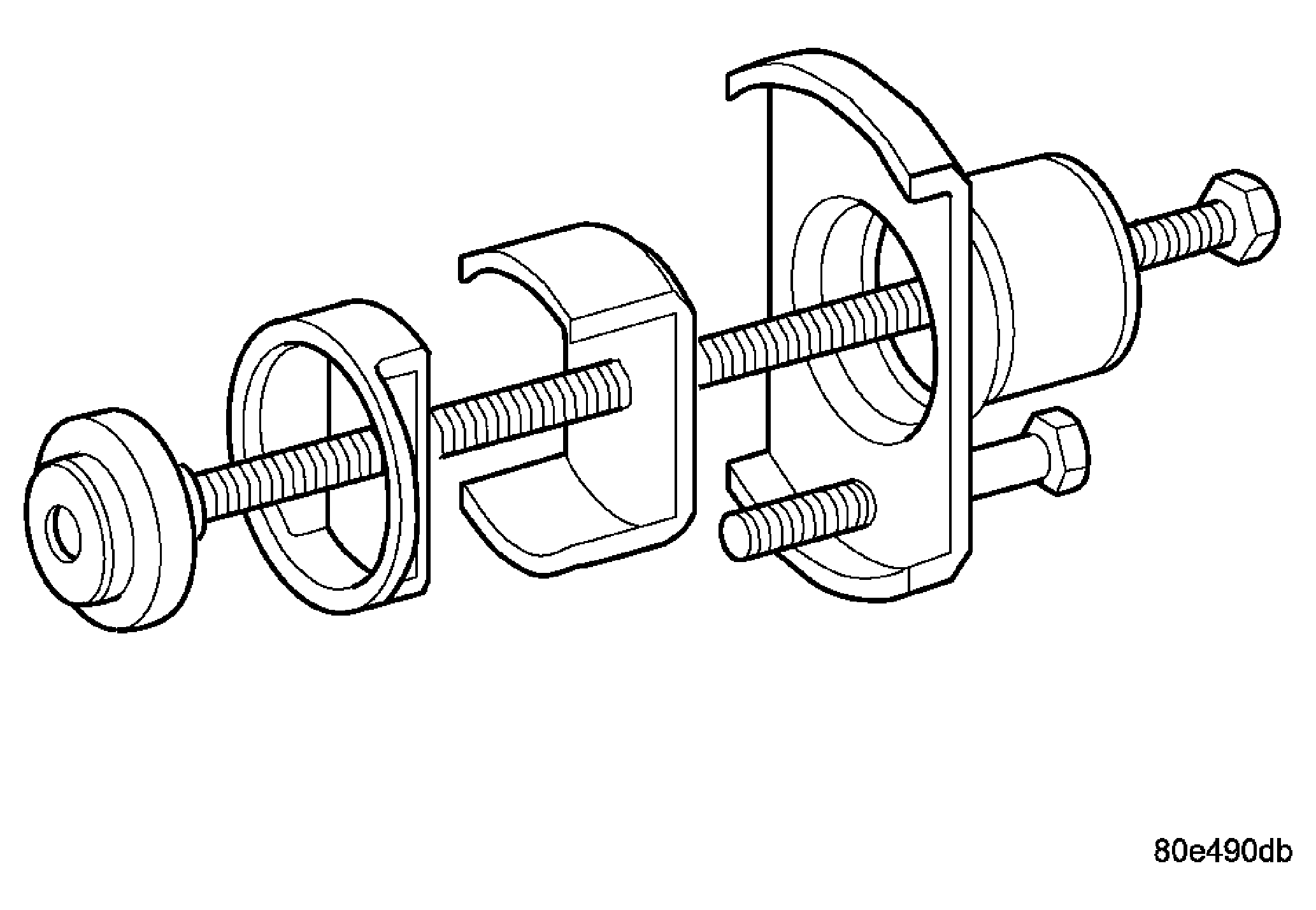

Fig 10: Remover, Bearing - 9082

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Installer, Bearing - 9287

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Dipstick - 9336

Courtesy of DAIMLERCHRYSLER CORP.
