Modulating Pressure Control Solenoid Valve

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

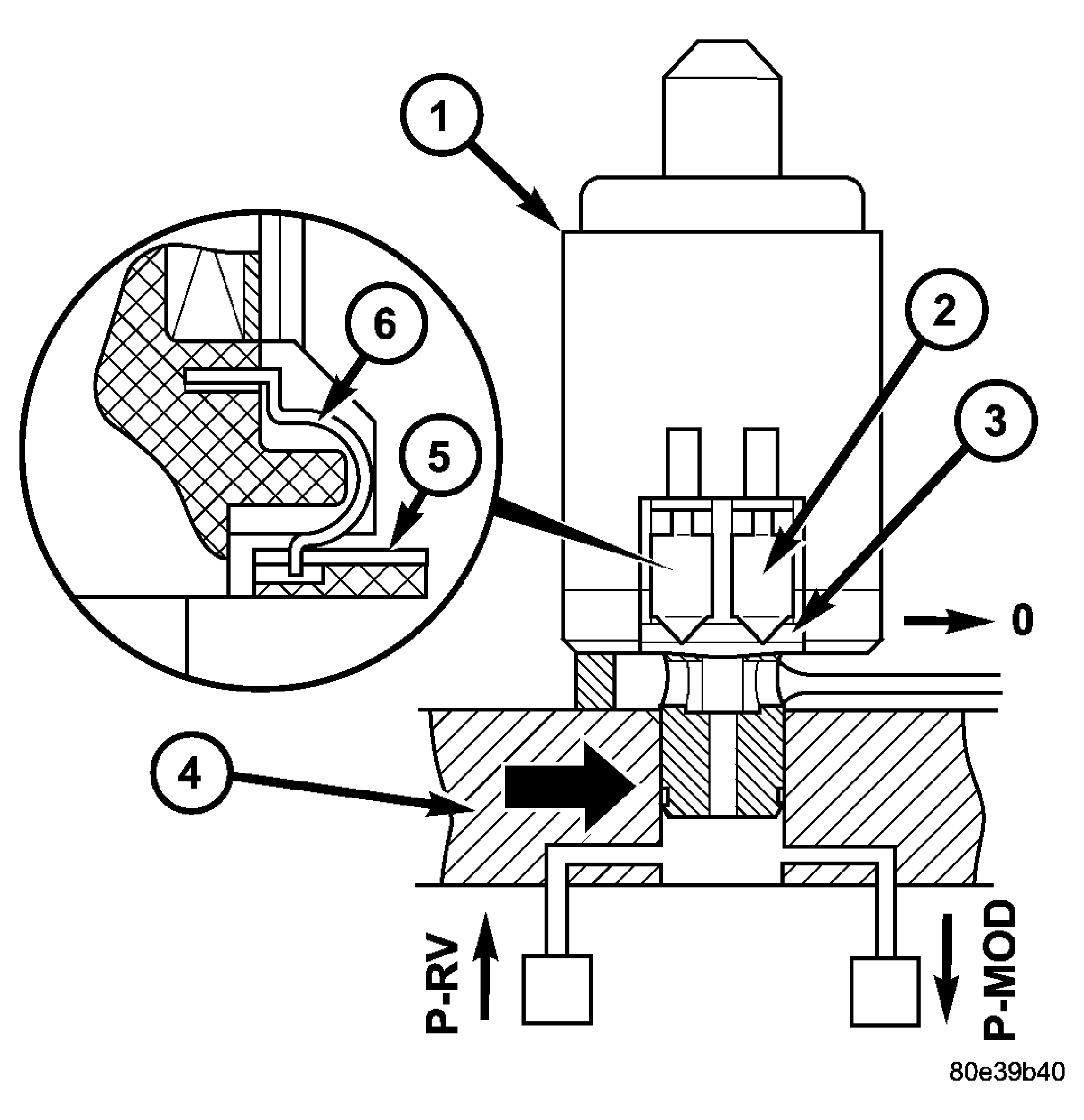

Fig 1: Cutaway View Of Modulating Pressure Control Solenoid Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - MODULATING PRESSURE CONTROL SOLENOID VALVE

2 - CONTACT SPRING

3 - CONDUCTOR TRACK

4 - VALVE HOUSING SHIFT PLATE

5 - CONDUCTOR TRACK

6 - CONTACT SPRING

The modulating pressure regulating solenoid valve (1) assigns a proportional pressure to the current which is controlled by the TCM according to the load. See Fig 1.
