WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

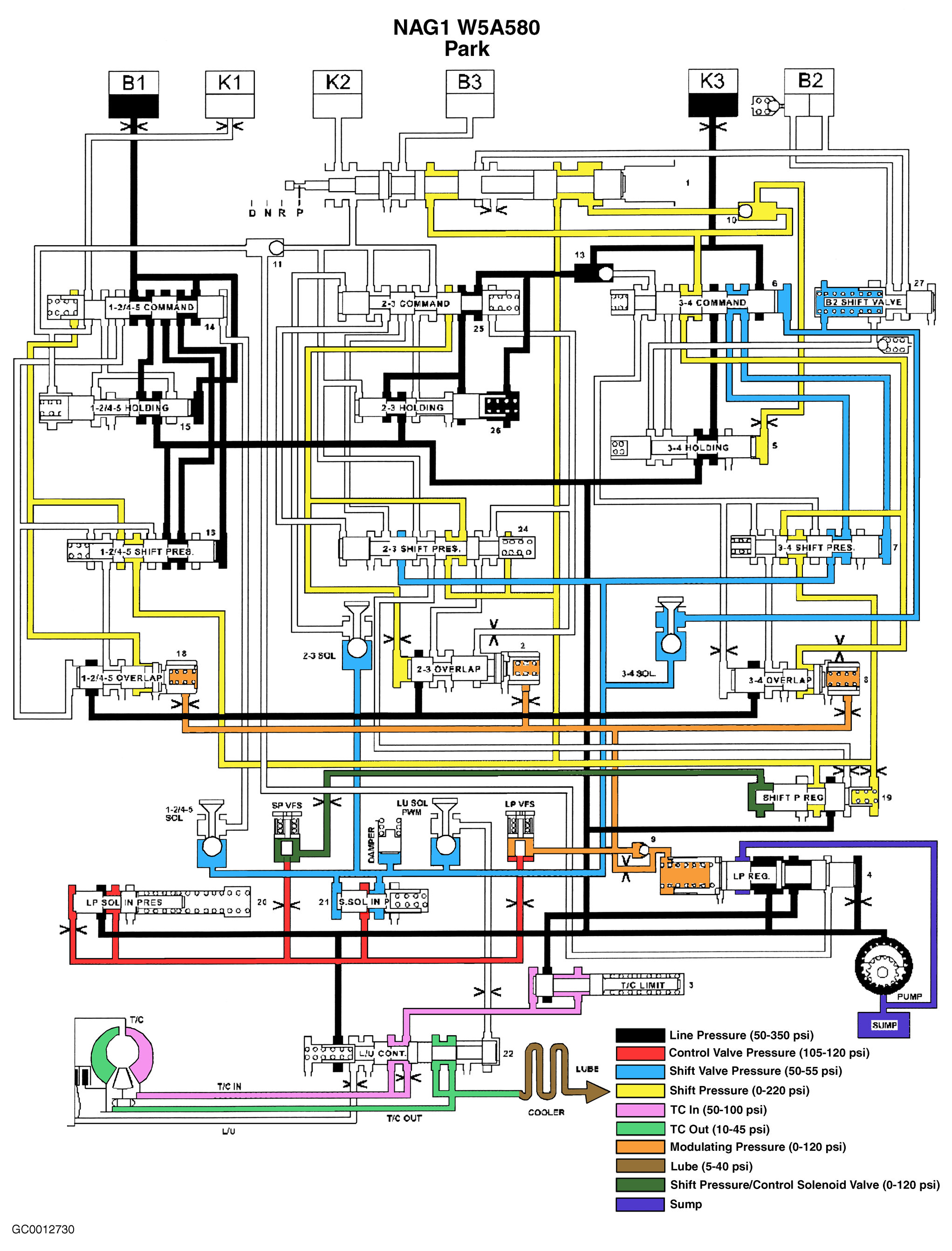

Fig 1: Hydraulic Flow In Park
Courtesy of DAIMLERCHRYSLER CORP.

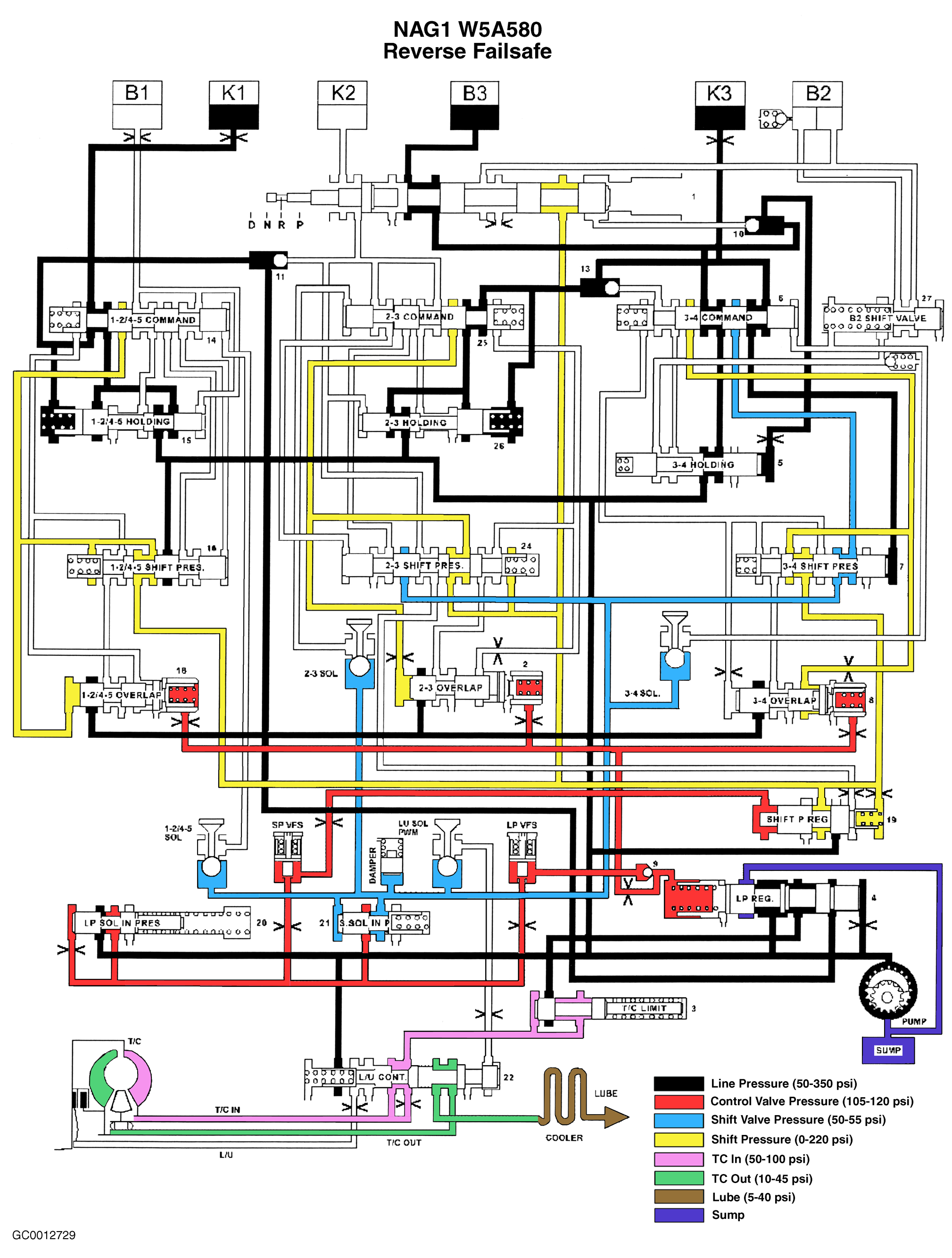

Fig 2: Hydraulic Flow In Reverse - Failsafe
Courtesy of DAIMLERCHRYSLER CORP.

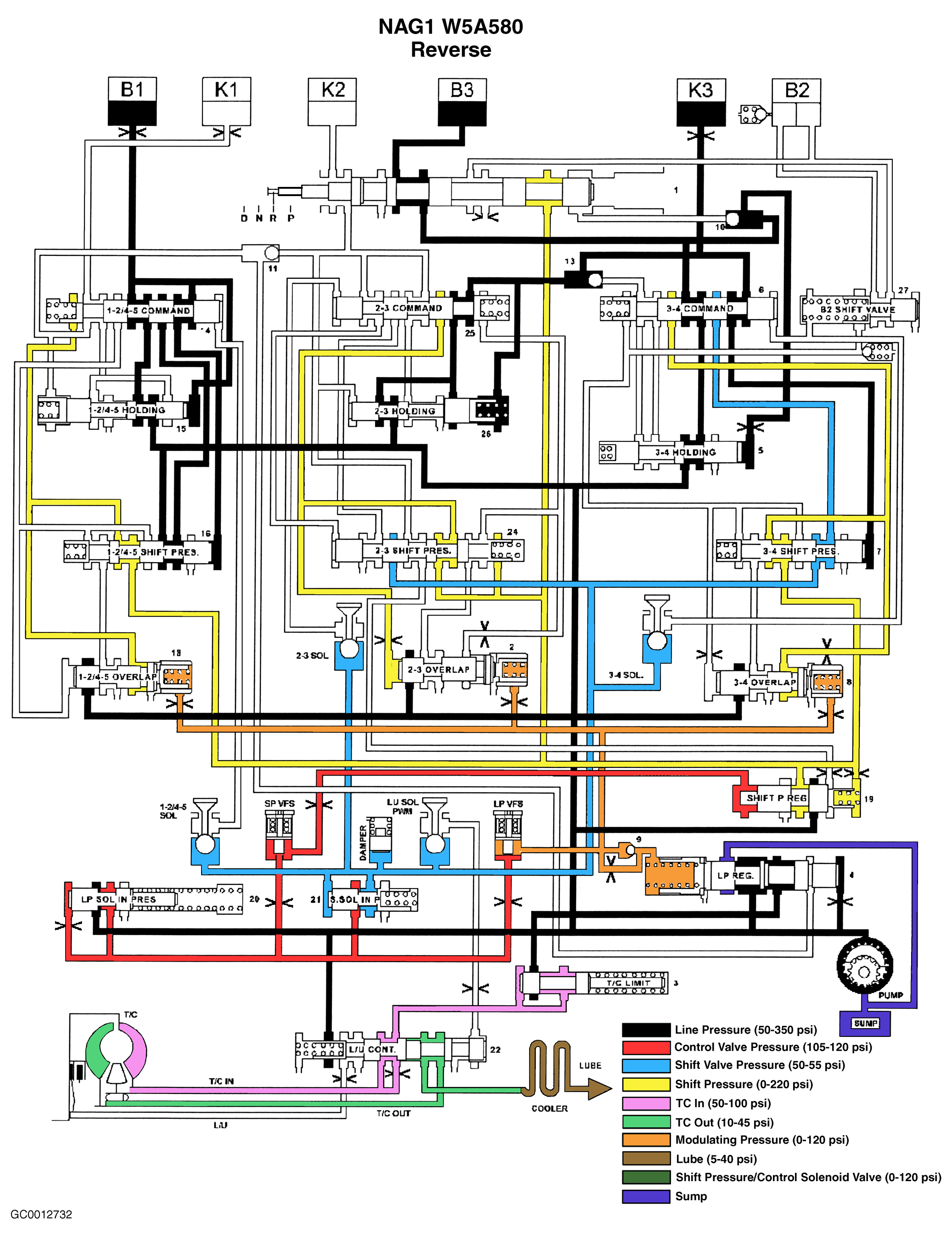

Fig 3: Hydraulic Flow In Reverse
Courtesy of DAIMLERCHRYSLER CORP.

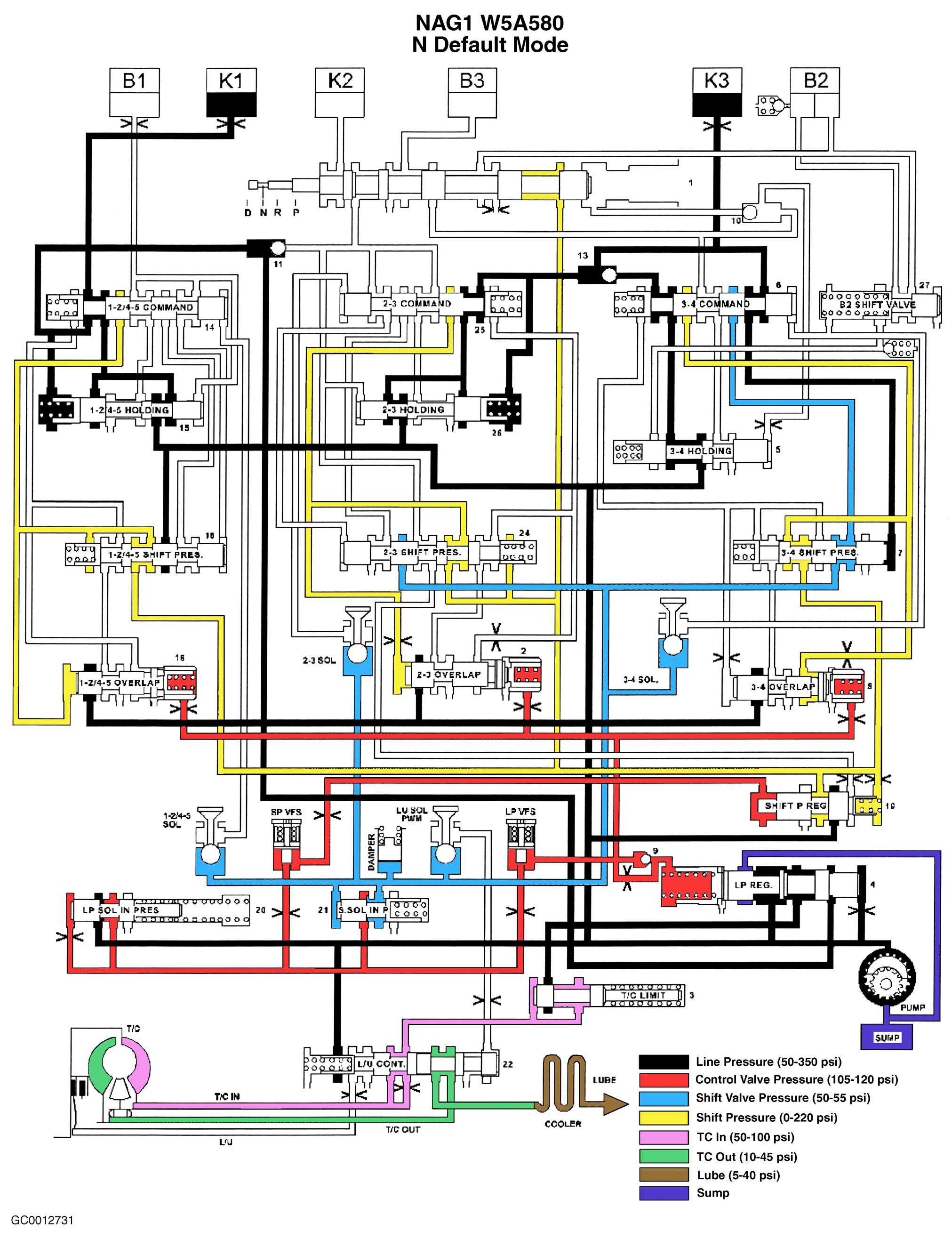

Fig 4: Hydraulic Flow In Neutral - Default
Courtesy of DAIMLERCHRYSLER CORP.

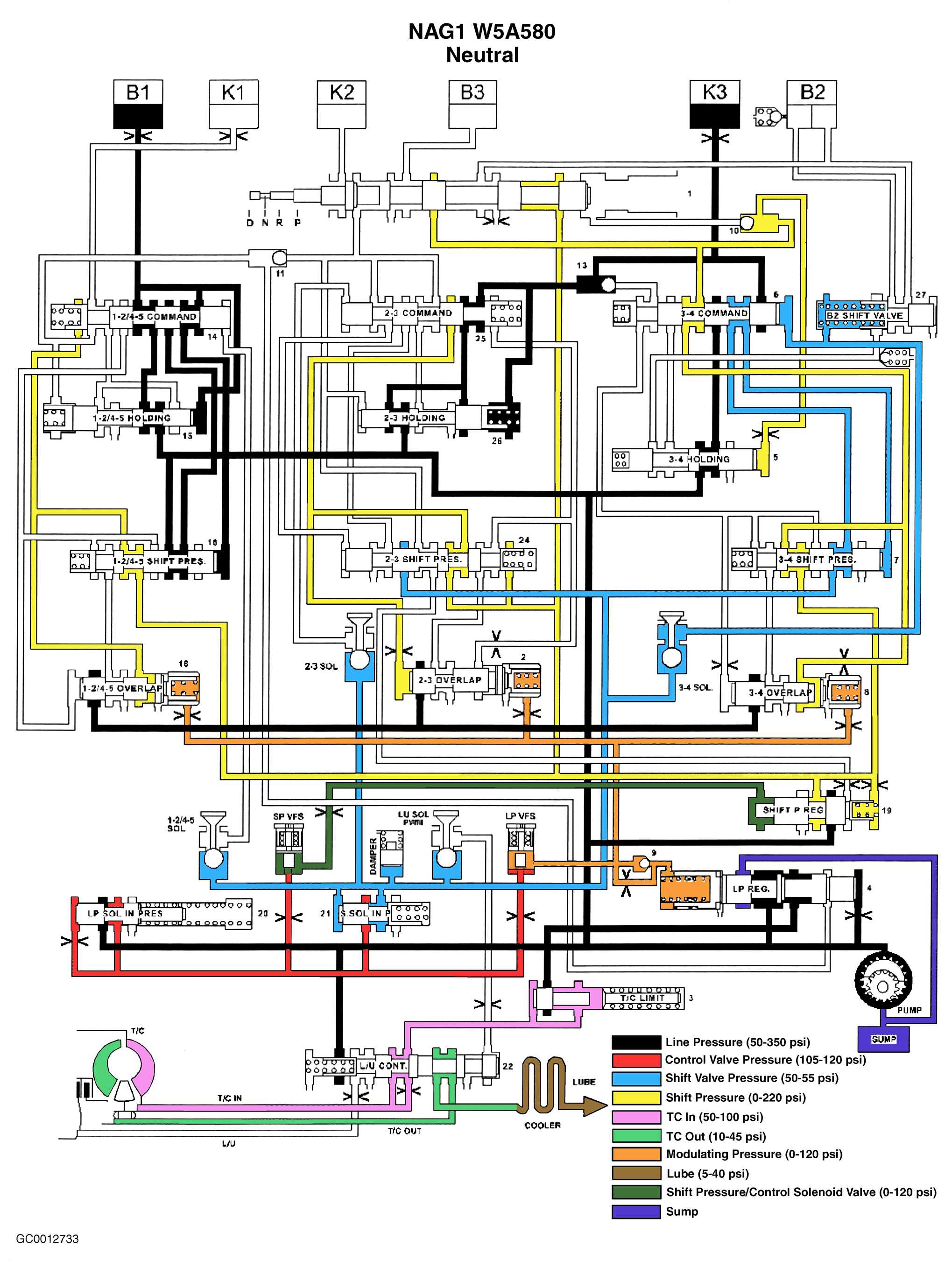

Fig 5: Hydraulic Flow In Neutral
Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Hydraulic Flow In Neutral to Drive Transition
Courtesy of DAIMLERCHRYSLER CORP.

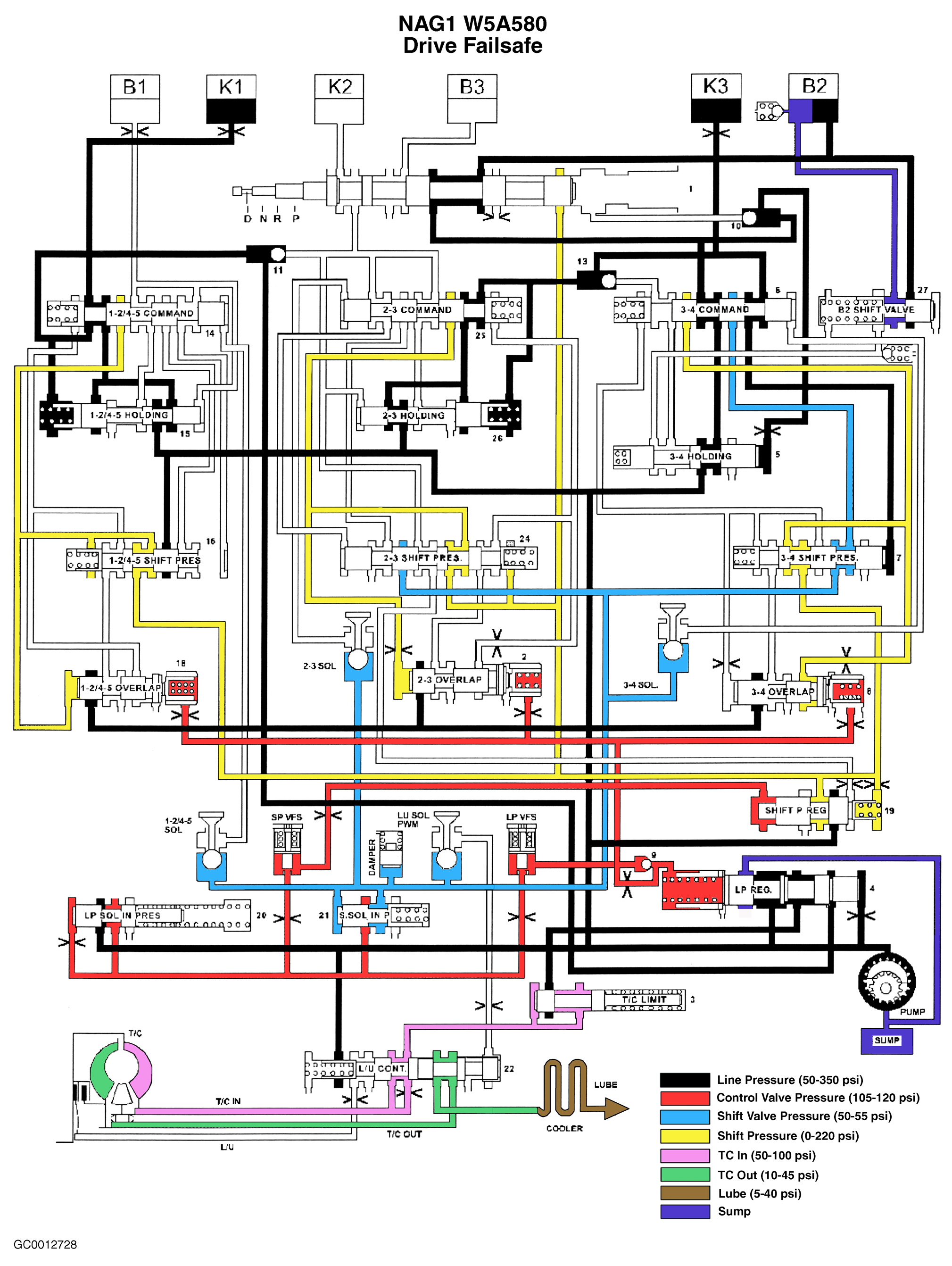

Fig 7: Hydraulic Flow In Drive - Failsafe
Courtesy of DAIMLERCHRYSLER CORP.

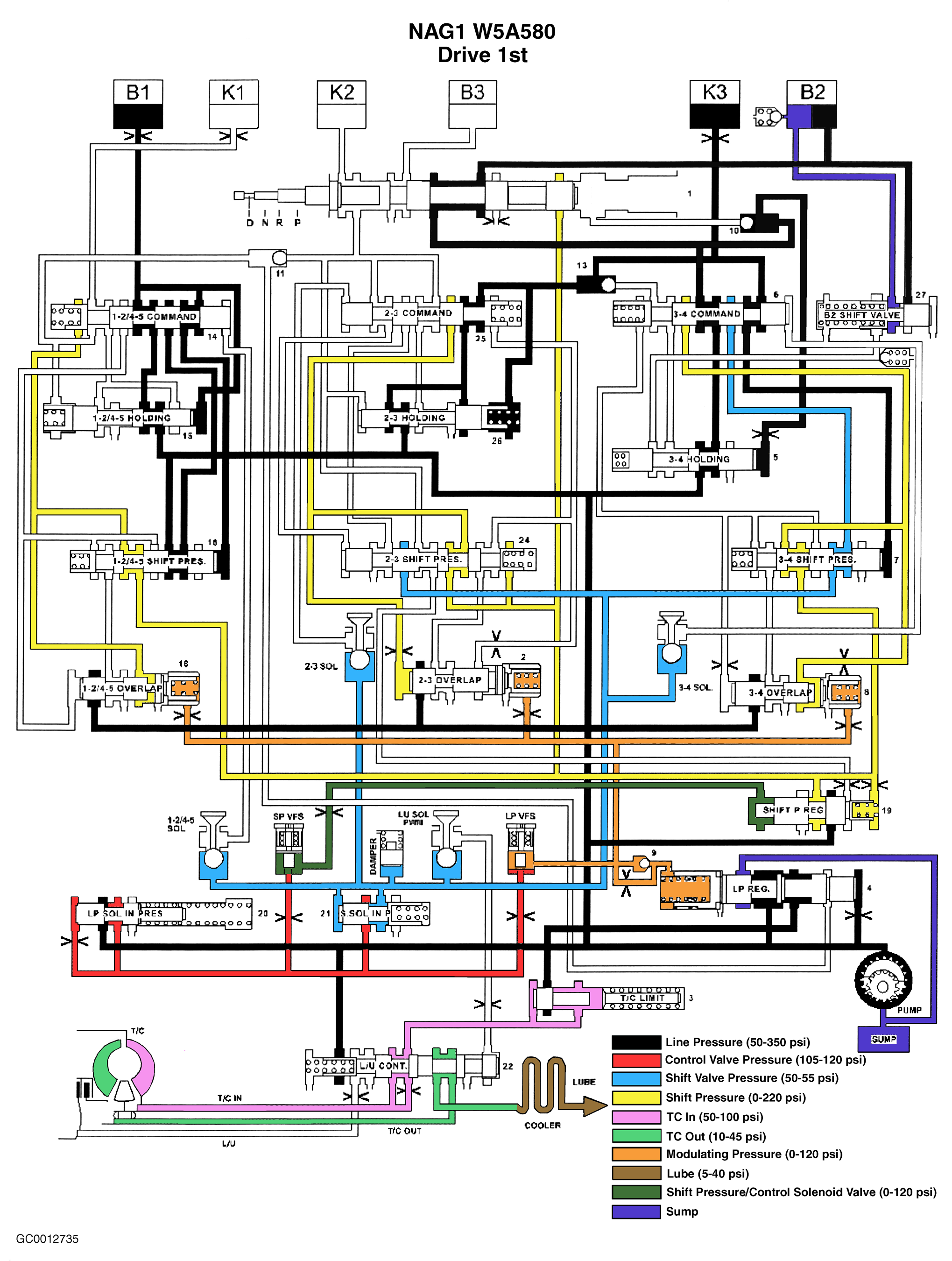

Fig 8: Hydraulic Flow In Drive - First Gear
Courtesy of DAIMLERCHRYSLER CORP.

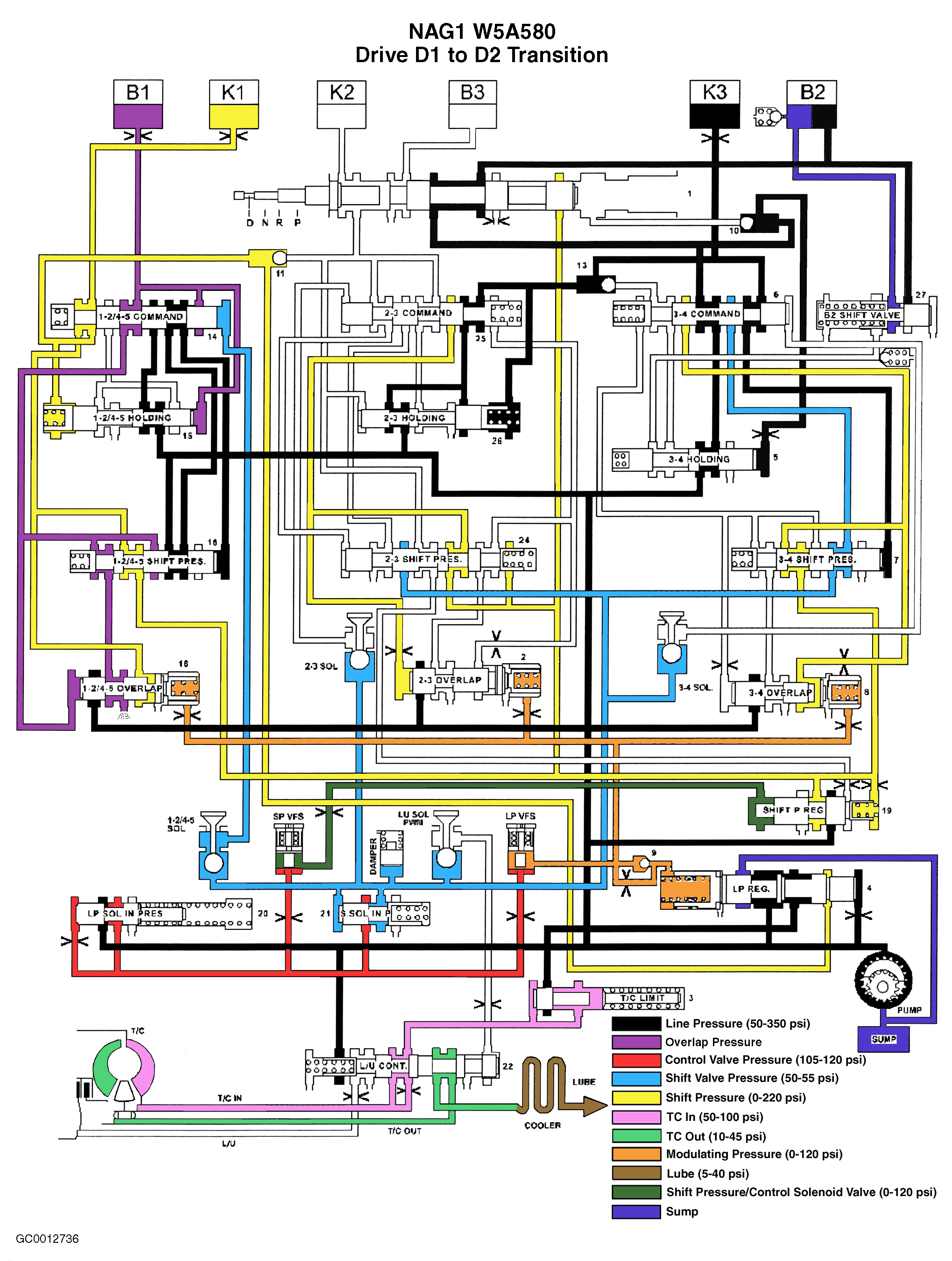

Fig 9: Hydraulic Flow In Drive - First to Second Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

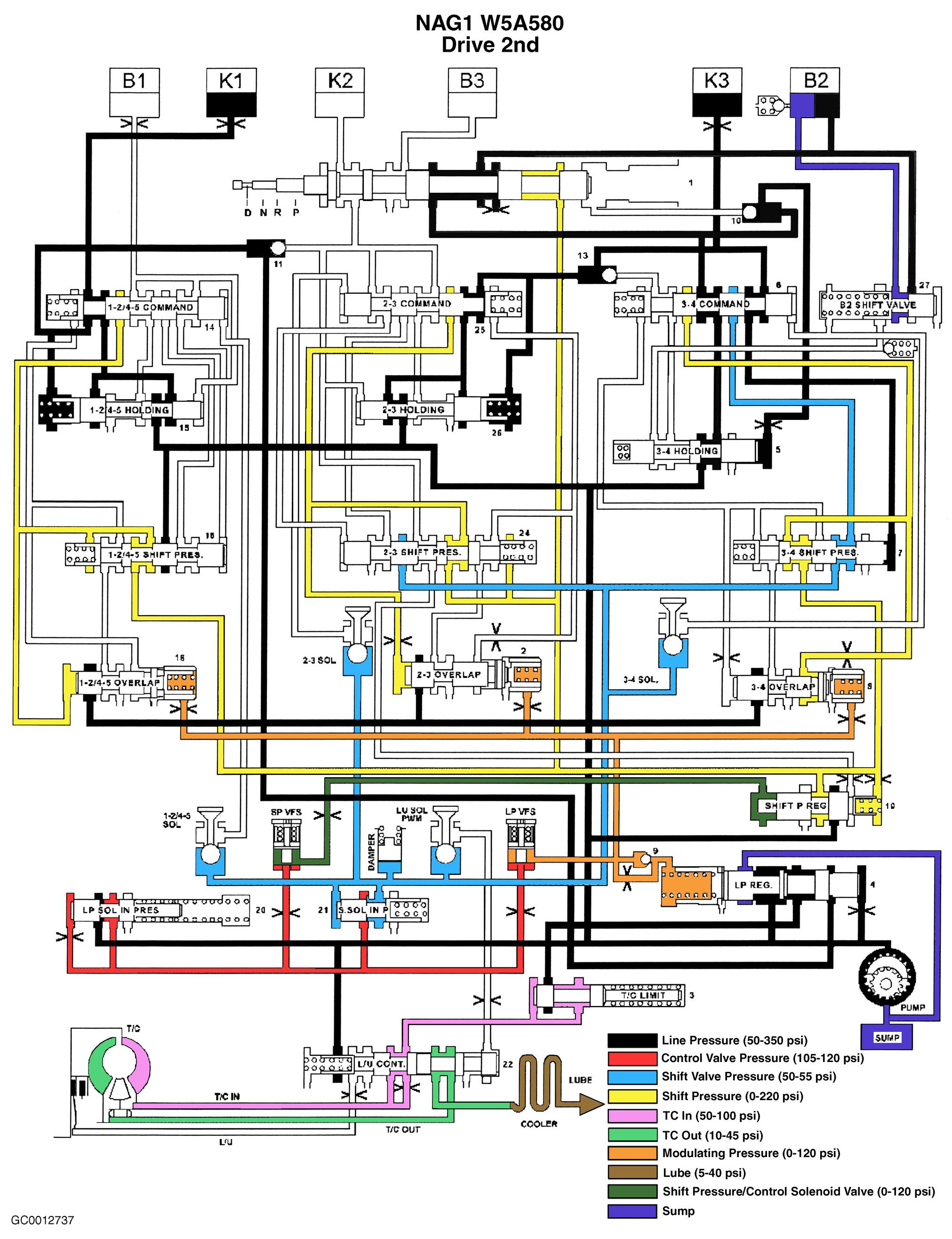

Fig 10: Hydraulic Flow In Drive - Second Gear
Courtesy of DAIMLERCHRYSLER CORP.

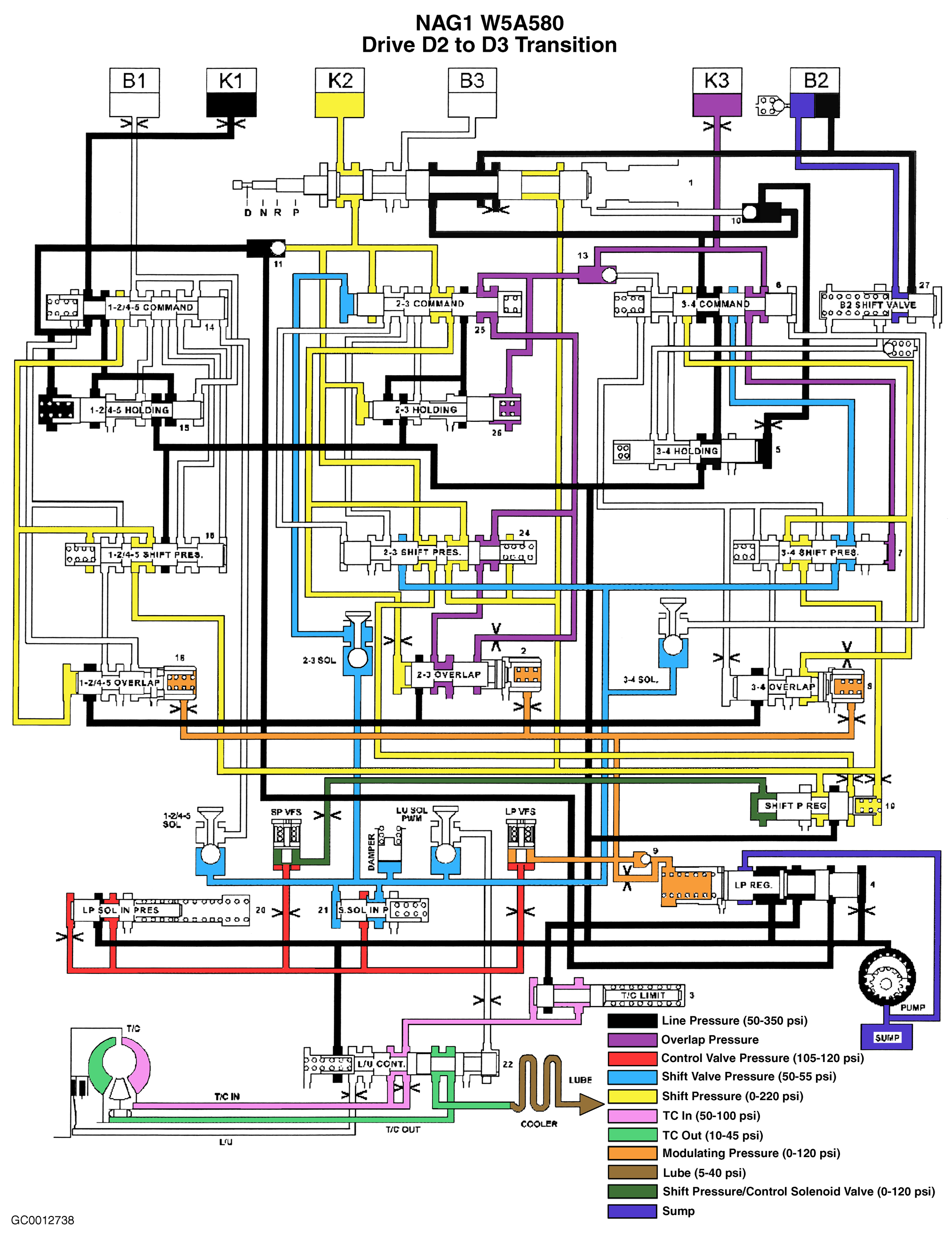

Fig 11: Hydraulic Flow In Drive - Second to Third Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

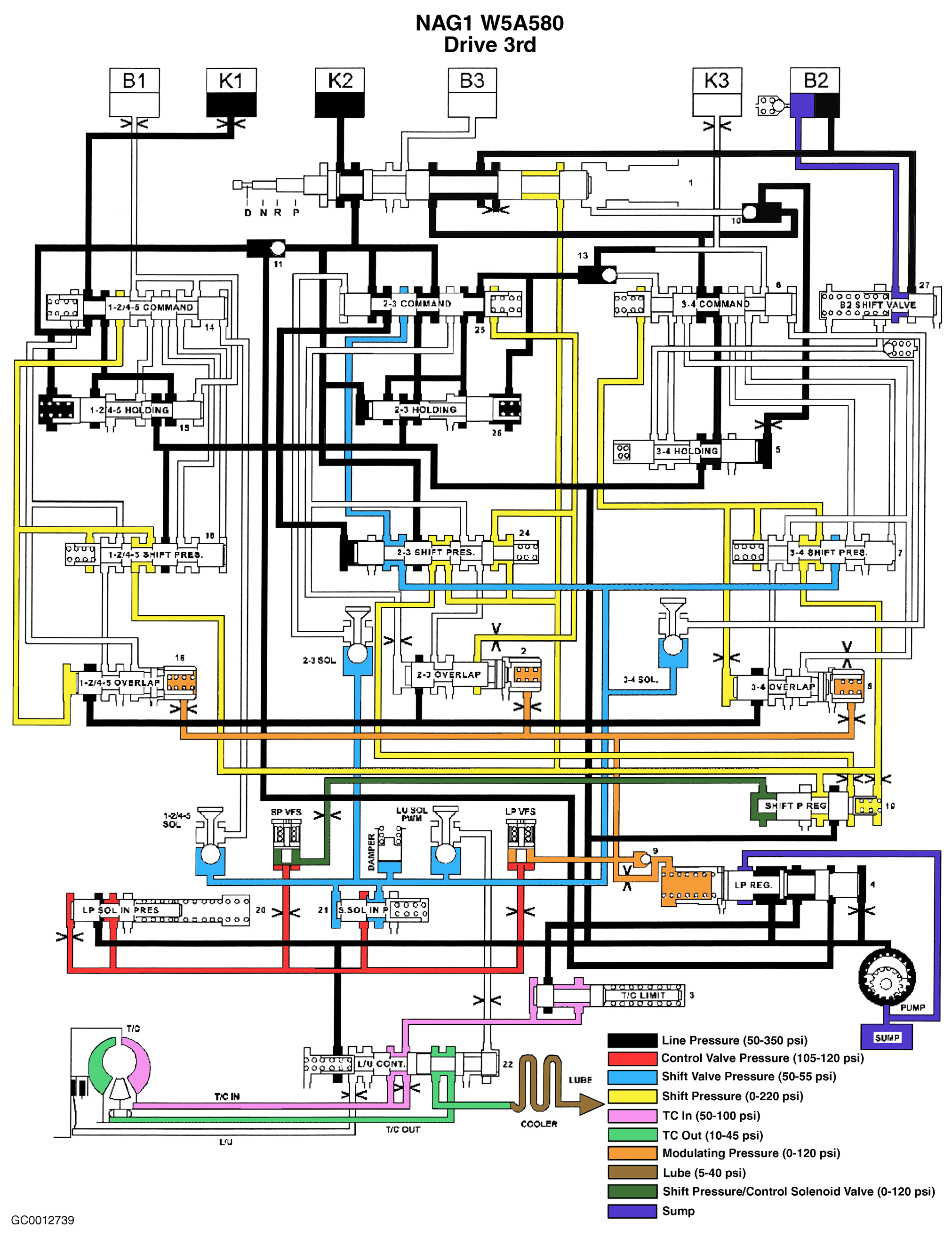

Fig 12: Hydraulic Flow In Drive - Third Gear
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Hydraulic Flow In Drive - Third to Fourth Gear Transition
Courtesy of DAIMLERCHRYSLER CORP.

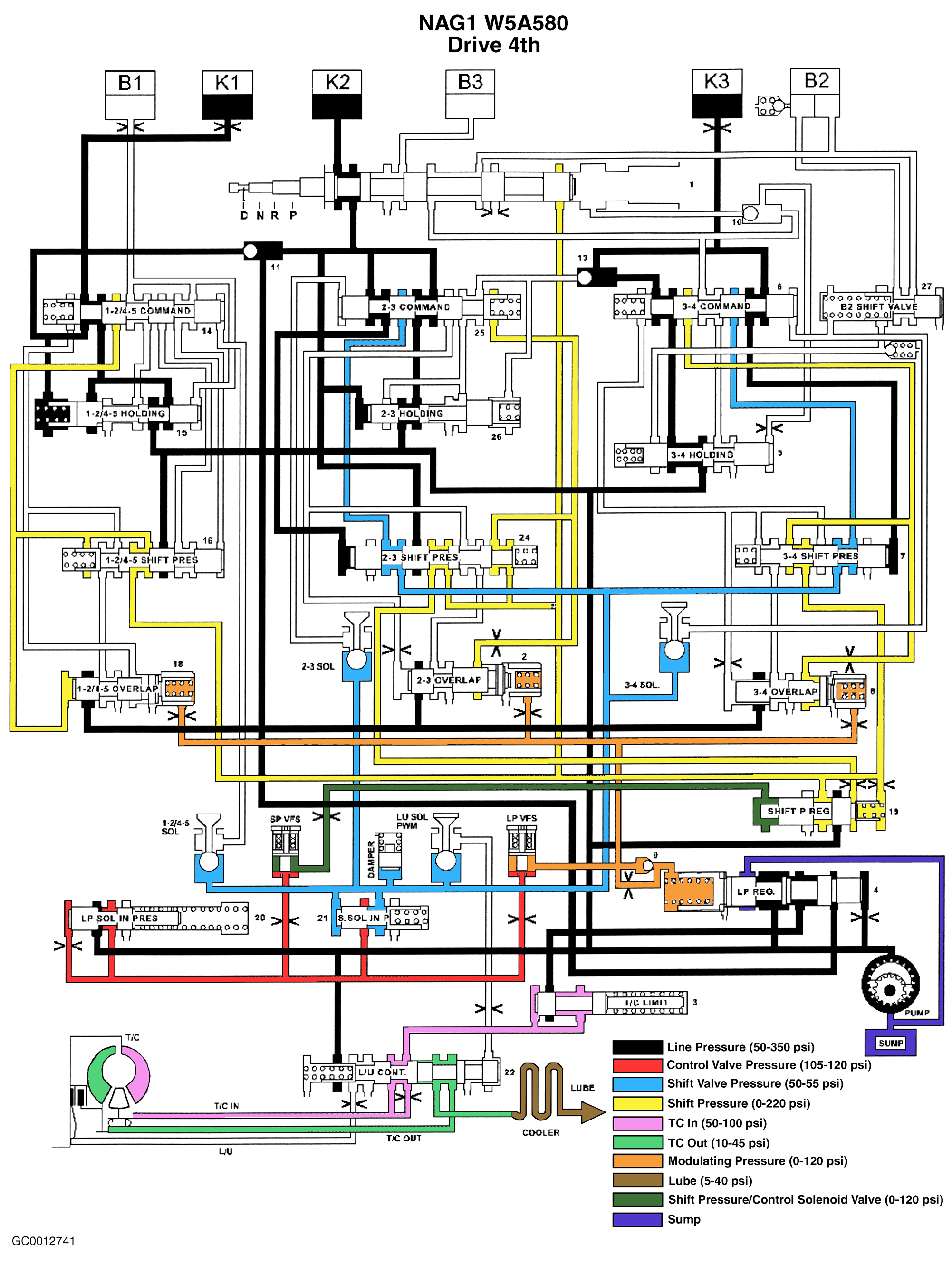

Fig 14: Hydraulic Flow In Drive - Fourth Gear
Courtesy of DAIMLERCHRYSLER CORP.

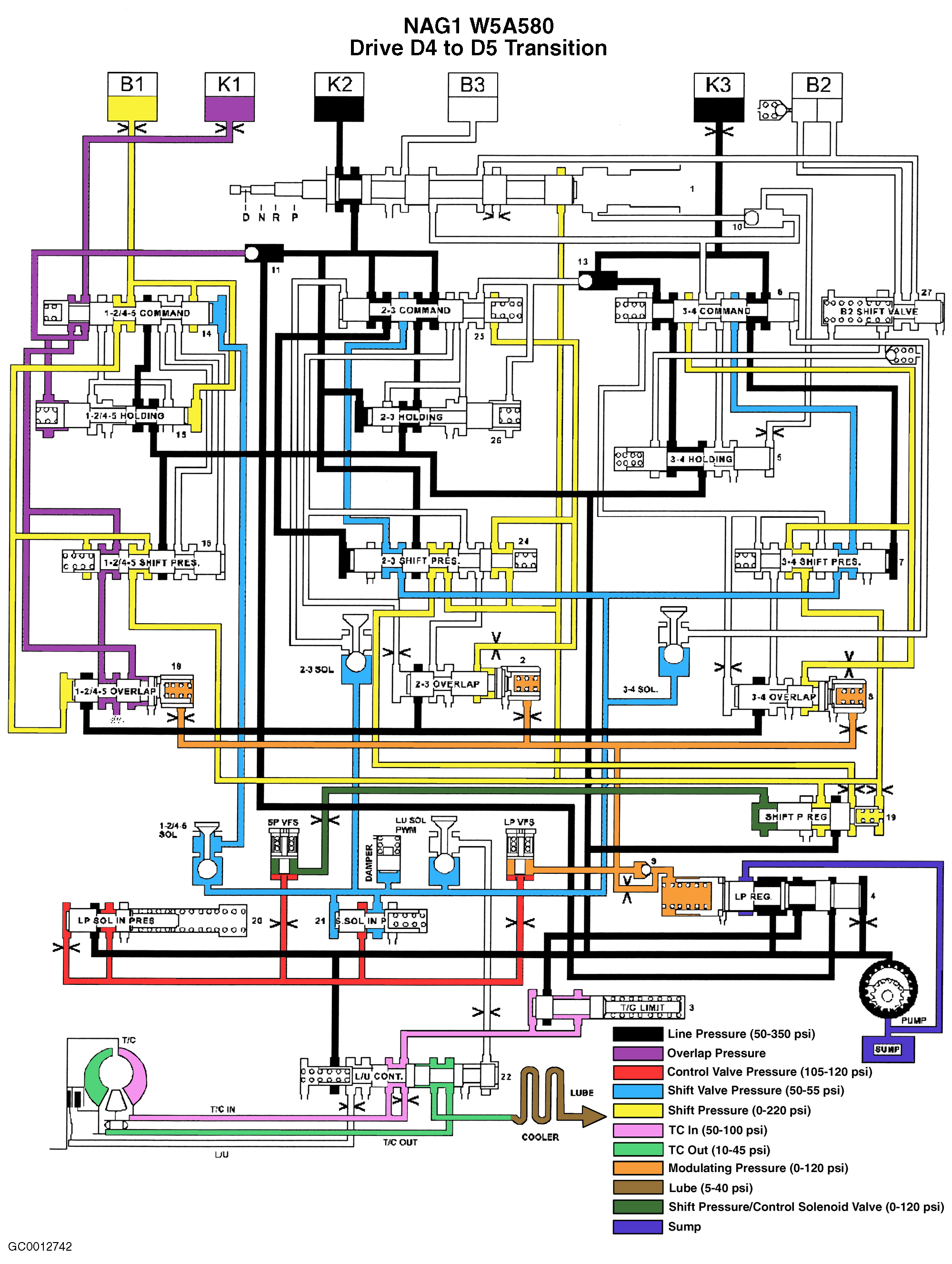

Fig 15: Hydraulic Flow In Drive - Fourth to Fifth Gear Transition
