Service Information: Pump-Oil: Assembly
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - INNER OIL SEAL |
| 2 - OUTER OIL SEAL |
- Install new inner oil pump seal (1) with Seal Installer 8902-A. See Fig 1.
- Replace O-ring (2). See Fig 1.

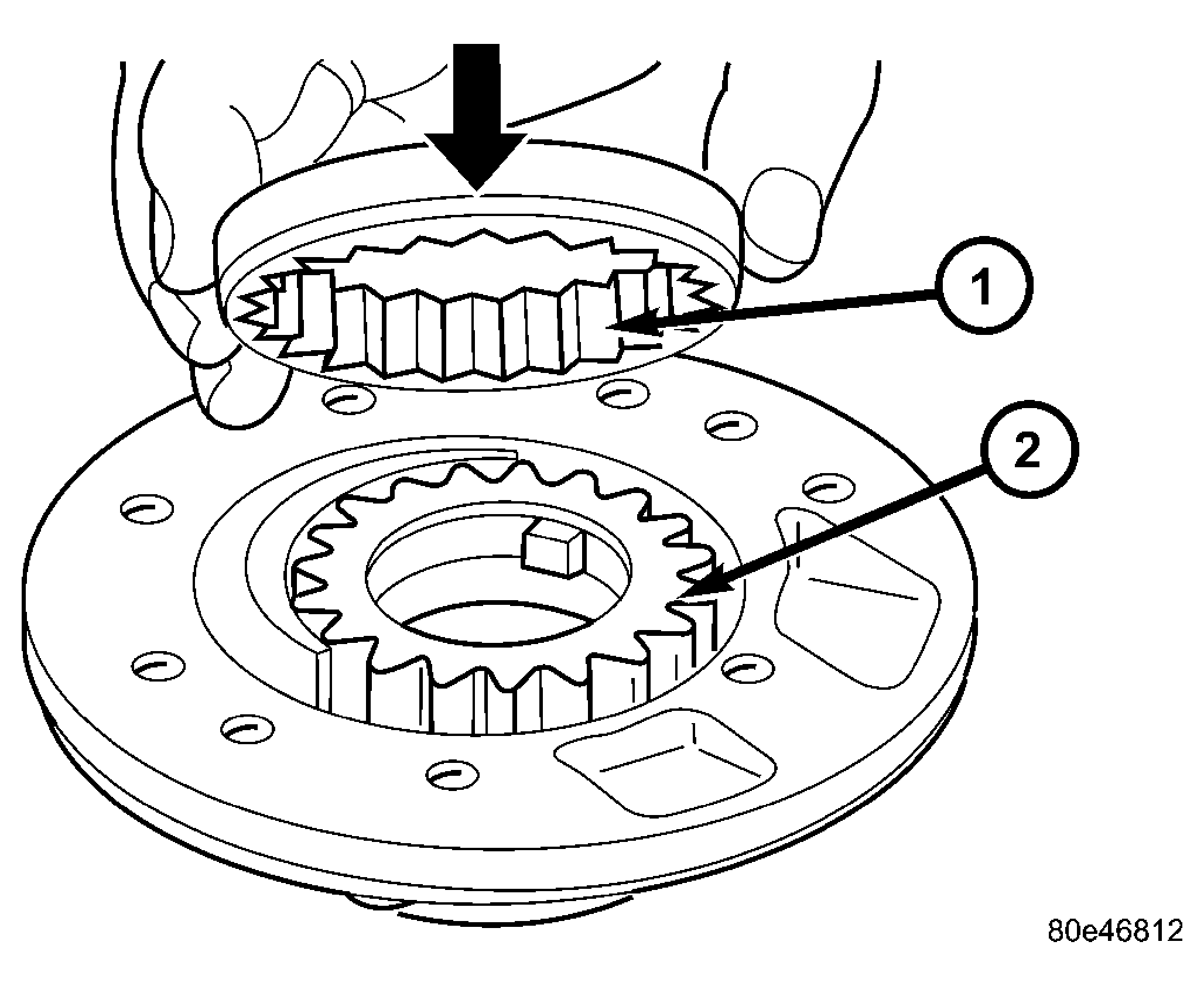

Courtesy of DAIMLERCHRYSLER CORP.
| 1 - OUTER PUMP ROTOR |
| 2 - INNER PUMP ROTOR |
- Lubricate pump gears and place in the pump housing. Insert pump gear (1) so that the chamfer (arrow) points towards the pump housing. See Fig 2.
