Service Information: GEARTRAIN-Planetary: Description

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

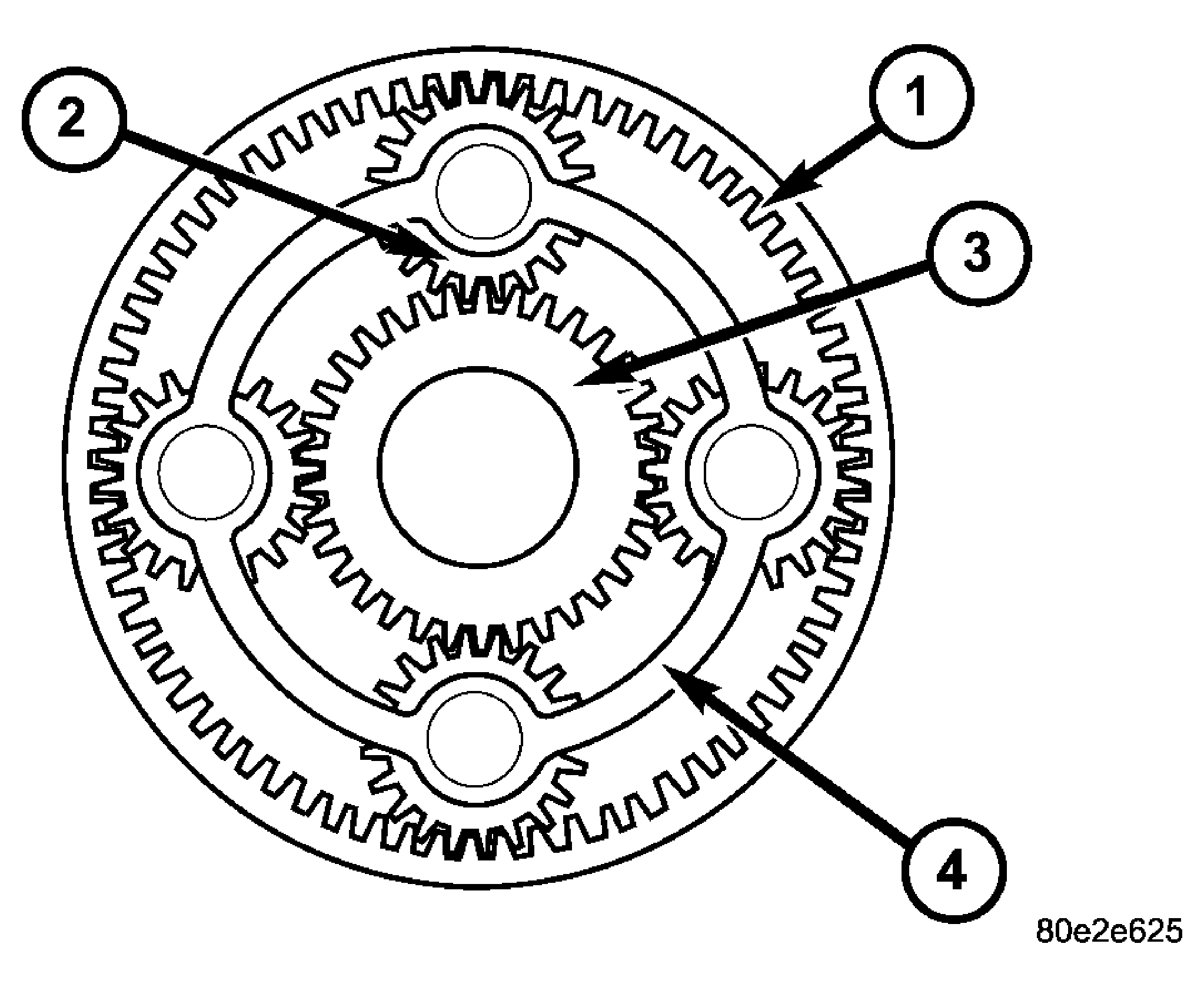

Fig 1: Planetary Geartrain

Courtesy of DAIMLERCHRYSLER CORP.

1 - ANNULUS GEAR

2 - PLANETARY PINION GEARS

3 - SUN GEAR

4 - PLANETARY CARRIER

Three planetary gear sets are used to produce the different gear ratios. These are located in the mechanical part of the transmission as the front, middle and rear planetary gear sets. See Fig 1.
