Park/Neutral Contact

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

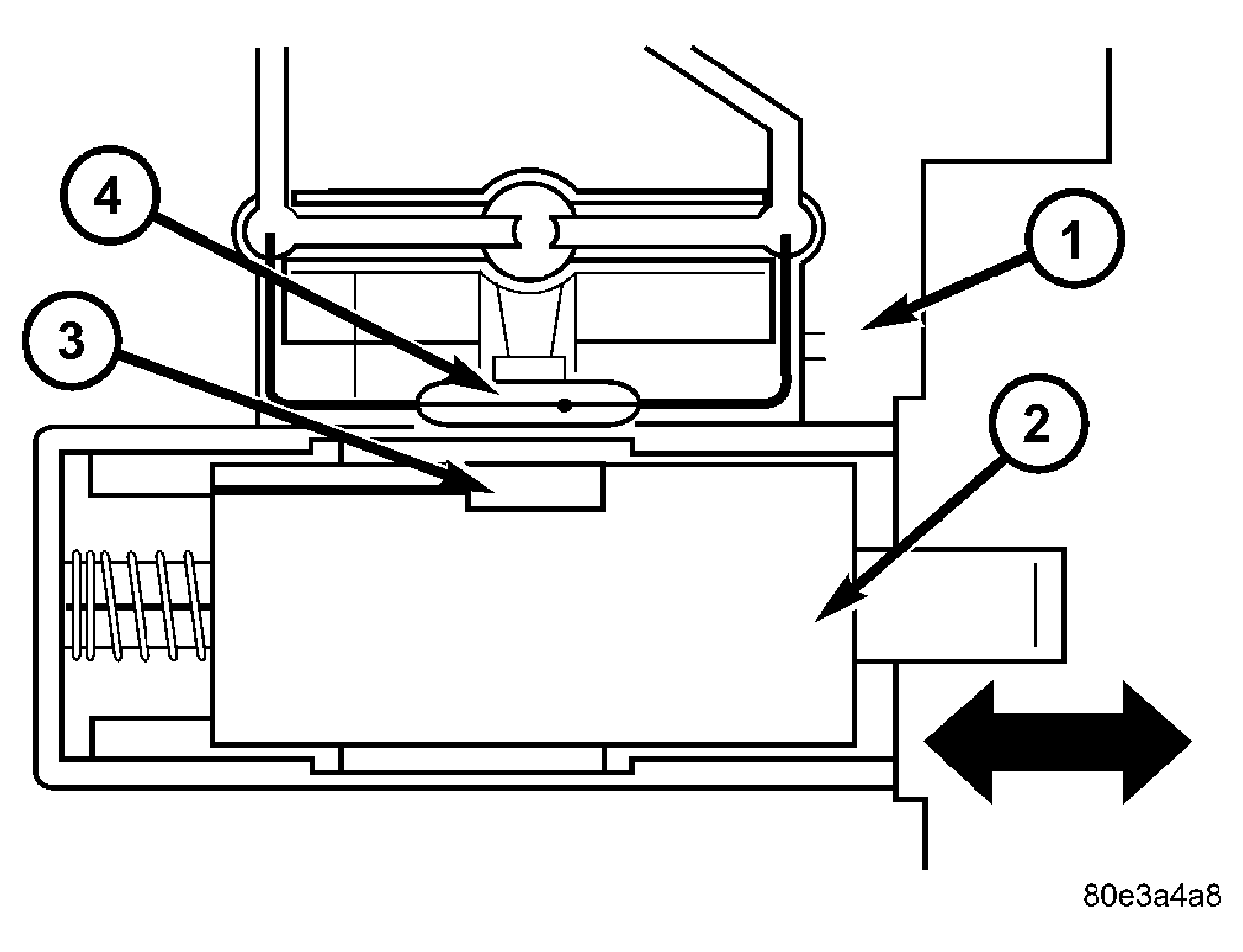

Fig 1: Cutaway View Of Park/Neutral Contact

Courtesy of DAIMLERCHRYSLER CORP.

1 - SHELL OF ELECTRIC CONTROL MODULE

2 - PLUNGER

3 - PERMANENT MAGNET

4 - DRY-REED CONTACT

The park/neutral contact (4) is located in the shell of the electric control unit and is fixed to the conductor tracks. See Fig 1.

Its purpose is to recognize selector valve and selector lever positions "P" and "N". The park/neutral contact consists of:

the plunger (2).
the permanent magnet (3).
the dry-reed contact (4).
