Service Information: Clutch-Freewheeling: Disassembly
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - HOLLOW SHAFT | 4 - K3 INNER DISC CARRIER AND REAR PLANETARY SUN GEAR |
| 2 - F2 CLUTCH SNAP-RING | 5 - RETAINING RING |
| 3 - FREEWHEELING CLUTCH F2 | 6 - O-RINGS |
- Remove retaining ring (5) from hollow shaft (1). See Fig 1.
- Remove rear sun gear (4) with the K3 internally toothed disk carrier and rear freewheeling clutch F2 (3).
- Remove snap-ring (2) for freewheel. See Fig 1.
- Press freewheeling clutch (3) out of sun gear.
- Check O-rings (6), replace if necessary.

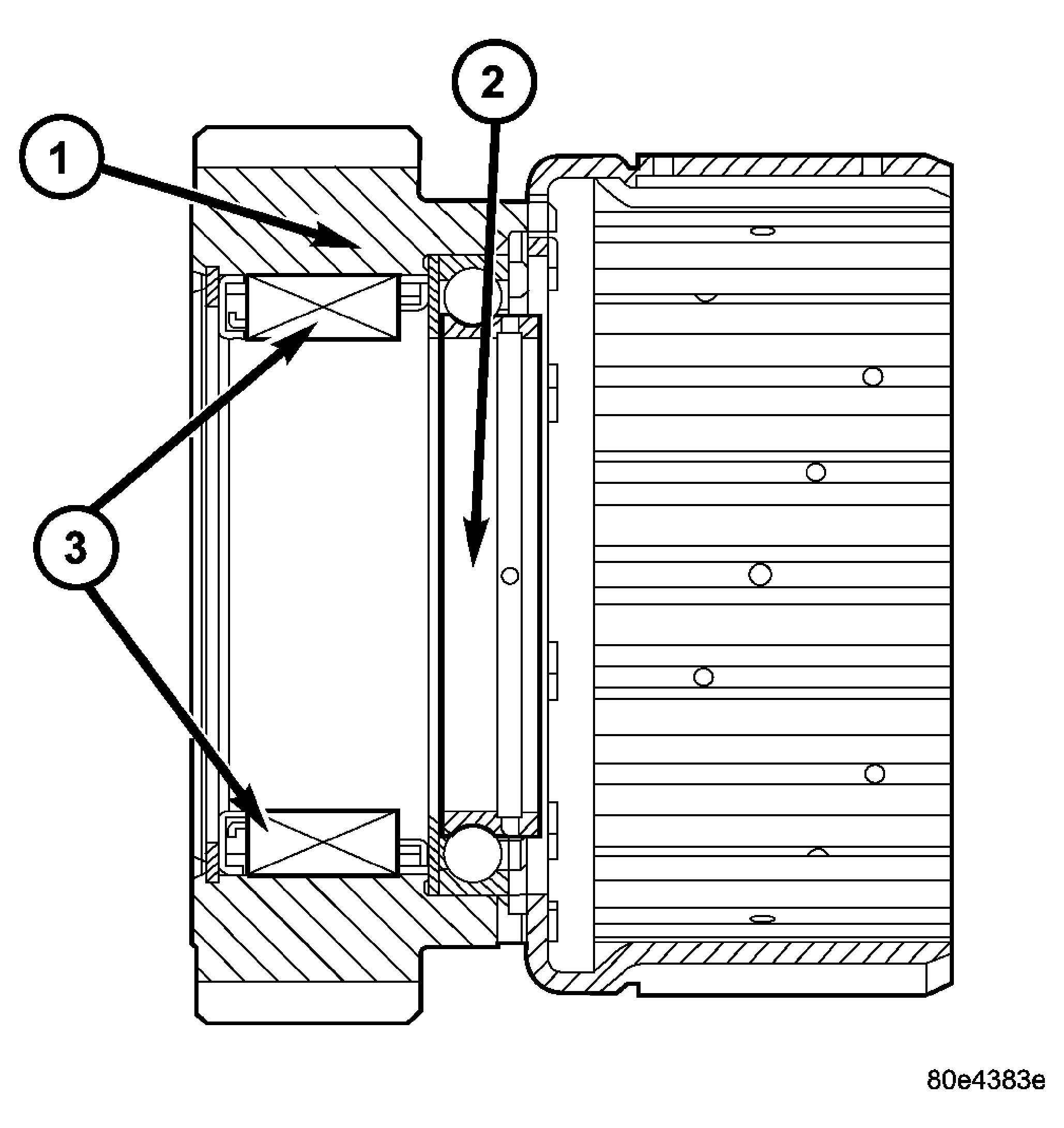

1 - K3 INNER DISC CARRIER AND REAR PLANETARY SUN GEAR 2 - ANTI-FRICTION BEARING 3 - FREEWHEELING CLUTCH F2 - Check the anti-friction bearing (2) in the rear planetary sun gear for damage. Replace as necessary. See Fig 2.
