Service Information: Clutch-Freewheeling: Assembly
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

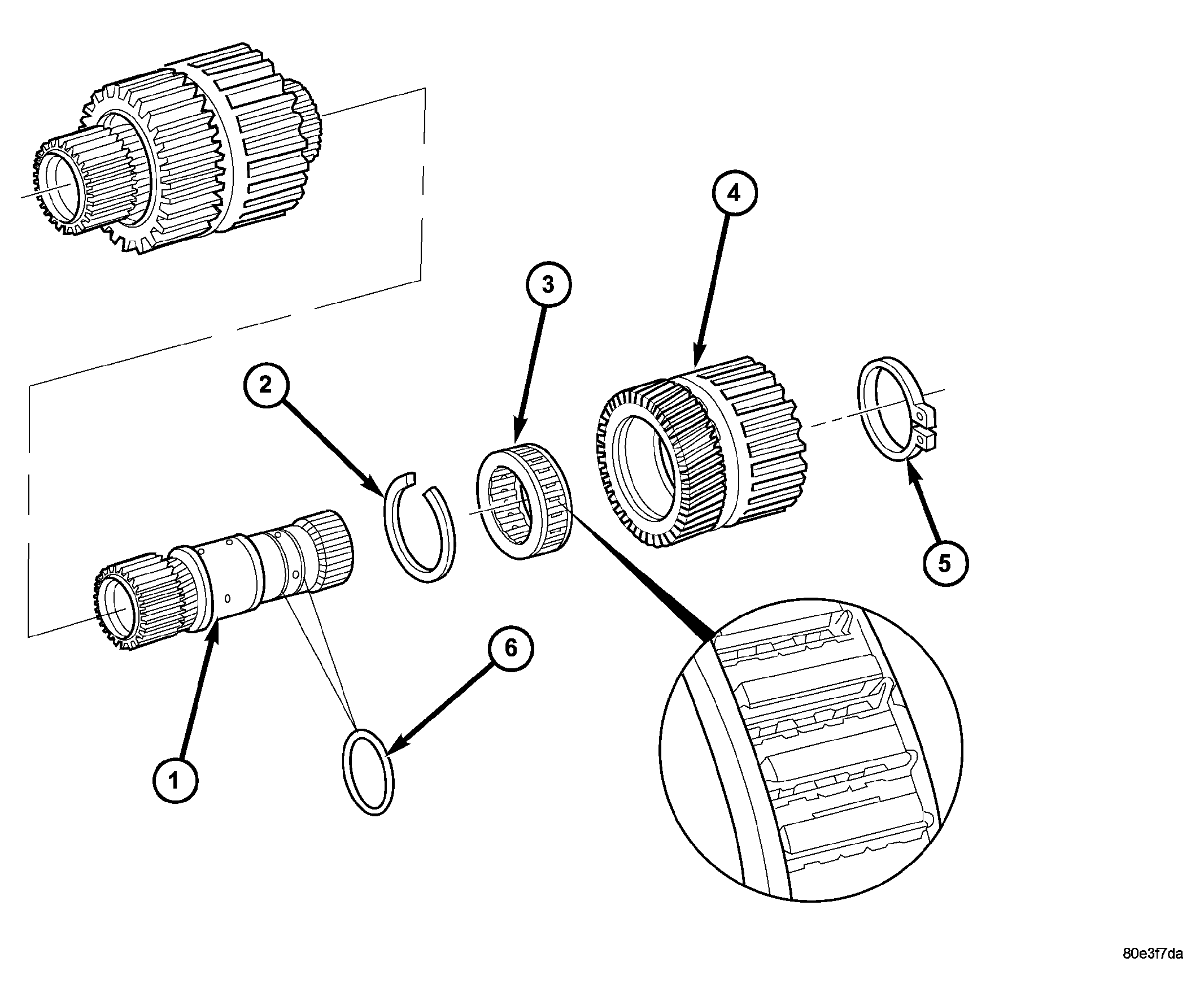

| 1 - HOLLOW SHAFT | 4 - K3 INNER DISC CARRIER AND REAR PLANETARY SUN GEAR |
| 2 - F2 CLUTCH SNAP-RING | 5 - RETAINING RING |
| 3 - FREEWHEELING CLUTCH F2 | 6 - O-RINGS |
NOTE:
The side of the freewheeling clutch F2 (3) with the markings (directional arrow, part number, etc.) must be up when the clutch is installed in the sun gear (4).
- Press freewheeling clutch F2 (3) into sun gear (4). See Fig 1.
- Install snap-ring (2) for freewheeling clutch.
- Check O-rings (6) on hollow shaft, replace if necessary. See Fig 1.
- Install rear sun gear (4) with K3 internally toothed disc carrier and rear freewheeling clutch (3) onto the hollow shaft.
- Verify proper operation of the freewheeling clutch F2. When the assembly is held with the F2 clutch snap-ring upward, it should be possible to rotate the hollow shaft counter-clockwise.
- Install retaining ring (5) onto hollow shaft (1).
