Diagnostic Test

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

1) CHECK IF THE DTC P0706 IS CURRENT
With the scan tool, erase Transmission DTCs.

Cycle the ignition off, then start the vehicle.

Firmly apply the brakes and shift into Overdrive.

NOTE: Vehicle must remain in Overdrive for at least three seconds.

With the brakes firmly applied, shift slowly through all gears (PRNDL) as least three times, pausing momentarily in each gear.

NOTE: If all the PRNDL lights box individually then the error was cleared.

Shift into park and turn the ignition off to the lock position.

Ignition on, engine not running.

With the scan tool, read Transmission DTCs.

Does the DTC P0706 reset, or do all the PRNDL indicators remain boxed in park or neutral?

Yes
1. Go To step 2).
No
1. Go To step 18).
2) CHECK SHIFTER OPERATION
With the scan tool, perform the Shift Lever Position Test.

Select the test outcome from the following:

Test passes
1. Go To step 18).
Test fails with error code
1. Go To step 3).
Test fails without error code
1. Go To step 17).
3) PCM AND WIRING
Turn the ignition off to the lock position.

Remove the Starter Relay.

CAUTION: Removal of the Starter Relay is to prevent a Transmission, NO RESPONSE, condition and disable the starter.

Install the Transmission Simulator, Miller tool #8333 and the Electronic Transmission Adapter kit 8333-1A.

Ignition on, engine not running.

With the scan tool, perform the Shift Lever Position Test.

When the scan tool instructs you to put the Gear Selector in a particular position, you must do so using the Transmission Simulator.

The LED for the gear position in question must be illuminated on the Transmission Simulator, prior to pressing the ENTER key on the scan tool.

NOTE: After completion of this procedure, make sure to disconnect the Transmission Simulator, Miller tool #8333 and Electronic Transmission adapter cable kit, Miller tool #8333-1A and reconnect all connectors.

Did the Shift Lever Position Test pass?

Yes
1. Replace the Transmission Range Sensor per the Service Information.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 4).
4) IDENTIFY FAULTY CIRCUIT
Reconnect all disconnected connectors. Turn the ignition on, engine not running.

With the scan tool, monitor the TRS Sense circuits on the Input/Output screen - C1 through C4.

Move the shift lever through all gear positions, pausing momentarily in each gear position and watch for one of the circuits to not change state.

Pick the one that did not change state.

TRS (T1)sense (C4)
1. Go To step 5).
TRS (T3)sense (C3)
1. Go To step 8).
TRS (T41)sense (C1)
1. Go To step 11).
TRS (T42)sense (C2)
1. Go To step 14).
5) TRS (T1) SENSE CIRCUIT OPEN

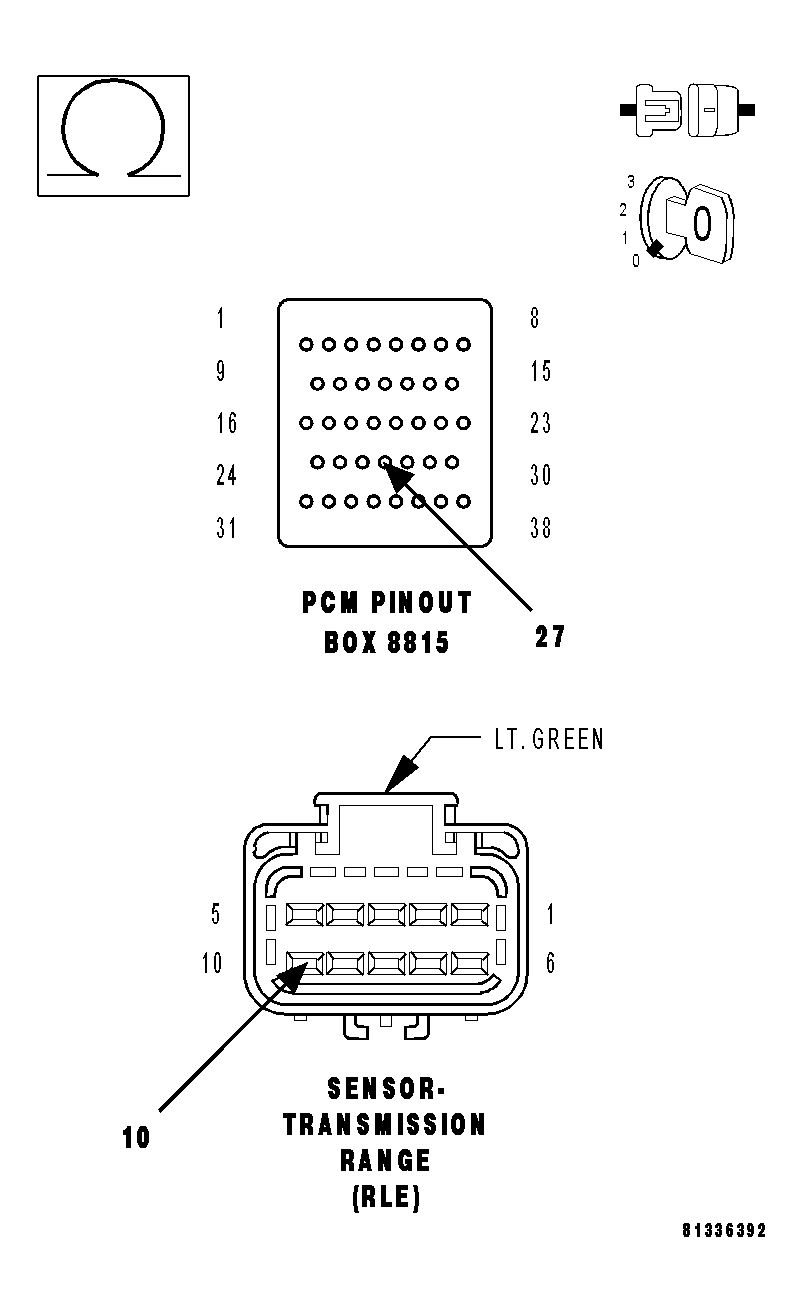

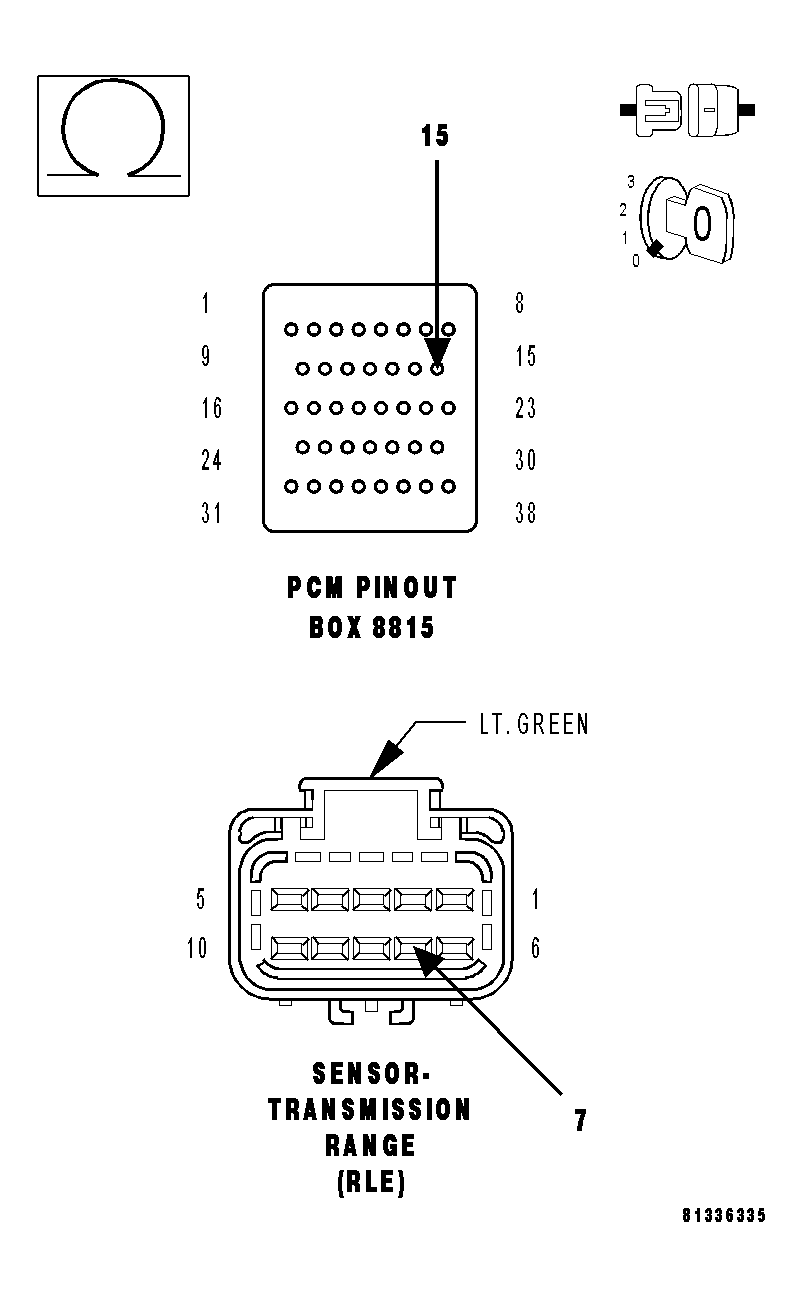

Fig 1: Checking TRS Sense Circuit For Open
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Tool #8815 to perform diagnosis.

Measure the resistance of the TRS (T1) Sense circuit from the appropriate terminal of special tool #8815 to the TRS harness connector.

Is the resistance above 5.0 ohms?

Yes
1. Repair the TRS (T1) Sense circuit for an open.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 6).
6) TRS (T1) SENSE CIRCUIT SHORT TO GROUND

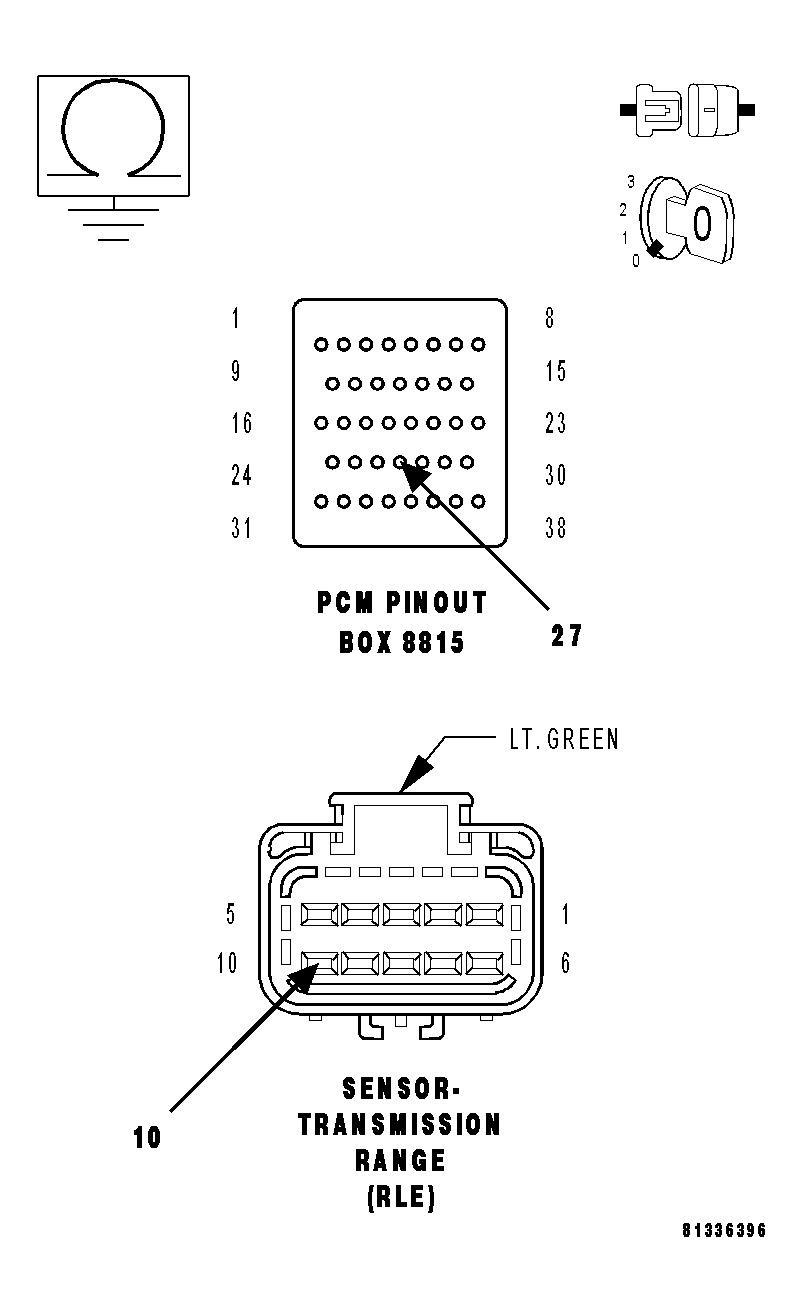

Fig 2: Checking TRS Sense Circuit For Short To Ground
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance between ground and the TRS (T1) Sense circuit.

Is the resistance below 5.0 ohms?

Yes
1. Repair the TRS (T1) Sense circuit for a short to ground.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 7).
7) TRS (T1) SENSE CIRCUIT SHORT TO VOLTAGE

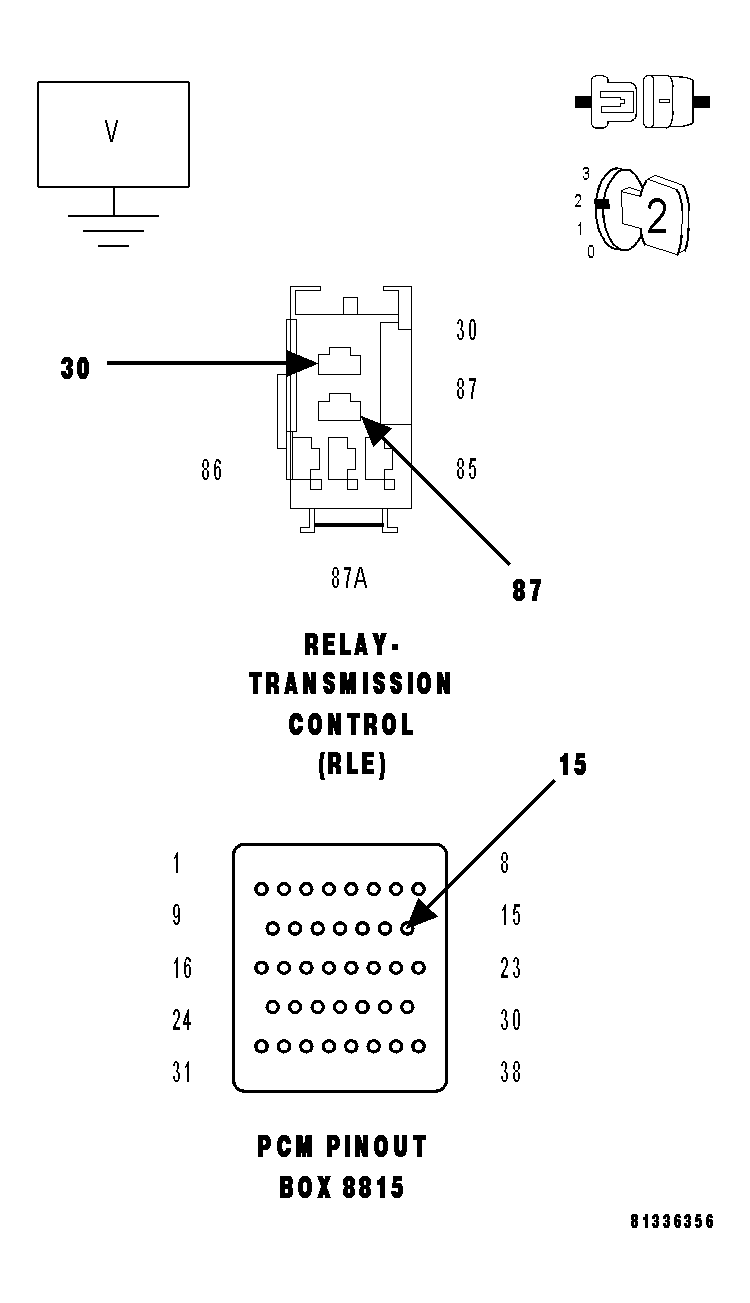

Fig 3: Checking TRS Sense Circuit For Short To Voltage
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

Remove the Transmission Control Relay from the PDC.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire between the (Internal) Fused B+ circuit and the (T16) Transmission Control Relay Output circuit in the Transmission Control Relay connector.

Ignition on, engine not running.

Measure the voltage of the TRS (T1) Sense circuit at the appropriate terminal of special tool #8815.

Is the voltage above 0.5 volt?

Yes
1. Repair the TRS (T1) Sense circuit for a short to voltage.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool PERFORM QUICK LEARN, then program Pinion Factor in the Front Control Module. (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - REMOVAL)
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
8) TRS (T3) SENSE CIRCUIT OPEN

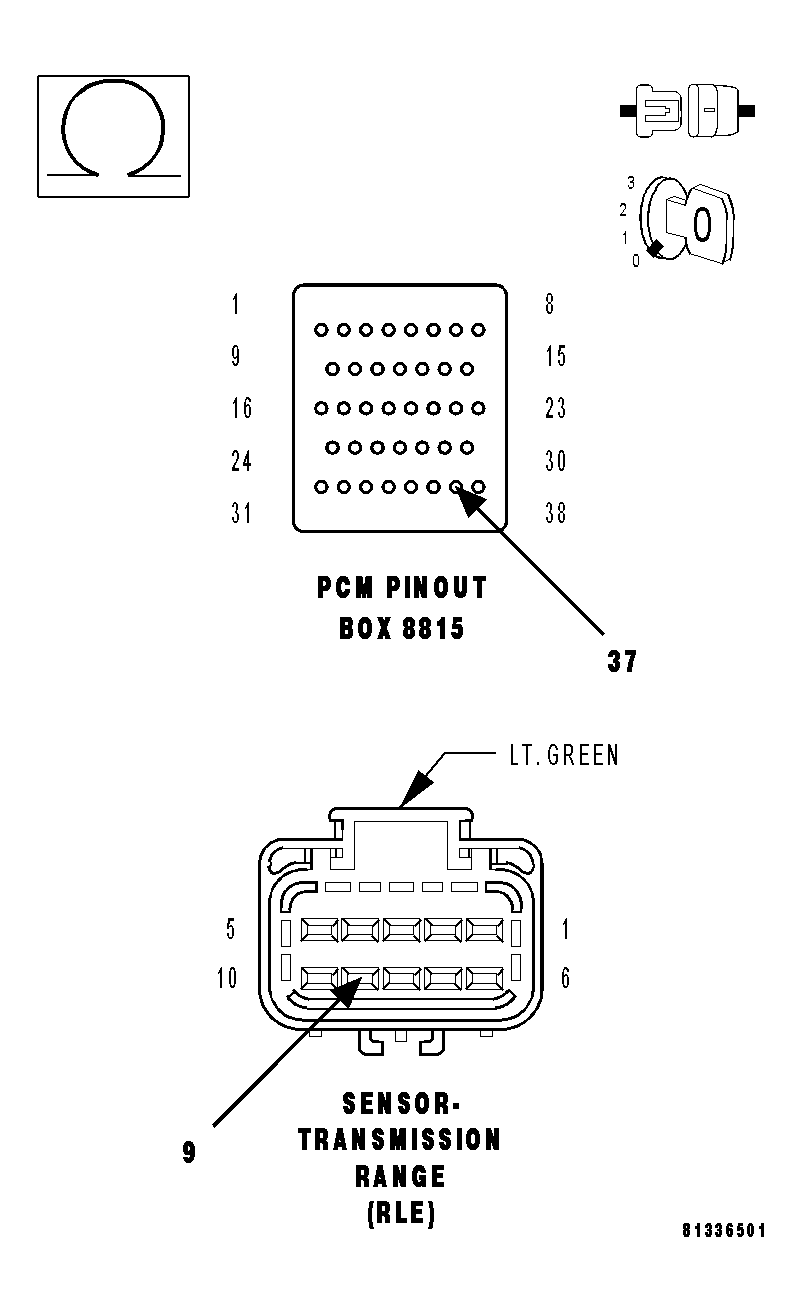

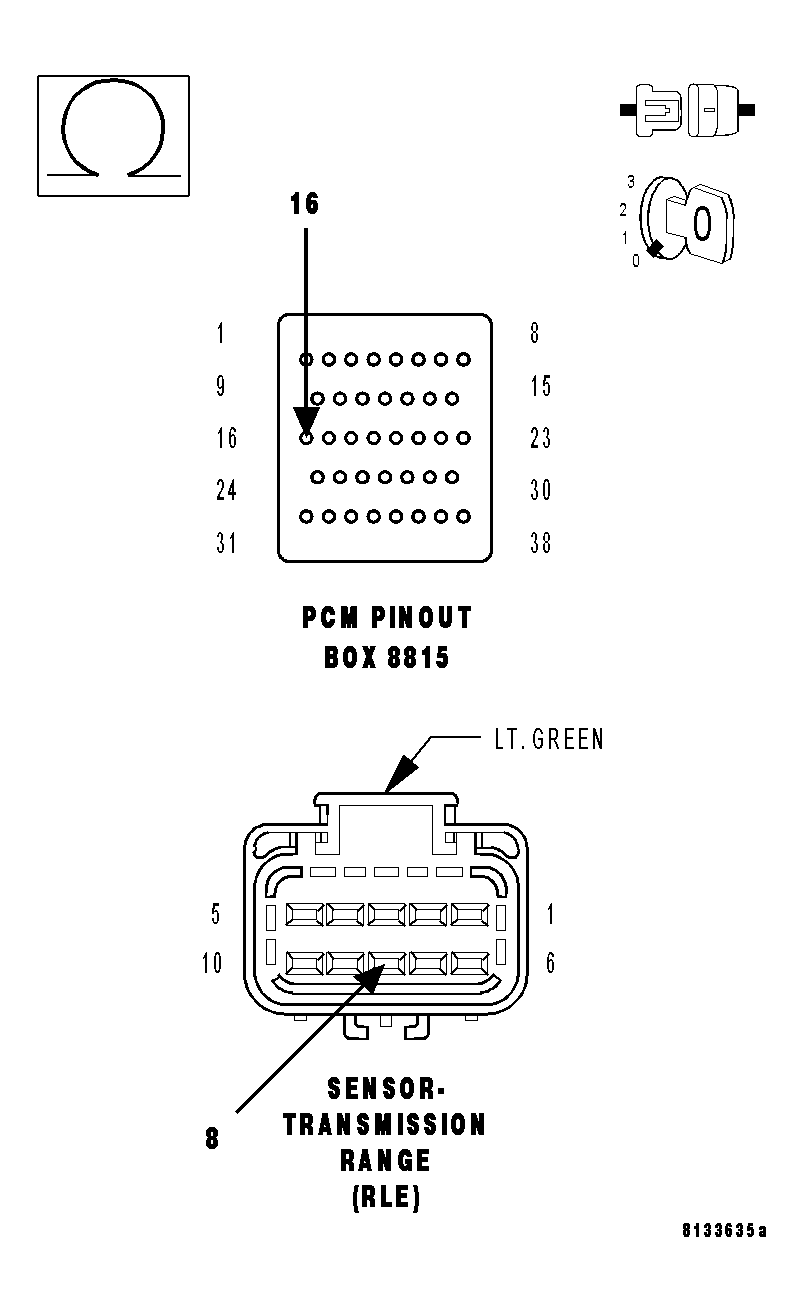

Fig 4: Checking TRS Sense Circuit For Open
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Tool #8815 to perform diagnosis.

Measure the resistance of the TRS (T3) Sense circuit from the appropriate terminal of special tool #8815 to the TRS harness connector.

Is the resistance above 5.0 ohms?

Yes
1. Repair the TRS (T3) Sense circuit for an open.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 9).
9) TRS (T3) SENSE CIRCUIT SHORT TO GROUND

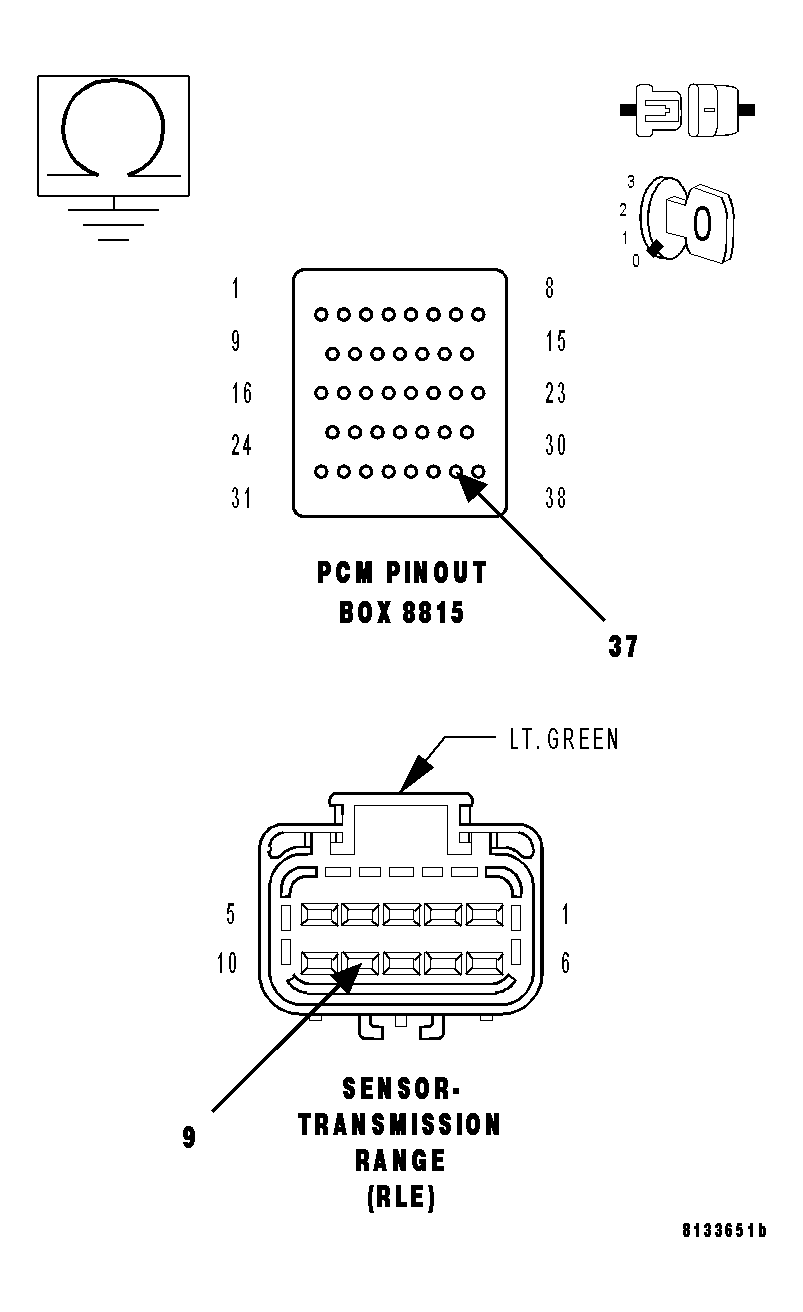

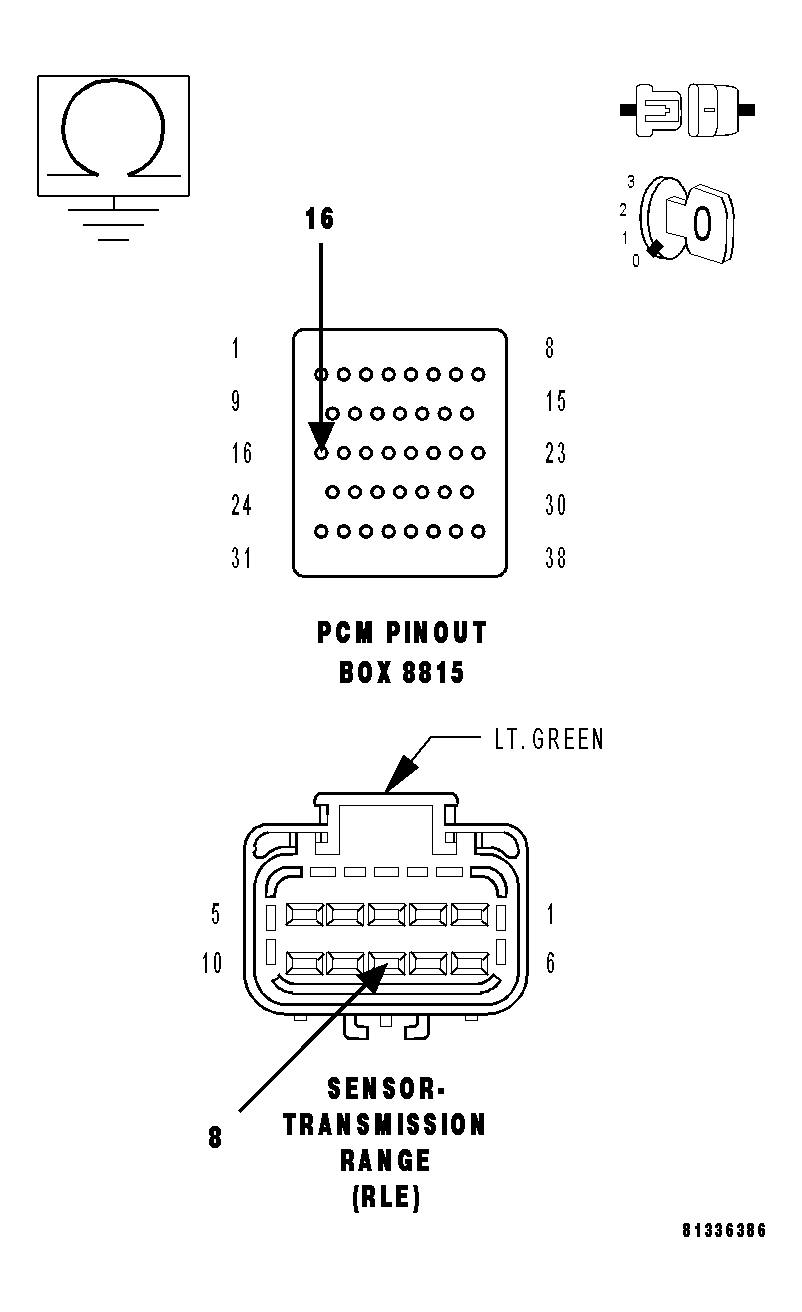

Fig 5: Checking TRS Sense Circuit For Short To Ground
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance between ground and the TRS (T3) Sense circuit.

Is the resistance below 5.0 ohms?

Yes
1. Repair the TRS (T3) Sense circuit for a short to ground.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 10).
10) TRS (T3) SENSE CIRCUIT SHORT TO VOLTAGE

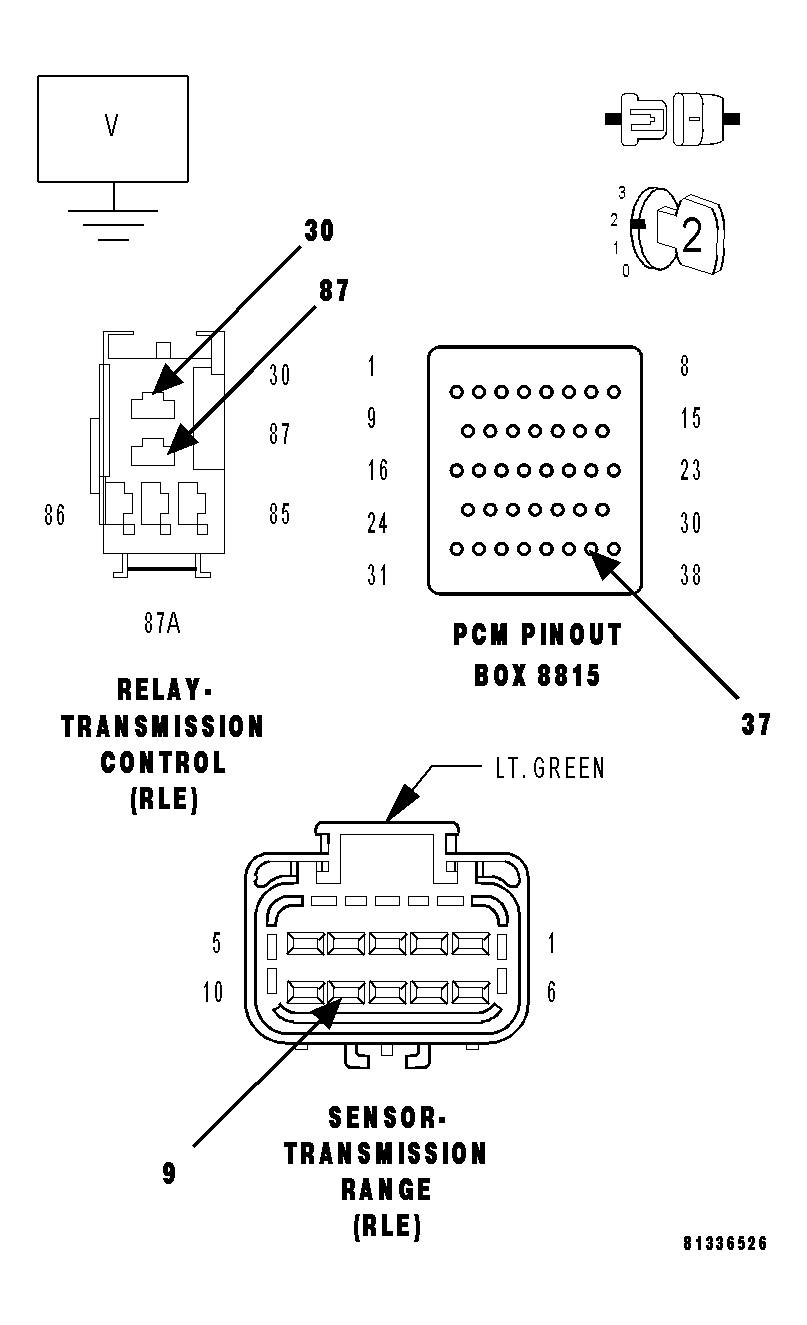

Fig 6: Checking TRS Sense Circuit For Short To Voltage
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire between the (Internal) Fused B+ circuit and the (T16) Transmission Control Relay Output circuit in the Transmission Control Relay connector.

Ignition on, engine not running.

Measure the voltage of the TRS (T3) Sense circuit.

Is the voltage above 0.5 volt?

Yes
1. Repair the TRS (T3) Sense circuit for a short to voltage.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool PERFORM QUICK LEARN, then program Pinion Factor in the Front Control Module. (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - REMOVAL)
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
11) TRS (T41) SENSE CIRCUIT OPEN

Fig 7: Checking TRS Sense Circuit For Open
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C3 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Tool #8815 to perform diagnosis.

Measure the resistance of the TRS (T41) Sense circuit from the appropriate terminal of special tool #8815 to the TRS harness connector.

Is the resistance above 5.0 ohms?

Yes
1. Repair the TRS (T41) Sense circuit for an open.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 12).
12) TRS (T41) SENSE CIRCUIT SHORT TO GROUND

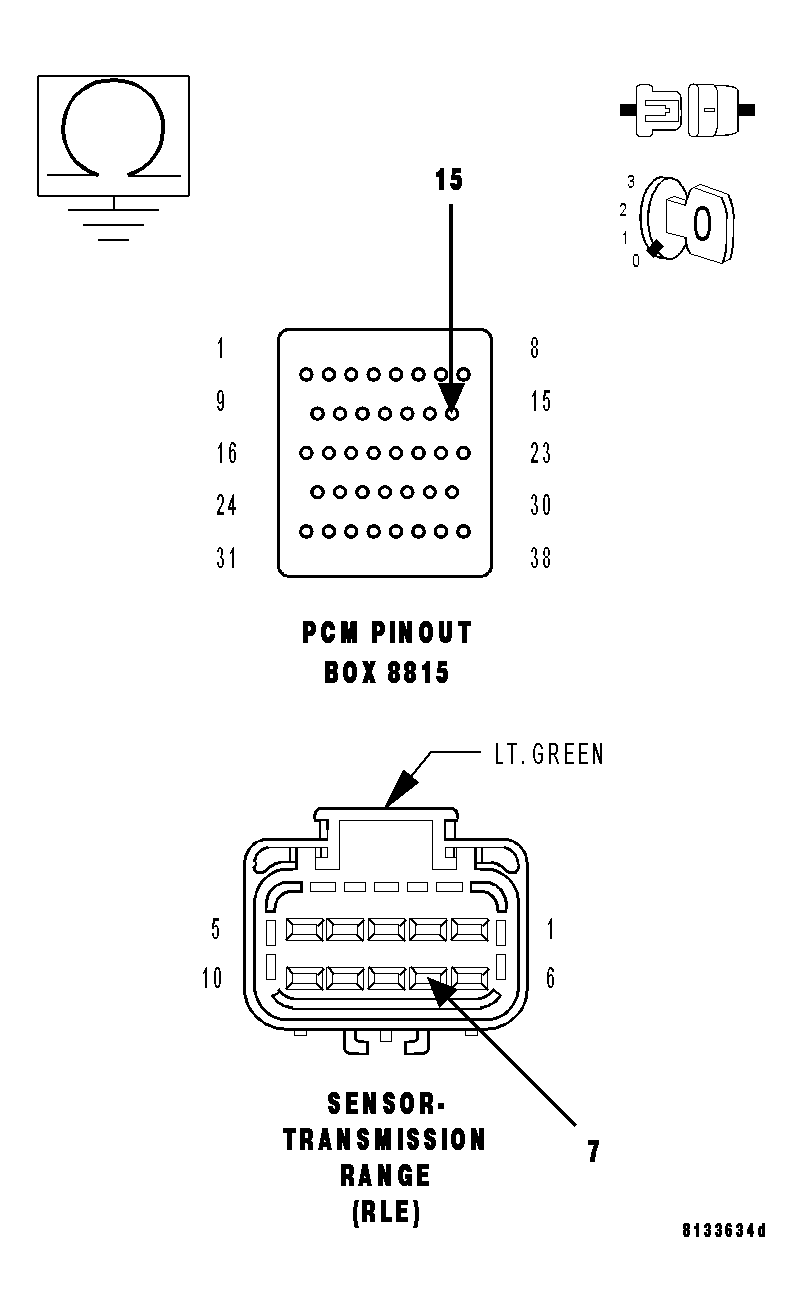

Fig 8: Checking TRS Sense Circuit For Short To Ground
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C3 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance between ground and the TRS (T41) Sense circuit

Is the resistance below 5.0 ohms?

Yes
1. Repair the TRS (T41) Sense circuit for a short to ground.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 13).
13) TRS (T41) SENSE CIRCUIT SHORT TO VOLTAGE

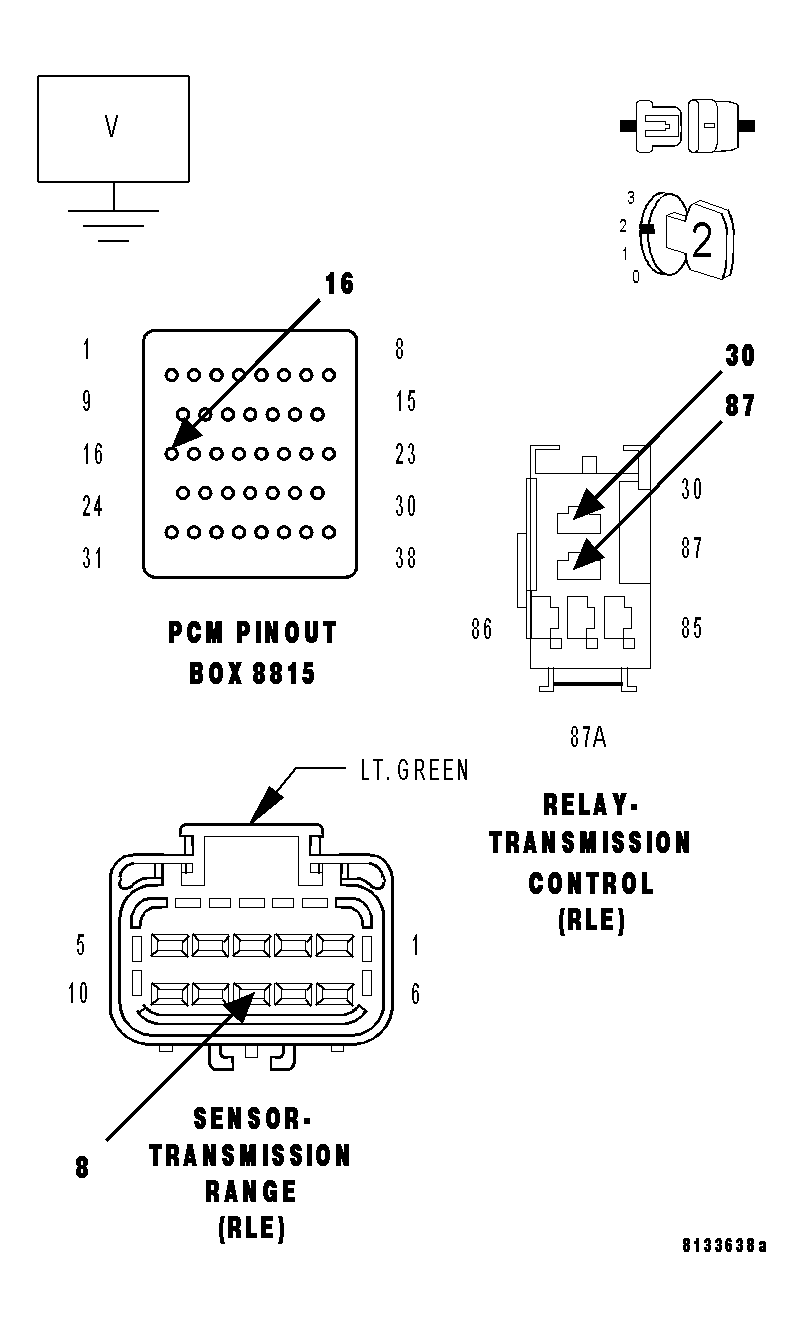

Fig 9: Checking TRS Sense Circuit For Short To Voltage
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C3 harness connector.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire between the (Internal) Fused B+ circuit and the (T16) Transmission Control Relay Output circuit in the Transmission Control Relay connector.

Ignition on, engine not running.

Measure the voltage of the TRS (T41) Sense circuit.

Is the voltage above 0.5 volt?

Yes
1. Repair the TRS (T1) Sense circuit for a short to voltage.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool PERFORM QUICK LEARN, then program Pinion Factor in the Front Control Module. (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - REMOVAL)
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
14) TRS (T42) SENSE CIRCUIT OPEN

Fig 10: Checking TRS Sense Circuit For Open
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Tool #8815 to perform diagnosis.

Measure the resistance of the TRS (T42) Sense circuit from the appropriate terminal of special tool #8815 to the TRS harness connector.

Is the resistance above 5.0 ohms?

Yes
1. Repair the TRS (T42) Sense circuit for an open.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 15).
15) TRS (T42) SENSE CIRCUIT SHORT TO GROUND

Fig 11: Checking TRS Sense Circuit For Short To Ground
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Measure the resistance between ground and the TRS (T42) Sense circuit.

Is the resistance below 5.0 ohms?

Yes
1. Repair the TRS (T42) Sense circuit for a short to ground.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Go To step 16).
16) TRS (T42) SENSE CIRCUIT SHORT TO VOLTAGE

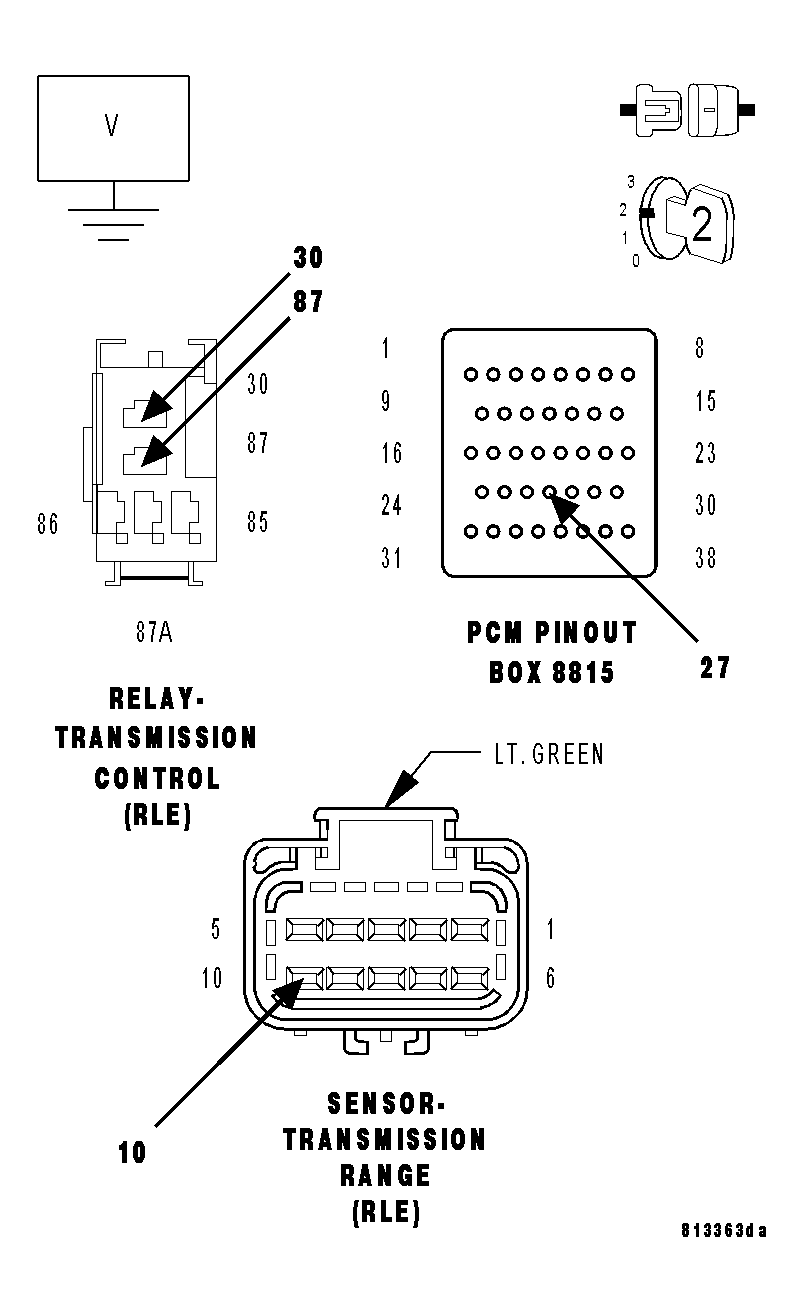

Fig 12: Checking TRS Sense Circuit For Short To Voltage
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off to the lock position.

Disconnect the TRS harness connector.

Disconnect the PCM C4 harness connector.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire between the (Internal) Fused B+ circuit and the (T16) Transmission Control Relay Output circuit in the Transmission Control Relay connector.

Ignition on, engine not running.

Measure the voltage of the TRS (T42) Sense circuit.

Is the voltage above 0.5 volt?

Yes
1. Repair the TRS (T42) Sense circuit for a short to voltage.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM per the Service Information. With the scan tool PERFORM QUICK LEARN, then program Pinion Factor in the Front Control Module. (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/POWERTRAIN CONTROL MODULE - REMOVAL)
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
17) CHECK AND ADJUST SHIFTER
View repair.

Repair
1. Adjust the Shift Linkage and/or cable per the Service Information.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
18) INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set the DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wiring and connectors while checking for shorted and open circuits.

Check the Shift Linkage and cable for proper operation per the Service Information.

With the scan tool, check the EATX DTC EVENT DATA to help identify the conditions in which the DTC was set.

Perform *PRNDL FAULT CLEARING PROCEDURE after completion of any repairs.

Were there any problems found?

Yes
1. Repair as necessary.
2. Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1
No
1. Test Complete.
