Connector/Ground/Splice Location: Description

This article provides illustrations identifying connector, ground and splice locations in the vehicle. Connector, ground and splice indexes are provided. Use the wiring diagrams in each article for connector, ground and splice identification. Refer to the appropriate index for the proper figure number. For items that are not shown in this article, N/S is placed in the Fig. column.

CONNECTOR NAME/NUMBER	COLOR	LOCATION	FIG.
	Actuator-Cooling Bypass-EGR	Right Side Engine Compartment	Fig 8.

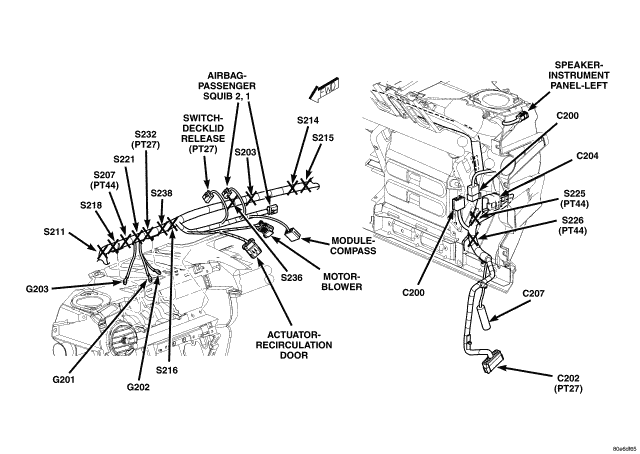

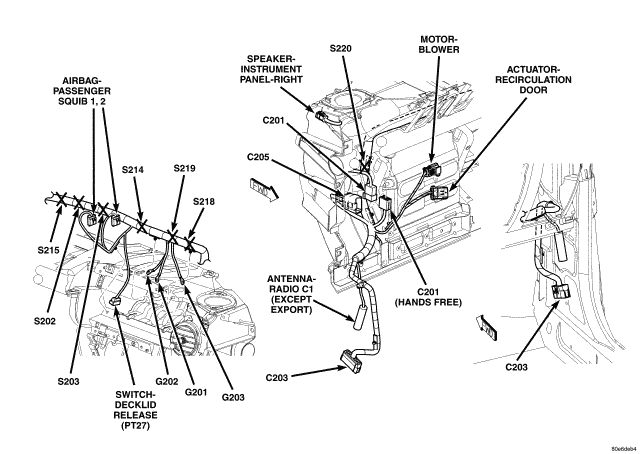

	Actuator-Recirculation Door	Passenger Side Instrument Panel	Fig 29, Fig 33.

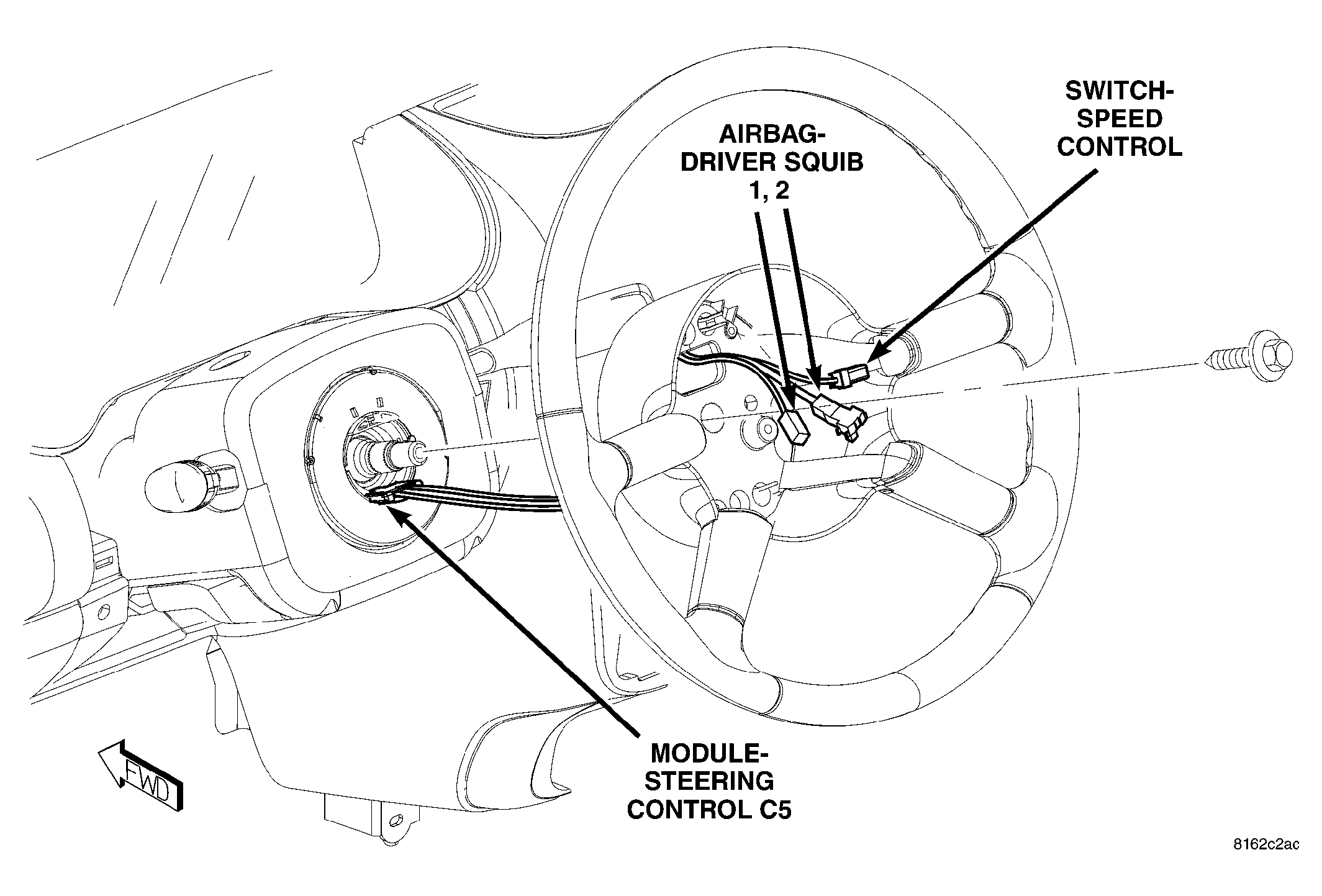

Airbag-Driver Squib 1	BK/YL	Rear of Steering Wheel Pad	Fig 35.
Airbag-Driver Squib 2	WT/YL	Rear of Steering Wheel Pad	Fig 35.

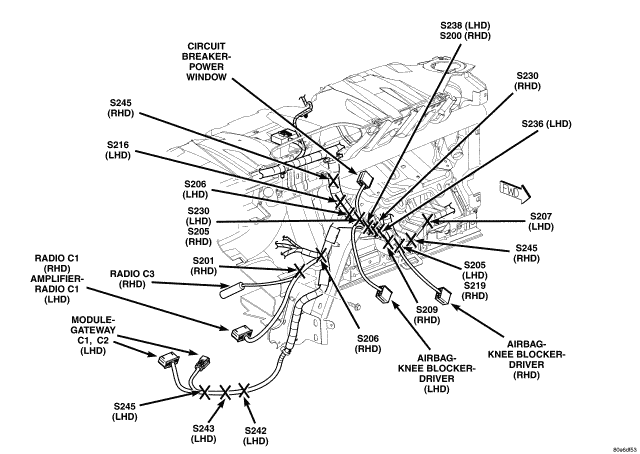

	Airbag-Knee Blocker-Driver	Lower Driver Side Instrument Panel	Fig 32.
Airbag-Passenger Squib 1	YL	Passenger Side of Instrument Panel	Fig 29, Fig 33.
Airbag-Passenger Squib 2	YL	Passenger Side of Instrument Panel	Fig 29, Fig 33.
Airbag-Seat-Left	YL	Left Seat	N/S
Airbag-Seat-Right	YL	Right Seat	N/S
	Amplifier-Radio C1	Center Front Body	Fig 32.

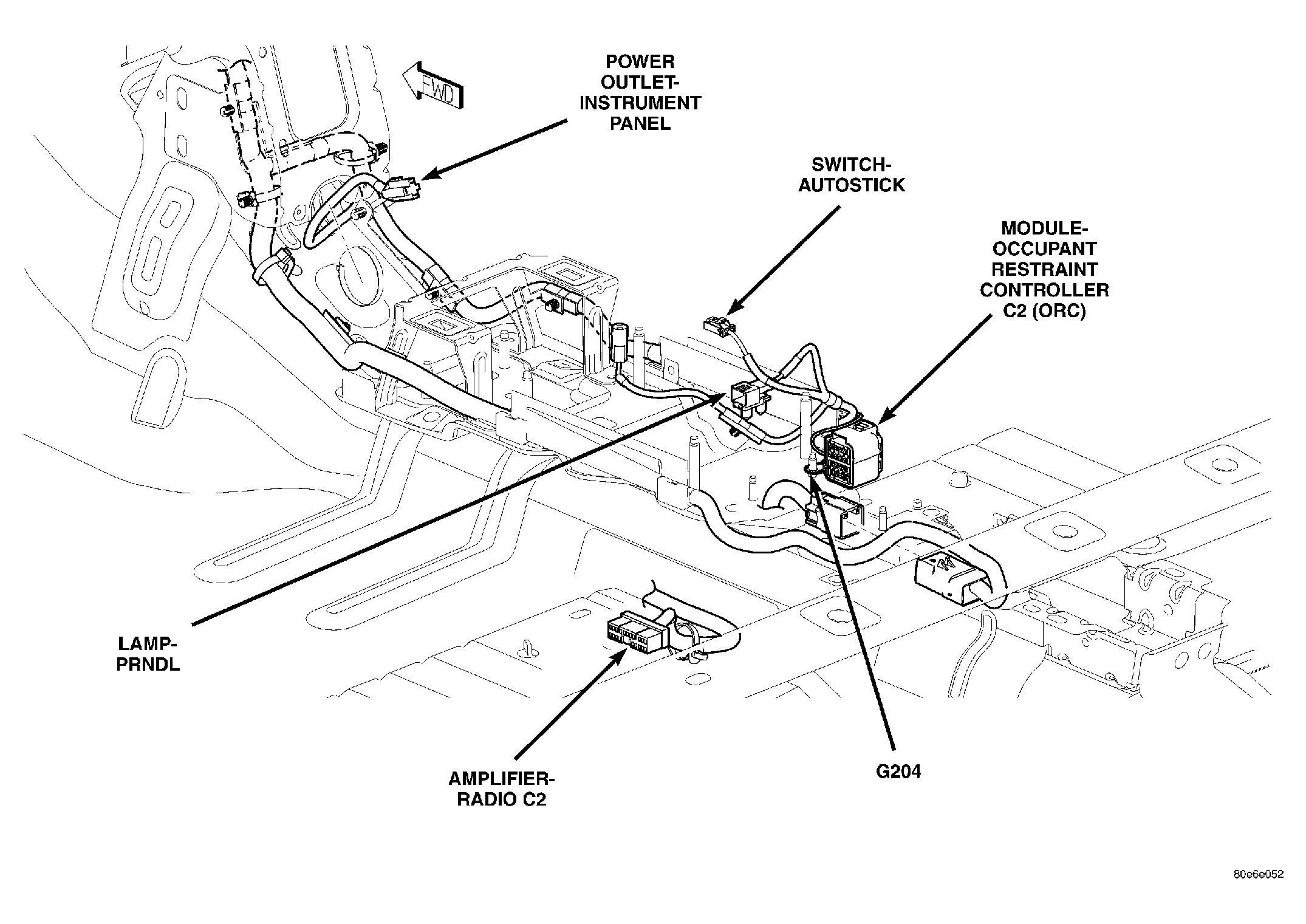

	Amplifier-Radio C2	Center Front Body	Fig 41, Fig 48, Fig 56.
	Antenna Cable Connector-Radio (Export PT44)	Lower Left Instrument Panel	Fig 28.
	Antenna Cable-Radio (Export)	Lower Left Instrument Panel	Fig 33, Fig 54.
	Antenna-Radio (Except Export)	Right Side Instrument Panel	Fig 29.

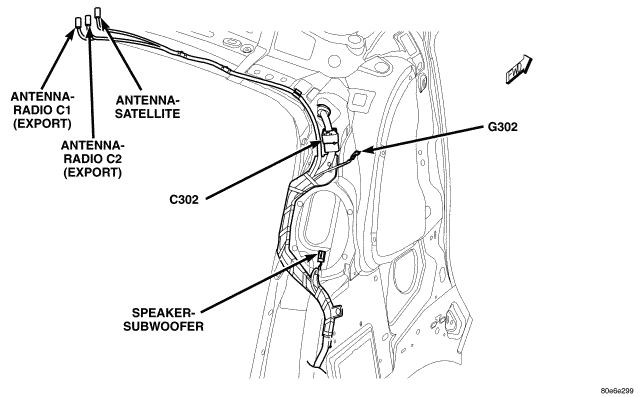

	Antenna-Radio (Export)	Mid Rear Roof	Fig 59.

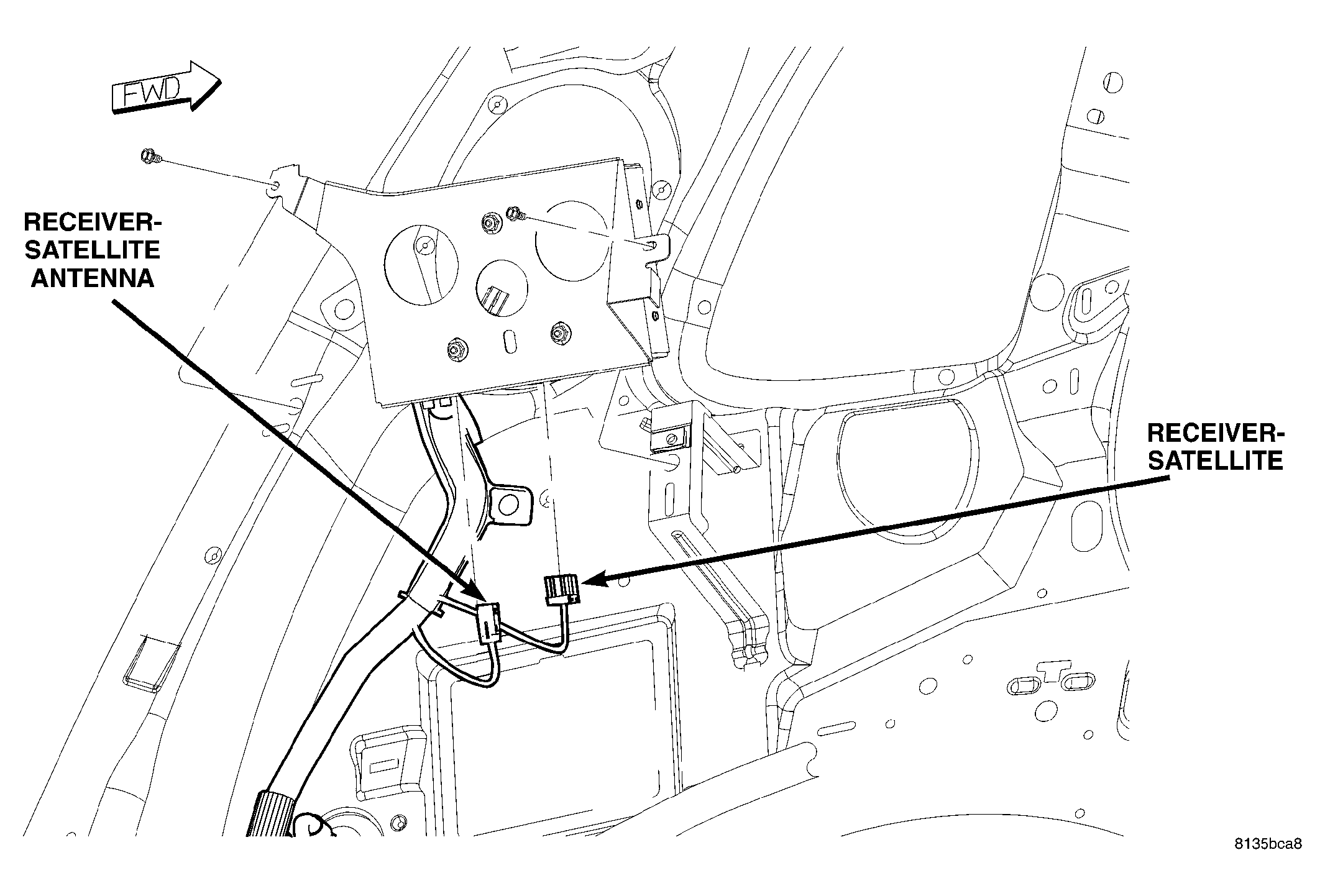

	Antenna-Satellite	Mid Rear Roof	Fig 59.
Assembly-EGR Valve	BK	Diesel Engine	N/S

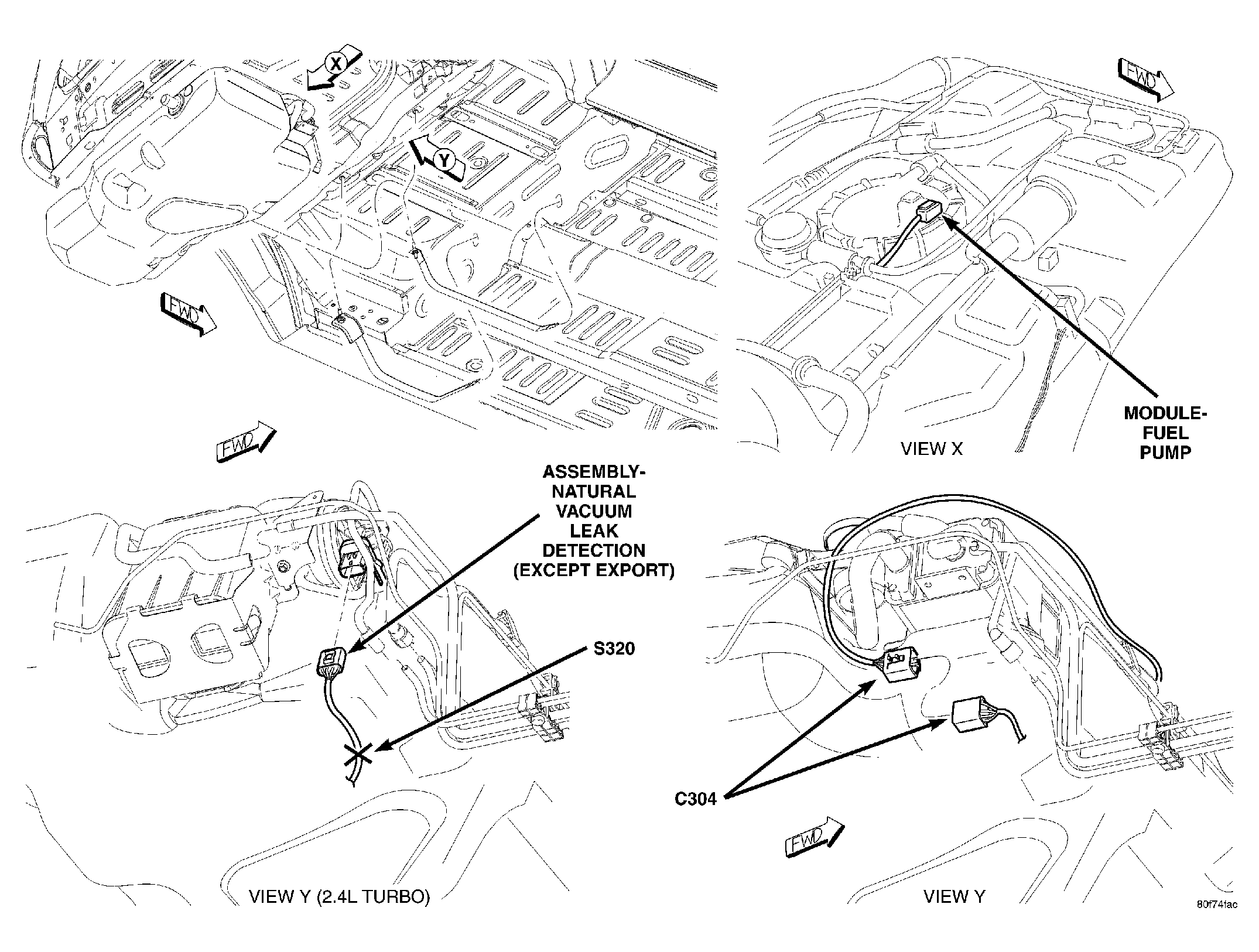

Assembly-Natural Vacuum Leak Detection (NGC)	BK	Right Front Fuel Tank	Fig 63.

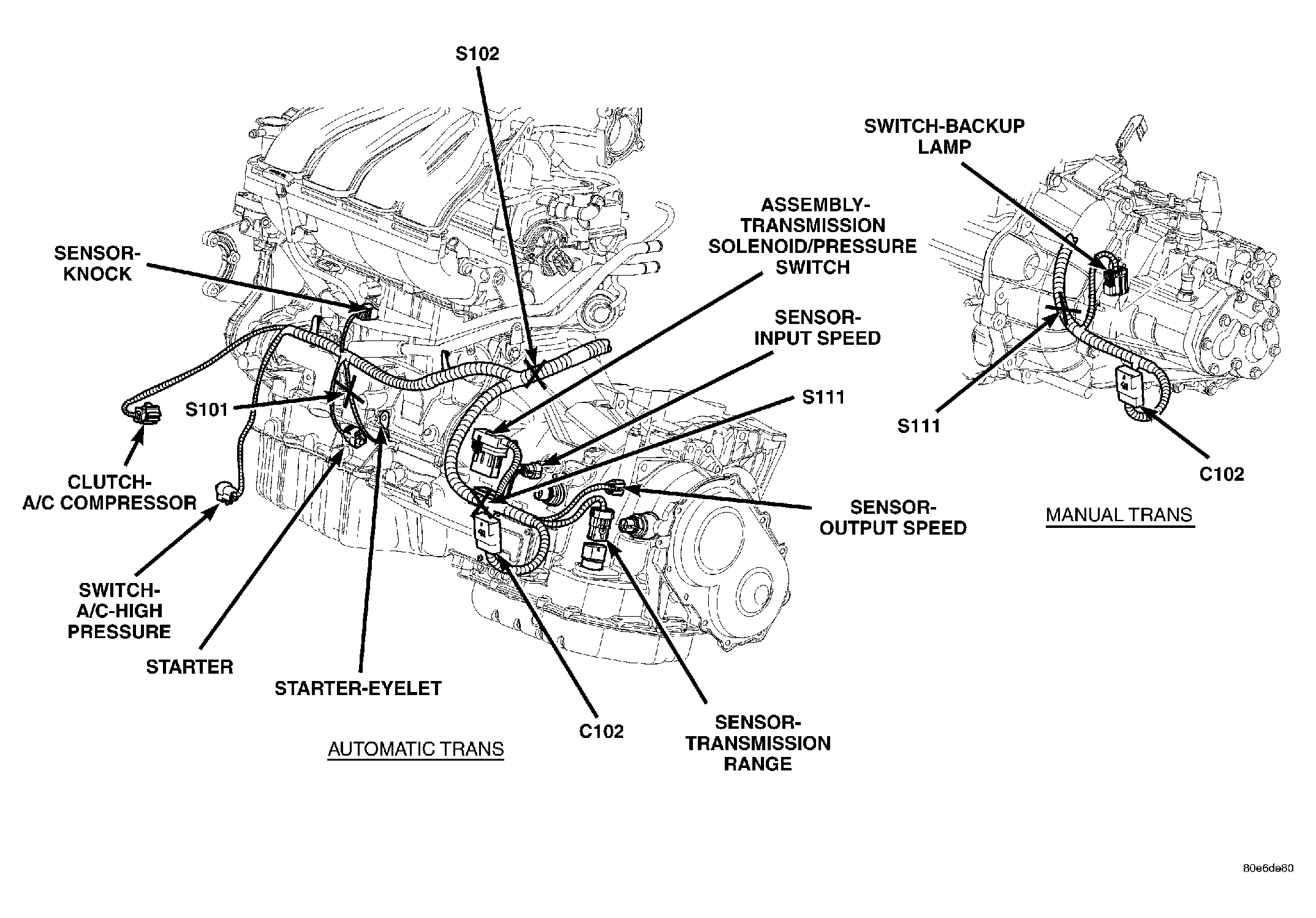

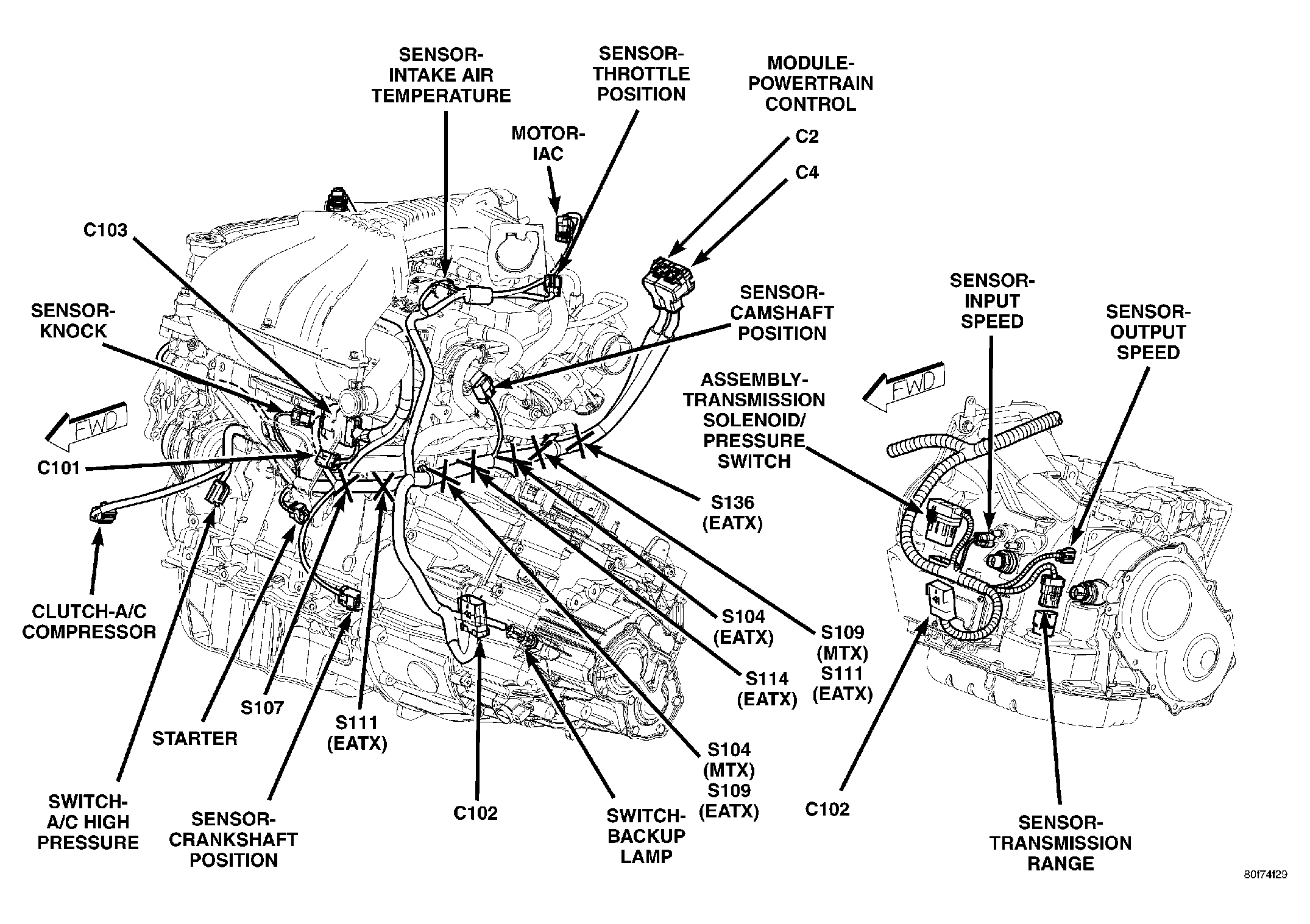

Assembly-Transmission Solenoid/Pressure Switch (2.4L)	BK	Front of Engine Compartment on Transmission	Fig 20, Fig 23.

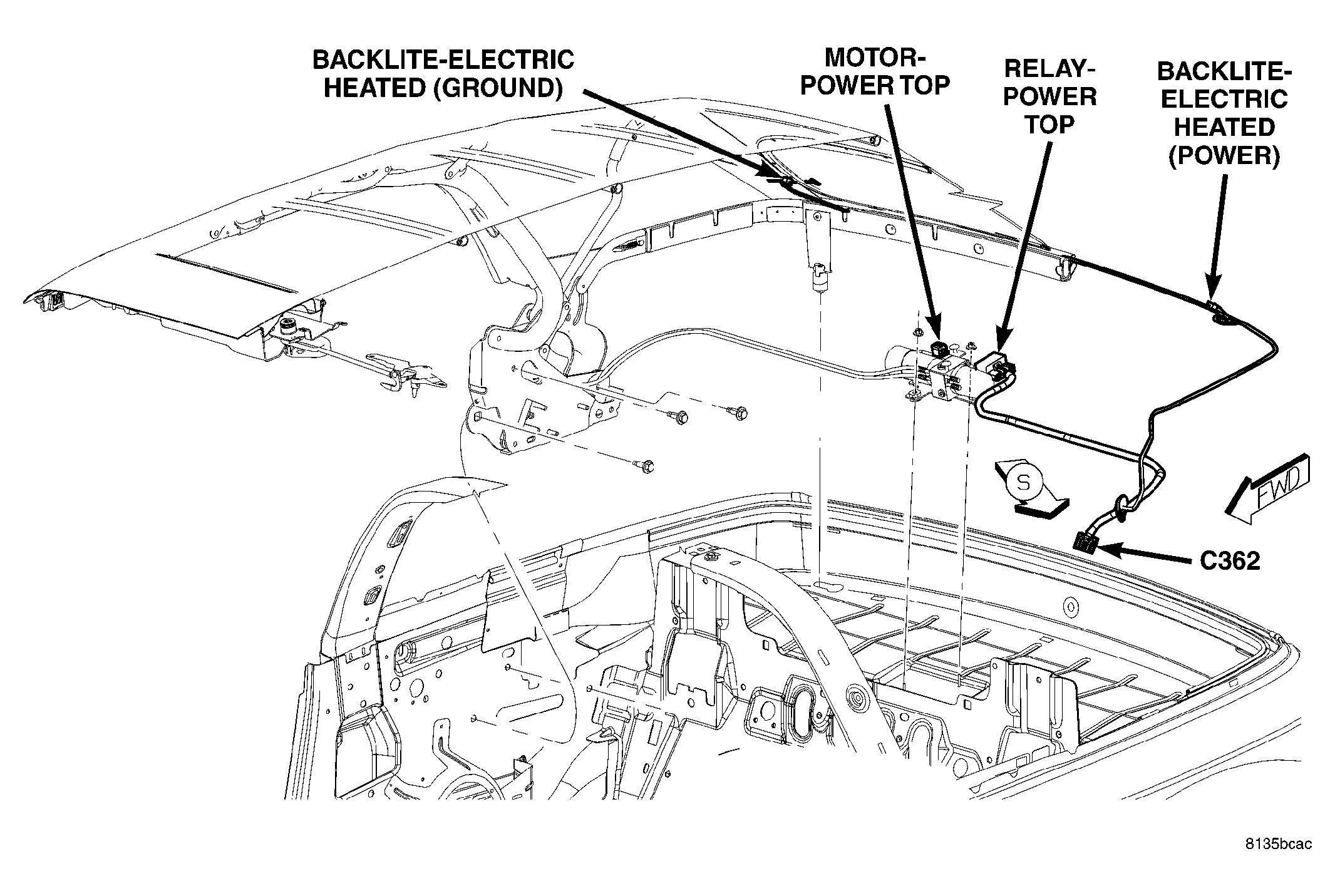

	Backlite-Electric Heated (Power) (PT27)	Rear Window	Fig 64.
	Backlite-Electric Heated (Ground) (PT27)	Rear Window	Fig 64.

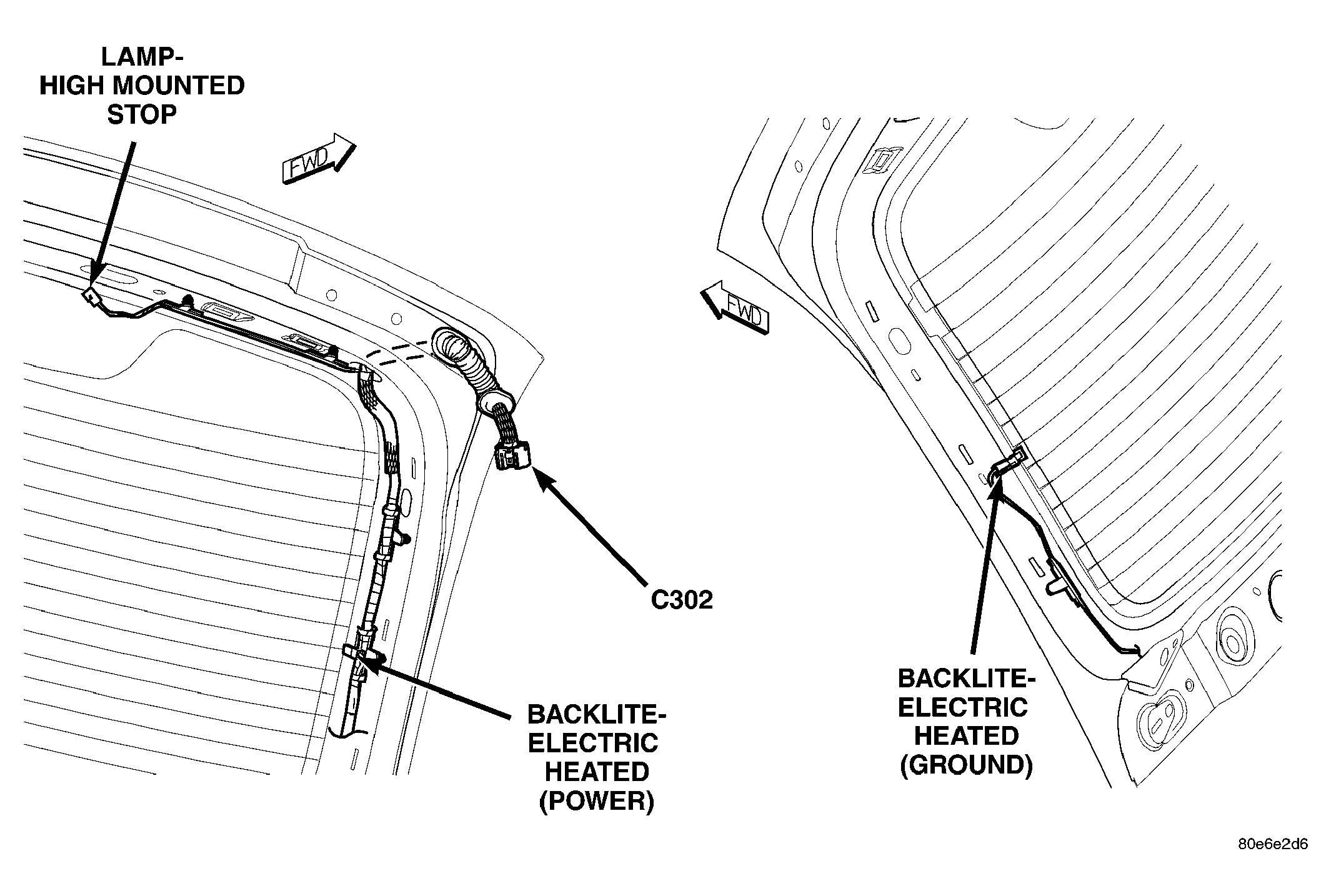

	Backlite-Electric Heated (Power) (PT44)	Left Rear Liftgate	Fig 68.
	Backlite-Electric Heated (Ground) (PT44)	Right Rear Liftgate	Fig 68.

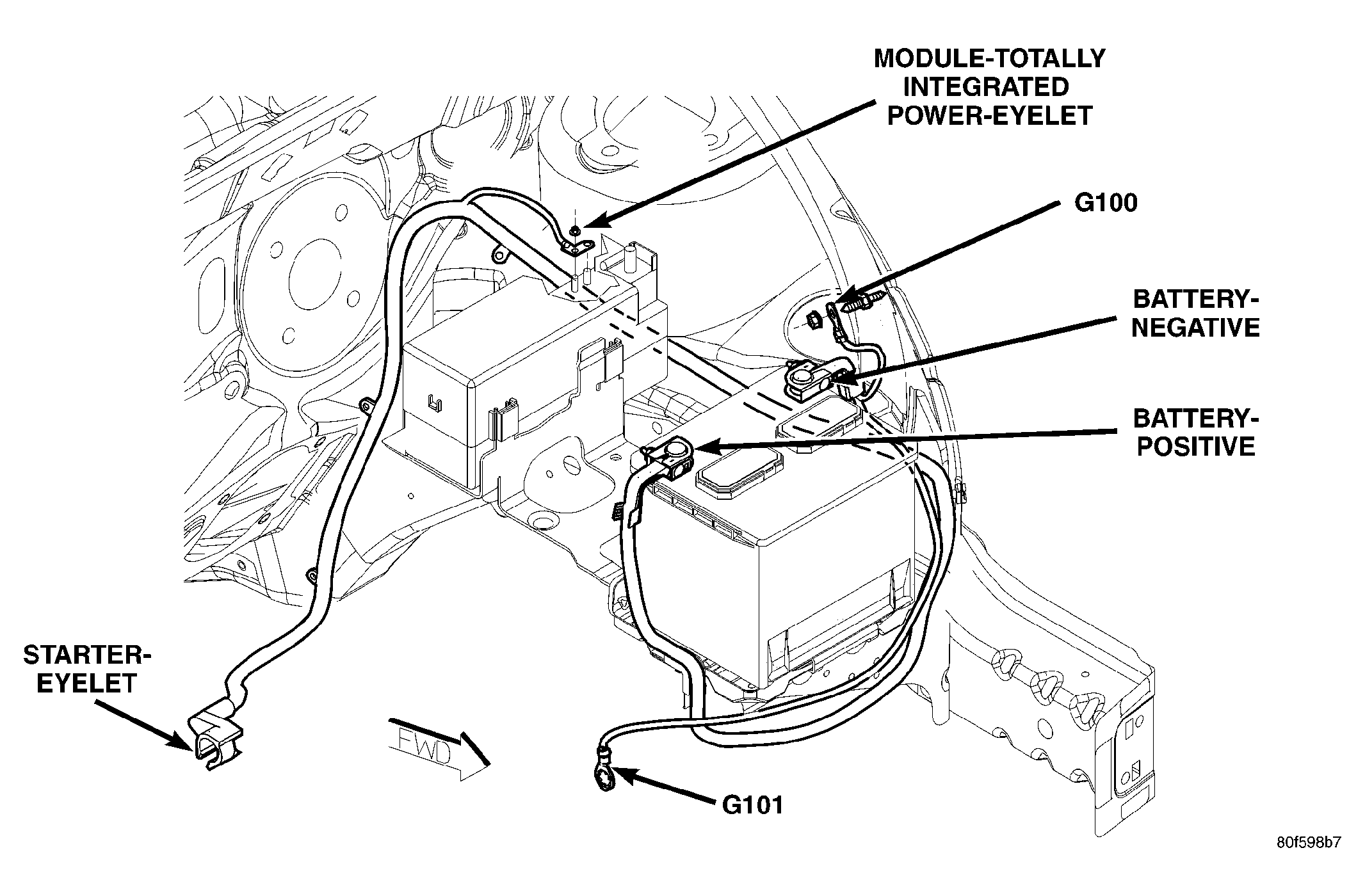

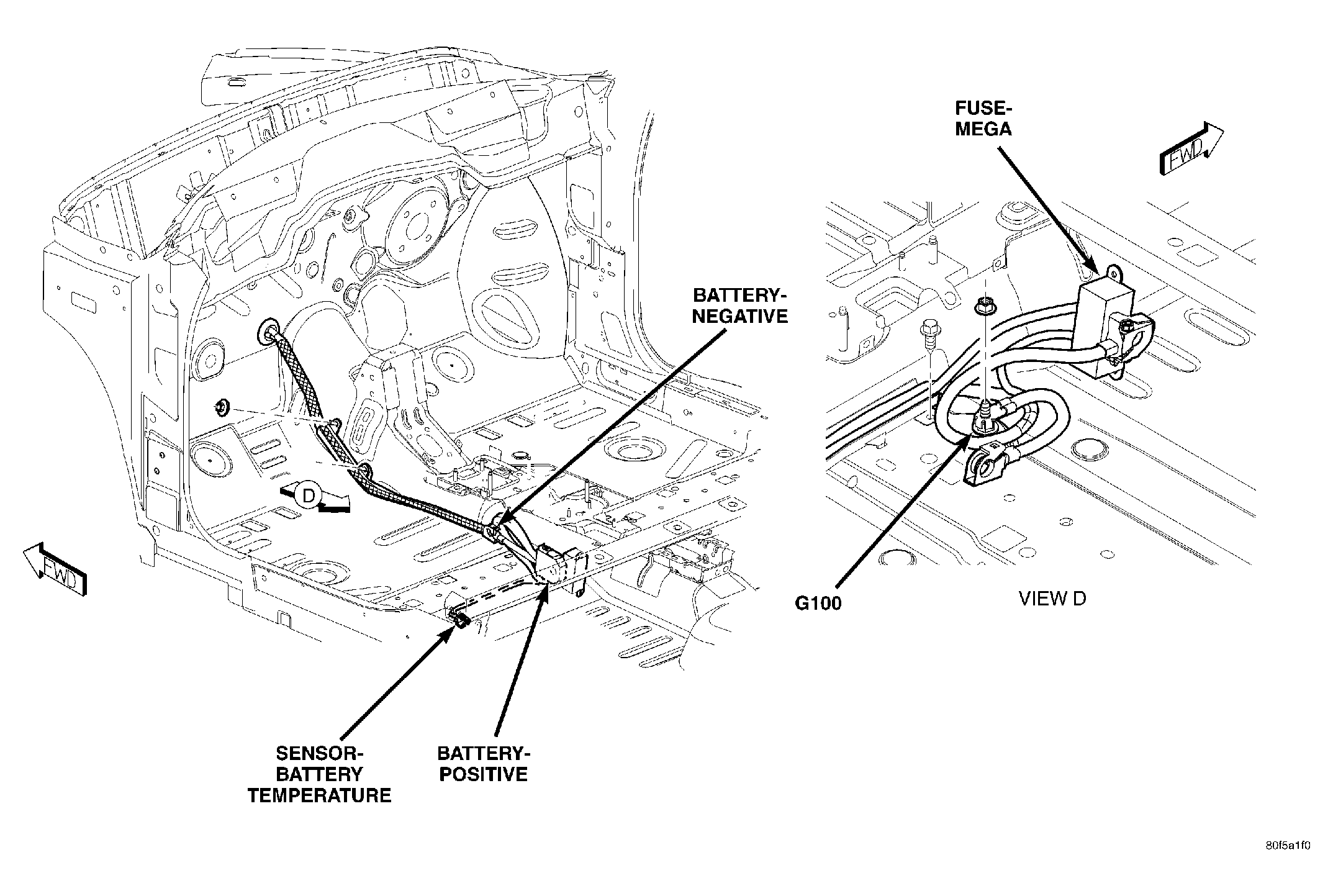

	Battery-Positive (Diesel)	Under Passenger Seat	Fig 62.

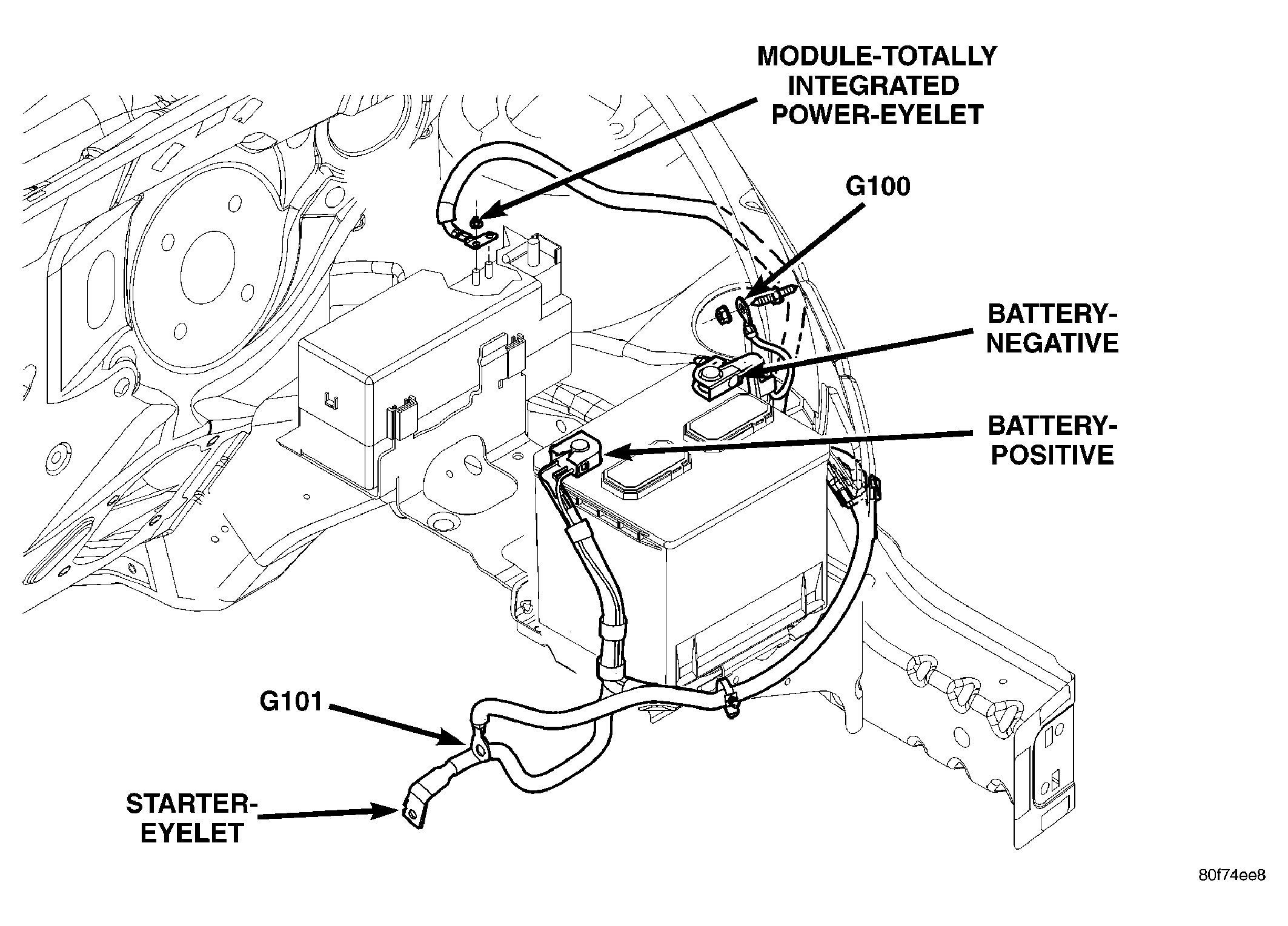

	Battery-Positive (Gas)	Left Front Engine Compartment	Fig 4, Fig 5, Fig 6.
	Battery-Negative (Diesel)	Under Passenger Seat	Fig 62.
	Battery-Negative (Gas)	Left Front Engine Compartment	Fig 4, Fig 5, Fig 6.
C101	DK GY	Front of Engine	Fig 23.

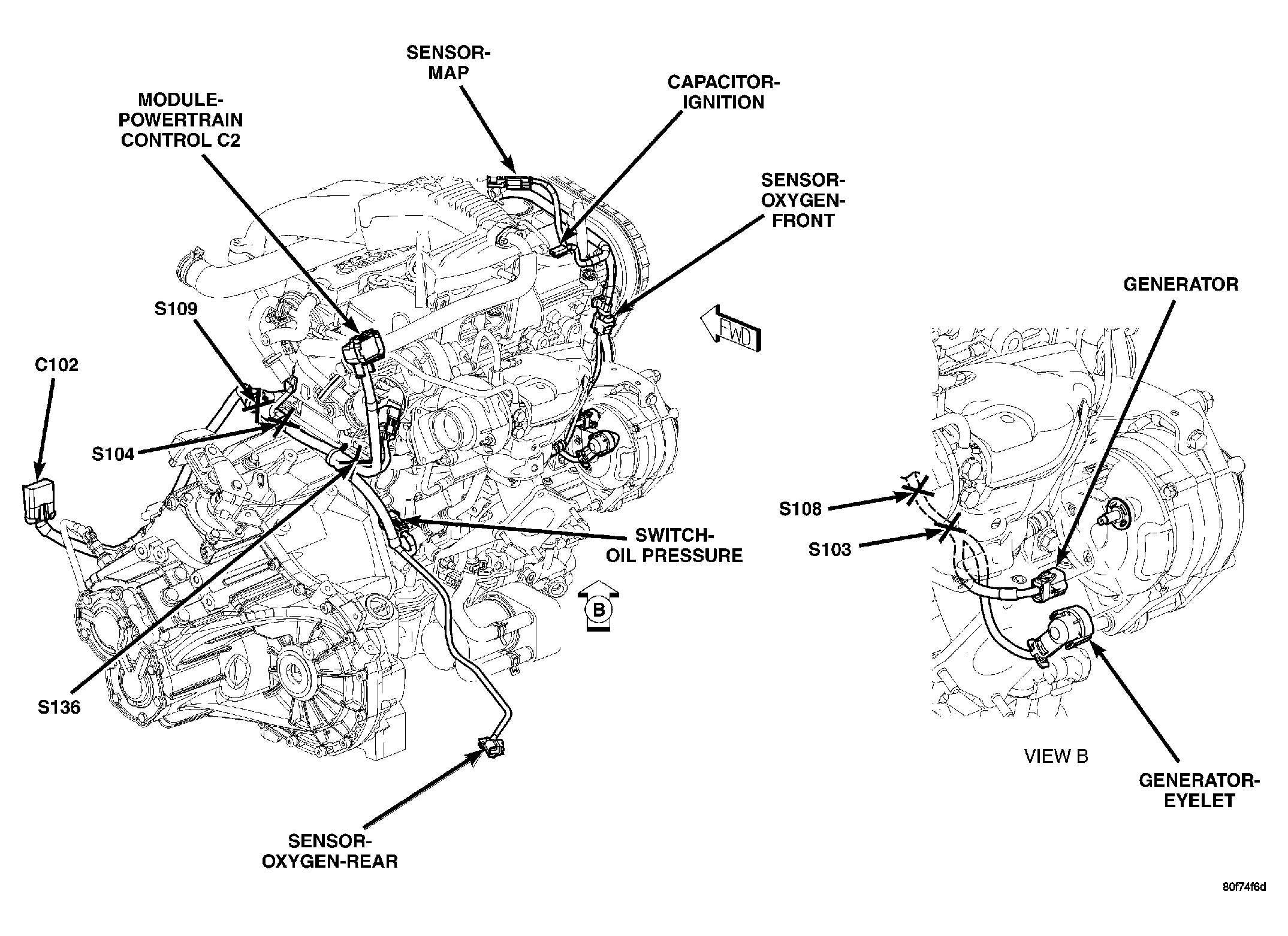

C102	-	Front Left Side of Engine Compartment	Fig 1, Fig 20, Fig 23, Fig 24.
C103 (2.4L)	BK	Front Side of Engine Compartment on Engine	Fig 20.
C103 (2.4L Turbo)	BK	Front Side of Engine Compartment on Engine	Fig 23.

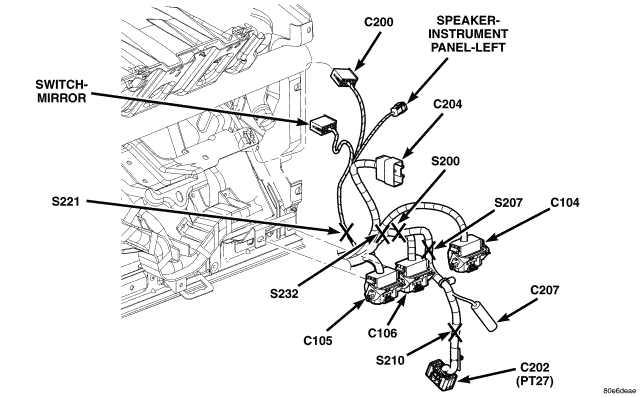

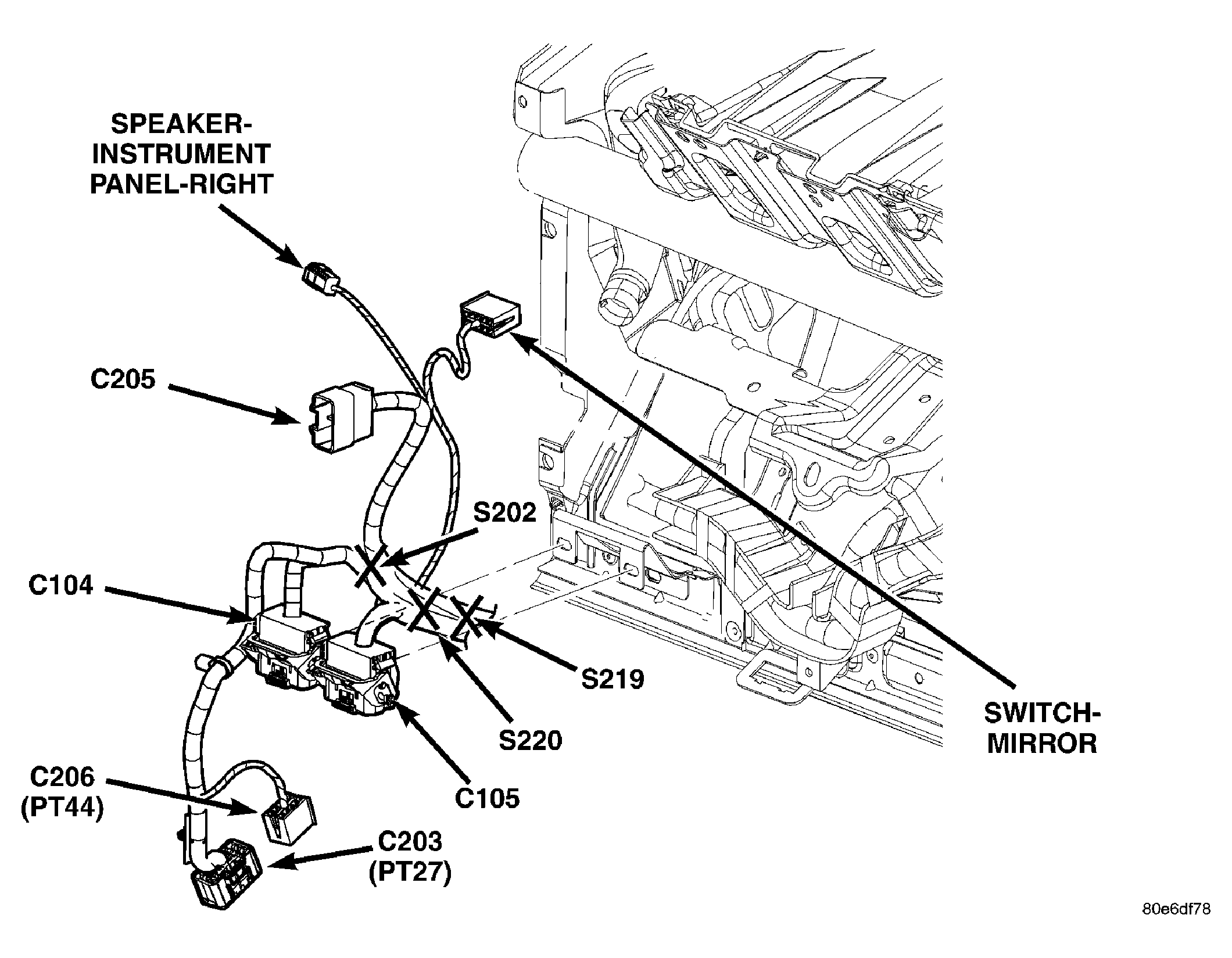

C104	-	Left Side of Instrument Panel	Fig 11, Fig 12, Fig 14, Fig 28, Fig 34.
C105	NAT	Left Side of Instrument Panel	Fig 11, Fig 12, Fig 14, Fig 28, Fig 34.
C106	GY	Left Side of Instrument Panel	Fig 11, Fig 12, Fig 28.

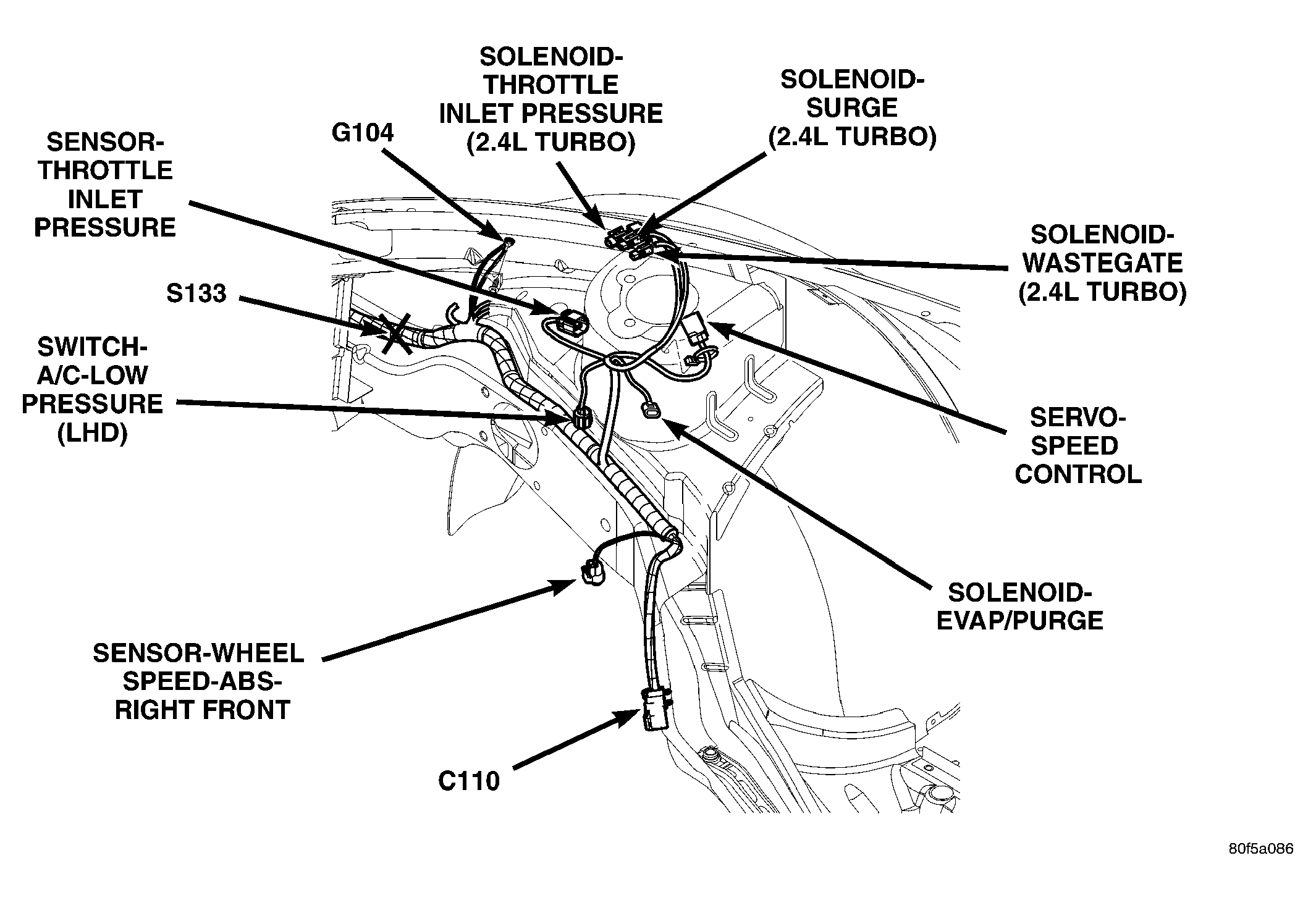

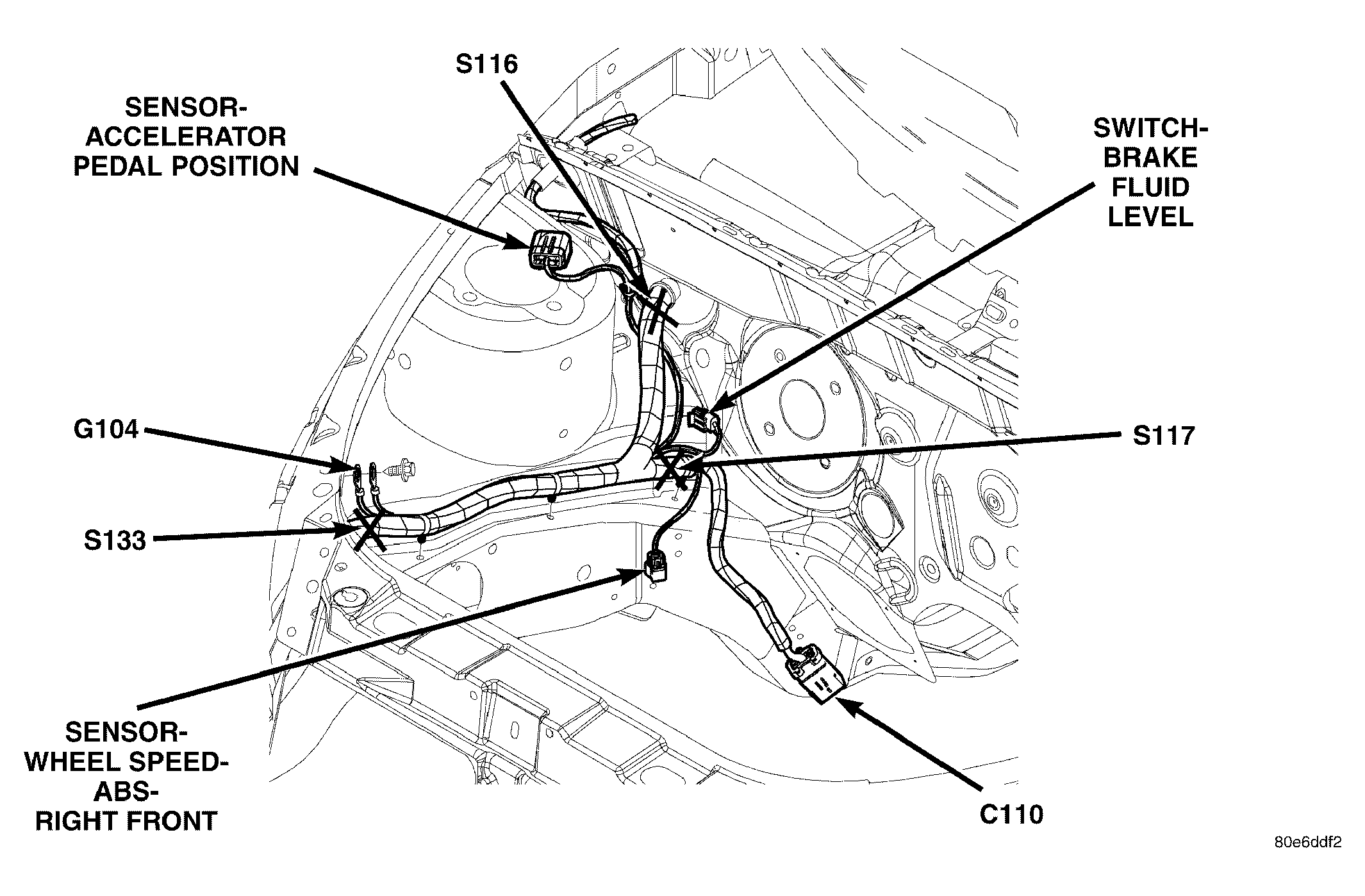

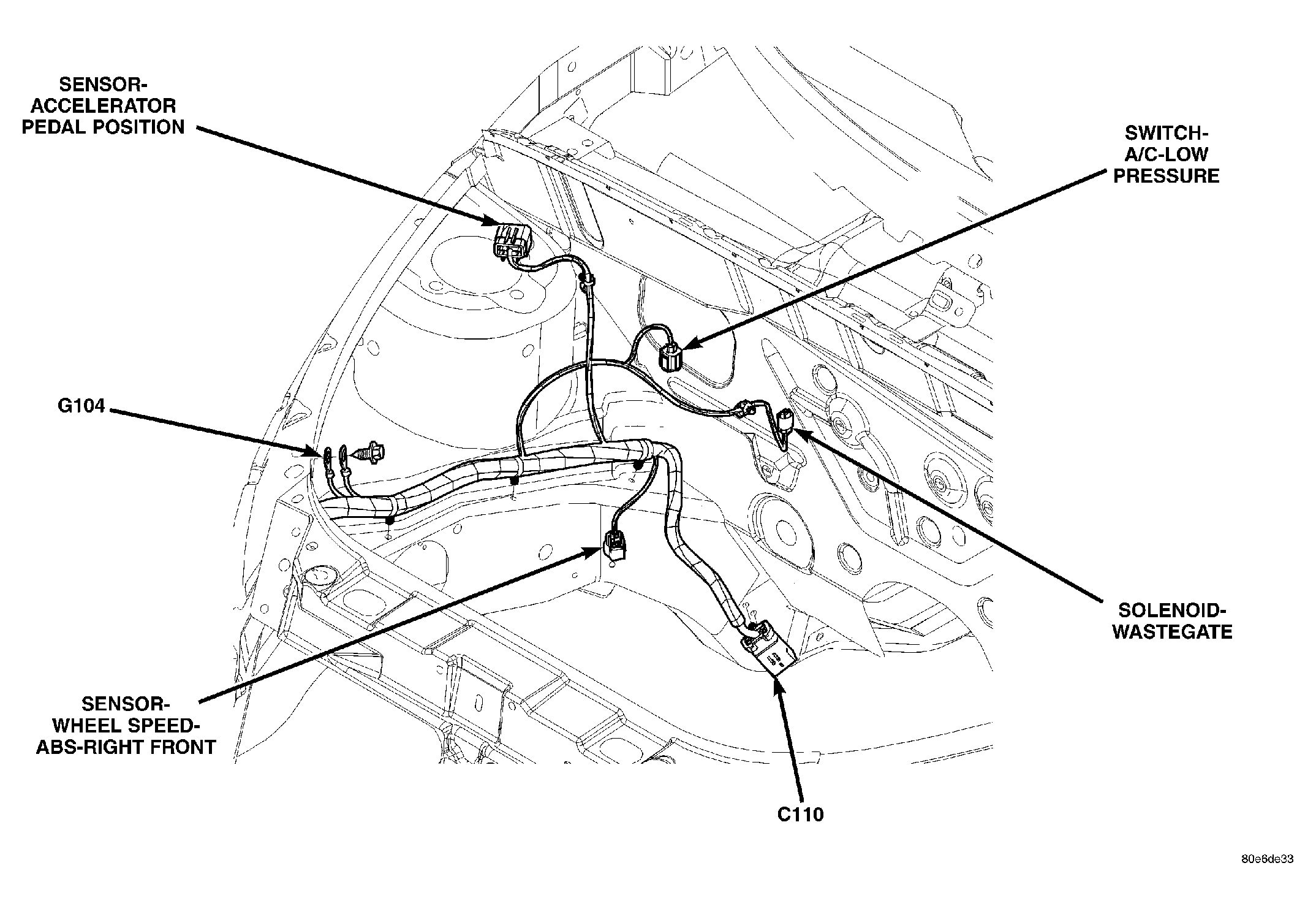

C110	BK	Lower Right Side of Engine Compartment	Fig 7, Fig 8, Fig 9, Fig 16.

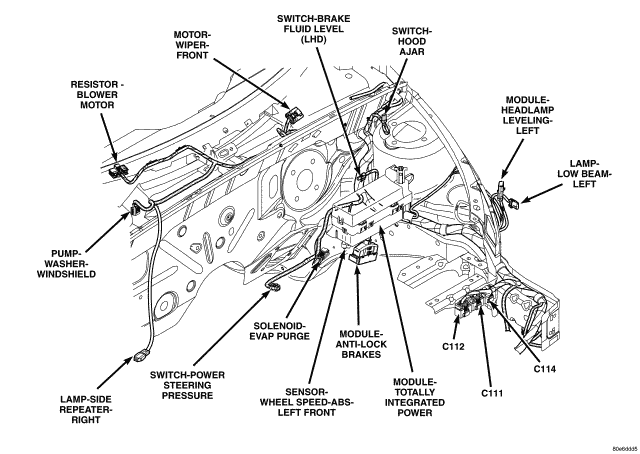

C111	LT GY	Left Front of Engine Compartment	Fig 3, Fig 18, Fig 19, Fig 26.
C112	BK	Left Front of Engine Compartment	Fig 3, Fig 18, Fig 19, Fig 26.
C114	DK GY	Left Front of Engine Compartment	Fig 3, Fig 26.

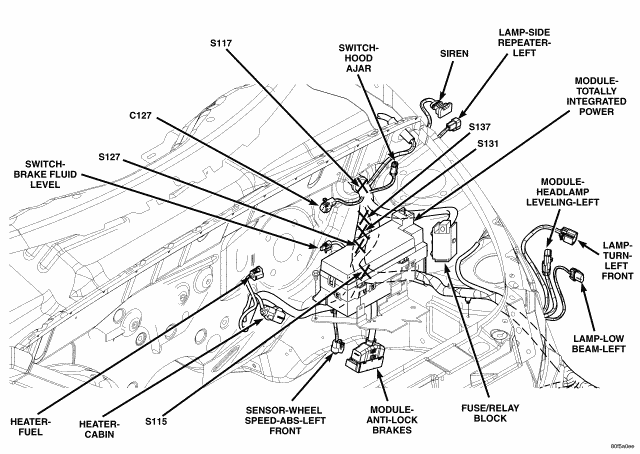

C127	BK	Left Rear of Engine Compartment	Fig 10, Fig 13, Fig 17.
C200	BK	Left Side of Instrument Panel	Fig 28, Fig 33, Fig 40.
C201	BK	Right Side of Instrument Panel	Fig 29, Fig 34.

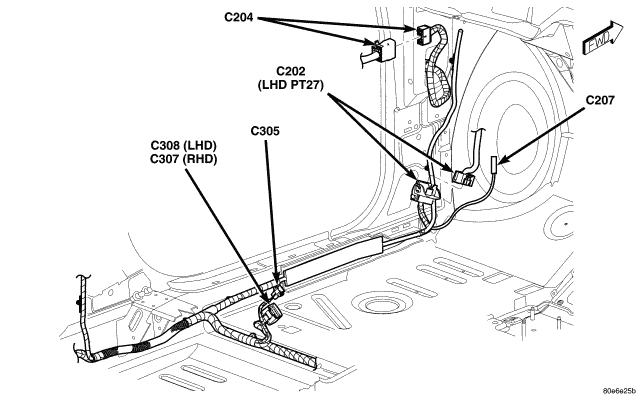

C202 (LHD)	WT	Left Kick Panel	Fig 28, Fig 54, Fig 56.
C202 (RHD)	GY	Left Kick Panel	Fig 33.
C203 (PT27)	GN	Lower Right Kick Panel	Fig 29, Fig 34, Fig 48.
C203 (PT44)	GN	Lower Right Kick Panel	Fig 29, Fig 34, Fig 47.

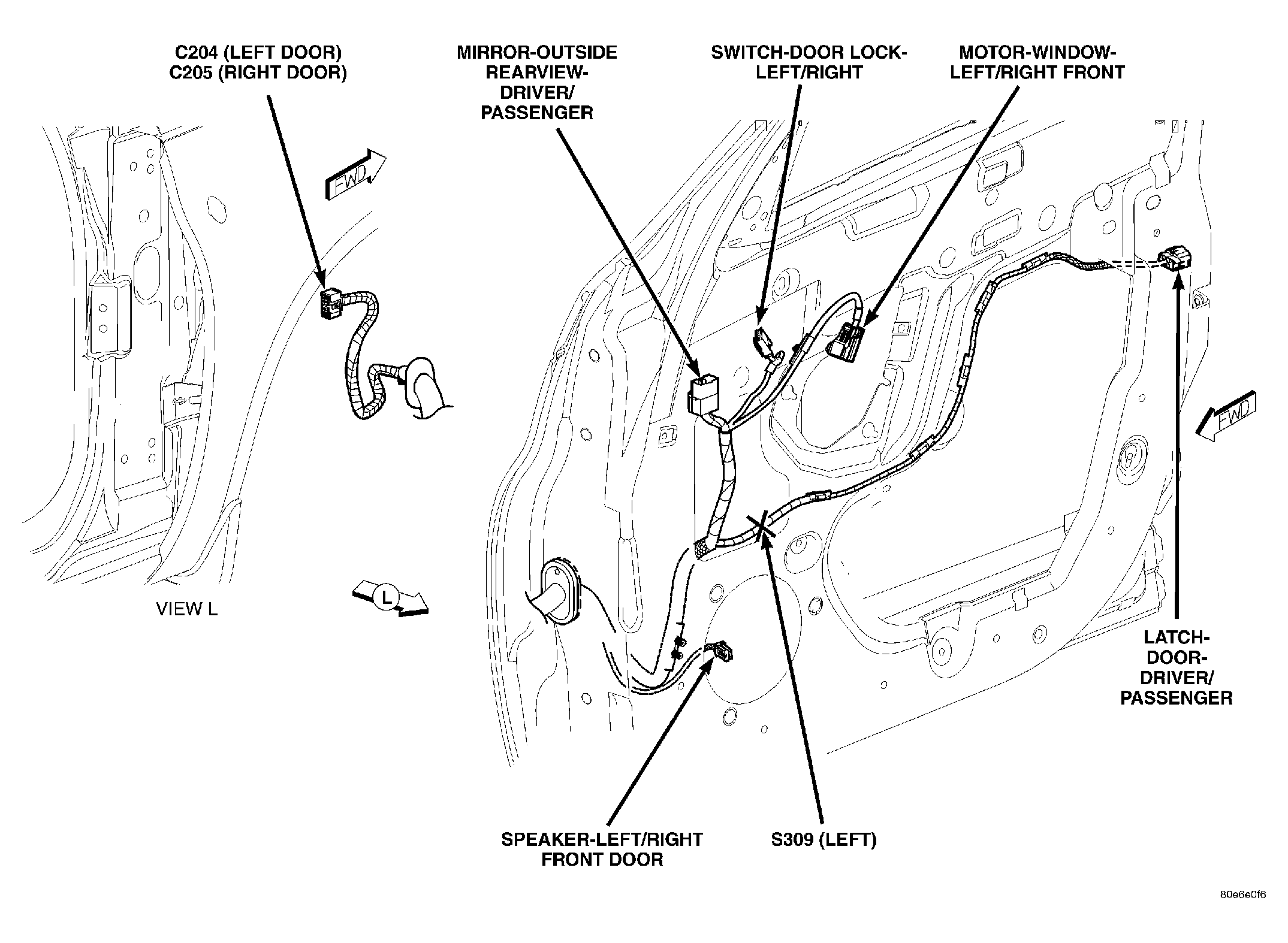

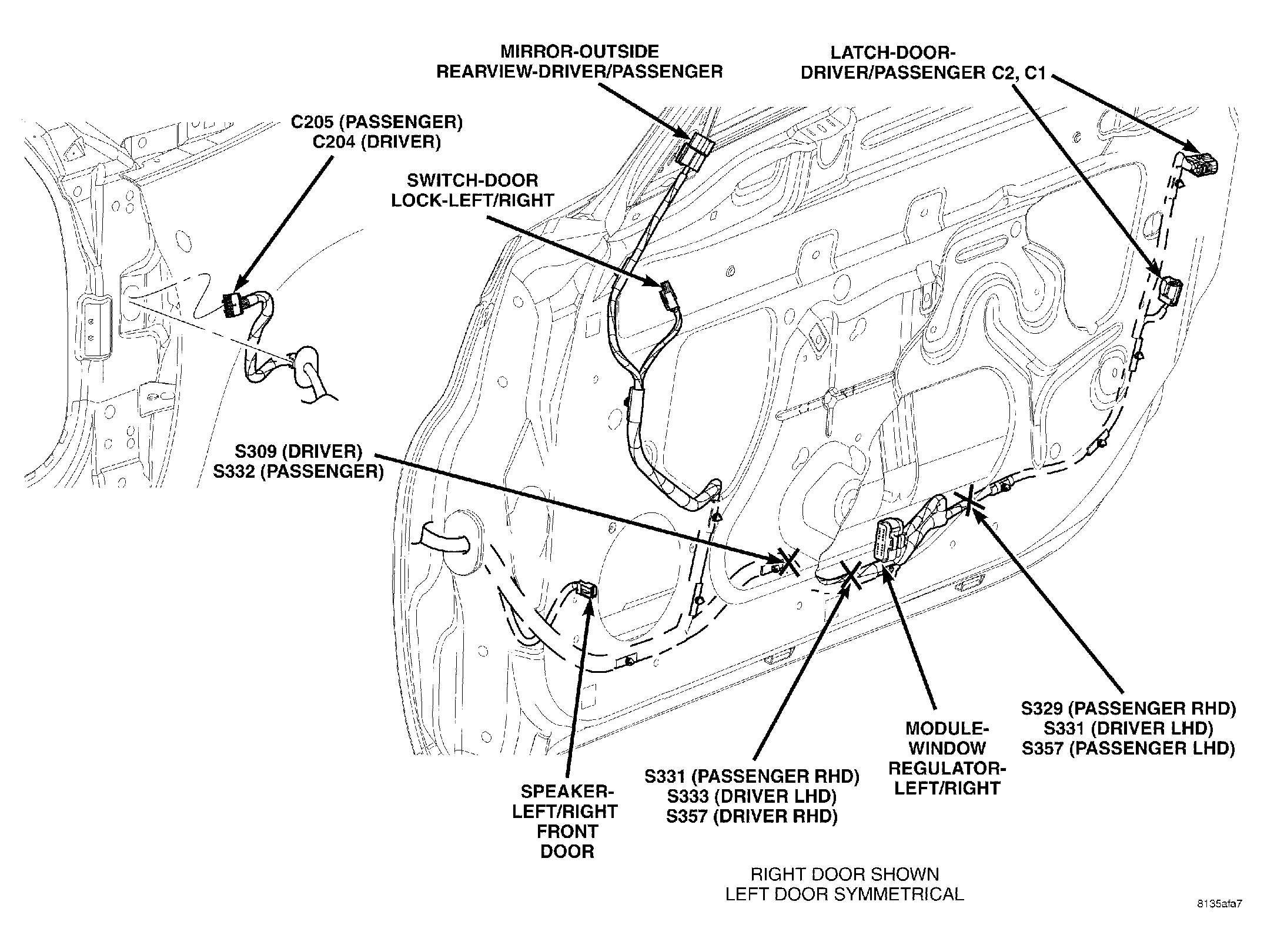

C204	NAT	Left Side of Instrument Panel	Fig 28, Fig 33, Fig 44, Fig 45, Fig 54.

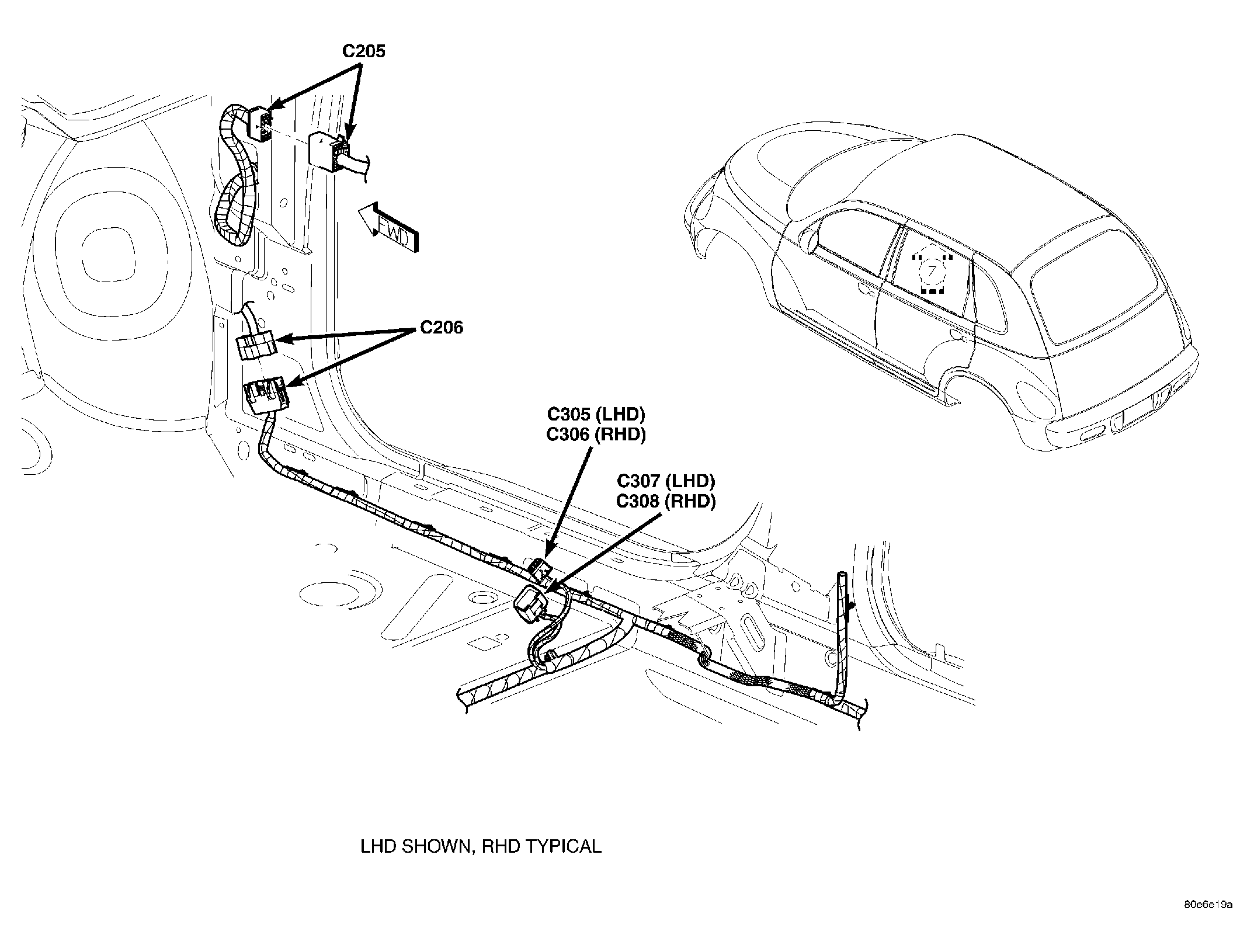

C205	NAT	Upper Right Kick Panel	Fig 29, Fig 34, Fig 44, Fig 45, Fig 47.
C206 (PT44)	-	Right Rear Instrument Panel	Fig 34.
C211	WT	Below Driver Seat	N/S

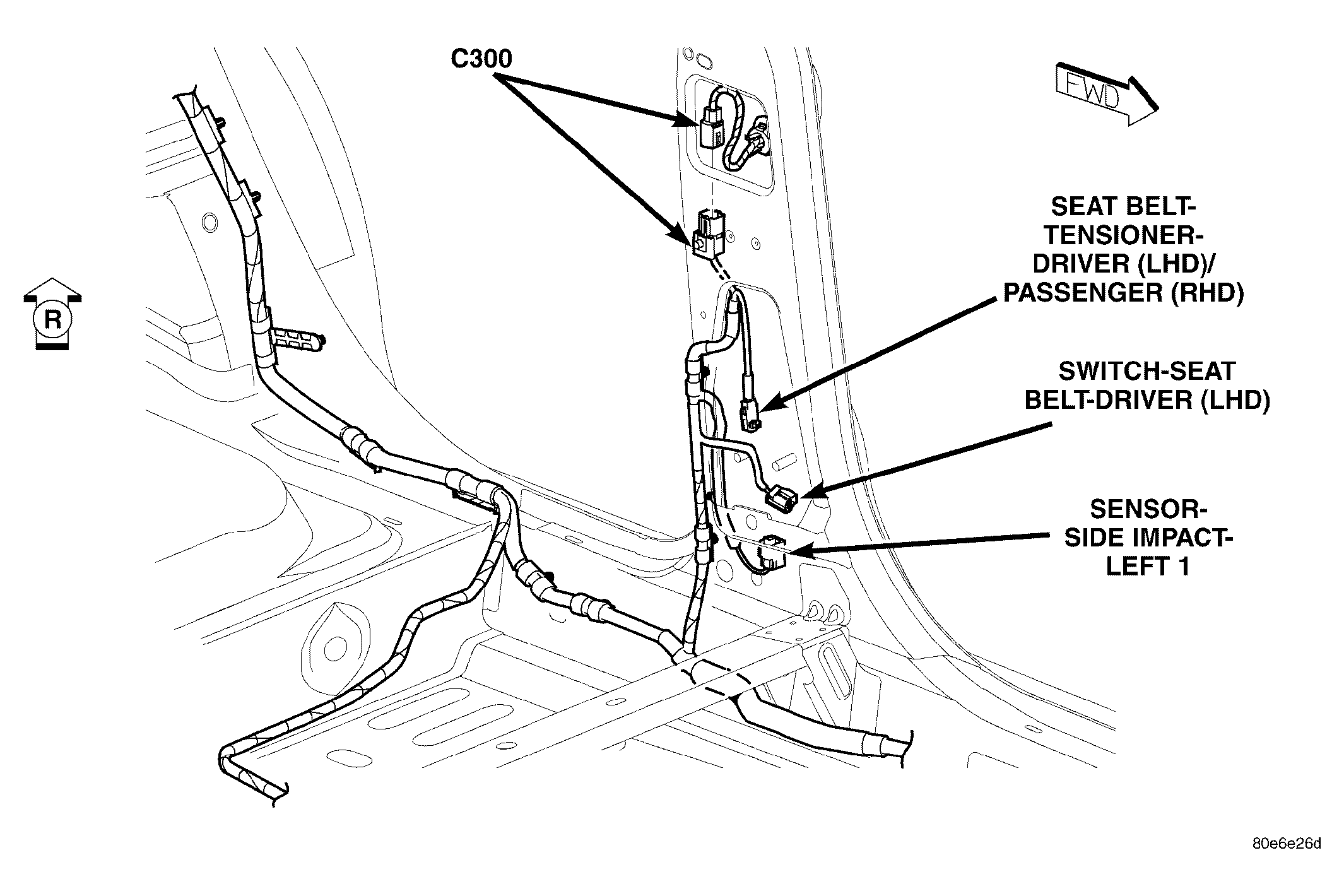

C300	BK	Left B-Pillar	Fig 46, Fig 55.

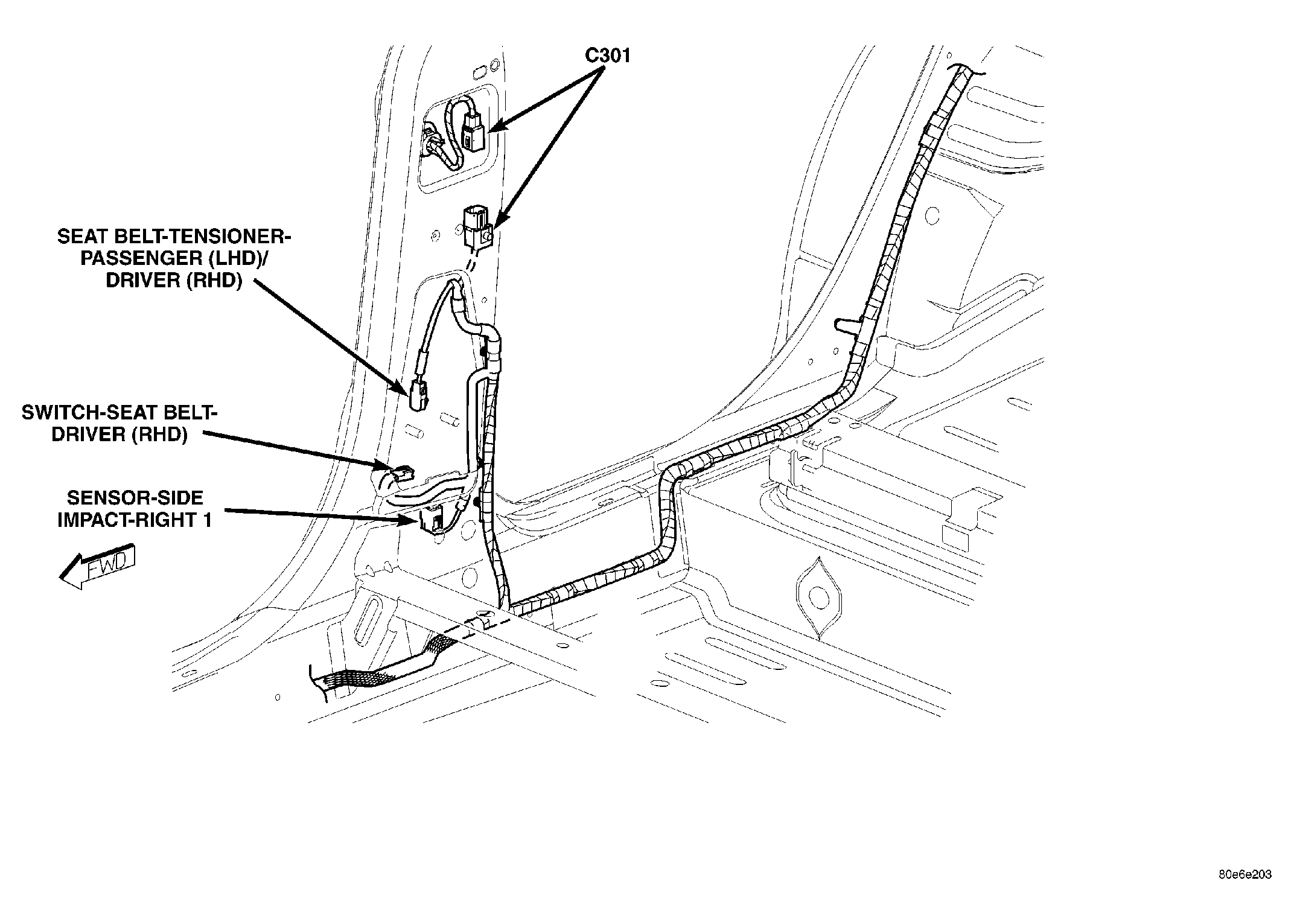

C301	BK	Right B-Pillar	Fig 46, Fig 49.

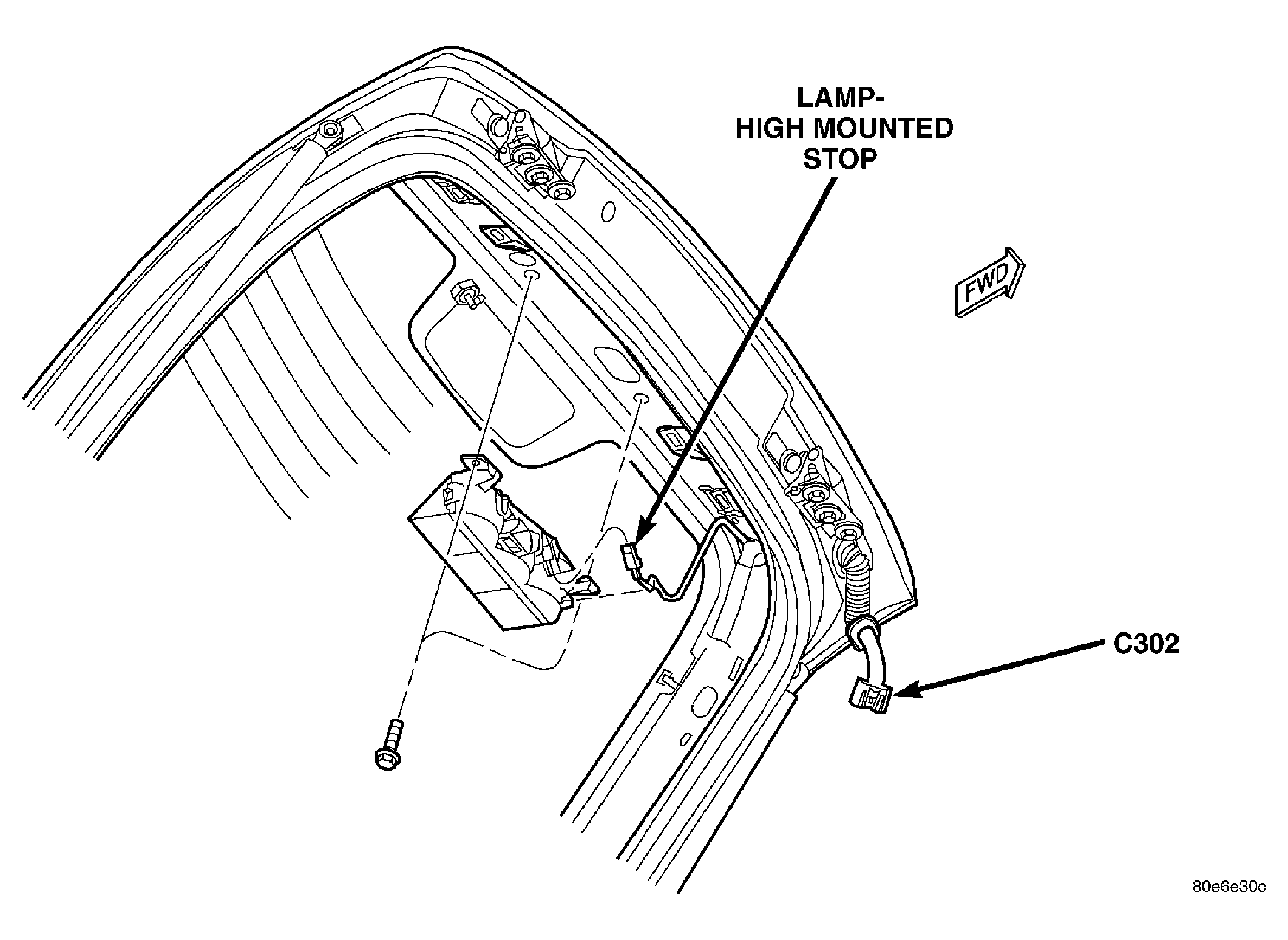

C302	WT	Top Left of Liftgate	Fig 59, Fig 68, Fig 69.

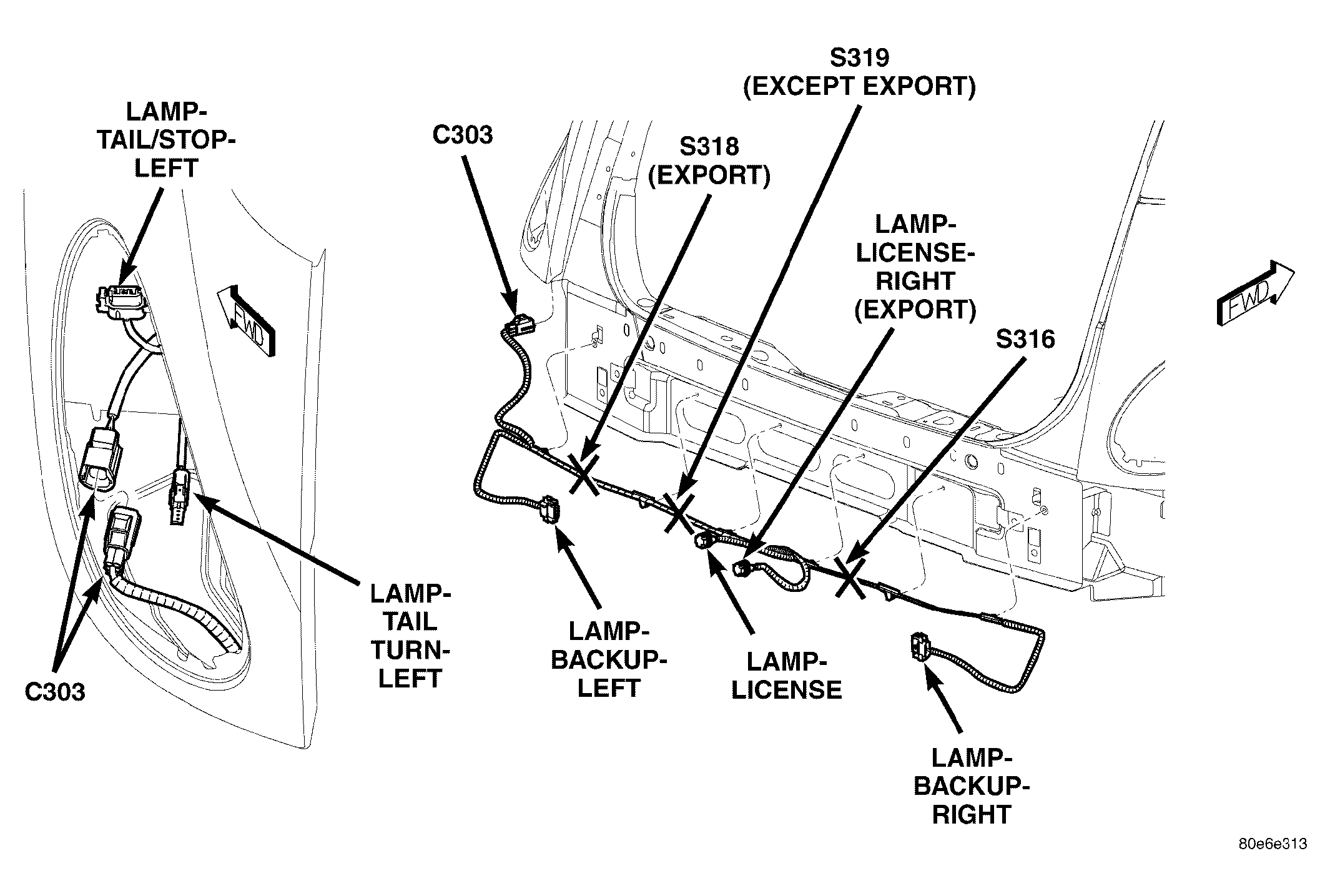

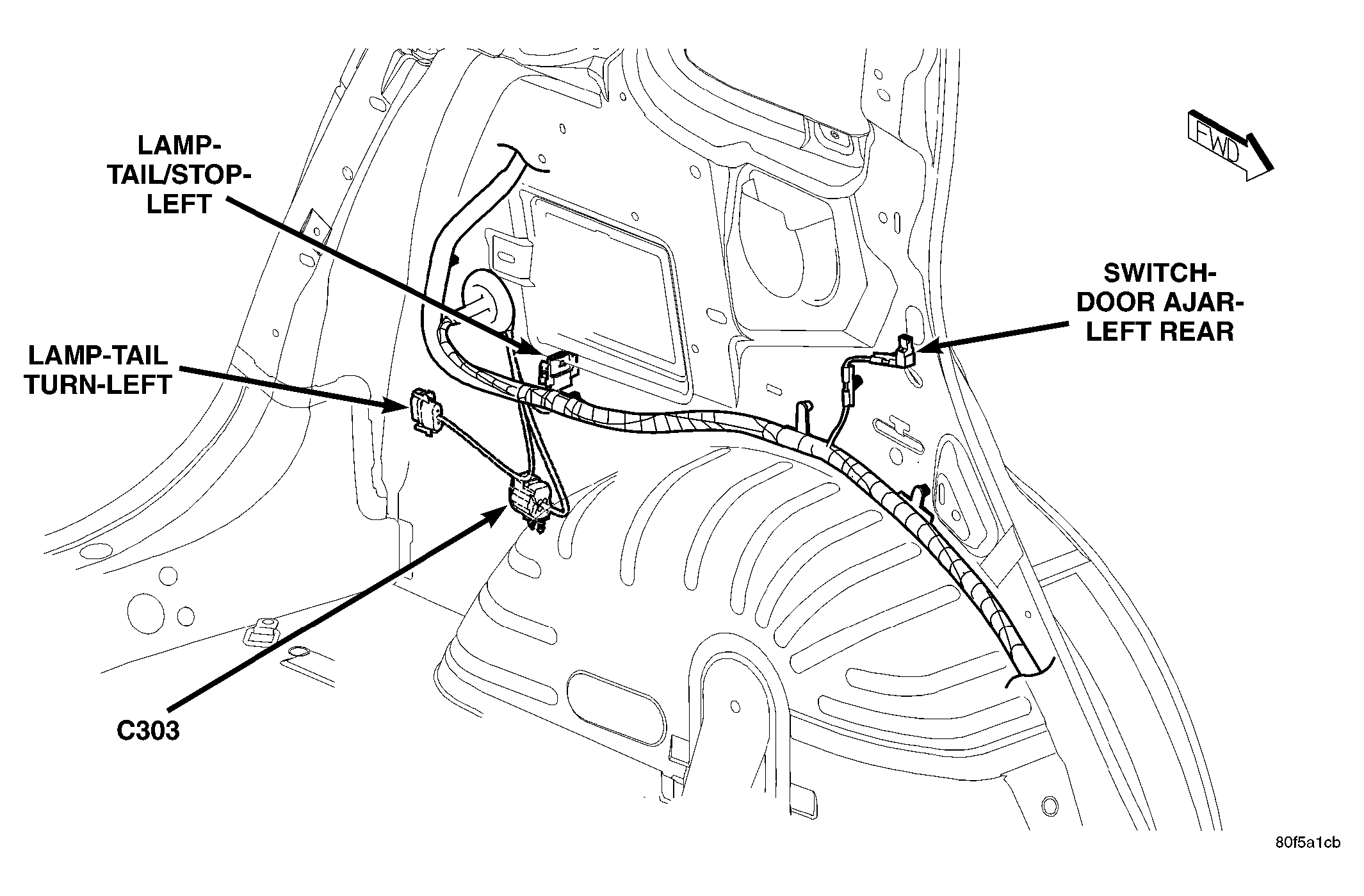

C303	DK GY	Left Rear Quarter	Fig 57, Fig 70.
C304	BK	Side of Fuel Tank	Fig 63.
C305	YL	Left Rear of Front Console	Fig 47, Fig 54, Fig 56.
C306	YL	Left Side of Front Console	Fig 47, Fig 48.
C307	BK	Under Passenger Seat	Fig 47, Fig 48, Fig 54, Fig 56.
C308	BK	Under Driver Seat	Fig 47, Fig 48, Fig 54, Fig 56.
C343 (PT27)	DK GY	Left Decklid	Fig 67.

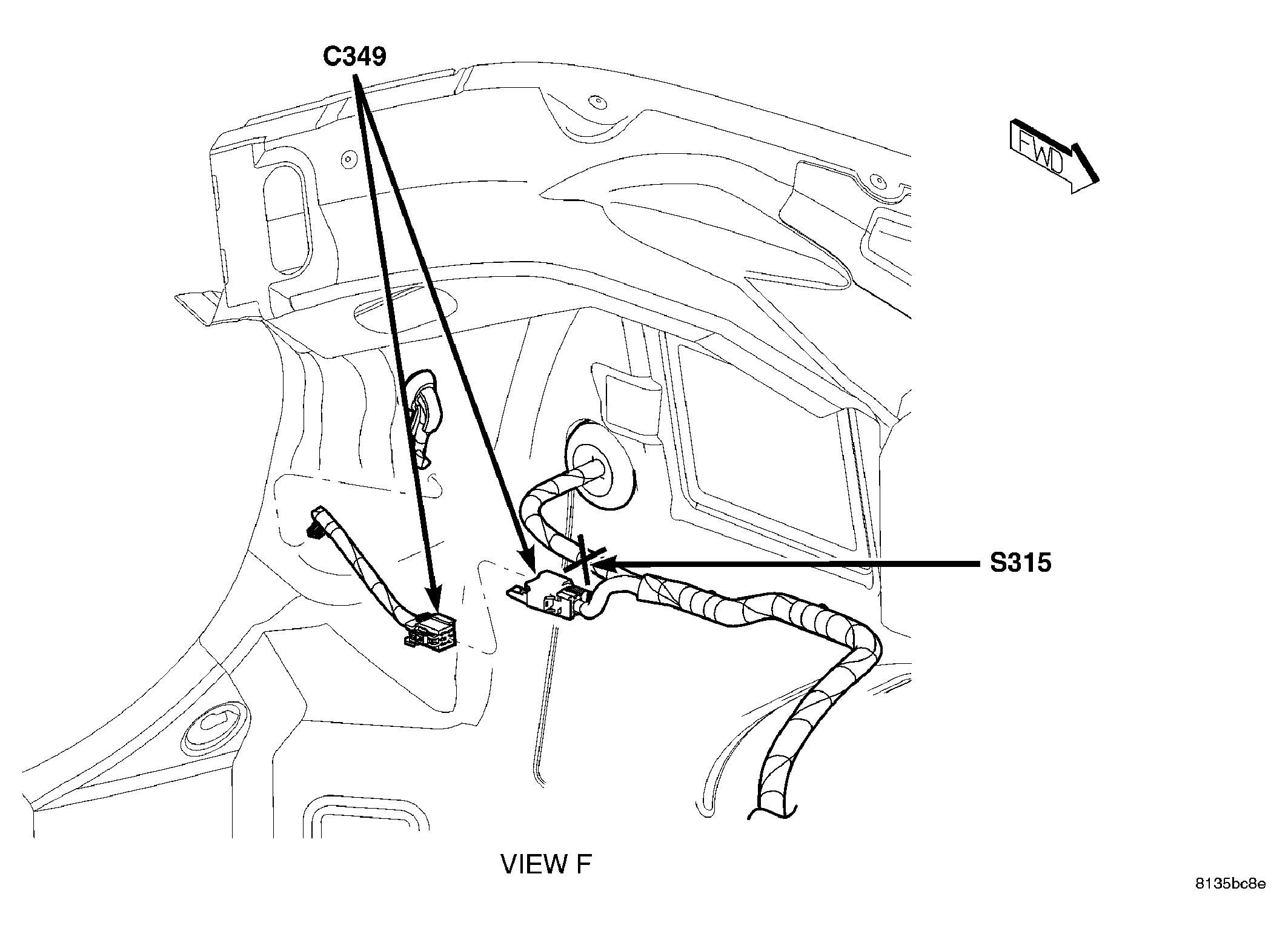

C349 (PT27)	BL	Left Rear Cargo Area	Fig 60.

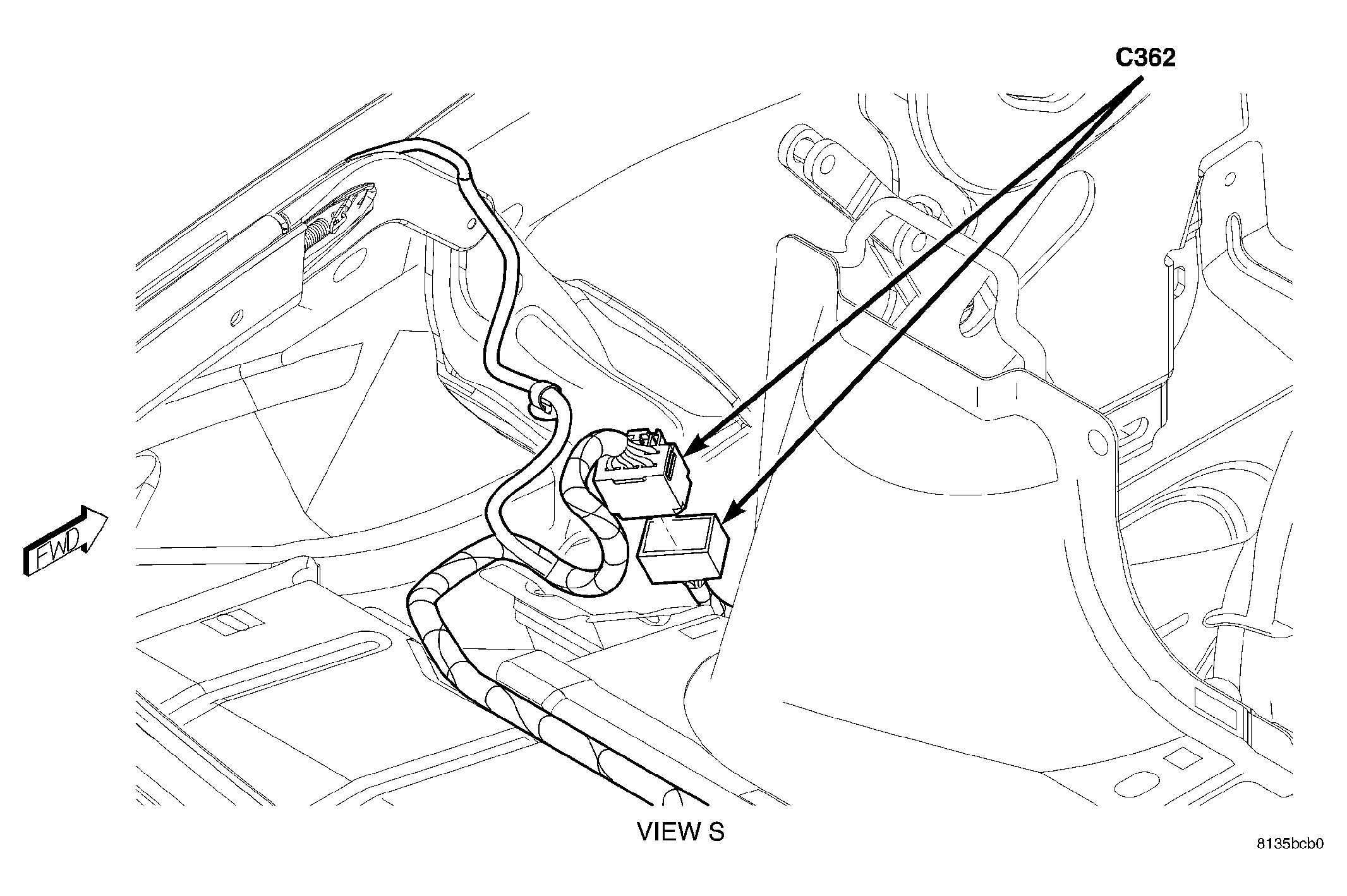

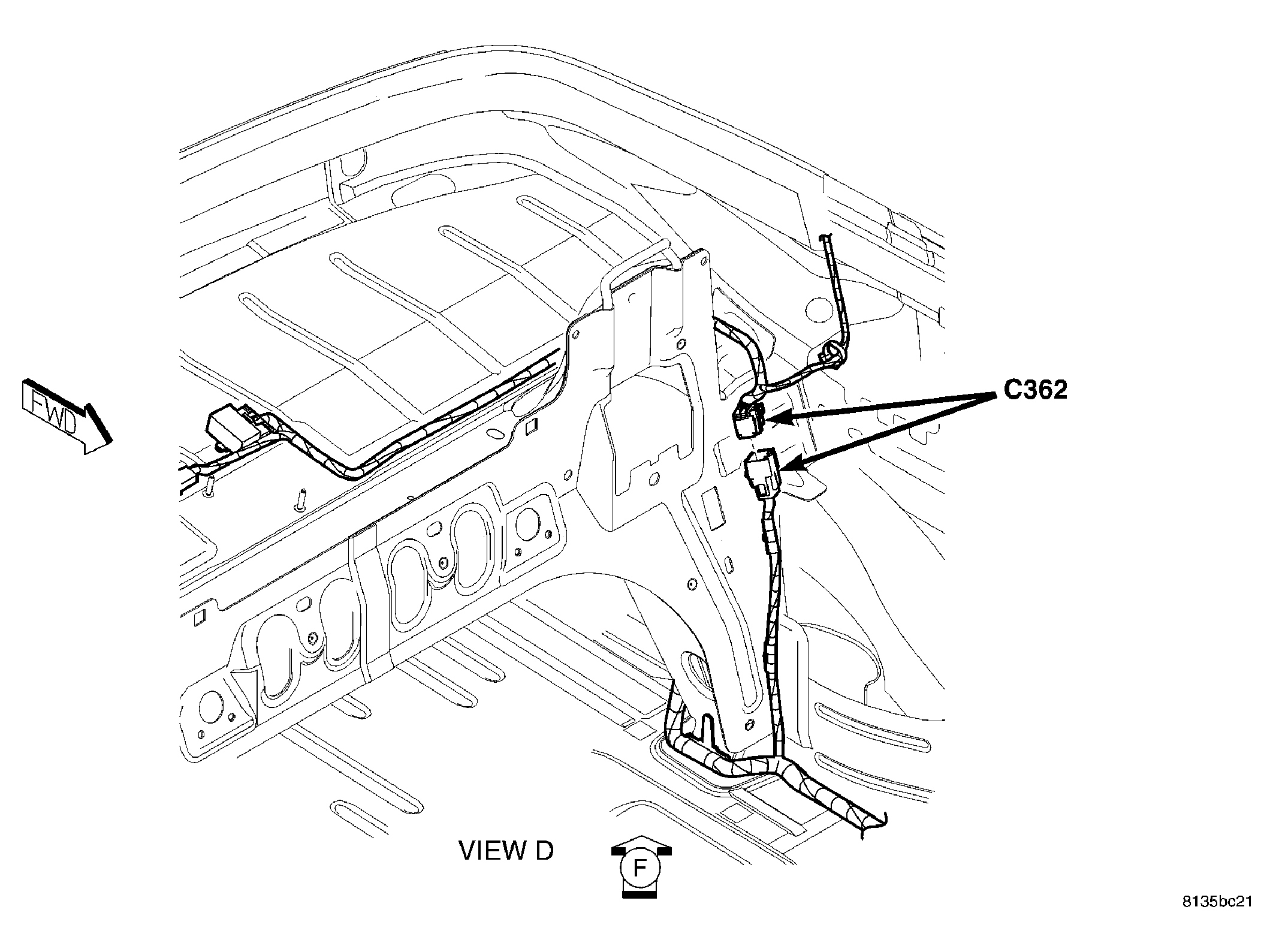

C362 (PT27)	LT GY	Left Side Body	Fig 58, Fig 64, Fig 65.
	Capacitor-Ignition (1.6L)	Rear of Engine	Fig 25.

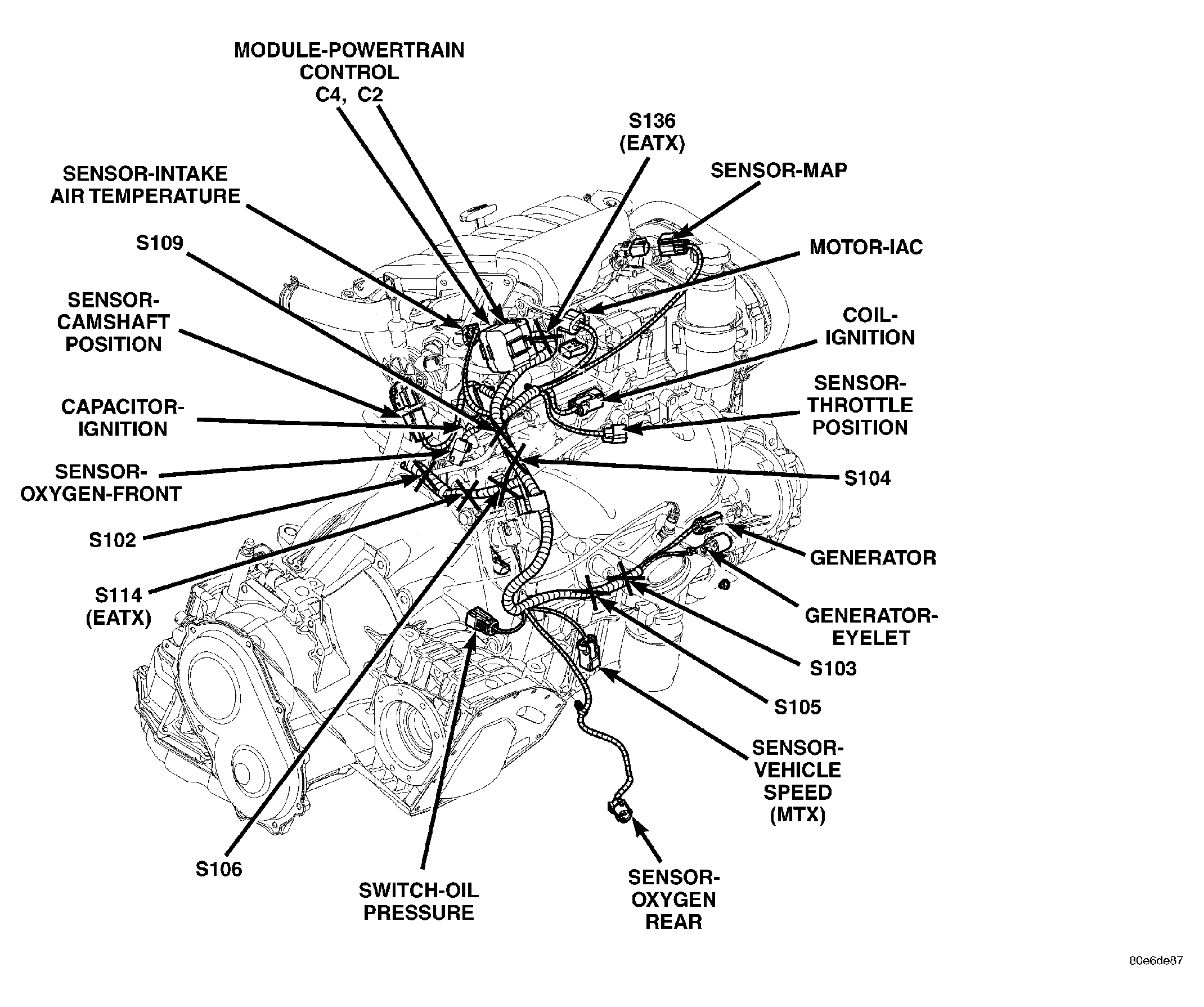

	Capacitor-Ignition (2.4L)	Left Side Engine Compartment on Engine	Fig 21, Fig 24.
	Circuit Breaker-Power Window	Center Instrument Panel	Fig 32.
Cluster C1	-	Driver's Side of Instrument Panel	Fig 27.
Cluster C2	-	Driver's Side of Instrument Panel	Fig 27.
Cluster C3	-	Driver's Side of Instrument Panel	Fig 27.
Cluster C4	-	Driver's Side of Instrument Panel	Fig 27.

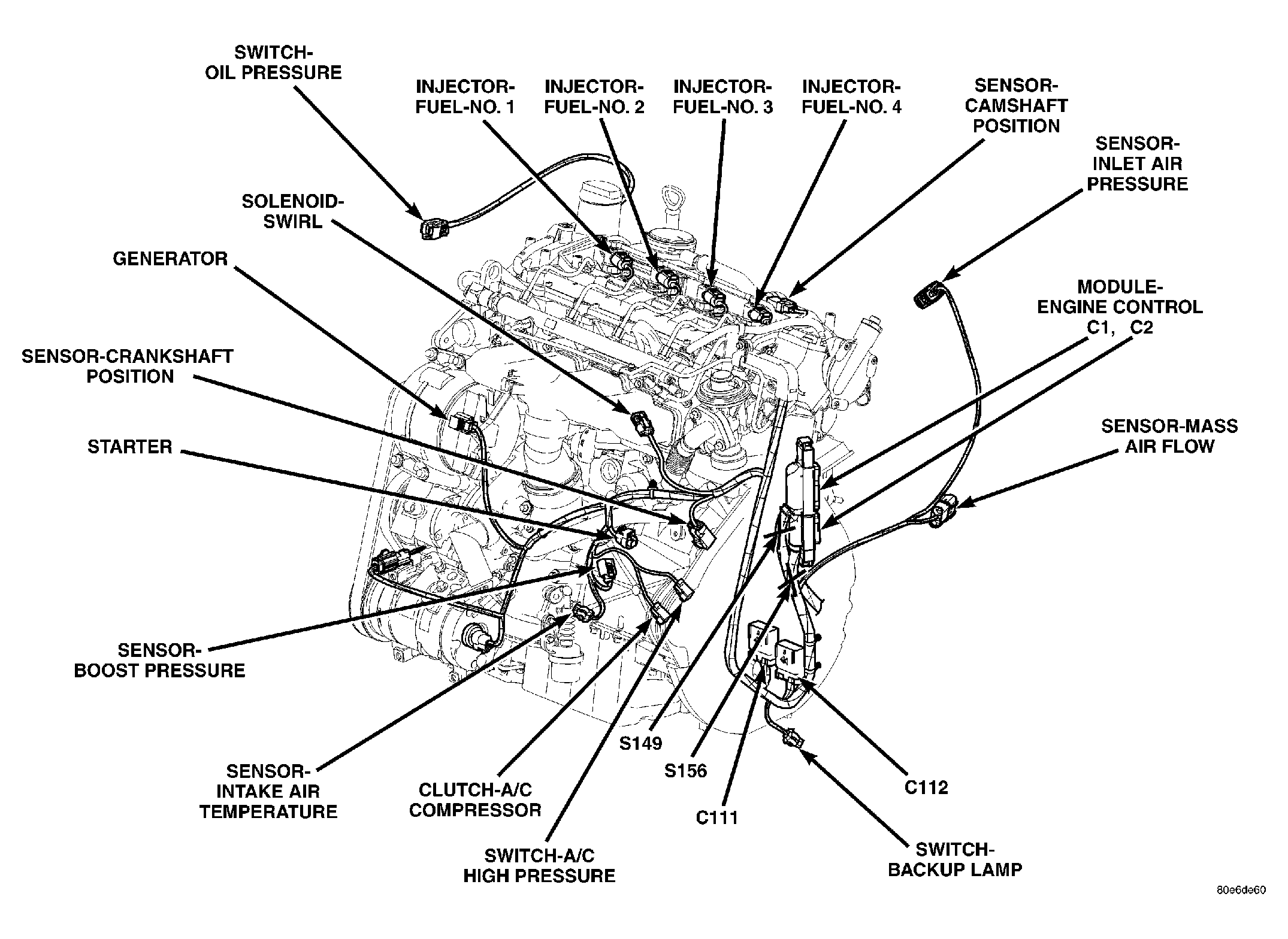

Clutch-A/C Compressor	BK	Lower Right Side of Engine Compartment On Engine	Fig 19, Fig 20, Fig 23, Fig 26.
Coil-Ignition	BK	Left Rear of Engine Compartment on Engine	Fig 21, Fig 25, Fig 26.

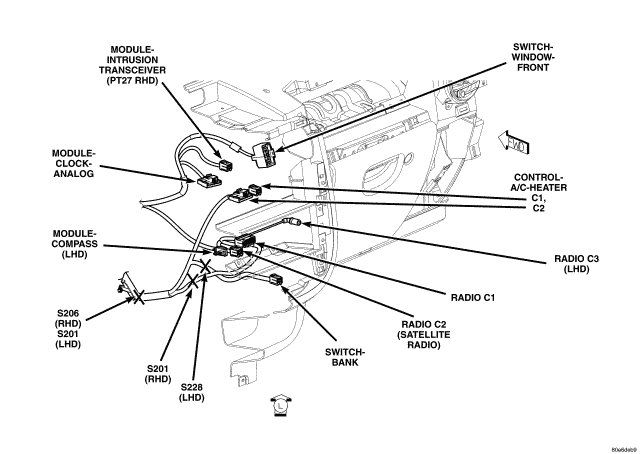

Control-A/C-Heater C1	-	Center of Instrument Panel	Fig 30.
Control-A/C-Heater C2	-	Center of Instrument Panel	Fig 30.

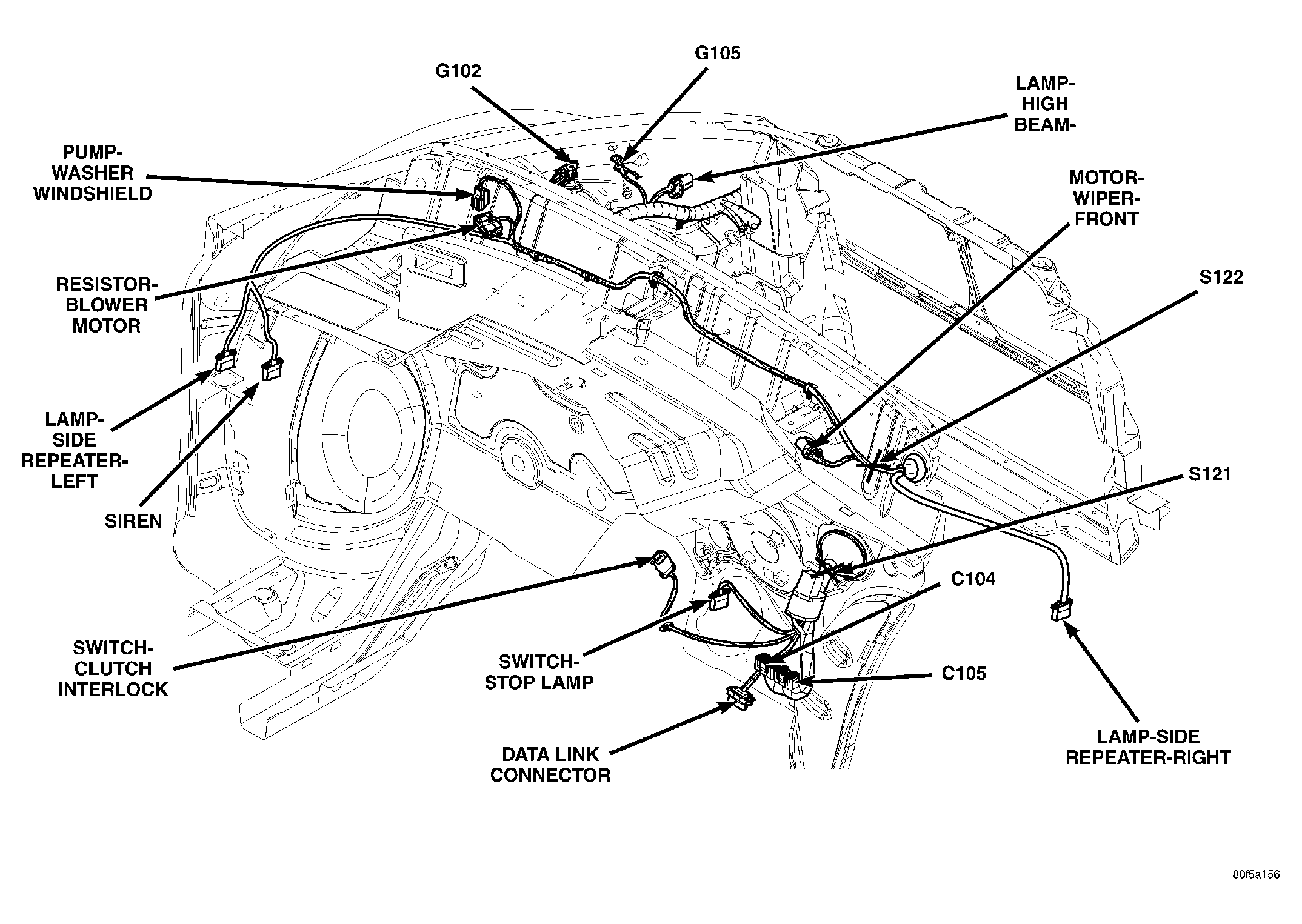

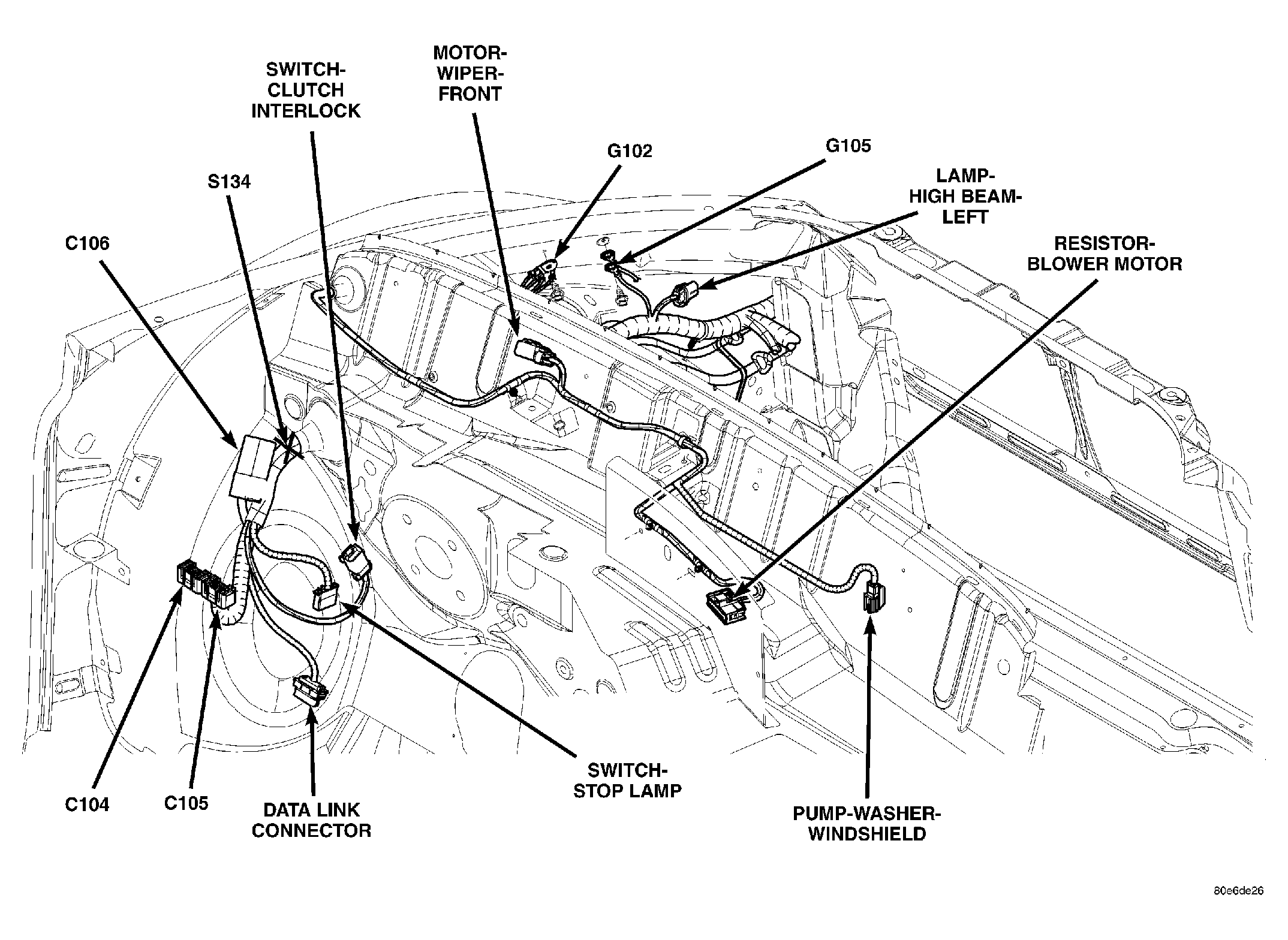

Data Link Connector	BK	Left Side of Instrument Panel	Fig 11, Fig 12, Fig 14.

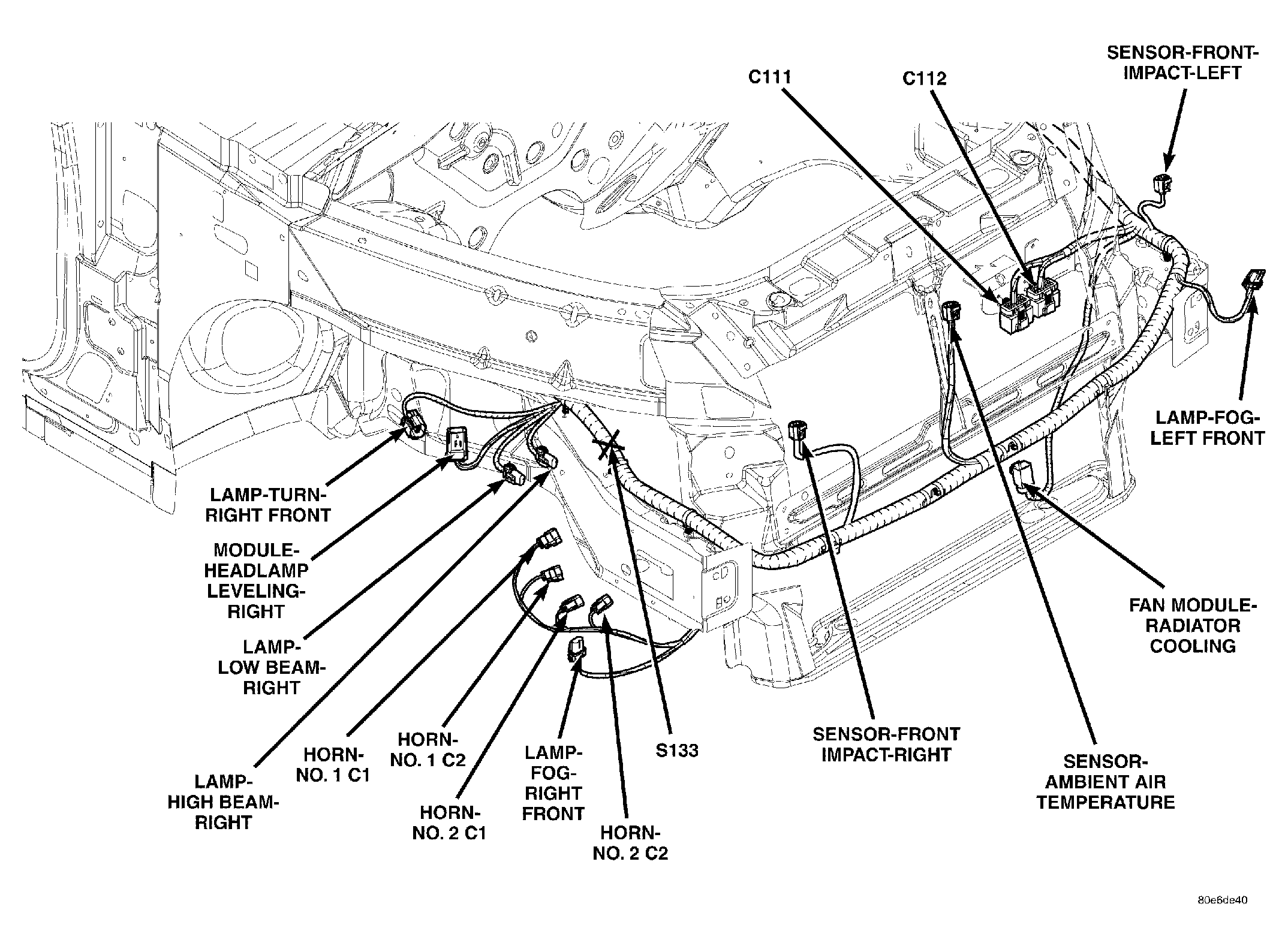

Fan Module-Radiator Cooling	DK GY	Front Center Engine Compartment	Fig 1, Fig 18.
Fuse Block (Diesel)	BK	Left Bottom of Instrument Panel	Fig 10.
	Fuse-Mega	Below Passenger Seat	Fig 62.
Fusible Link (2.4L)	-	Front of Engine Compartment on Engine	N/S
Generator	BK	Right Front of Engine Compartment on Engine	Fig 19, Fig 21, Fig 24, Fig 26.
Generator-Eyelet	BK	Right Front of Engine	Fig 17, Fig 21, Fig 24.
	Glow Plug No. 1	Center of Engine Compartment Top of Engine	N/S
	Glow Plug No. 2	Center of Engine Compartment Top of Engine	N/S
	Glow Plug No. 3	Center of Engine Compartment Top of Engine	N/S
	Glow Plug No. 4	Center of Engine Compartment Top of Engine	N/S
	Heater-Cabin	Rear Engine Compartment	Fig 10, Fig 13.
Heater-Crankcase Vent (Diesel)	BK	Diesel Engine	N/S

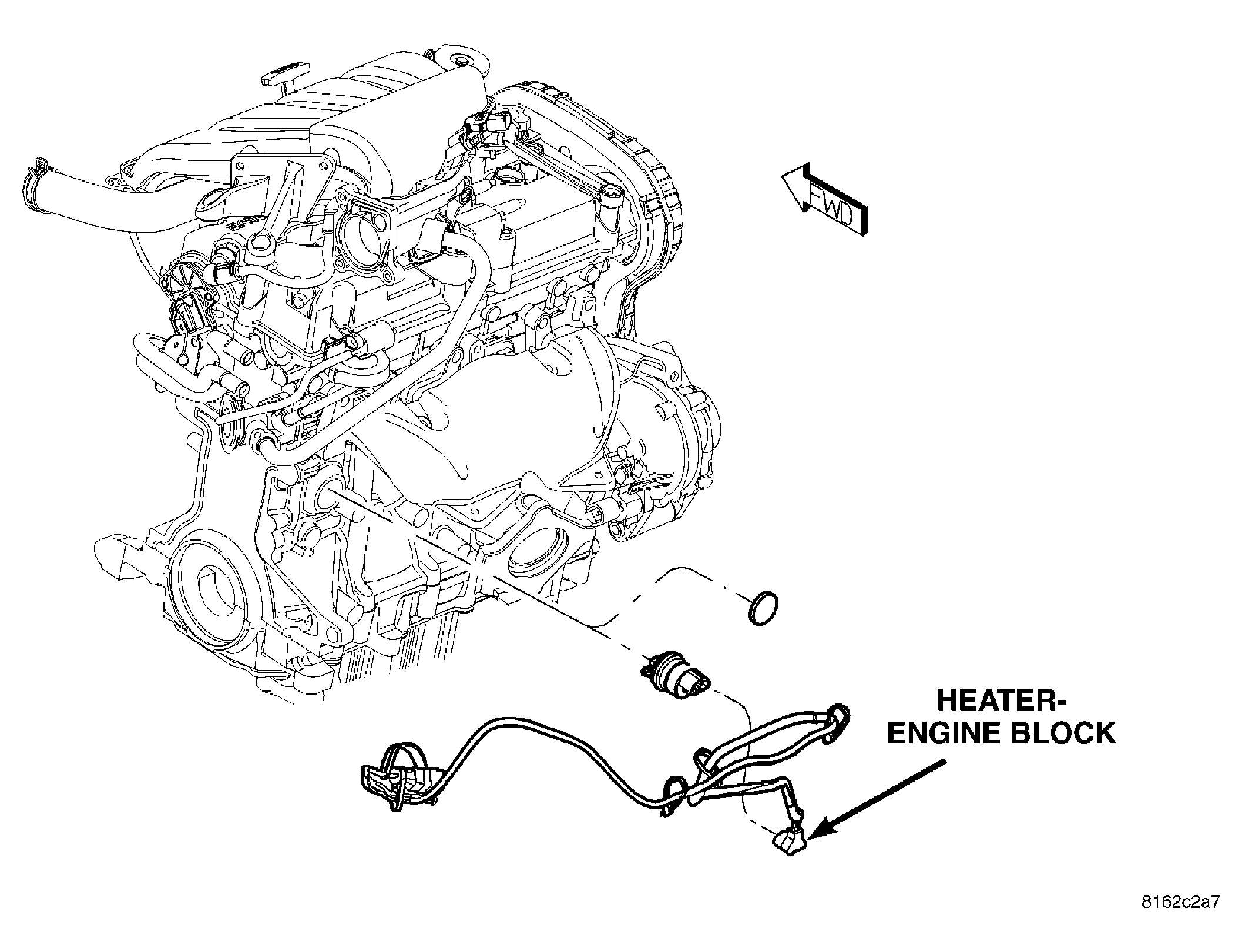

	Heater-Engine Block	Lower Rear of Engine	Fig 22.
Heater-Fuel	WT	Rear of Engine Compartment	Fig 10, Fig 13.
Heater-Seat Back-Left	BK	Left Seat	N/S
Heater-Seat Back-Right	BK	Right Seat	N/S
Heater-Seat Cushion-Left	LT GY	Left Seat	N/S
Heater-Seat Cushion-Right	DK GY	Right Seat	N/S
Horn-No. 1	BK	Left Inner Fender	Fig 1, Fig 18.
Horn-No. 2	BK	Left Inner Fender	Fig 1, Fig 18.
Injector-Fuel-No.1	BK	Center of Engine Compartment At Injector	Fig 19.
Injector-Fuel-No.2	BK	Center of Engine Compartment At Injector	Fig 19.
Injector-Fuel-No.3	BK	Center of Engine Compartment At Injector	Fig 19.
Injector-Fuel-No.4	BK	Center of Engine Compartment At Injector	Fig 19, Fig 26.
Lamp-Backup-Left	GY	Left Side of Rear Fascia	Fig 70.
Lamp-Backup-Right	GY	Right Side of Rear Fascia	Fig 70.

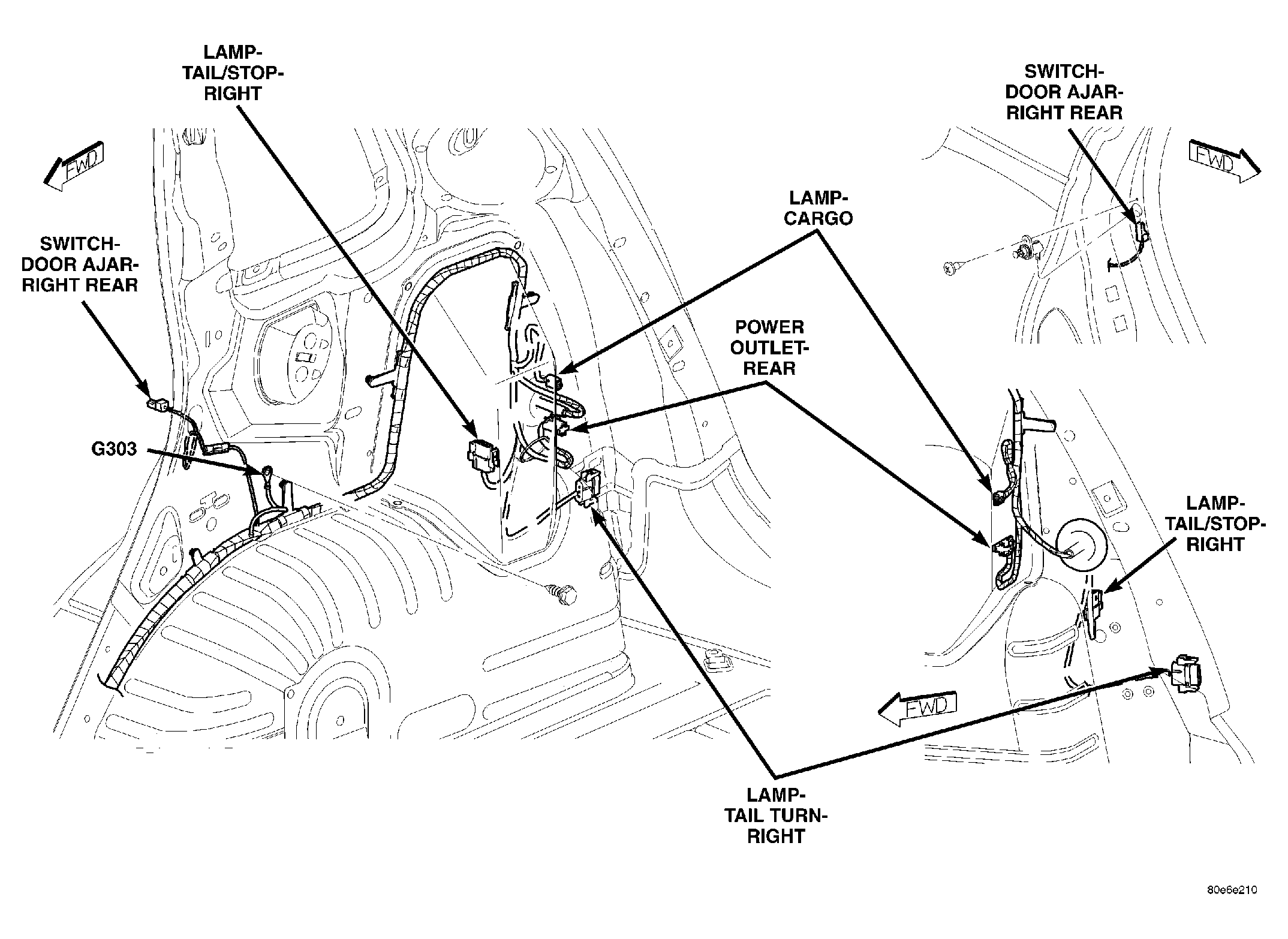

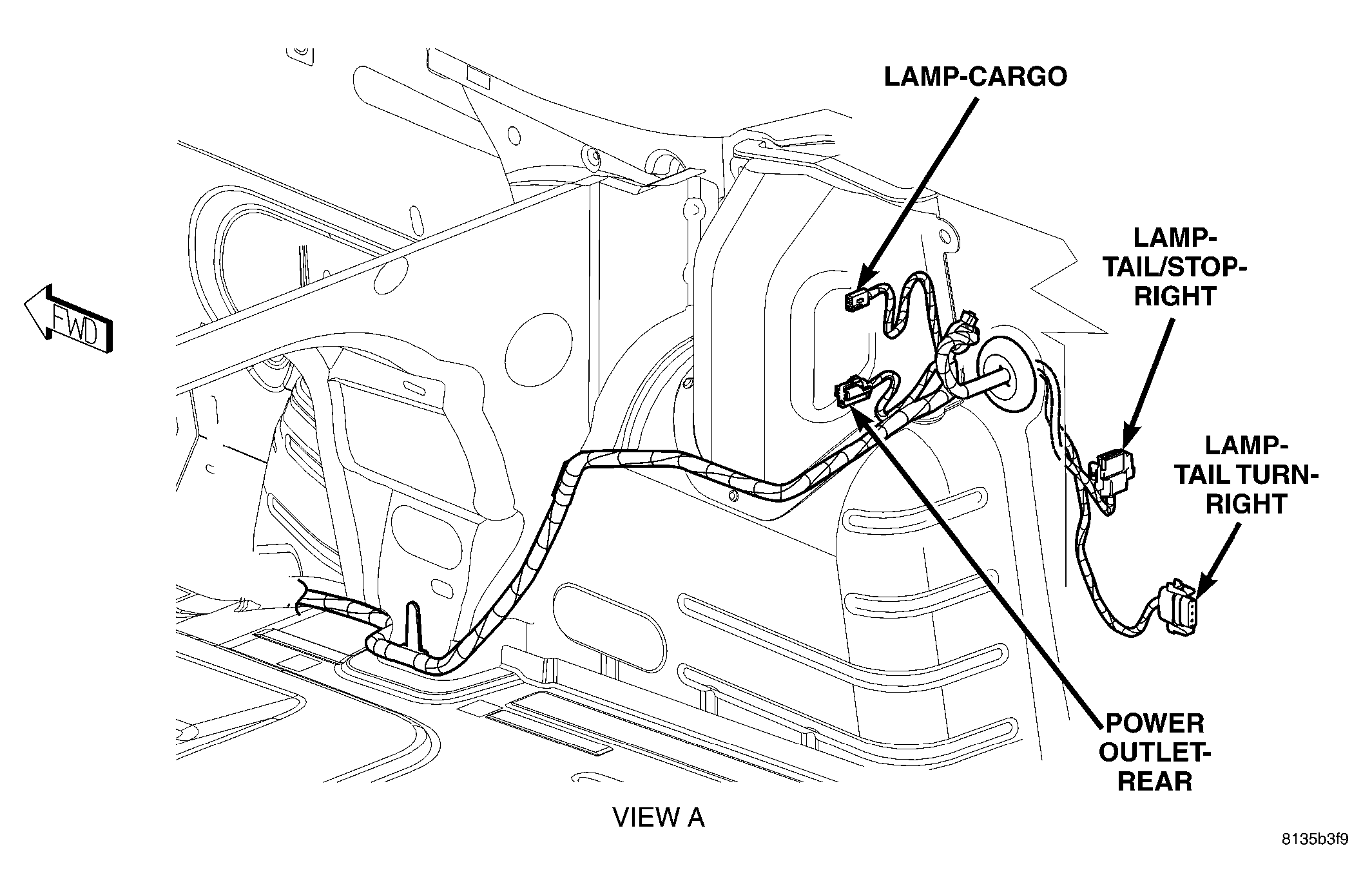

Lamp-Cargo	BK	Cargo Area	Fig 52, Fig 53.
Lamp-Dome (PT44)	BK	Center of Headliner	N/S
Lamp-Dome-Left	GY	Left Sports Bar	Fig 51.
Lamp-Dome-Right	GY	Right Sports Bar	Fig 51.
Lamp-Fog-Left Front	GY	Lower Left Front Fascia	Fig 1, Fig 18.
Lamp-Fog-Left Rear	GY	Left Side of Rear Fascia	N/S

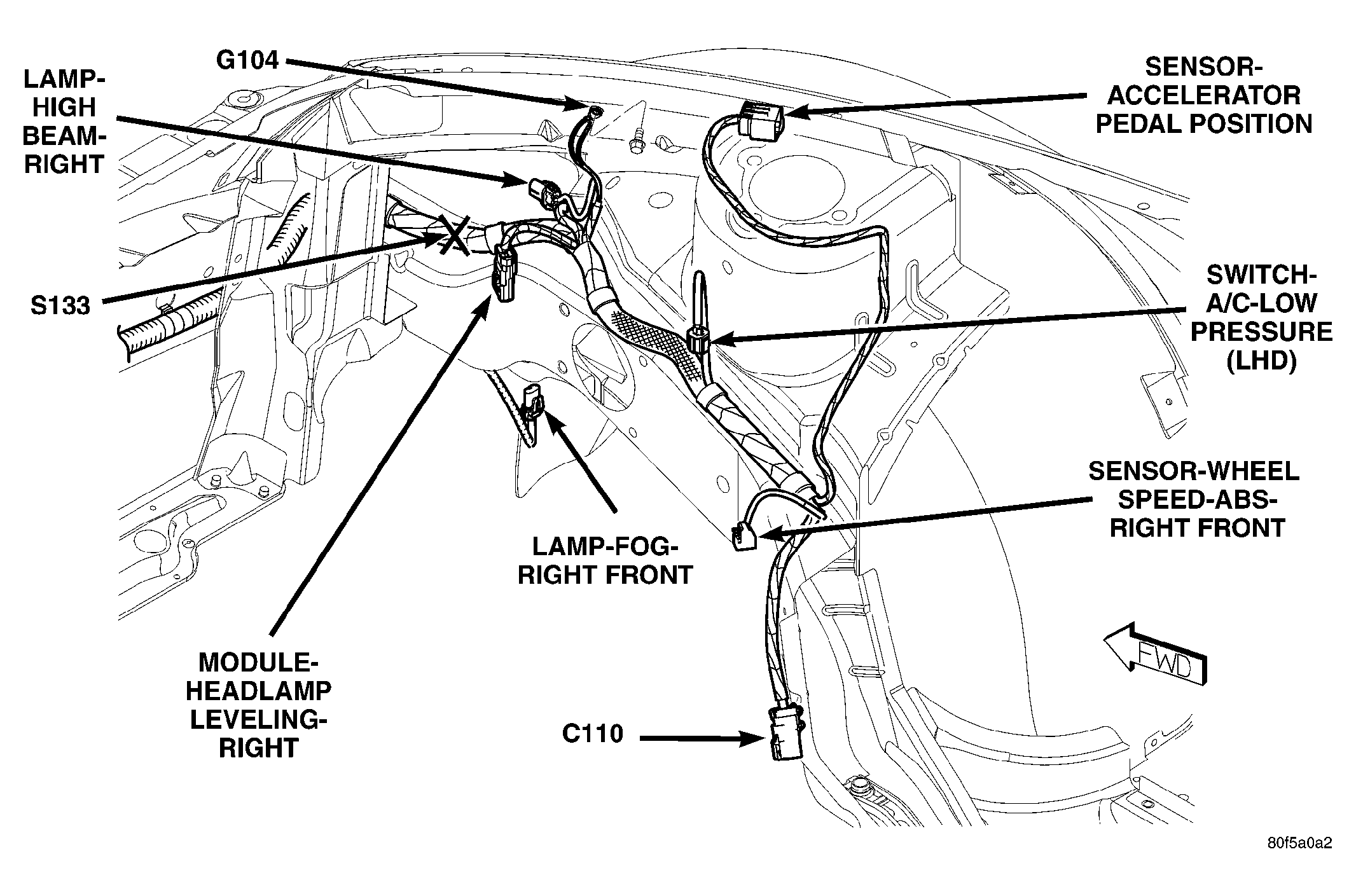

Lamp-Fog-Right Front	GY	Lower Right Front Fascia	Fig 1, Fig 9, Fig 18.
Lamp-Fog-Right Rear	GY	Right Side of Rear Fascia	N/S
Lamp-High Beam-Left	-	At Headlamp Assembly	Fig 12, Fig 14.
Lamp-High Beam-Right	-	Right Front Headlamp Assembly	Fig 1, Fig 9, Fig 18.
Lamp-High Mounted Stop (PT27)	WT	Top of Decklid	Fig 67.
Lamp-High Mounted Stop (PT44)	BK	Top of Liftgate	Fig 68, Fig 69.
Lamp-License (Except Export)	NAT	Center of Rear Fascia	Fig 70.
Lamp-License-Left (Export)	NAT	Left Side of Rear Fascia	Fig 70.
Lamp-License-Right (Export)	NAT	Right Side of Rear Fascia	Fig 70.
Lamp-Low Beam-Left	-	At Headlamp Assembly	Fig 3, Fig 10, Fig 13.
Lamp-Low Beam-Right	-	Right Front Headlamp Assembly	Fig 1, Fig 18.
Lamp-Park/Turn-Left Front	BK	Left Front of Vehicle	N/S
Lamp-Park/Turn-Right Front	BK	Right Front of Vehicle	Fig 1.
Lamp-PRNDL	-	Left Side of Transmission Selection Lever	Fig 41.

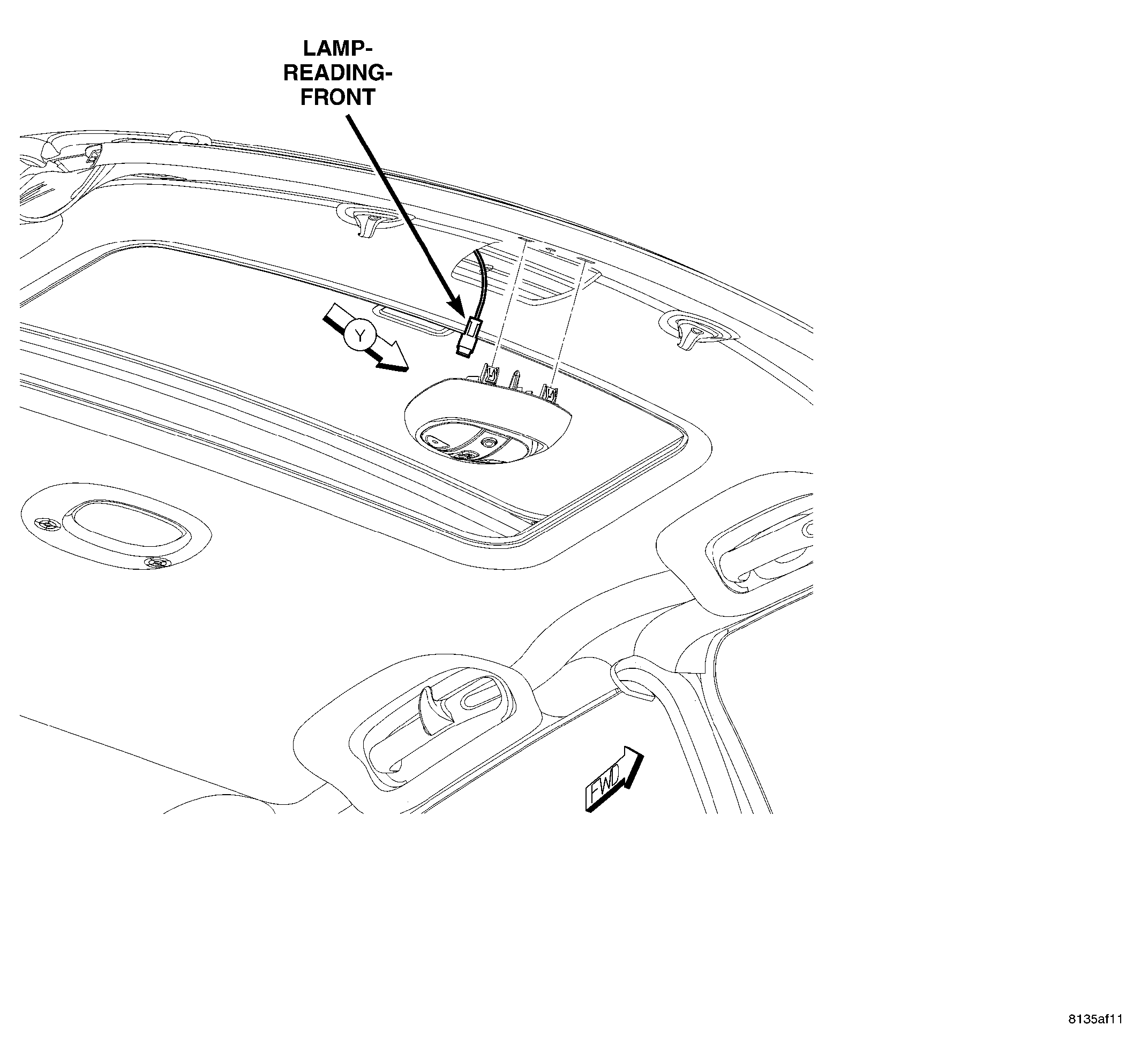

Lamp-Reading-Front	BK	Front Headliner	Fig 38, Fig 40.
Lamp-Side Repeater-Left (Export)	BK	Left Front Wheel Opening	Fig 10, Fig 14.
Lamp-Side Repeater-Right (Export)	BK	Right Front Wheel Opening	Fig 3, Fig 14.
Lamp-Tail Turn-Left	GY	In Rear Lamp Assembly	Fig 57, Fig 70.
Lamp-Tail Turn-Right	GY	In Rear Lamp Assembly	Fig 52, Fig 53.
Lamp-Tail/Stop-Left	BK	In Rear Lamp Assembly	Fig 57, Fig 70.
Lamp-Tail/Stop-Right	BK	In Rear Lamp Assembly	Fig 52, Fig 53.
Lamp-Turn-Left Front	NAT	Left Front of Vehicle	Fig 10, Fig 13.
Lamp-Turn-Right Front	NAT	Right Front of Vehicle	Fig 18.

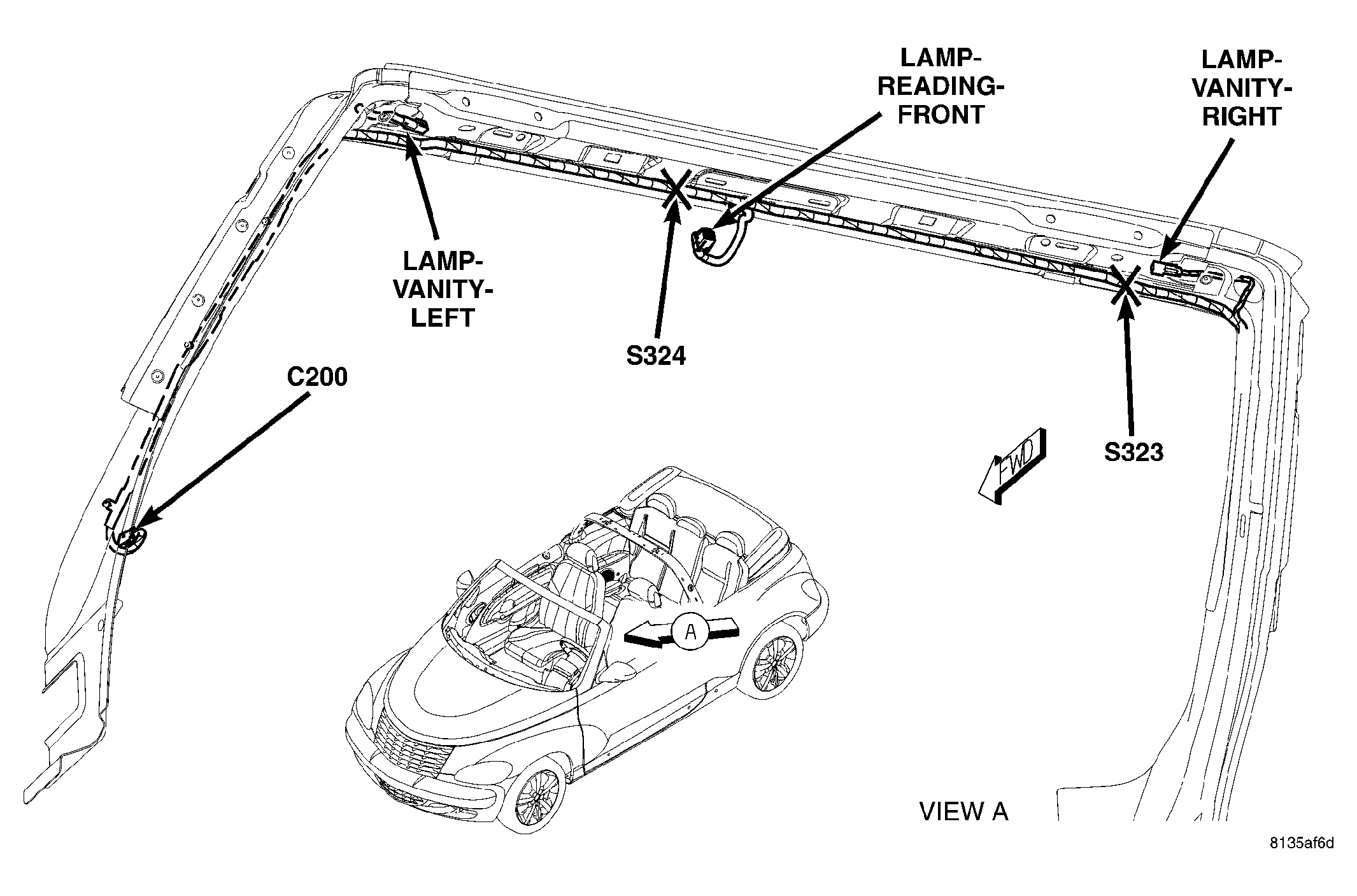

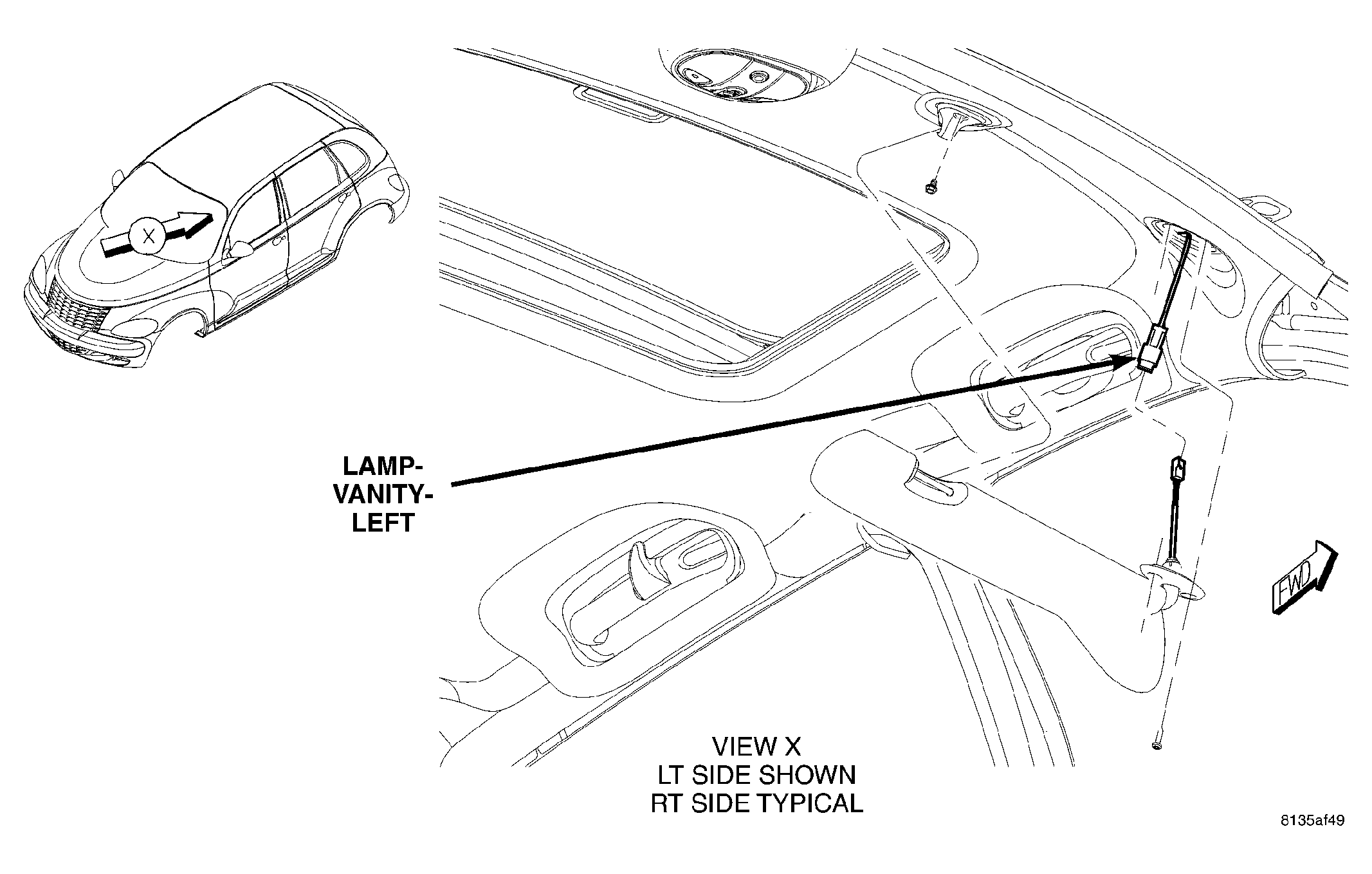

Lamp-Vanity-Left	BK	Left Front Side of Headliner	Fig 39, Fig 40.
Lamp-Vanity-Right	BK	Right Front Headliner	Fig 39, Fig 40.
Latch-Door-Decklid C1 (PT27)	-	Decklid	Fig 67.
Latch-Door-Decklid C2 (PT27)	-	Decklid	Fig 67.
Latch-Door-Driver (PT44)	-	Left Door	Fig 44.
Latch-Door-Driver C1 (PT27)	-	Left Door	Fig 45.
	Latch-Door-Driver C2 (PT27)	Left Door	Fig 45.

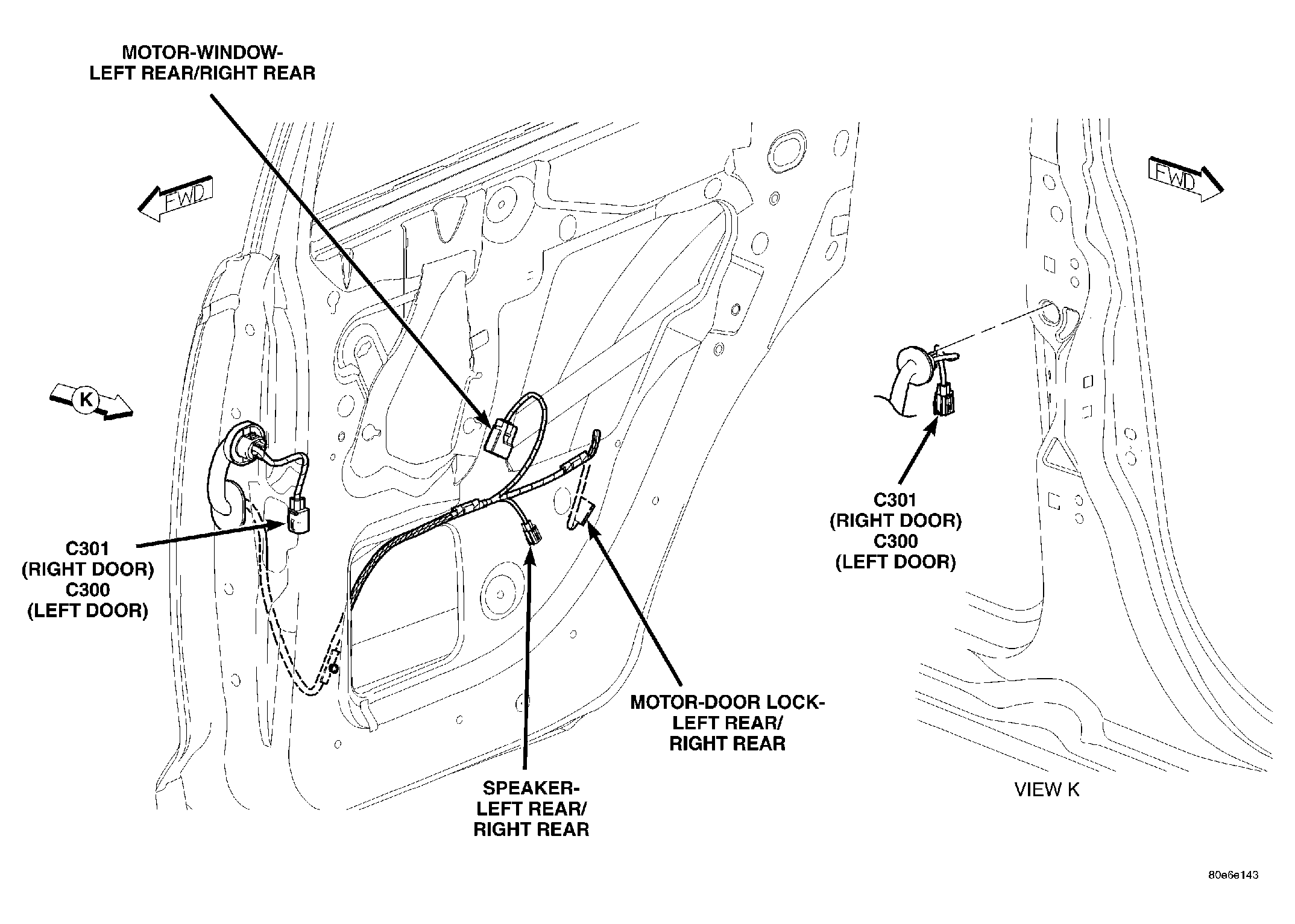

Latch-Door-Left Rear	BK	Rear of Left Rear Door	Fig 46.
Latch-Door-Liftgate C1 (PT44)	-	Inside Liftgate	Fig 66.
Latch-Door-Liftgate C2 (PT44)	-	Inside Liftgate	Fig 66.
	Latch-Door-Passenger C1 (PT27)	Right Door	Fig 45.
Latch-Door-Passenger C2 (PT27)	-	Right Door	Fig 45.
Latch-Door-Passenger (PT44)	-	Right Door	Fig 44.
Latch-Door-Right Rear	BK	Right Rear Door	Fig 46.

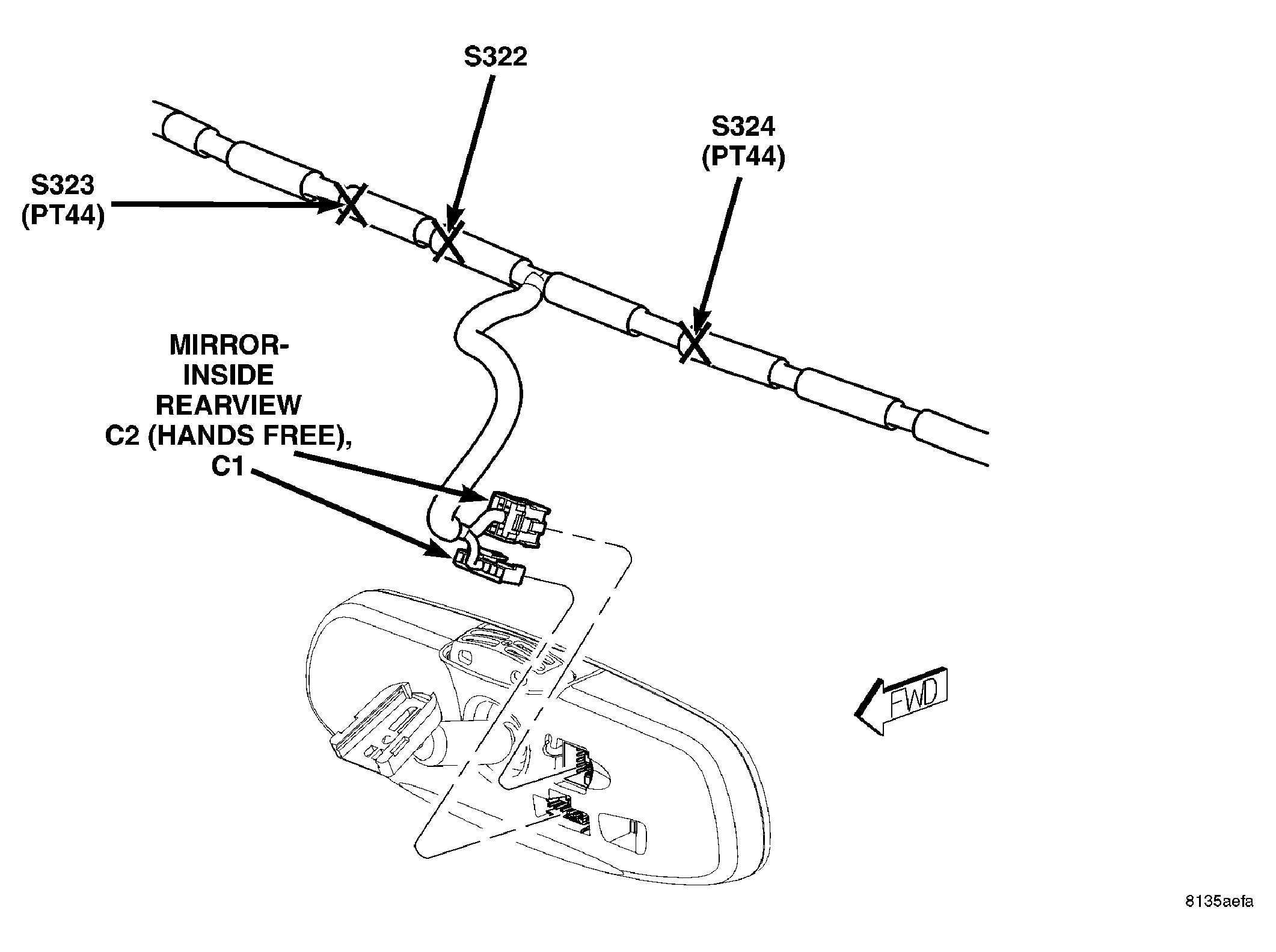

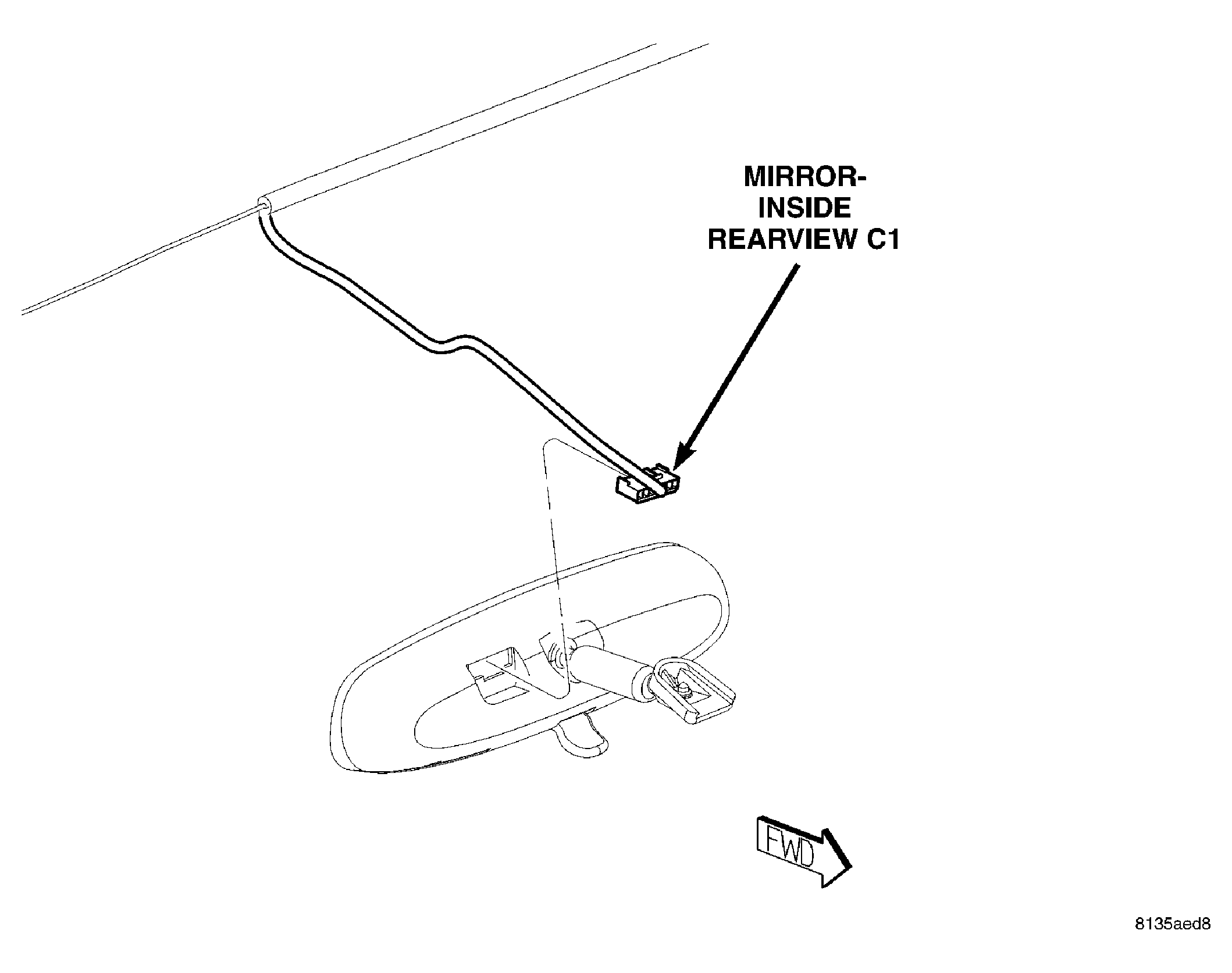

Mirror-Inside Rearview C1	BK	Center Top Windshield	Fig 36, Fig 37.
Mirror-Inside Rearview C2	BK	Center Top Windshield	Fig 37.
Mirror-Outside Rearview-Driver (LHD PT27)	-	Left Front Door	Fig 45.
Mirror-Outside Rearview-Driver (LHD PT44)	-	Left Front Door	Fig 44.
Mirror-Outside Rearview-Driver (RHD PT44)	NAT	Right Front Door	Fig 44.
Mirror-Outside Rearview-Passenger (LHD PT27)	-	Right Front Door	Fig 45.
Mirror-Outside Rearview-Passenger (LHD PT44)	-	Right Front Door	Fig 44.
Mirror-Outside Rearview-Passenger (RHD PT44)	NAT	Left Front Door	Fig 44.
Module-Anti-lock Brakes	-	Left Side of Engine Compartment	Fig 1, Fig 3, Fig 10, Fig 13.
	Module-Clock-Analog	Top of Center Stack	Fig 30.
	Module-Compass	Center Stack	Fig 30, Fig 33.
Module-Electronic Overhead C1 (Overhead Console)	-	Front Center of Headliner	N/S
Module-Electronic Overhead C2 (Overhead Console)	NAT	Front Center of Headliner	N/S
Module-Engine Control C1	BK	Left Side Engine Compartment	Fig 19.
Module-Engine Control C2	BK	Left Side of Engine Compartment	Fig 19.
Module-Fuel Pump	LT GY	On Fuel Tank	Fig 63.
	Module-Gateway (1.6L)	Center Front Body	Fig 32.

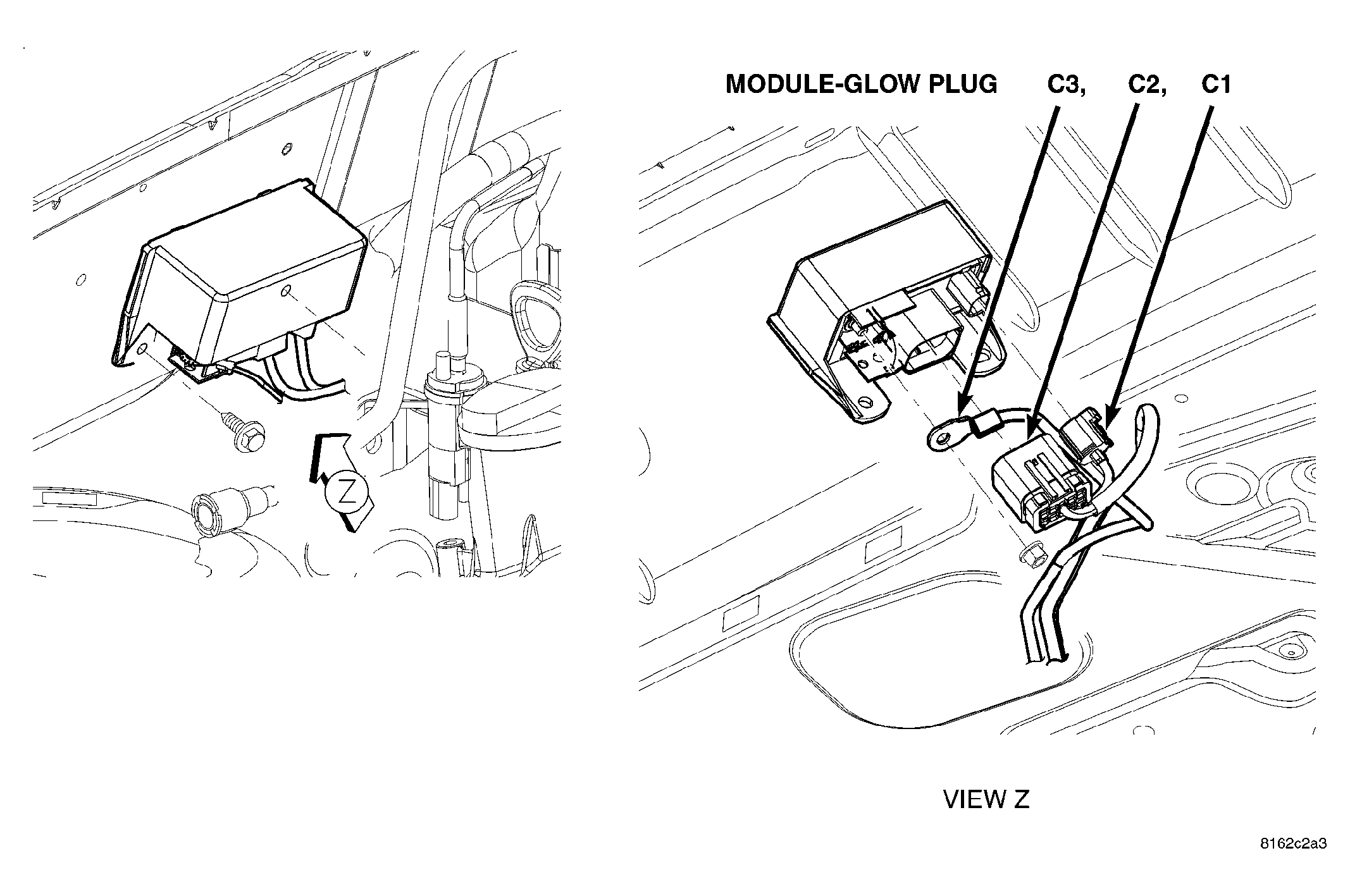

	Module-Glow Plug C1	Right Side Engine Compartment	Fig 15.
	Module-Glow Plug C2	Right Side Engine Compartment	Fig 15.
	Module-Glow Plug C3	Right Side Engine Compartment	Fig 15.

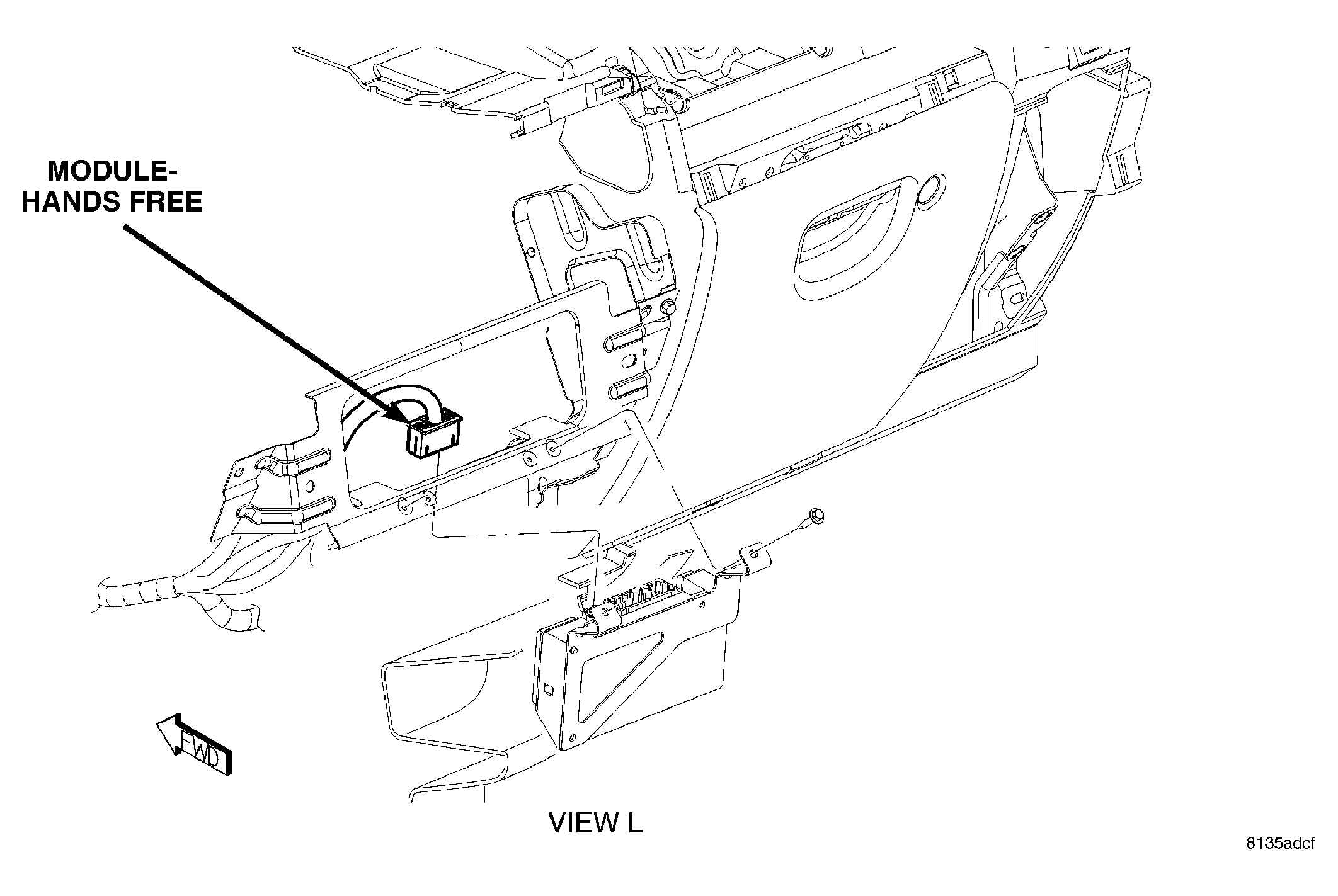

Module-Hands Free	DK GY	Left Center of Instrument Panel	Fig 31.
Module-Headlamp Leveling-Left	-	Left Front of Vehicle	Fig 3, Fig 10, Fig 13.
Module-Headlamp Leveling-Right	-	Right Front of Vehicle Near C108	Fig 9, Fig 18.
Module-Heated Seats	-	Driver Seat	N/S
	Module-Intrusion Transceiver (PT27)	Center Instrument Panel	Fig 30.
	Module-Intrusion Transceiver (PT44)	Center Headliner Near Dome Lamp	N/S
	Module-Occupant Classification	Passenger Seat	N/S

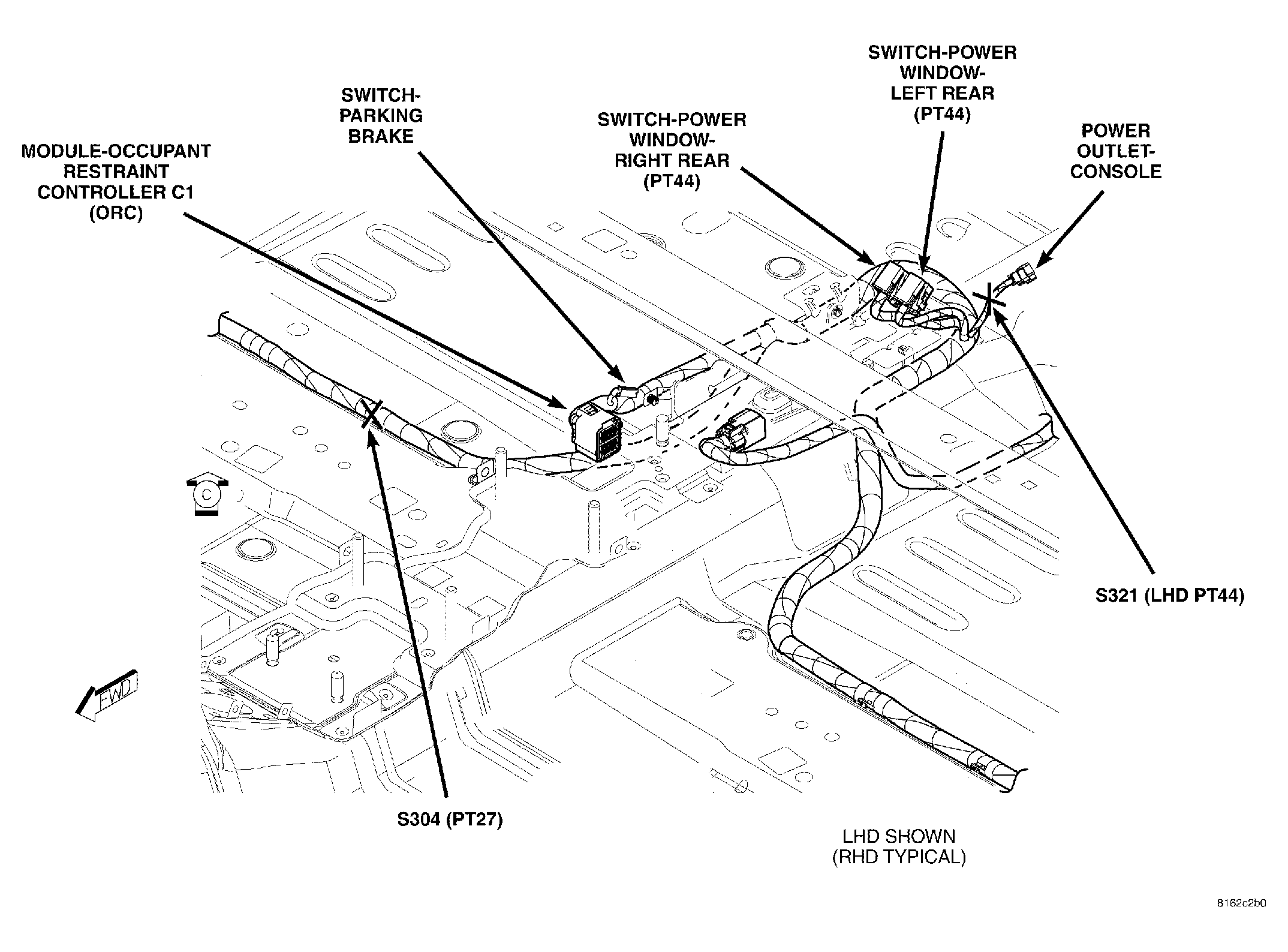

Module-Occupant Restraint Controller C1	YL	Under Center Console	Fig 42.
Module-Occupant Restraint Controller C2	YL	Under Center Console	Fig 41.
Module-Powertrain Control (1.6L)	BK	Left Rear of Engine	Fig 25, Fig 26.
Module-Powertrain Control C1 (2.4L)	BK/BK	Left Side Engine Compartment	Fig 1.
Module-Powertrain Control C2 (2.4L)	BK/OR	Left Side Engine Compartment	Fig 21, Fig 23.
Module-Powertrain Control C2 (2.4L Turbo)	BK/OR	Left Side Engine Compartment	Fig 24.
Module-Powertrain Control C3 (2.4L)	BK/NAT	Left Side Engine Compartment	Fig 1.
Module-Powertrain Control C4 (2.4L)	BK/GN	Left Side Engine Compartment	Fig 21, Fig 23.
Module-Sentry Key Remote Entry	BK	Right of Steering Column	Fig 27.
Module-Sentry Key Remote Entry Antenna (Japan)	BK	Center of Instrument Panel	N/S
	Module-Steering Control C1	At Steering Column	Fig 27.
	Module-Steering Control C2	At Steering Column	Fig 27.
	Module-Steering Control C3 (LHD)	At Steering Column	Fig 27.
	Module-Steering Control C4	At Steering Column	Fig 27.
	Module-Steering Control C5	At Steering Column	Fig 35.

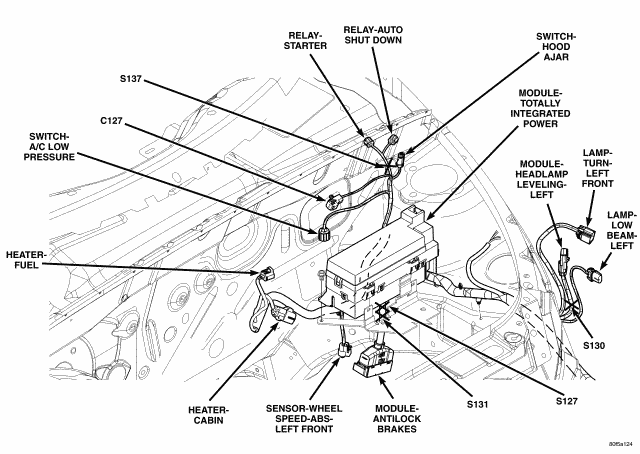

	Module-Totally Integrated Power	Left Side Engine Compartment	Fig 3, Fig 10, Fig 13.

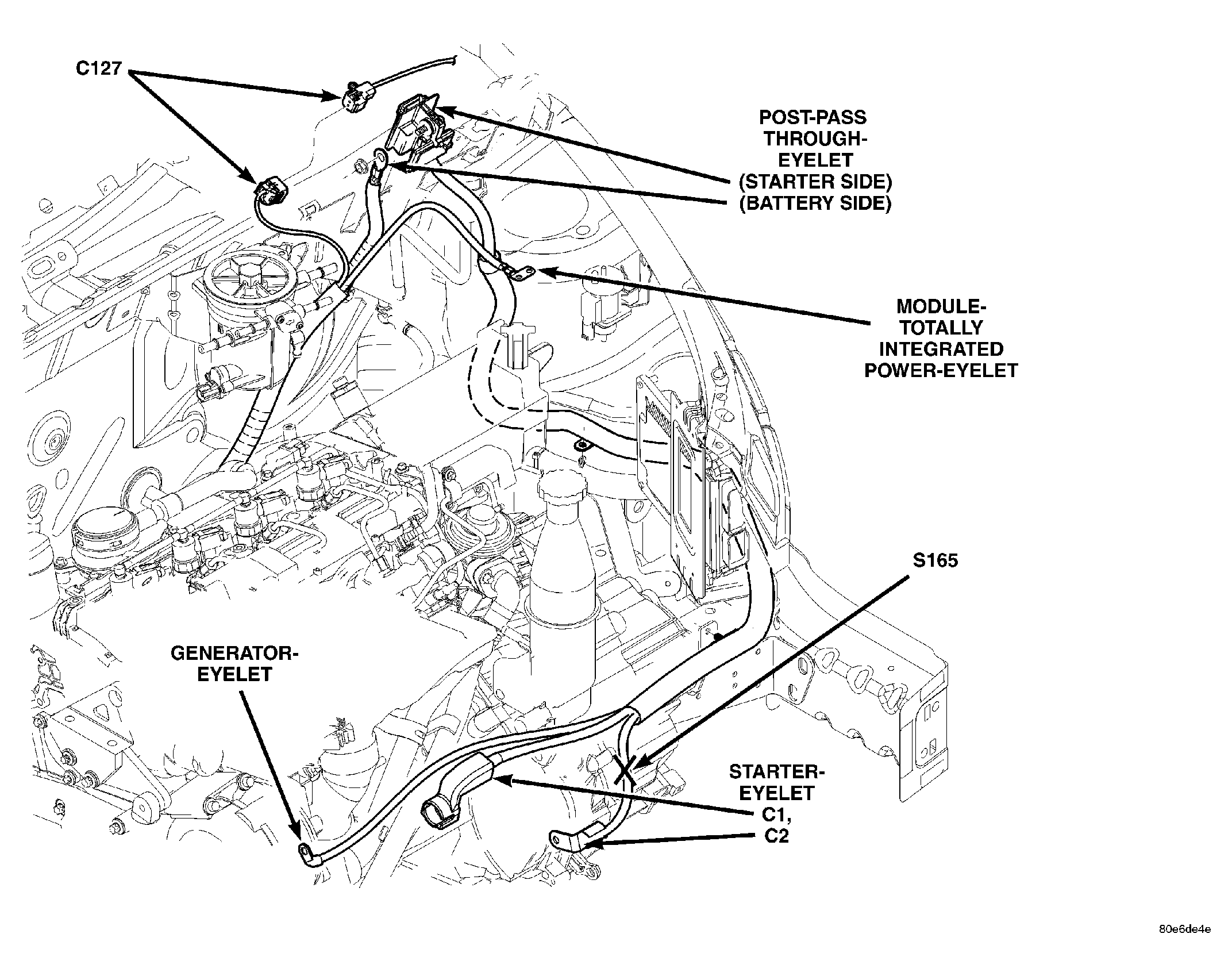

	Module-Totally Integrated Power-Eyelet	Left Side Engine Compartment	Fig 4, Fig 5, Fig 6, Fig 17.
Module-Window Regulator-Left	BK	Center of Left Front Door	Fig 45.
Module-Window Regulator-Right	-	Center of Right Front Door	Fig 45.
Motor-Blower	BK	Rear of Passenger Side Instrument Panel	Fig 29, Fig 33.
Motor-IAC	BK	Center of Engine Compartment Top of Engine	Fig 21, Fig 23.
	Motor-Power Top	Trunk	Fig 64.
	Motor-Seat Adjuster-Driver Horizontal	Driver Seat	N/S
	Motor-Seat Adjuster-Front Driver Vertical	Driver Seat	N/S
	Motor-Seat Adjuster-Rear Driver Vertical	Driver Seat	N/S

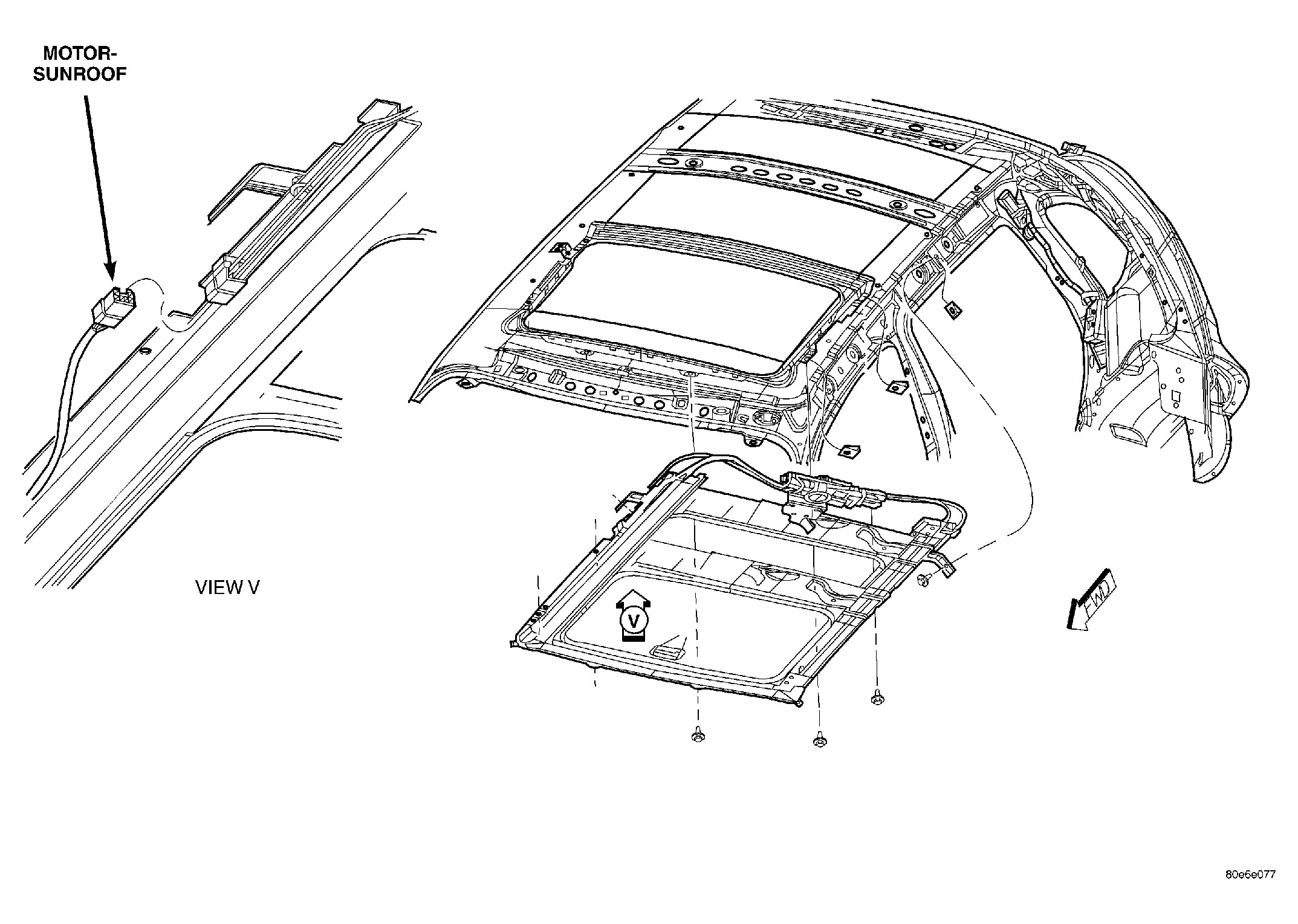

Motor-Sunroof	NAT	Right Side of Sunroof Assembly	Fig 43.
Motor-Window-Left Front	BK	Left Front Door	Fig 44.

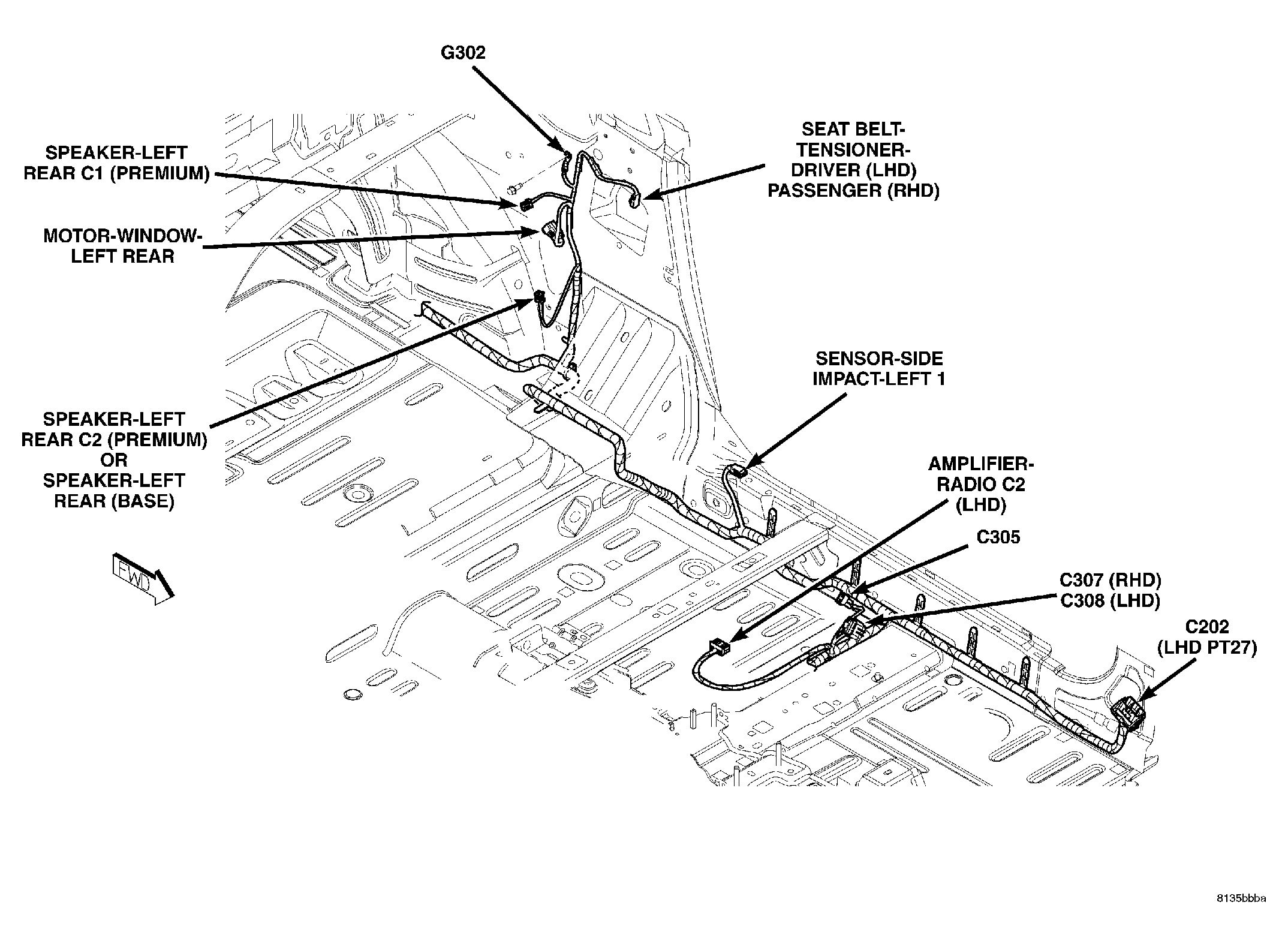

Motor-Window-Left Rear (PT27)	BK	Left Side Body	Fig 56.
Motor-Window-Left Rear (PT44)	BK	Left Rear Door	Fig 46.
Motor-Window-Right Front	BK	Right Front Door	Fig 44.

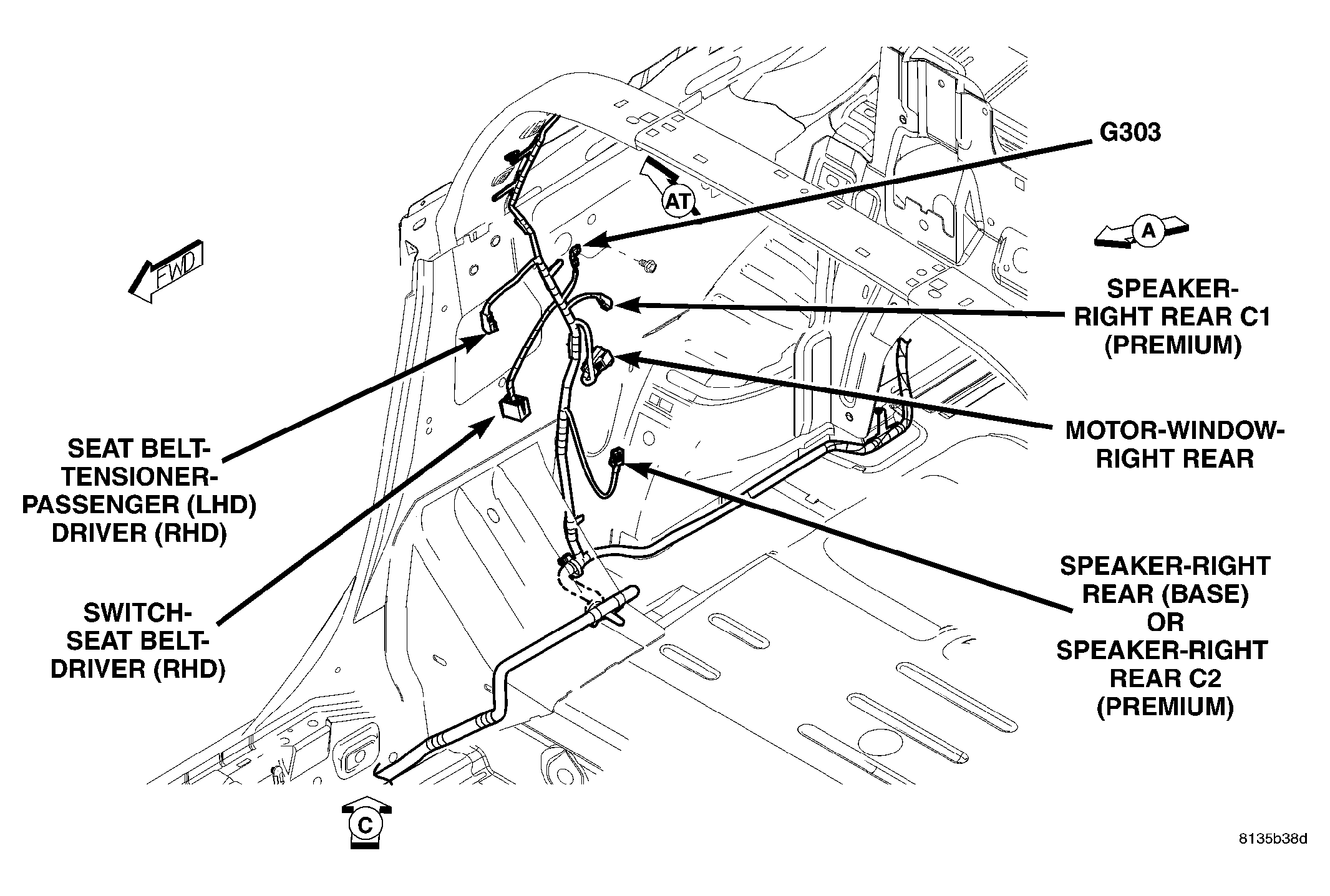

Motor-Window-Right Rear (PT27)	BK	Right Side Body	Fig 50.
Motor-Window-Right Rear (PT44)	BK	Right Rear Door	Fig 46.
Motor-Wiper-Front	BK	Center of Cowl Panel	Fig 3, Fig 11, Fig 12, Fig 14.
Motor-Wiper-Rear	BK	Center of Liftgate	Fig 66.
	Post-Pass Through-Eyelet-(Battery Side)	Left Rear Engine Compartment	Fig 17.
	Post-Pass Through-Eyelet-(Starter Side)	Left Rear Engine Compartment	Fig 17.
Power Outlet-Console	GY	Top of Front Console	Fig 42.
Power Outlet-Instrument Panel	GY	Bottom Center of Instrument Panel	Fig 41.
Power Outlet-Rear	RD	Right Rear Cargo Area	Fig 52, Fig 53.
Pump-Washer-Windshield	BK	Attached to Washer Reservoir	Fig 3, Fig 11, Fig 12, Fig 14.
	Radio Antenna Cable (LHD)	Center Instrument Panel	Fig 30.
Radio Antenna Cable (RHD)	-	Rear Center Instrument Panel	Fig 32.
Radio C1	WT	Center of Instrument Panel	Fig 30.
Radio C2 (Satellite Radio)	DK GY	Center of Instrument Panel	Fig 30.
	Radio Ground	Center Instrument Panel	N/S
Receiver-Satellite	BK	Left Rear Body	Fig 61.
	Receiver-Satellite Antenna	Left Rear Body	Fig 61.
	Relay-Auto Shut Down	Left Rear Engine Compartment	Fig 1, Fig 13.
Relay-Power Top	BK	Trunk	Fig 64.
	Relay-Starter	Left Rear Engine Compartment	Fig 1, Fig 13.
Resistor-Blower Motor	BK	Right Side of Cowl Panel	Fig 3, Fig 11, Fig 12, Fig 14.
Seat Belt-Tensioner-Driver (LHD PT44)	YL	Left B-Pillar	Fig 55.
Seat Belt-Tensioner-Driver (PT27)	YL	Left Side Body	Fig 56.
Seat Belt-Tensioner-Driver (RHD)	YL	Right B-Pillar	Fig 49.
Seat Belt-Tensioner-Passenger (PT27)	YL	Right Side Body	Fig 50.
Seat Belt-Tensioner-Passenger (LHD)	YL	Right B-Pillar	Fig 49.
Seat Belt-Tensioner-Passenger (RHD)	YL	Left B-Pillar	Fig 55.
Sensor-Accelerator Pedal Position	-	Right Side Engine Compartment	Fig 7, Fig 9, Fig 16.
Sensor-Ambient Air Temperature (Gas)	BK	Lower Left Front Fascia	Fig 1.
Sensor-Ambient Air Temperature (Diesel)	BK	Left Front Engine Compartment	Fig 18.
Sensor-Battery Temperature (Diesel)	BK	Lower Passenger B-Pillar	Fig 62.
Sensor-Battery Temperature (Gas)	BK	Left Front Engine Compartment	Fig 1, Fig 11.
Sensor-Boost Pressure	-	Lower Rear of Engine Compartment on Engine	Fig 19.
Sensor-Camshaft Position	BK	On Engine Left Side of Engine Compartment	Fig 19, Fig 21, Fig 23, Fig 25.
Sensor-Crankshaft Position (2.4L)	BK	Lower Rear of Engine Compartment On Engine	Fig 23.
Sensor-Crankshaft Position (1.6L Gas/ 2.2L Diesel)	-	Lower Front of Engine Compartment on Engine	Fig 19, Fig 26.
Sensor-Engine Coolant Temperature	BK	Left Side of Engine Compartment on Engine	Fig 26.
	Sensor-Front Impact-Left	Left Side Body	Fig 1, Fig 18.
	Sensor-Front Impact-Right	Right Front Engine Compartment	Fig 1, Fig 18.
Sensor-Fuel Pressure	BK	Front of Engine Compartment on Engine	N/S
Sensor-Fuel Temperature	BK	Diesel Engine	N/S
Sensor-Input Speed	GY	Front of Engine Compartment on Transmission	Fig 20, Fig 23.
Sensor-Inlet Air Pressure (Diesel)	-	Top of Engine	Fig 19.
Sensor-Intake Air Temperature (Diesel)	-	Left Top of Engine	Fig 19.
Sensor-Intake Air Temperature (Gas)	BK	Top of Engine	Fig 21, Fig 23, Fig 25, Fig 26.
Sensor-Intrusion (PT27 RHD)	-	Center of Sports Bar	Fig 51.
Sensor-Knock	BK	Front of Engine	Fig 20, Fig 23, Fig 26.
Sensor-MAP	BK	Top of Engine	Fig 21, Fig 24, Fig 25.
Sensor-Mass Air Flow	BK	Left Side of Engine Compartment on Engine	Fig 19.
Sensor-Output Speed	GY	Front of Engine Compartment on Transmission	Fig 20, Fig 23.
Sensor-Oxygen-Front	BK	Left Side Engine Compartment	Fig 21, Fig 24, Fig 25.
Sensor-Oxygen-Rear	BK	Left Side Engine Compartment	Fig 21, Fig 24, Fig 25, Fig 26.
	Sensor-Seat Track Position-Driver	Driver Seat	N/S
	Sensor-Seat Track Position-Passenger	Passenger Seat	N/S
	Sensor-Seat Weight-Left Front	Passenger Seat	N/S
	Sensor-Seat Weight-Left Rear	Passenger Seat	N/S
	Sensor-Seat Weight-Right Front	Passenger Seat	N/S
	Sensor-Seat Weight-Right Rear	Passenger Seat	N/S
Sensor-Side Impact-Left 1 (PT27)	GY	Left Side Body	Fig 56.
Sensor-Side Impact-Left 1 (PT44)	GY	Lower Left B-Pillar	Fig 55.
Sensor-Side Impact-Right 1 (PT27)	GY	Base of Right B-Pillar	Fig 48.
Sensor-Side Impact-Right 1 (PT44)	GY	Lower Right B-Pillar	Fig 49.
Sensor-Throttle Inlet Pressure	NAT	Right Rear Engine Compartment	Fig 8.
Sensor-Throttle Position	BK	On Throttle Body	Fig 21, Fig 23.
Sensor-Transmission Range (2.4L)	DK GY	Front of Engine Compartment on Transmission	Fig 20, Fig 23.
Sensor-Vehicle Speed (Gas)	BK	Front of Engine Compartment on Transmission	Fig 21, Fig 25, Fig 26.
Sensor-Wheel Speed-ABS-Left Front	GY	Left Front Wheel Opening	Fig 1, Fig 3, Fig 10, Fig 13.
Sensor-Wheel Speed-ABS-Left Rear	GY	Left Rear Wheel Opening	N/S
Sensor-Wheel Speed-ABS-Right Front	GY	Right Front Wheel Opening	Fig 7, Fig 8, Fig 9, Fig 16.
Sensor-Wheel Speed-ABS-Right Rear	BK	Right Rear Wheel Opening	N/S
Servo-Speed Control	BK	Right Rear Corner of Engine Compartment	Fig 1, Fig 8.
Siren	BK	Left Front Wheel Opening	Fig 10, Fig 14.
Solenoid-Boost Pressure	NAT	Diesel Engine	N/S
Solenoid-Brake Transmission Shift Interlock	WT	Below Steering Column	Fig 27.
Solenoid-EVAP/Purge	BK	Lower Right Rear of Engine Compartment	Fig 1, Fig 3, Fig 8.
Solenoid-Fuel Pressure	NAT	Front of Engine Compartment Top of Engine	N/S
Solenoid-Surge (2.4L Turbo)	BK	Right Rear Engine Compartment	Fig 8.
Solenoid-Swirl	BK	Rear Side of Engine Compartment	Fig 19.
Solenoid-Throttle Inlet Pressure (2.4L Turbo)	BK	Right Rear Engine Compartment	Fig 8.
Solenoid-Wastegate (2.4L Turbo).	BK	Rear Side of Engine Compartment	Fig 8, Fig 16.
Speaker-Instrument Panel-Left	BK	Left Upper Instrument Panel	Fig 28, Fig 33.
Speaker-Instrument Panel-Right	BK	Right Upper Instrument Panel	Fig 29, Fig 34.
Speaker-Left Front Door (PT27)	-	Left Door	Fig 45.
Speaker-Left Front Door (PT44)	-	Left Door	Fig 44.
	Speaker-Left Rear (PT27 Base)	Left Side Body	Fig 56.
	Speaker-Left Rear C1 (PT27 Premium)	Left Side Body	Fig 56.
	Speaker-Left Rear C2 (PT27 Premium)	Left Side Body	Fig 56.
Speaker-Left Rear (PT44)	BK	Left C-Pillar	Fig 46.
Speaker-Right Front Door (PT27)	-	Right Door	Fig 45.
Speaker-Right Front Door (PT44)	-	Right Door	Fig 44.
	Speaker-Right Rear (PT27 Base)	Right Side Body	Fig 50.
	Speaker-Right Rear C1 (PT27 Premium)	Right Side Body	Fig 50.
	Speaker-Right Rear C2 (PT27 Premium)	Right Side Body	Fig 50.
Speaker-Right Rear (PT44)	BK	Right Side Shelf Panel	Fig 46.
	Speaker-Subwoofer	Left Rear Upper Body	Fig 59.
Starter (1.6L)	-	Lower Rear of Engine	Fig 25.
Starter (Except 1.6L)	-	Lower Front of Engine Compartment on Engine	Fig 17, Fig 19, Fig 20, Fig 23.
Starter-Eyelet (1.6L)	-	Lower Rear of Engine	Fig 4.
Starter-Eyelet (Except 1.6L)	-	Lower Front of Engine	Fig 5, Fig 17, Fig 20.
Switch-A/C-High Pressure (Diesel)	LT GY	Lower Right Side Engine Compartment	Fig 19.
Switch-A/C-High Pressure (Gas)	-	Lower Left Side of Engine Compartment on Engine	Fig 20, Fig 23, Fig 26.
Switch-A/C-Low Pressure (LHD)	DK GN	Right Rear of Engine Compartment	Fig 1, Fig 8, Fig 9, Fig 16.
Switch-A/C-Low Pressure (RHD)	DK GN	Left Rear of Engine Compartment	Fig 13.
Switch-Autostick	NAT	Center Console	Fig 41.
Switch-Back-Up Lamp	GY	Left Side of Engine Compartment on Manual Transmission	Fig 19, Fig 20, Fig 23, Fig 25, Fig 26.
	Switch-Bank	Center Stack	Fig 30.
Switch-Brake Fluid Level (LHD)	BK	Left Rear of Engine Compartment	Fig 1, Fig 3, Fig 10.
Switch-Brake Fluid Level (RHD)	BK	Right Rear of Engine Compartment	Fig 7.
Switch-Clutch Interlock	BK	Left Side of Steering Column	Fig 11, Fig 12, Fig 14.
Switch-Decklid Release	BK	In Glove Box	Fig 29, Fig 33.
	Switch-Door Ajar-Left Rear	Above Left Rear Wheel Well	Fig 57.
	Switch-Door Ajar-Right Rear	Right C-Pillar	Fig 52.
Switch-Door Lock-Left (PT27)	BK	Driver Door	Fig 45.
Switch-Door Lock-Left (PT44)	BK	Driver Door	Fig 44.
Switch-Door Lock-Right (PT27)	BK	Passenger Door	Fig 45.
Switch-Door Lock-Right (PT44)	BK	Passenger Door	Fig 44.
Switch-Ignition	-	Right Side of Steering Column	Fig 27.
Switch-Liftgate Release	NAT	Center Rear Liftgate	Fig 66.
Switch-Mirror (LHD)	BK	Left Side of Instrument Panel	Fig 28.
Switch-Mirror (RHD)	GY	Right Side of Instrument Panel	Fig 34.
Switch-Oil Pressure	-	Right Rear of Engine Compartment	Fig 19, Fig 21, Fig 24, Fig 25.
	Switch-Parking Brake	Rear of Front Center Console	Fig 42.
Switch-Power Steering Pressure	GY	Left Rear Engine Compartment	Fig 1, Fig 3.
Switch-Power Window-Left Rear (PT44)	BK	Rear of Front Center Console	Fig 42.
Switch-Power Window-Right Rear (PT44)	LT GY	Rear of Front Center Console	Fig 42.
Switch-Seat-Driver	WT	Below Driver Seat	N/S
	Switch-Seat-Passenger	Side of Passenger Seat	N/S
Switch-Seat Belt-Driver (LHD PT44)	BK	Lower Left B-Pillar	Fig 55.
Switch-Seat Belt-Driver (LHD)	BK	Left Side Body	N/S
Switch-Seat Belt-Driver (RHD)	BK	Lower Right B-Pillar	Fig 49, Fig 50.
Switch-Seat Belt-Passenger C1 (LHD)	BK	Passenger Seat	N/S
Switch-Seat Belt-Passenger C2 (LHD)	BK	Passenger Seat	N/S
Switch-Seat Belt-Passenger C1 (RHD)	BK	Passenger Seat	N/S
Switch-Seat Belt-Passenger C2 (RHD)	BK	Passenger Seat	N/S
Switch-Security Hood	BK	Left Rear Engine Compartment	Fig 1, Fig 3, Fig 10, Fig 13.
Switch-Speed Control	BK	On Steering Wheel	Fig 35.
Switch-Stop Lamp	GY	Left Side of Brake Pedal	Fig 11, Fig 12, Fig 14.
Switch-Window-Front	BK	Top Center of Instrument Panel	Fig 30.
Throttle Body (1.6L)	BK	Center of Engine Compartment on Top of Engine	Fig 25, Fig 26.

GROUND	LOCATION	FIG.
G100 (Gas)	Left Front Engine Compartment	Fig 4, Fig 5, Fig 6.
G100 (Diesel)	Below Passenger Seat	Fig 62.
G101	At Battery Tray	Fig 4, Fig 5, Fig 6.
G102	Left Front Fender	Fig 1, Fig 2, Fig 12, Fig 14.
G104	Right Fender Area	Fig 7, Fig 8, Fig 9, Fig 16.
G105	Left Front Inner Fender	Fig 11, Fig 12, Fig 14.
G106	In T/O for Powertrain Control Module	Fig 25, Fig 26.
G200	Center Rear of Instrument Panel	N/S
G201	Center Rear of Instrument Panel	Fig 29, Fig 33.
G202	Left Kick Panel Near T/O for Airbag Control Module	Fig 29, Fig 33.
G203	Center Rear of Instrument Panel	Fig 29, Fig 33.
G204	Front Center Body	Fig 41.
G302 (PT27)	Left Side Body	Fig 56.
G302 (PT44)	Left Rear Quarter	Fig 59.
G303 (PT27)	Right Side Body	Fig 50.
G303 (PT44)	Right Rear Quarter	Fig 52.

SPLICE	LOCATION	FIG.
S100 (2.4L)	Between T/O for Fuel Injectors No. 2 and No. 3	N/S
S101	Near Engine Starter Eyelet	Fig 20.
S102	Near T/O for Inline C103	Fig 20, Fig 21.
S103	Near Generator T/O	Fig 21, Fig 24.
S104	In T/O for PCM C4	Fig 21, Fig 23, Fig 24.
S105	Near Fuel Injector No. 4 T/O	Fig 21.
S106	Near T/O for Oxygen Sensor 1/1 Upstream	Fig 21.
S107	Near T/O for C103, Left Side of Engine	Fig 23.
S108	Near Generator T/O	Fig 24.
S109	Near T/O for Camshaft Position Sensor	Fig 21, Fig 23, Fig 24.
S111 (MTX)	Near T/O for Back-up Lamp Switch	Fig 20, Fig 23.
S111 (EATX)	Near T/O for Input Speed Sensor	Fig 20, Fig 23.

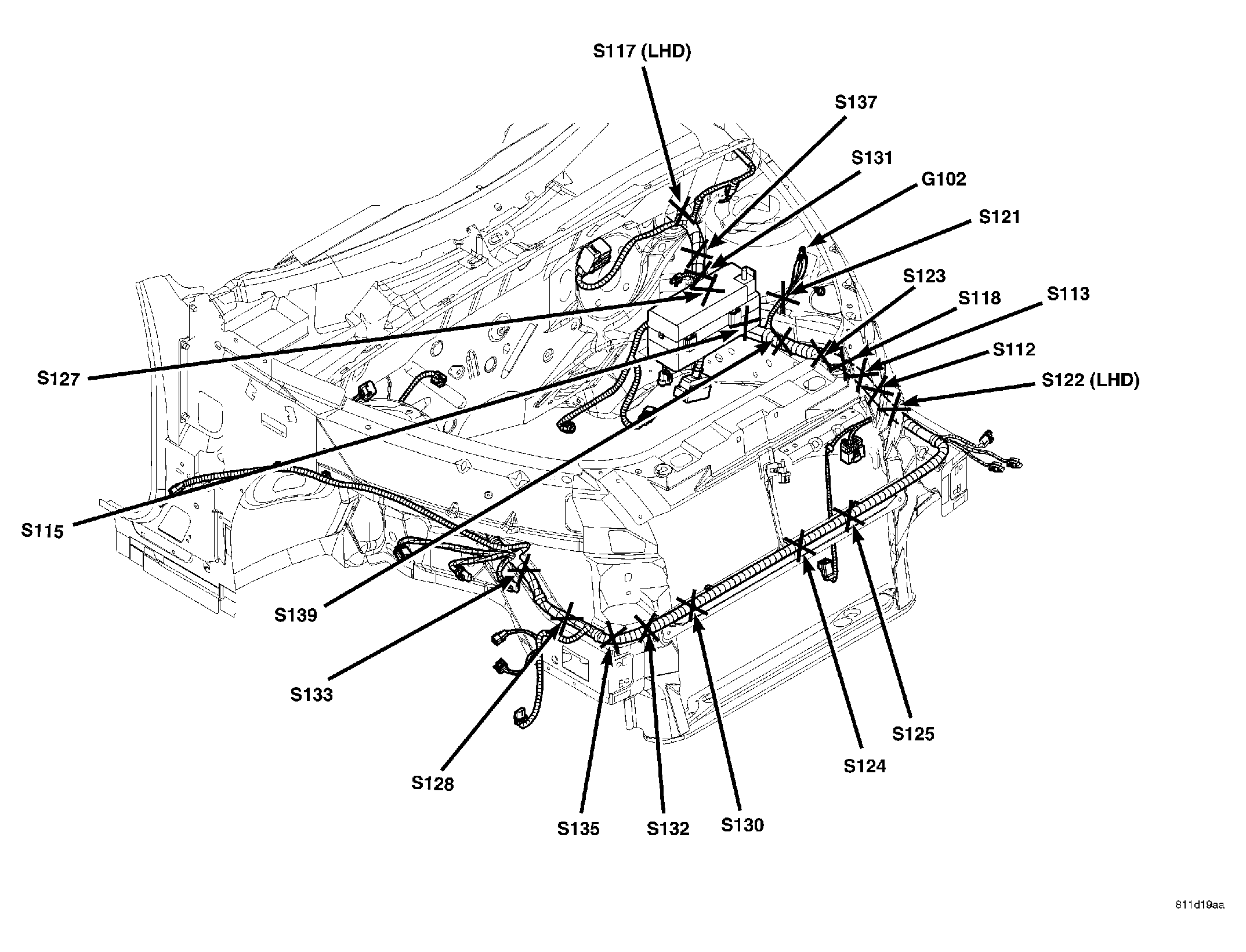

S112	Left Side Engine Compartment	Fig 2.
S113	Near T/O for Brake Warning Indicator Switch	Fig 2, Fig 10.
S114	Left Side Engine	Fig 21, Fig 23.
S115	Left Rear Engine Compartment	Fig 2, Fig 10.
S116	Near Right Rear Engine Compartment Bulkhead	Fig 7.
S117 (LHD)	Left Rear Engine Compartment	Fig 2, Fig 10.
S117 (RHD)	Rear Engine Compartment	Fig 7.
S118	Left Front Engine Compartment	Fig 2.
S121	Right Side Engine Compartment	Fig 2, Fig 14.
S122	Left Side Engine Compartment	Fig 2, Fig 14.
S123 (IN PDC)	Left Side Engine Compartment	Fig 2.
S124	Left Front Engine Compartment	Fig 2.
S125	Left Front Engine Compartment	Fig 2.
S127	Left Rear Engine Compartment	Fig 2, Fig 10, Fig 13.
S128	Right Front Engine Compartment	Fig 2.

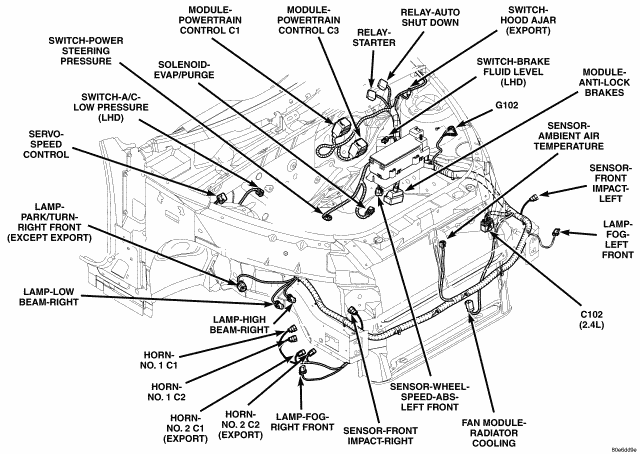

S130	Front Engine Compartment	Fig 2.
S131	Left Rear Engine Compartment	Fig 2, Fig 10, Fig 13.
S132	Right Front Engine Compartment	Fig 2.
S133	Right Front Engine Compartment	Fig 2, Fig 7, Fig 8, Fig 9, Fig 18.

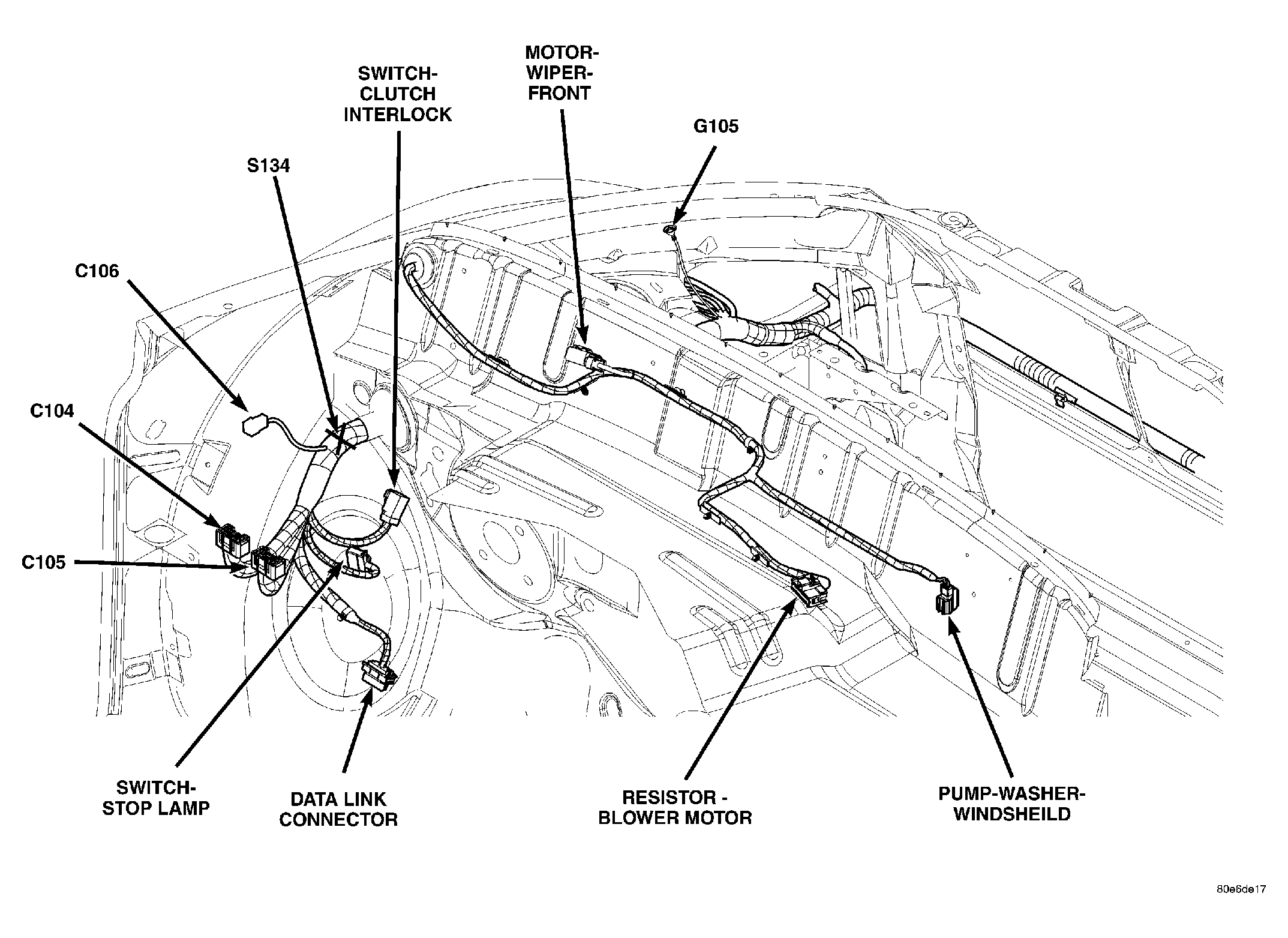

S134	Near T/O for Left Front Fog Lamp	Fig 11, Fig 12.
S135	Right Front Engine Compartment	Fig 2.
S136	In T/O for Powertrain Control Module C2 and C4	Fig 21, Fig 23, Fig 24.
S137	Left Rear Engine Compartment	Fig 2, Fig 10, Fig 13.
S141	Near Generator T/O	N/S
S139	Left Side Engine Compartment	Fig 2.

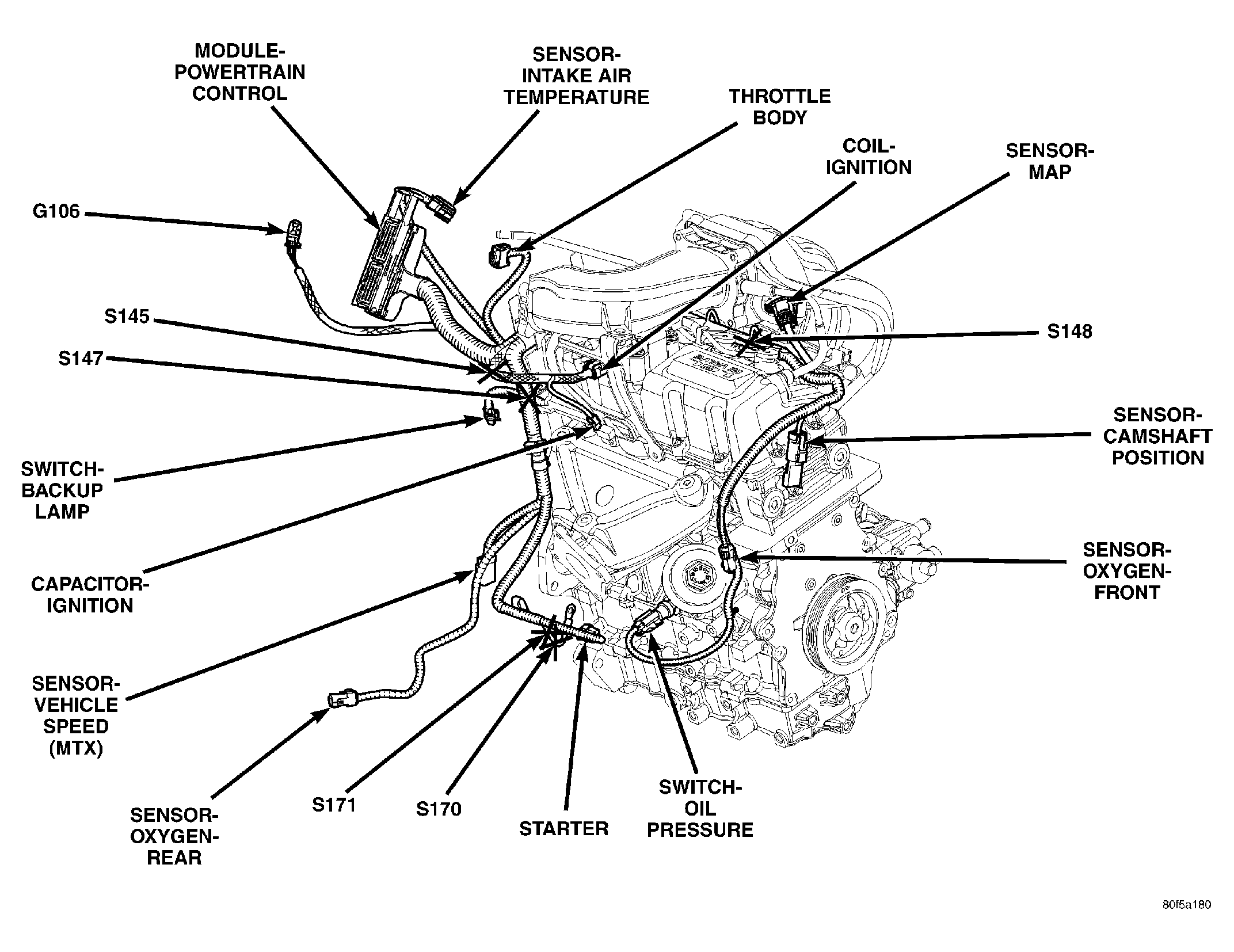

S145 (1.6L)	In Ignition Coil T/O	Fig 25.

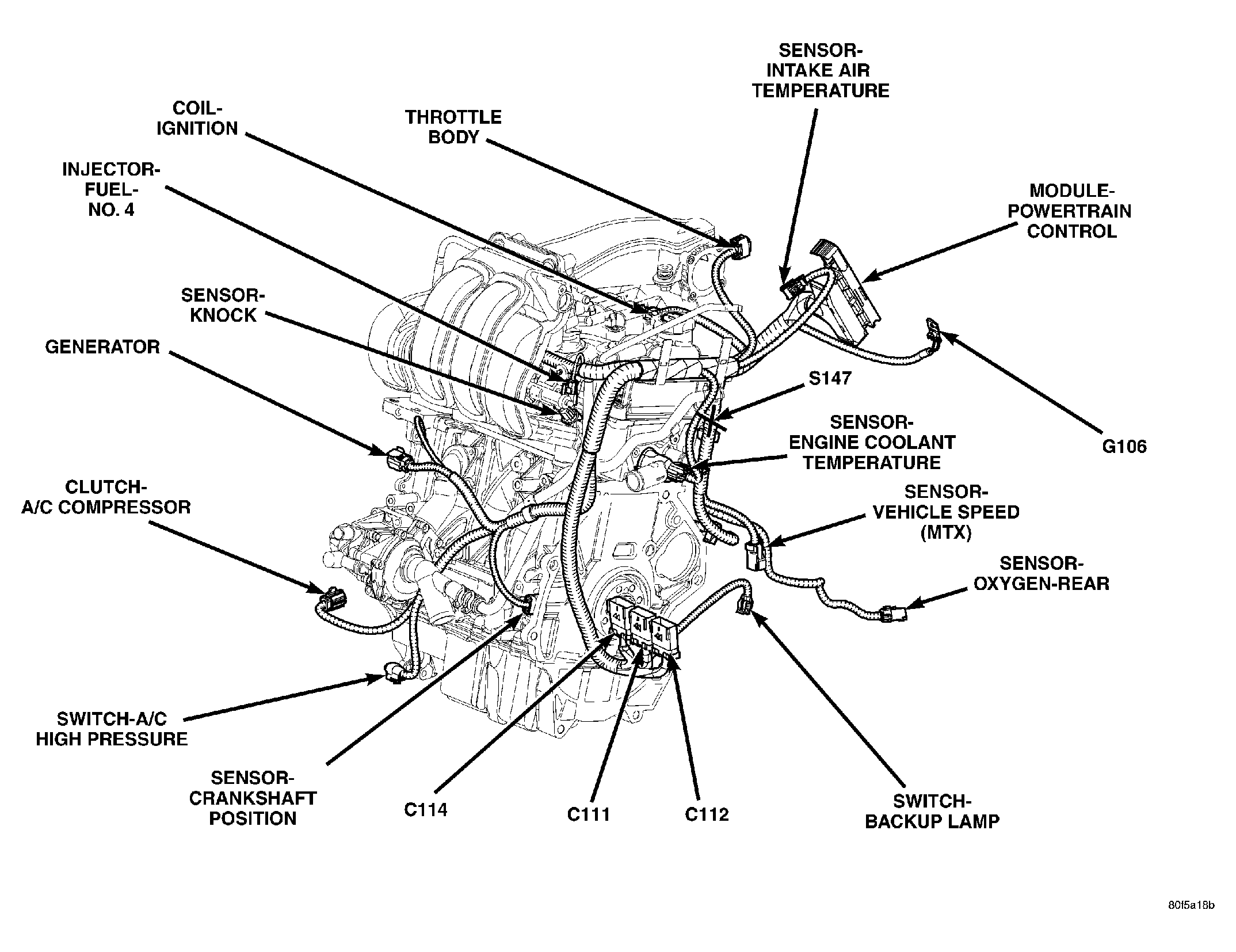

S147 (1.6L)	Near T/O for Ignition Coil	Fig 25, Fig 26.
S148 (Except 1.6L)	Near T/O for Manifold Absolute Pressure Sensor	N/S
S149	Near T/O for Engine Control Module C1	Fig 19.
S151	Near T/O for Fuel Pressure Solenoid	N/S
S156	Near T/O for Engine Control Module C1	Fig 19.
S165 (Diesel)	Near Fusible Link	Fig 17.

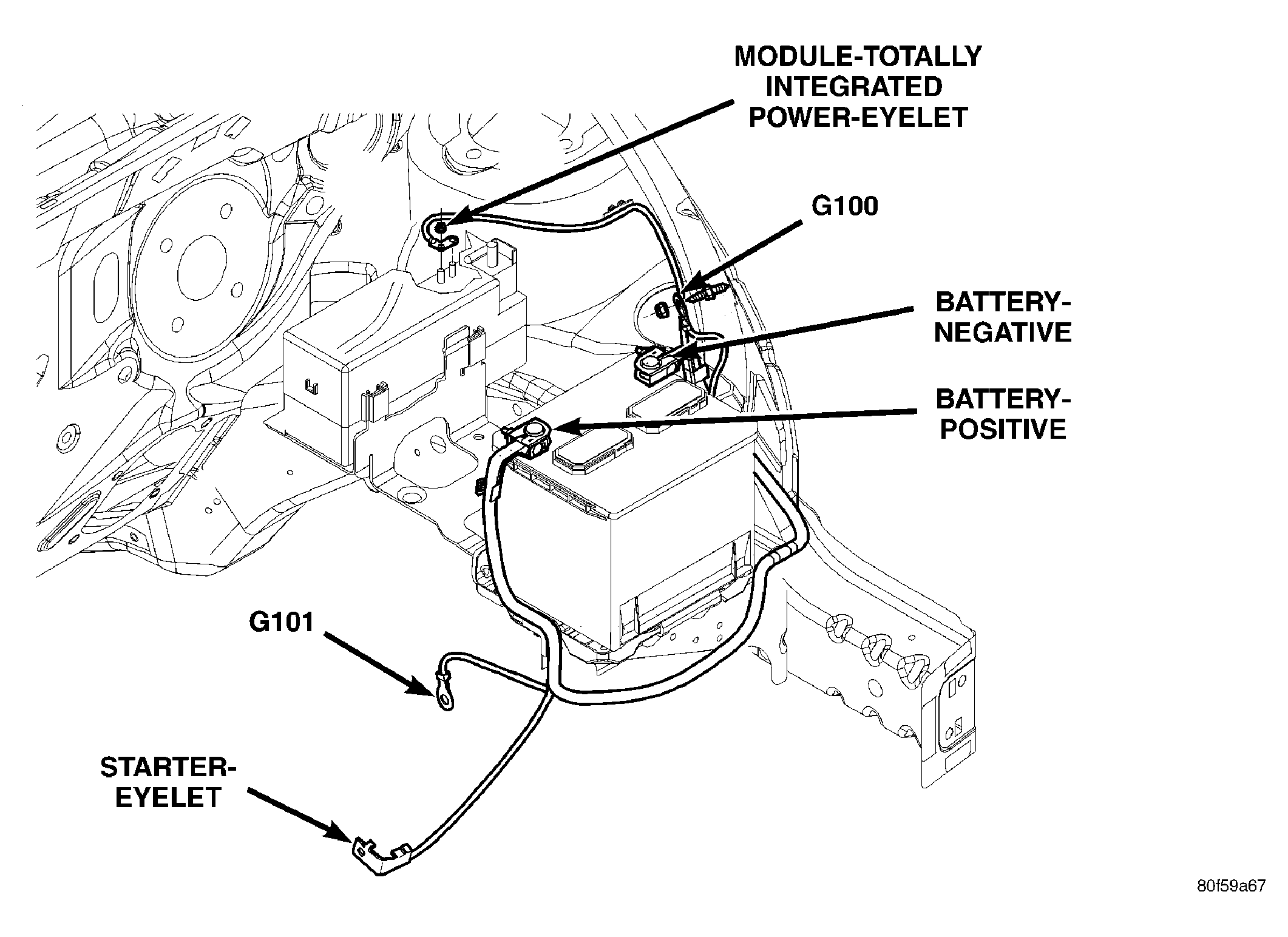

S170 (1.6L)	In T/O for Starter Eyelet	Fig 25.
S171 (1.6L)	In T/O for Starter Eyelet	Fig 25.

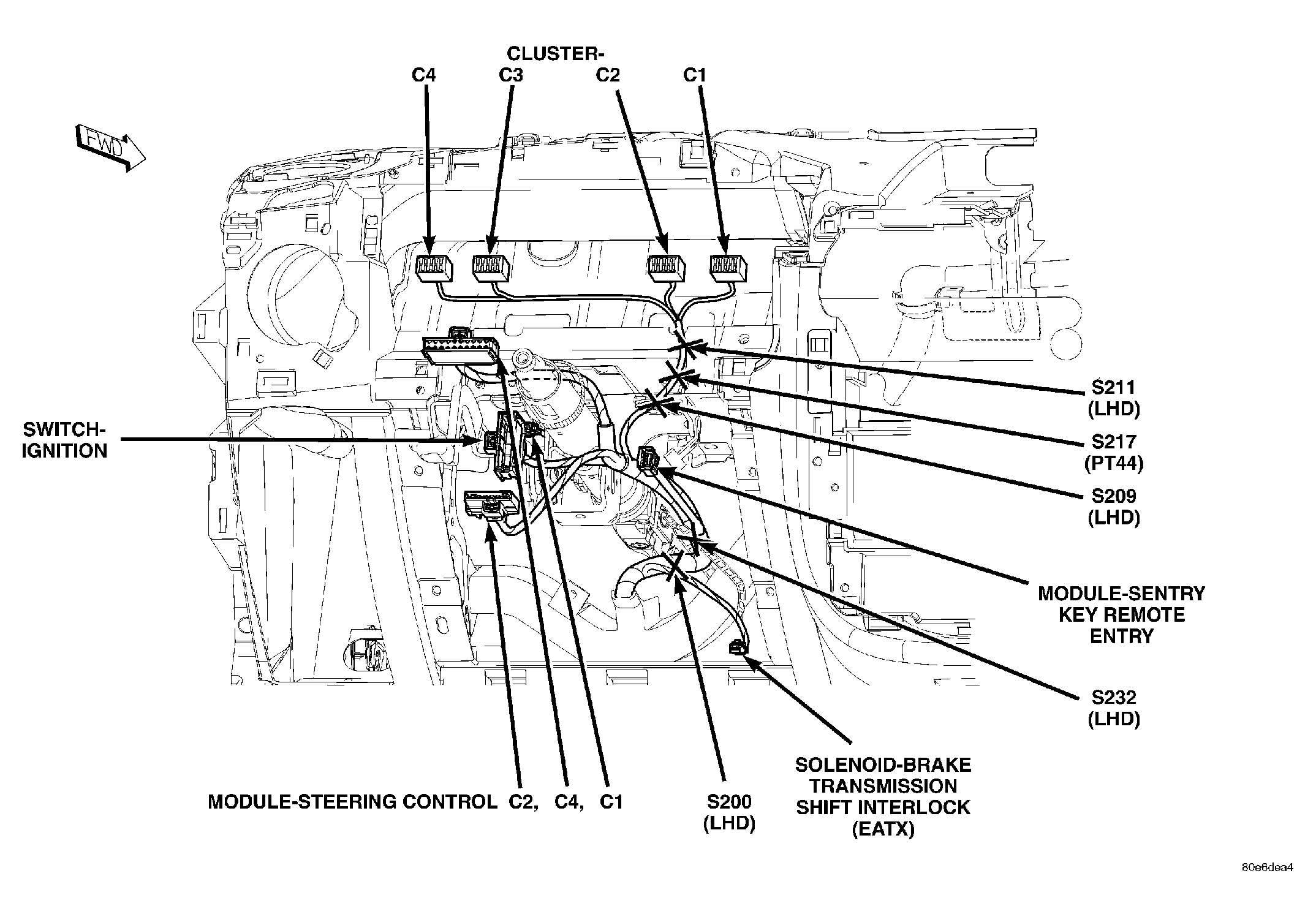

S200 (LHD)	Left Instrument Panel	Fig 27, Fig 28.
S200 (RHD)	Lower Driver Side Instrument Panel	Fig 32.
S201	Center Instrument Panel	Fig 30, Fig 32.
S202 (LHD)	Right Instrument Panel	Fig 29.
S202 (RHD)	Right Instrument Panel	Fig 34.
S203 (LHD)	Right Instrument Panel	Fig 29.
S203 (RHD)	Left Instrument Panel	Fig 33.
S204 (LHD)	Left Instrument Panel	Fig 28, Fig 32.
S204 (RHD)	Lower Driver Side Instrument Panel	Fig 32.
S205	Lower Driver Side Instrument Panel	Fig 32.
S206 (LHD)	Center Instrument Panel	Fig 32.
S206 (RHD)	Below Steering Column	Fig 30, Fig 32.
S207 (LHD)	Left Instrument Panel	Fig 28, Fig 32.
S207 (RHD PT44)	Left Instrument Panel	Fig 33.
S209 (LHD)	In Cluster T/O	Fig 27.
S209 (RHD)	Lower Driver Side Instrument Panel	Fig 32.
S210 (LHD)	Left Instrument Panel	Fig 28.
S210 (RHD)	Left Instrument Panel	Fig 33.
S211 (LHD)	In Cluster T/O	Fig 27.
S211 (RHD)	Left Instrument Panel	Fig 33.
S212 (PT27 RHD)	Near T/O for Instrument Cluster C1	Fig 30.
S213	Near T/O for Rear Window Defogger and Rear Wiper Switches	N/S
S214 (LHD)	Right Instrument Panel	Fig 29.
S214 (RHD)	Left Instrument Panel	Fig 33.
S215 (LHD)	Right Instrument Panel	Fig 29.
S215 (RHD)	Left Instrument Panel	Fig 33.
S216 (LHD)	Center Instrument Panel	Fig 32.
S216 (RHD)	Left Instrument Panel	Fig 33.
S217 (PT44)	In Cluster T/O	Fig 27.
S218 (LHD)	Right Instrument Panel	Fig 29.
S218 (RHD)	Left Instrument Panel	Fig 33.
S219 (LHD)	Right Instrument Panel	Fig 29.
S219 (RHD)	Right Instrument Panel	Fig 32, Fig 34.
S220 (RHD)	Right Instrument Panel	Fig 34.
S221 (LHD)	Left Instrument Panel	Fig 28.
S221 (RHD)	Left Instrument Panel	Fig 33.
S223 (LHD)	Right Instrument Panel	Fig 29.
S223 (RHD PT27)	Left Rear Instrument Panel	Fig 33.
S224 (LHD)	Right Instrument Panel	Fig 29.
S224 (RHD PT27)	Center Instrument Panel	Fig 33.
S225 (LHD)	Near Plenum	N/S
S225 (RHD PT44)	Left Instrument Panel	Fig 33.
S226 (RHD PT44)	Left Instrument Panel	Fig 33.
S228 (LHD)	In T/O for Switch Bank	Fig 30.
S228 (RHD)	Center Instrument Panel	Fig 32.
S230	Center Instrument Panel	Fig 32.
S232 (LHD)	Left Instrument Panel	Fig 27, Fig 28.
S232 (RHD PT27)	Left Rear Instrument Panel	Fig 33.
S236 (LHD)	Lower Driver Side Instrument Panel	Fig 32.
S236 (RHD)	Left Instrument Panel	Fig 33.
S238 (LHD)	Lower Driver Side Instrument Panel	Fig 32.
S238 (RHD)	In T/O for Passenger Airbag	Fig 33.
S240 (LHD)	Lower Driver Side Instrument Panel	Fig 32.
S241 (LHD)	Lower Driver Side Instrument Panel	Fig 32.
S242 (LHD)	In T/O fro Gateway Module	Fig 32.
S243 (LHD)	In T/O fro Gateway Module	Fig 32.
S244	Near T/O for Visor/Vanity Lamp	N/S
S245	In T/O fro Gateway Module	Fig 32.
S248	Near T/O for Overhead Console	N/S
S249	In T/O for Overhead Console	N/S
S300	Under Left Front Seat	Fig 54.
S301 (LHD PT44)	Front of Left Rear Wheel Housing	Fig 54.
S302 (LHD PT44)	In Trough Near Left Rear Door	Fig 54.

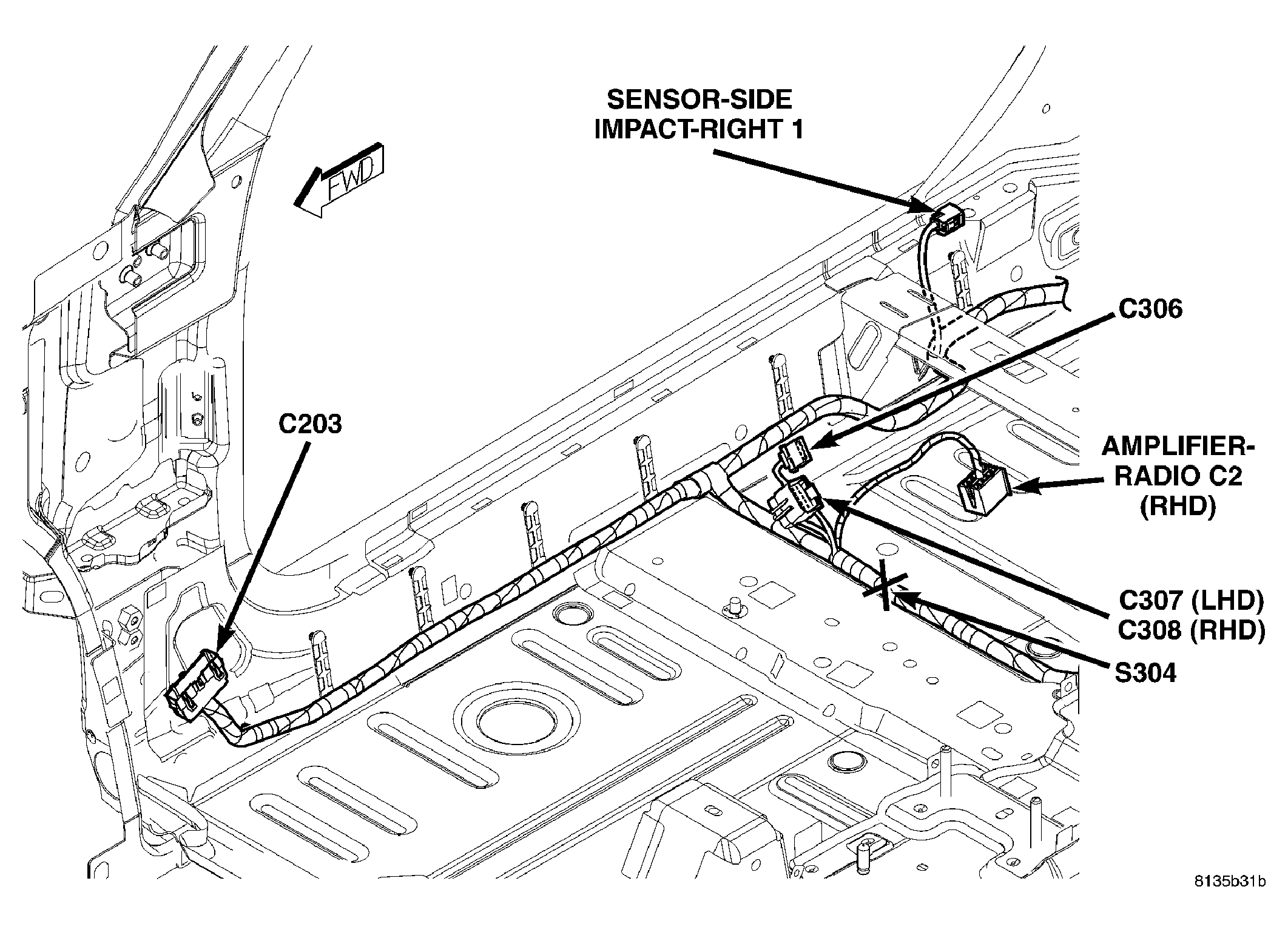

S304 (PT27)	Under Driver Seat	Fig 42, Fig 48.
S306	Near T/O for License Lamp	N/S
S307 (RHD PT44)	Near T/O for Left Rear Door Ajar Switch	Fig 54.
S308	Near T/O for License Lamp	N/S
S309 (PT27)	Left Front Door near T/O for Driver Window Regulator Module	Fig 45.
S309 (PT44)	Near T/O for Left Front Door Lock Switch	Fig 44.

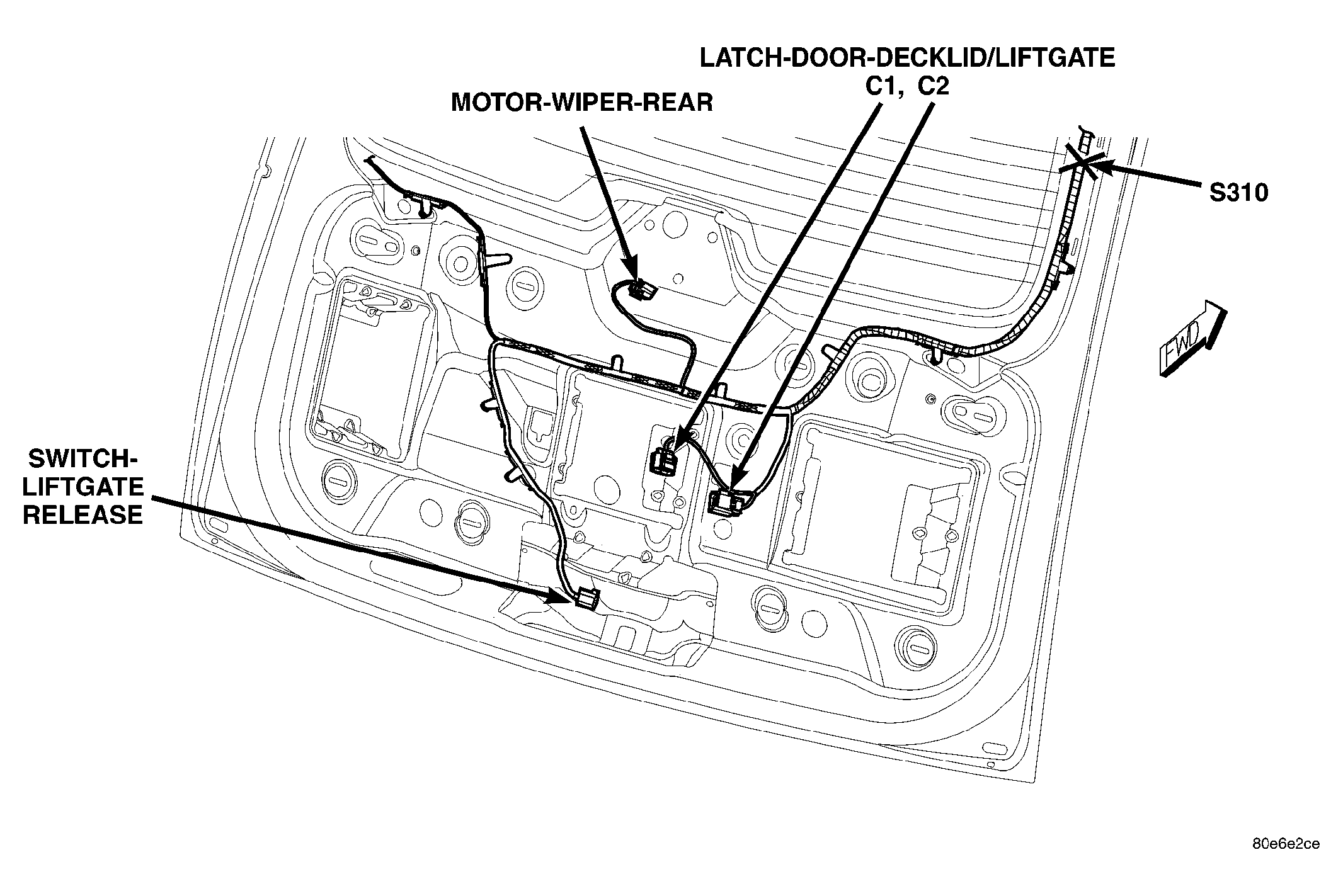

S310	Near T/O for Rear Window Defogger (Ground)	N/S
S311	Near T/O for Right Front Door Lock Switch	Fig 44.
S312	Near T/O for Licence Lamp	N/S

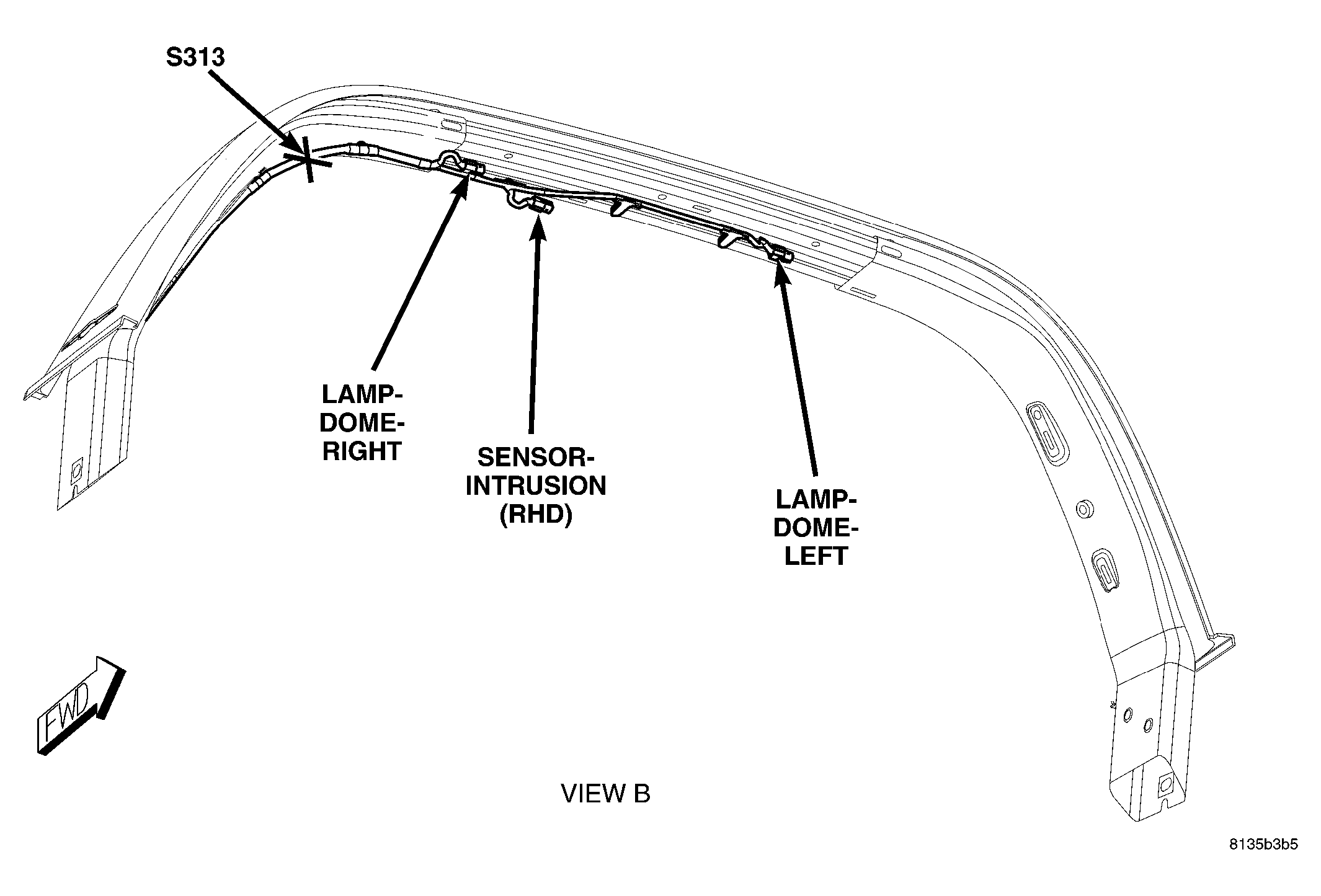

S313	On Sports Bar	Fig 51.
S315 (PT27)	Left Red Quarter	Fig 60.
S315 (PT44)	Near T/O for Passenger Heated Seat Module	N/S
S316	Near T/O for Passenger Heated Seat Module	N/S
S317	Left Rear Body	Fig 57.
S318	Left Side of Rear Facia	Fig 70.
S319	Center of Rear Facia	Fig 70.
S320	On Fuel Tank in T/O for Natural Vacuum Leak Detection Pump	Fig 63.
S321 (RHD PT44)	Mid Body	Fig 42.
S322	Headliner Near Right Vanity Lamp T/O	Fig 37.
S323 (PT27)	Center Header Near Rearview Mirror	Fig 40.
S323 (PT44)	Headliner Near Left Vanity Lamp T/O	Fig 37.
S324 (PT27)	Center Header Near Rearview Mirror	Fig 40.
S324 (PT44)	Headliner Near Left Vanity Lamp T/O	Fig 37.
S325	Right Rear Body	N/S
S326	Right Rear Body	N/S

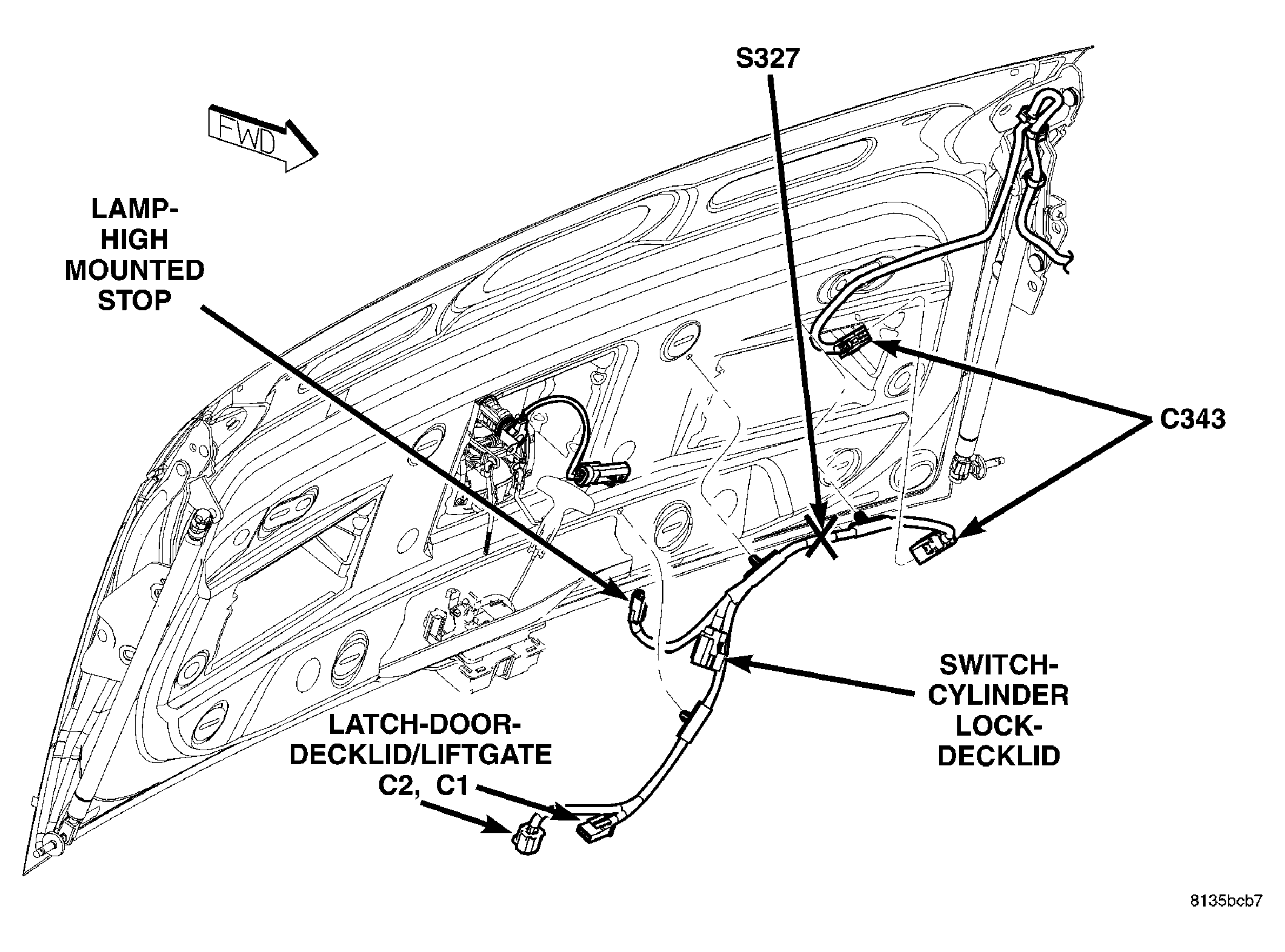

S327	Lower Decklid	Fig 67.
S328	Left Front Door	Fig 45.
S329	Passenger Front Door	Fig 45.
S331	Passenger Front Door	Fig 45.
S332	Driver Front Door	Fig 45.
S333	Right Front Door	Fig 45.
S340	In Passenger Seat	N/S
S341	In Passenger Seat	N/S
S342	In Passenger Seat	N/S
S343	In Driver Seat	N/S
S357 (RHD)	In Driver Door Near Window Regulator T/O	Fig 45.
