Front Wiper Arm

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Front Wiper Arms

Courtesy of DAIMLERCHRYSLER CORP.

Remove the nut caps (3).
Remove the retaining nuts (4).

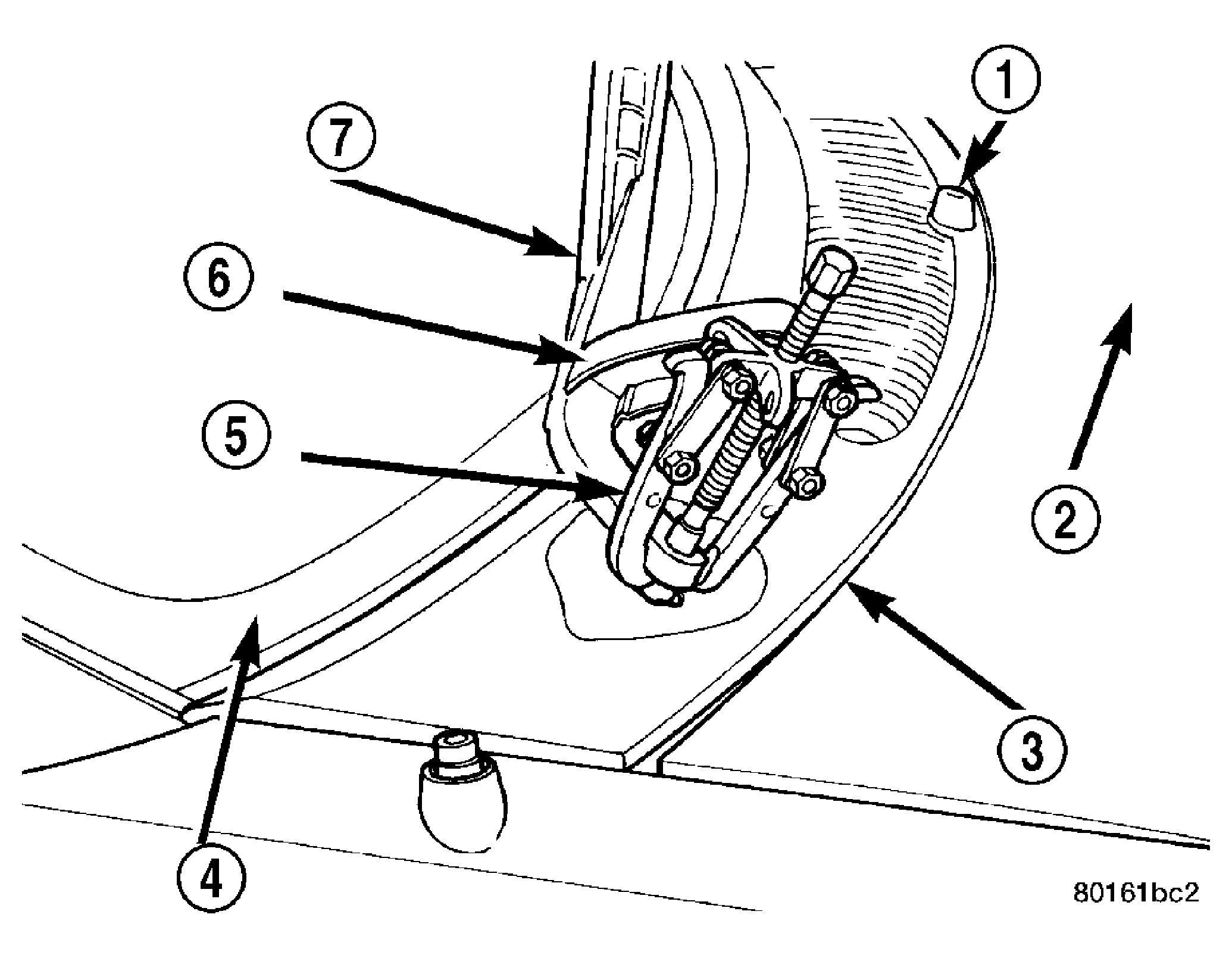

Fig 2: Separating Wiper Arm
Courtesy of DAIMLERCHRYSLER CORP.
Using a suitable two jaw puller (5), separate the wiper arm (7) from the wiper pivot.

Fig 3: Removing/Installing Front Wiper Arms
Courtesy of DAIMLERCHRYSLER CORP.
Remove the wiper arms (1 and 2).
