Rear Wiper Arm - Wagon

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

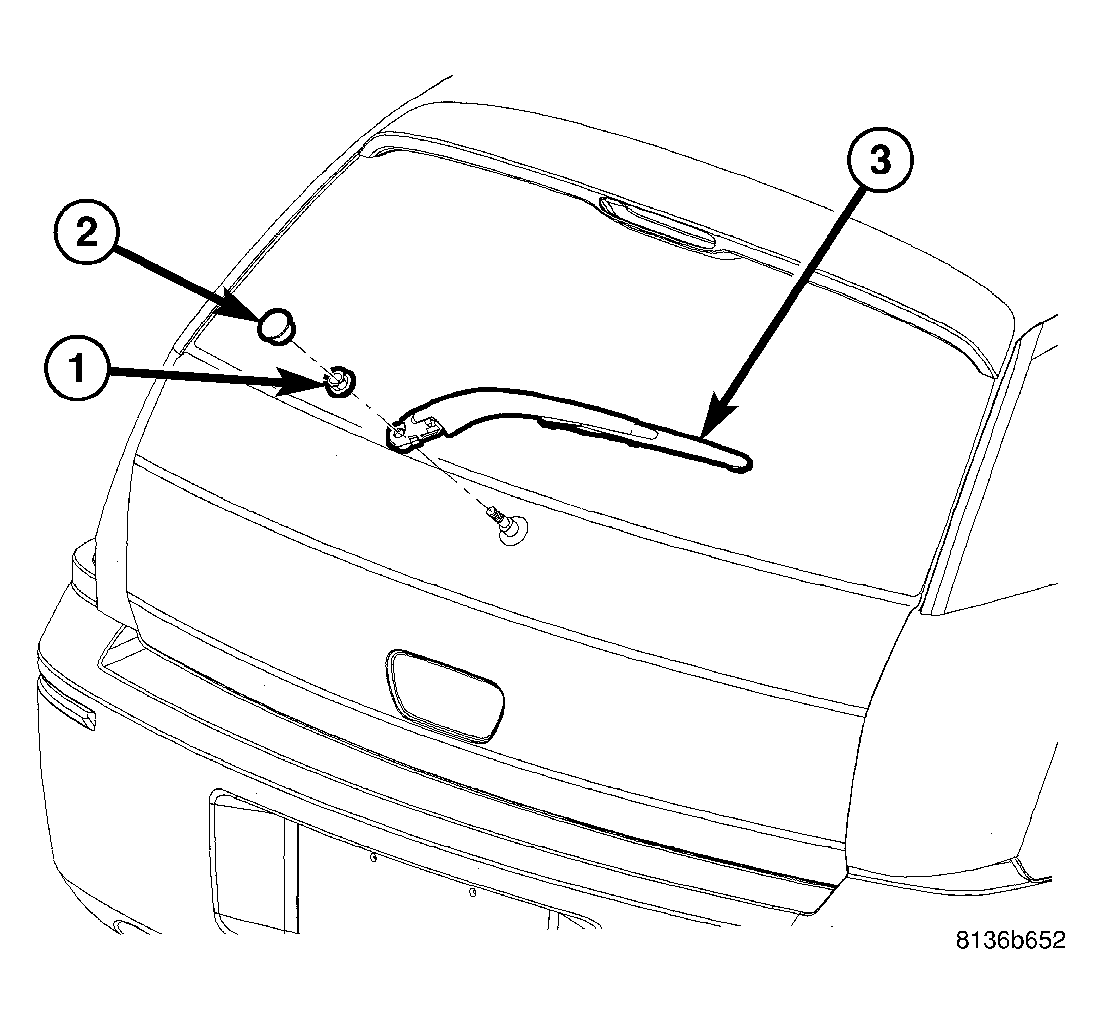

Fig 1: Removing/Installing Rear Wiper Arm
GC0016753Courtesy of DAIMLERCHRYSLER CORP.
  1. Install wiper arm (3).
  2. Install retaining nut (1). Torque nut to 18 N.m (13 ft. lbs.).
  3. install nut cap (2).
