Rear Wiper Motor - Wagon Only: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing/Installing Rear Wiper Arm
GC0016753Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the rear wiper arm (3) (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL) .
    Fig 2: Removing/Installing Liftgate Trim Panel
    GC0013537Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the liftgate trim panel (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - REMOVAL) .
    Fig 3: Removing/Installing Mounting Fasteners
    GC0016749Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the three mounting fasteners (1).

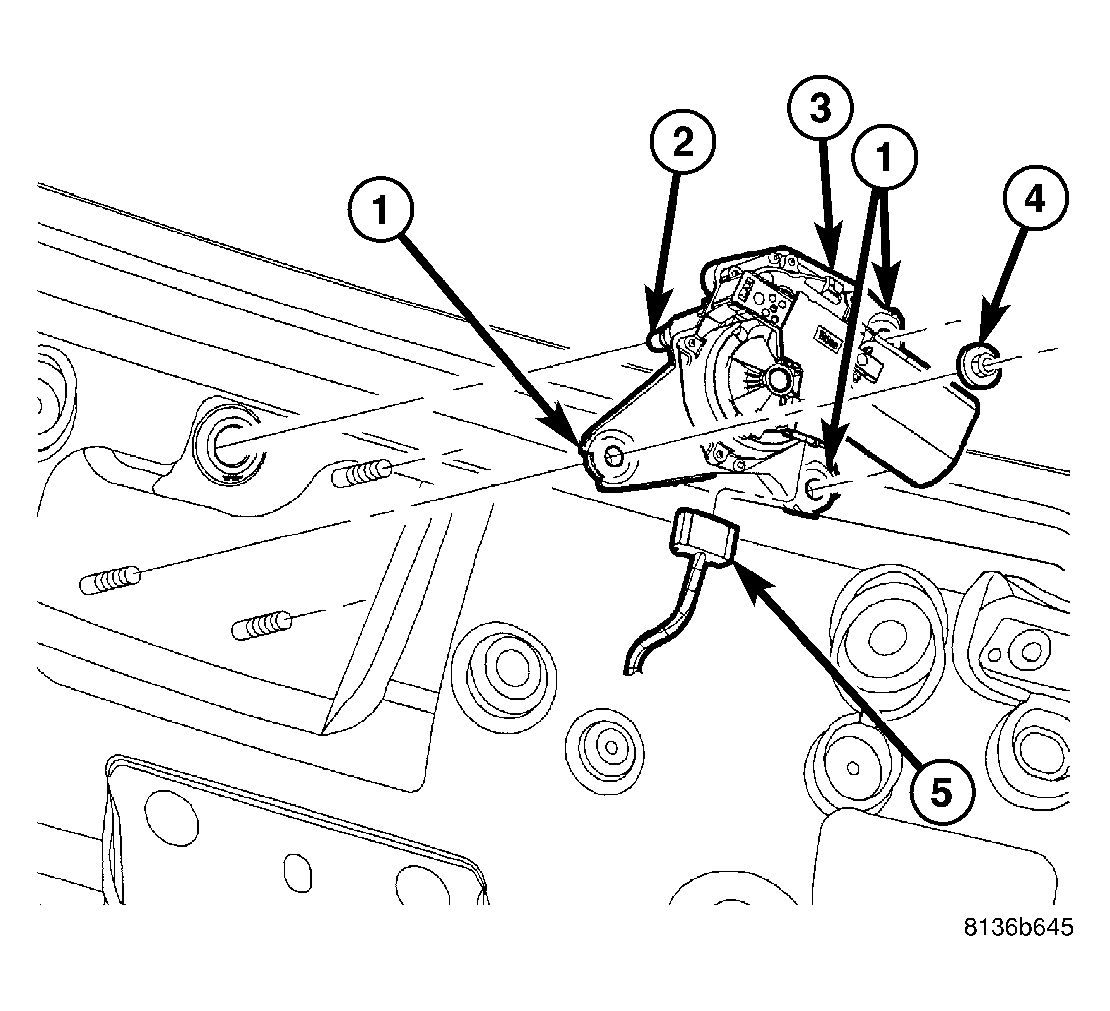

    Fig 4: Wiper Motor
    GC0016752Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the electrical harness connector (5).
  6. Separate the wiper motor (3) from the liftgate.

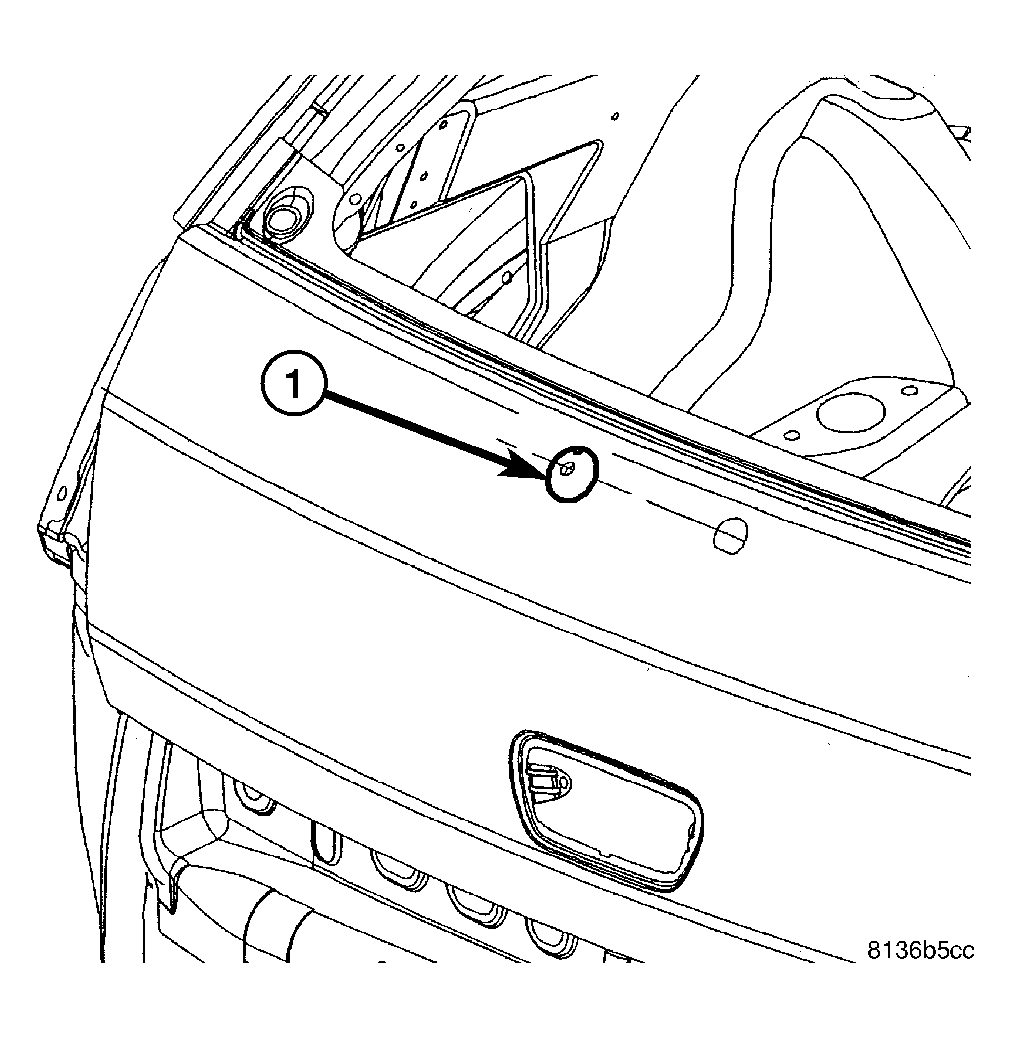

    Fig 5: Inspecting Liftgate Seal
    GC0016750Courtesy of DAIMLERCHRYSLER CORP.
  7. Inspect the wiper motor shaft to liftgate seal (1).
