Switch - Sunroof: Description
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

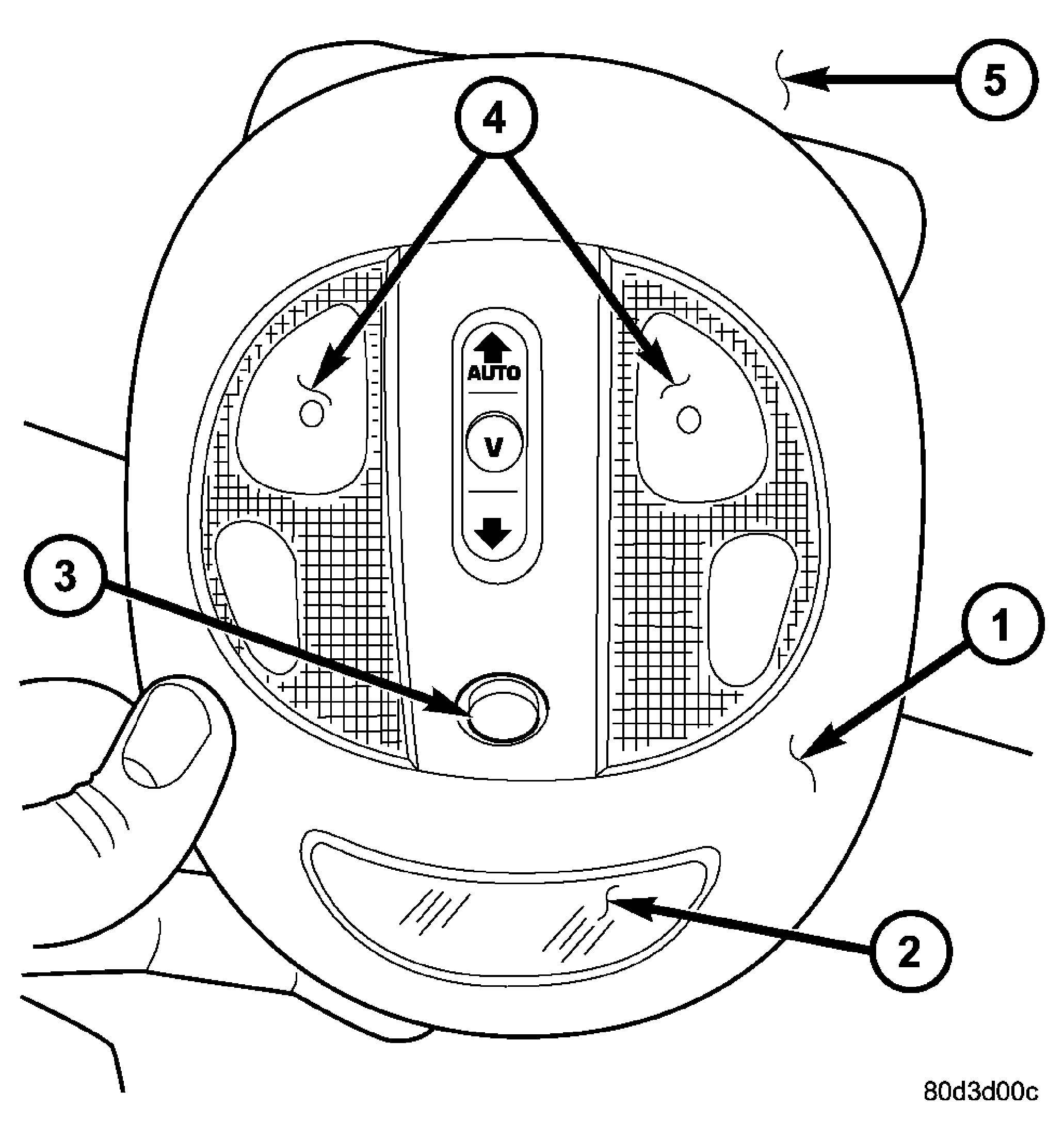

The power sunroof switch is a combination push-button and rocker switch located in the overhead console (1) positioned between the two reading lamps (4). The switch is mounted in the overhead console with four plastic retaining tabs, molded into the switch housing. The sunroof switch is a direct contact unit that is directly wired to the sunroof motor/module assembly. The sunroof switch performs the following functions:
- Power sunroof open
- Power sunroof auto open
- Power sunroof closed
- Power sunroof vent
The power sunroof switch cannot be repaired. If the individual components are damaged or inoperative the switch assembly must be replaced, (Refer to ELECTRICAL/POWER TOP/SWITCH - REMOVAL) .
