Relay-Power Top: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

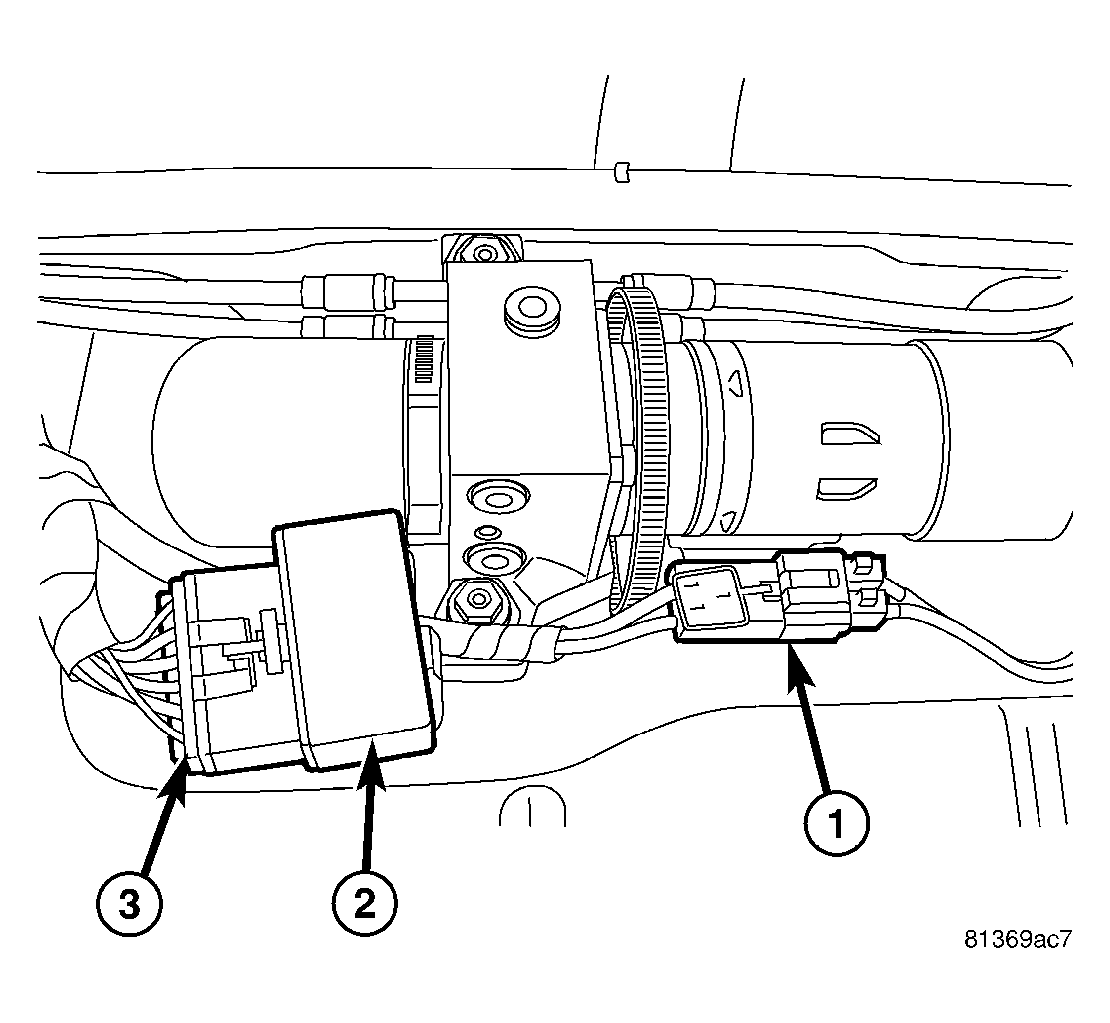

Fig 1: Motor/Hydraulic Pump Assembly
GC0022972Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the motor/hydraulic pump relay (2) onto the relay bracket and push into place so that the retaining tab is fully seated.
  2. Connect the motor/hydraulic pump relay wire harness connector (3).
  3. Install the foam pump cover.
  4. Install the well liner/carpet into the power top well.
  5. Install the rear seat back, (Refer to BODY/SEATS/SEAT BACK - INSTALLATION) .
  6. Connect the battery negative cable.
  7. Verify normal power top system operation.
