Power Seat Track: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

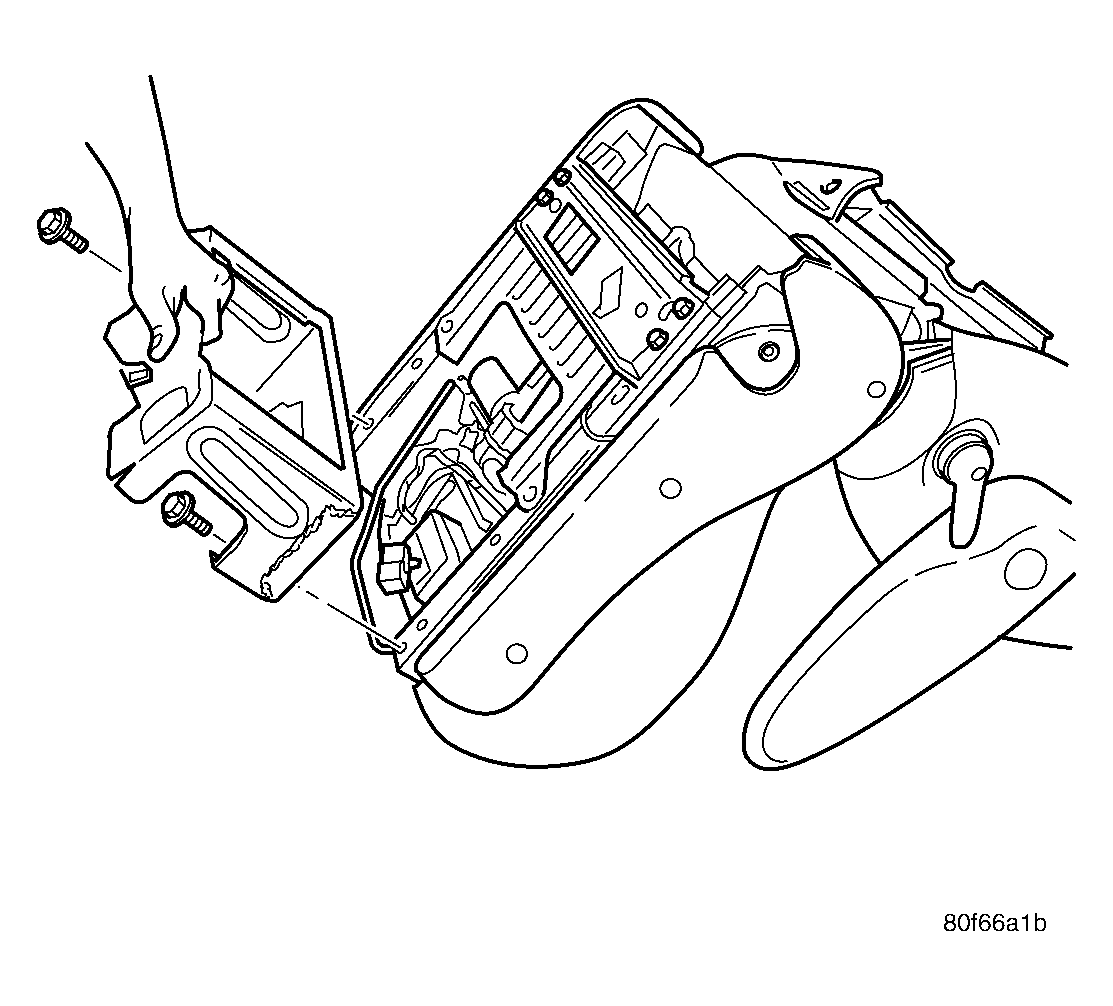

Fig 1: Seat Front Riser Removal/Installation
GC0022969Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the power seat from the vehicle and set face down on a clean surface. (Refer to BODY/SEATS/SEAT - REMOVAL)
  3. Remove the bolts retaining the front riser and set the front seat riser aside.

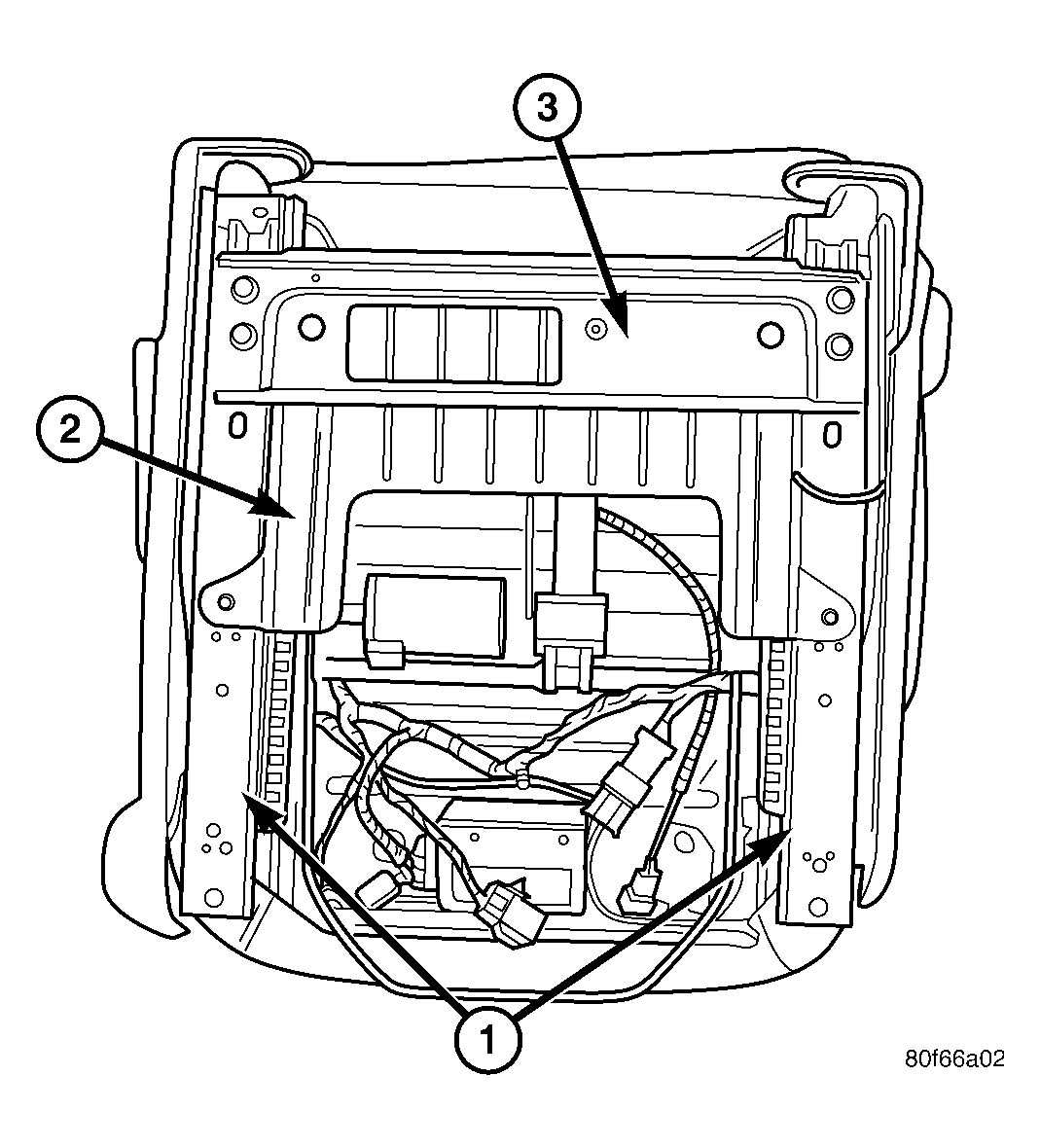

    Fig 2: Locating Power Seat Track
    GC0022968Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the bolts retaining the rear riser (3) and set the seat riser aside.
  5. Remove the lower seat track cover (2) screws and set aside.
  6. Remove the seat cushion side shields and set aside.
  7. Disengage and disconnect the power seat wire harness from the power seat track.
  8. Remove the power seat track retaining fasteners and remove the power seat track (1) from the seat.
