Section 131 (Power Seat System): Lumbar: Installation
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

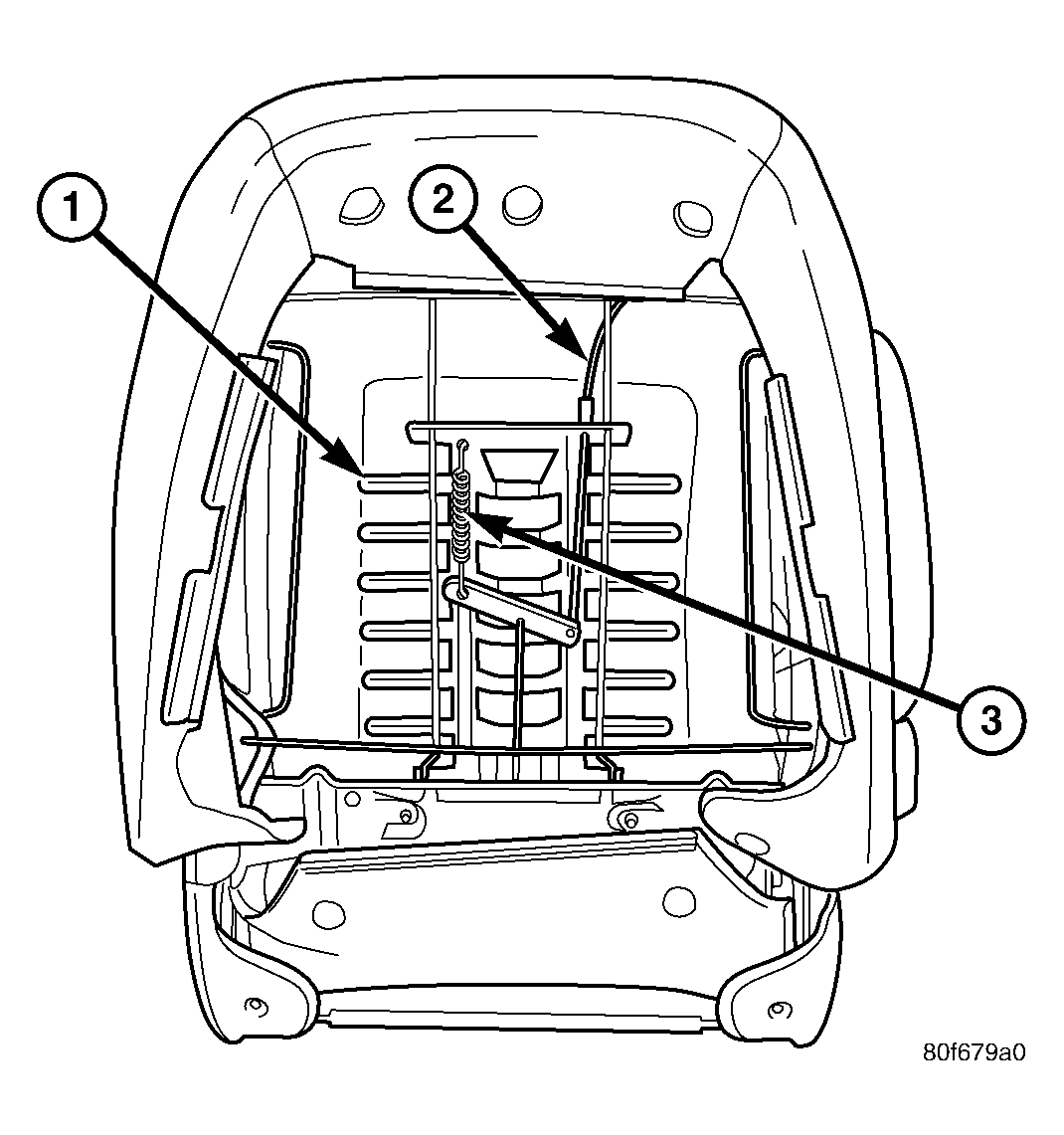

- Snap the lumbar assembly (1) on the seat back frame. Be careful not to break the retaining pins, if broken replace with new pieces.
- Connect the lumbar cable (2) and connect the mechanism spring (3) on the lumbar assembly.
- Install the seat back trim cover on the seat back frame, (Refer to BODY/SEATS/SEAT BACK COVER - INSTALLATION) for the appropriate procedure.
