Assembly-Exhaust Gas RECIRC Valve: Installation: 5.7L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying EGR Valve Location
GC0010105Courtesy of DAIMLERCHRYSLER CORP.
  1. Position a new metal gasket between cylinder head (1) and valve assembly (3).
  2. Install two mounting bolts (2) and tighten. Refer to TORQUE .

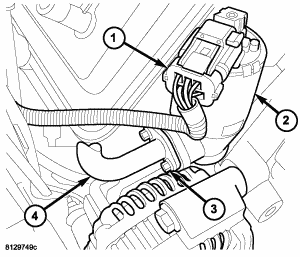

    Fig 2: EGR Tube Bolts
    GC0010106Courtesy of DAIMLERCHRYSLER CORP.
  3. Clean EGR tube where it joins EGR valve.
  4. Position new gasket between EGR tube flange and EGR valve assembly.
  5. Install two bolts (3) connecting EGR tube (4) to valve assembly (2). Tighten bolts. Refer to TORQUE .
  6. Connect electrical connector (1) to EGR solenoid (2).
