3.0L - Diesel
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

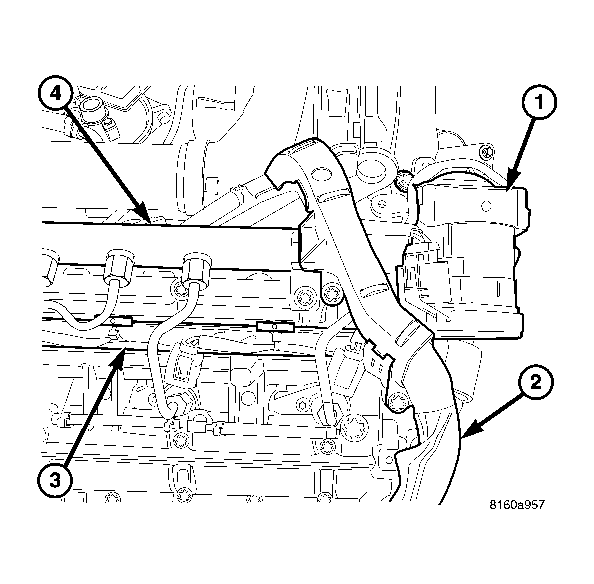

| 1 - EXHAUST GAS RECIRCULATION (EGR) VALVE |
| 2 - MAIN ENGINE WIRING HARNESS |
| 3 - FUEL INJECTOR WIRING HARNESS |
| 4 - LEFT FUEL RAIL |
- Clean EGR valve sealing surfaces.
- Lubricate the seal and install the EGR valve in intake manifold. Tighten EGR valve retaining bolts to 9 N.m (80 lbs.in).
- Connect the EGR valve wiring harness connector.
- Install engine cover.
- Connect the negative battery cable. (Refer to ELECTRICAL/BATTERY SYSTEM/CABLES - INSTALLATION)
