Solenoid-Proportional Purge: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

The solenoid attaches to a bracket near the air cleaner. The solenoid will not operate unless it is installed correctly.

The top of the solenoid has TOP printed on it. The solenoid will not operate unless it is installed correctly.

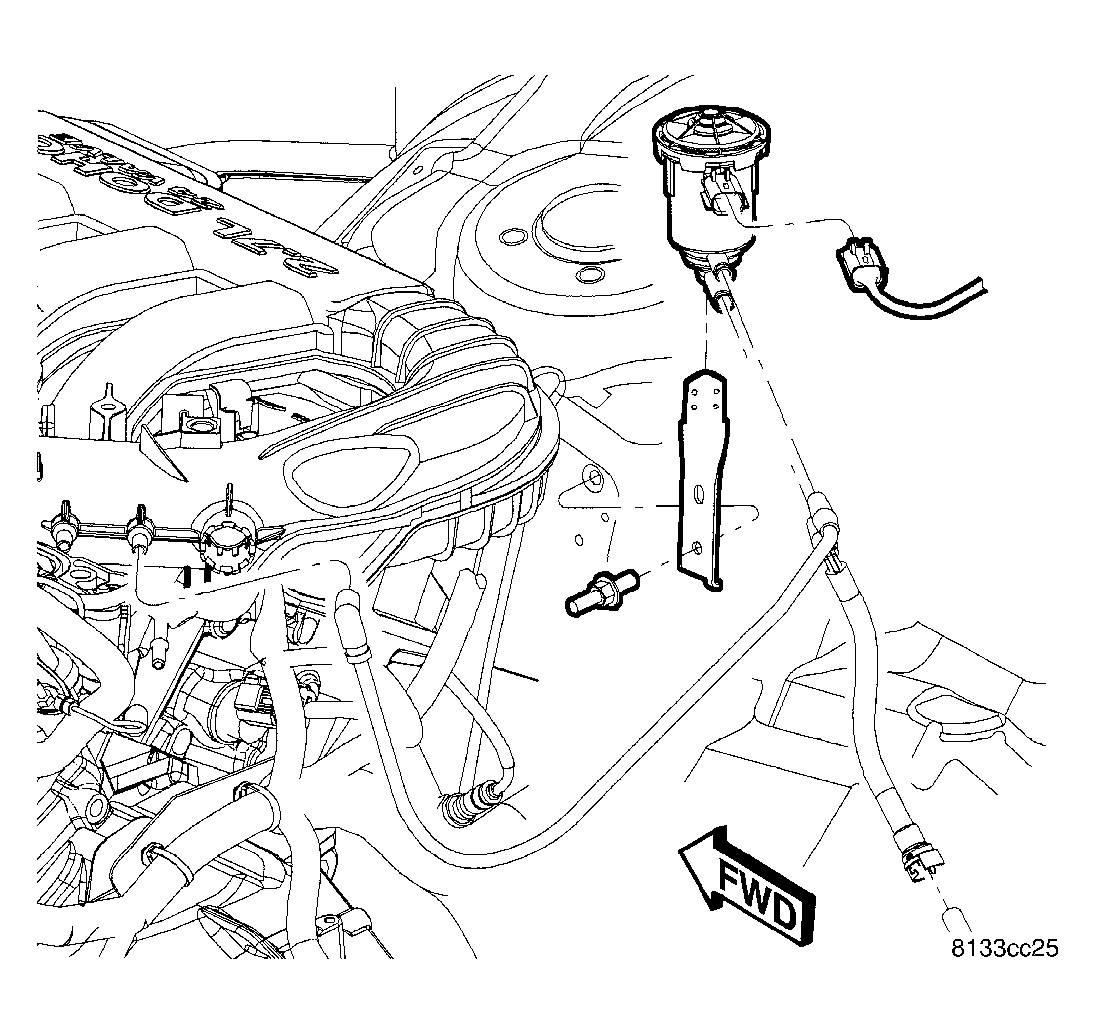

Fig 1: Location Of Bracket On 2.7L & 3.5L Engine

Courtesy of DAIMLERCHRYSLER CORP.

Location for 2.7 and 3.5L engines.

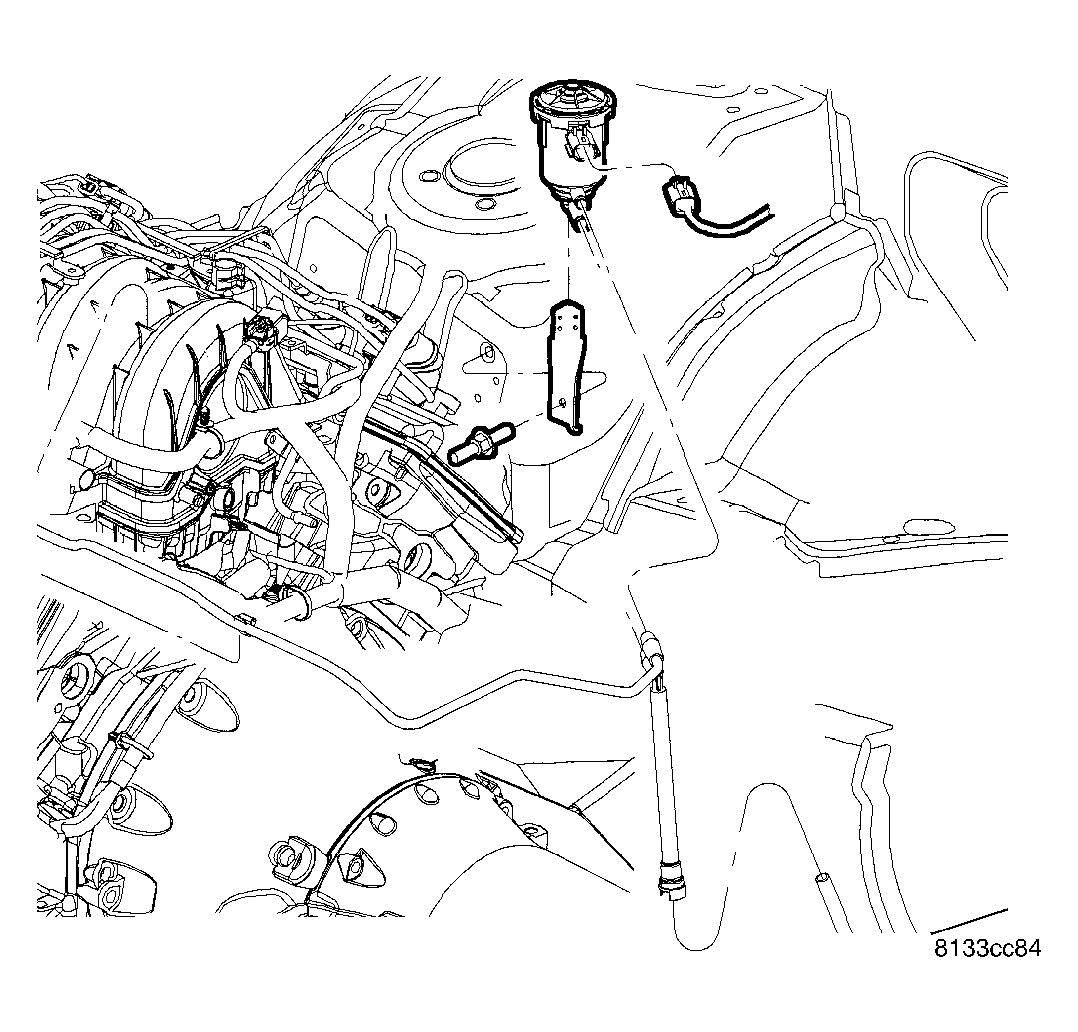

Fig 2: Location Of Bracket On 5.7L Engine
Courtesy of DAIMLERCHRYSLER CORP.
Location for 5.7L engine.
Install solenoid on bracket.
Connect vacuum tube to solenoid.
Connect electrical connector to solenoid.
