PCV Valve: Installation: 5.7L

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

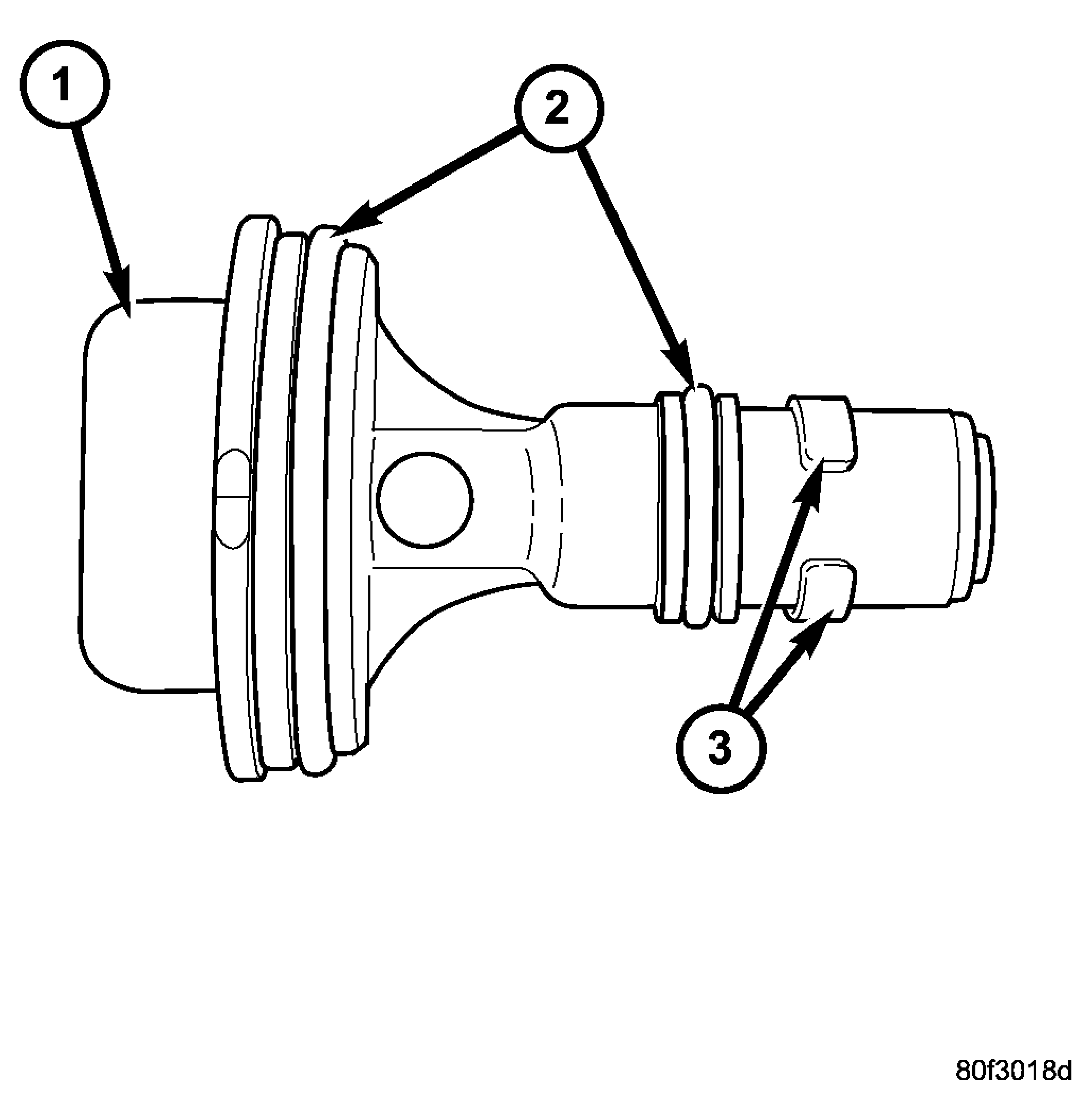

Fig 1: View Of PCV Valve - 5.7L
GC0007470Courtesy of DAIMLERCHRYSLER CORP.
  1. Clean out intake manifold opening.
  2. Check condition of two O-rings (2) on PCV valve (1).
  3. Apply engine oil to two O-rings.

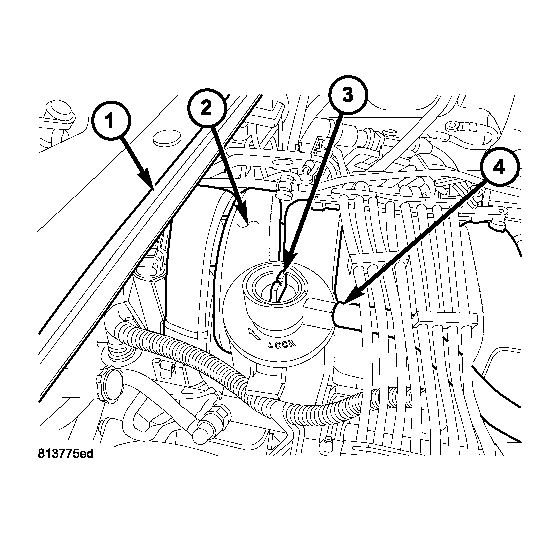

    Fig 2: Location Of PCV Valve - 5.7L
    GC0014015Courtesy of DAIMLERCHRYSLER CORP.
  4. Place PCV valve (3) into intake manifold and rotate 90 degrees clockwise for installation.
