Assembly-Natural Vac Leak Detection: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: NVLD and Filter
GC0014013Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery cable.
  2. Raise and support vehicle.
  3. Remove the right rear tire.
  4. Remove the inner splash shield.
  5. Natural Vacuum Leak Detection Pump (NVLD) location.

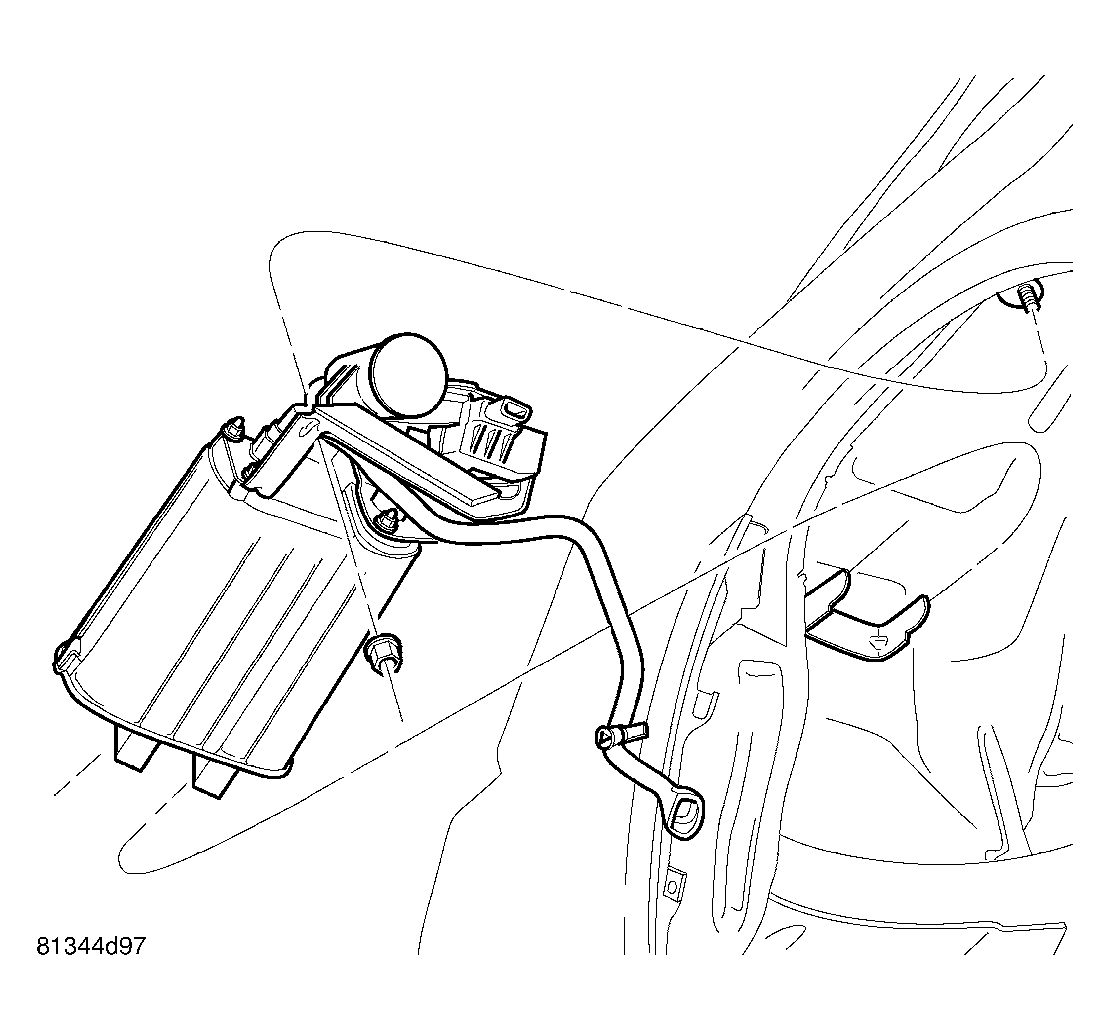

    Fig 2: Canister Assembly Exploded
    GC0014014Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove vapor canister and NVLD pump assembly from vehicle.
    Fig 3: NVLD on Bracket
    GC0014011Courtesy of DAIMLERCHRYSLER CORP.
  7. Squeeze tab and pull pump from bracket.
    Fig 4: NVLD Removed from Bracket
    GC0014012Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove hoses from pump assembly and remove pump.
