1.6L Equipped Models

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

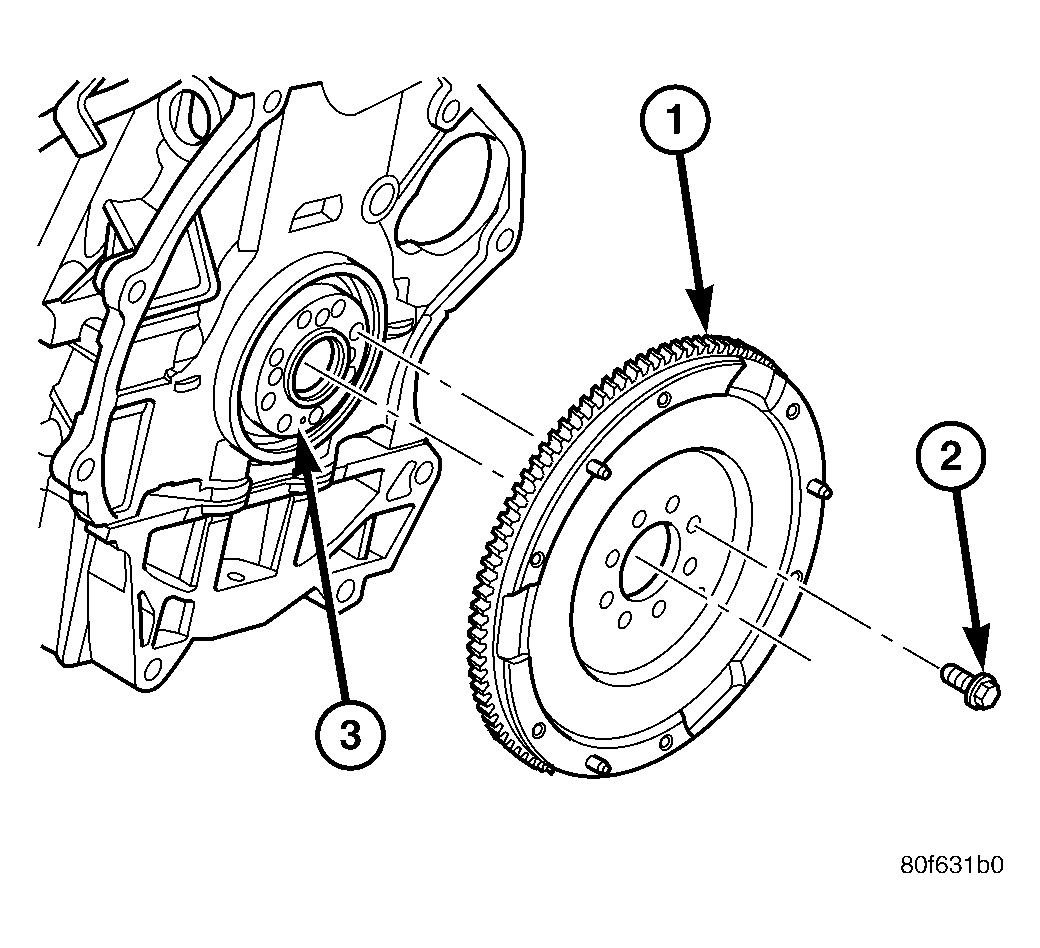

Fig 1: Identifying Flywheel And Crankshaft Flange

Courtesy of DAIMLERCHRYSLER CORP.

1 - FLYWHEEL

2 - BOLT (8)

3 - CRANKSHAFT FLANGE

1.6L Equipped Models utilize a conventional flywheel assembly (1), which is a solid rotating mass fastened to the rear of the crankshaft (3). The flywheel also incorporates an integral starter ring gear. See Fig 1.
