Clutch Release Bearing: Installation
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

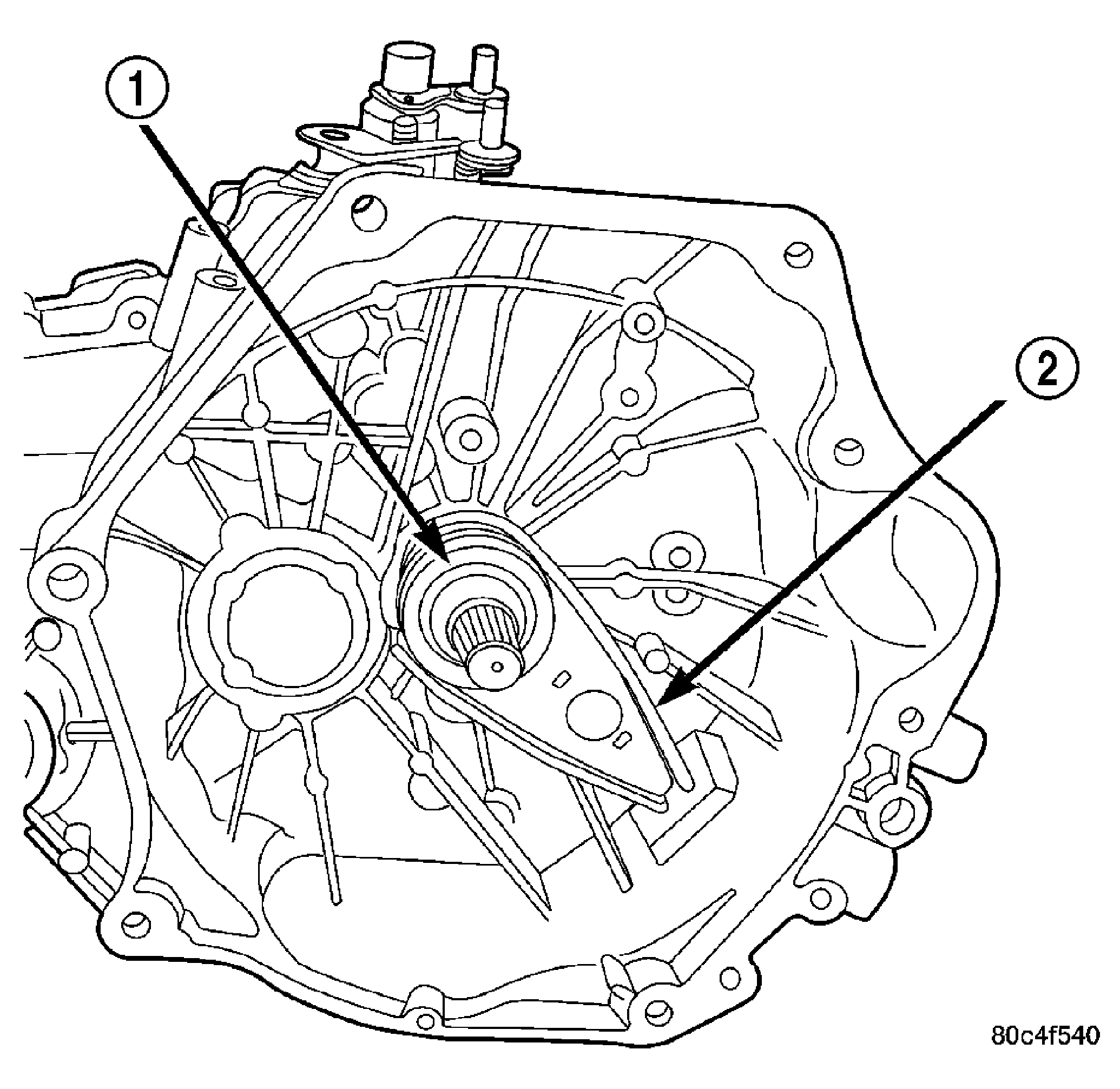

| 1 - RELEASE BEARING |
| 2 - LEVER |
- The pivot ball pocket in the lever, as well as the lever arms should be lubricated with grease prior to installation.
- Assemble the lever to the bearing. The small pegs on the bearing must go over the lever arms.
- Slide the bearing (1) and lever assembly (2) onto the input shaft bearing retainer, as a unit. See Fig 1.
- Snap the clutch release lever onto the pivot ball.
- Install transaxle,
- For G288 M/T, (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION) .
- For T350 M/T, (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION) .
