Clutch Interlock/UPSTOP Switch: Description

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

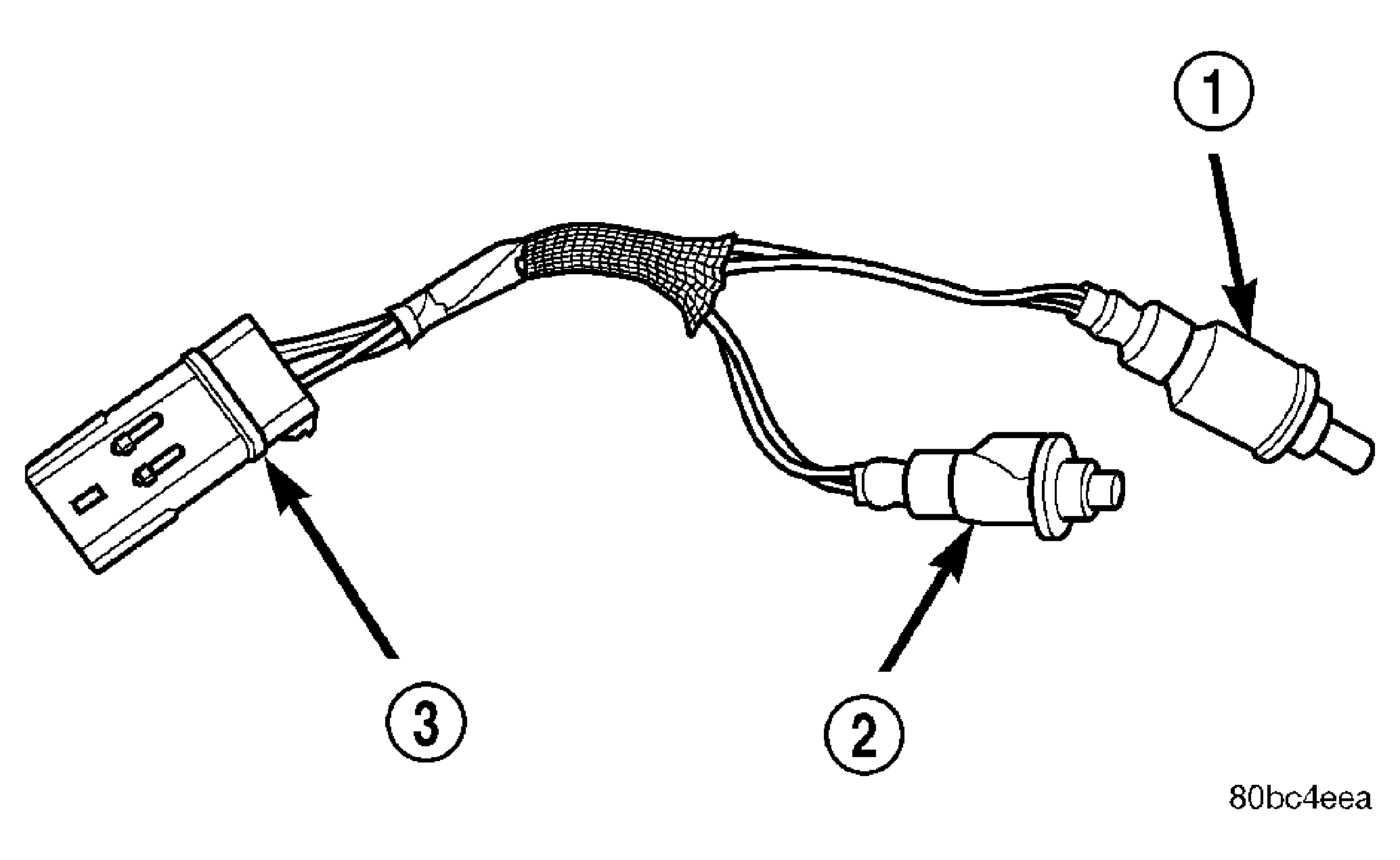

Fig 1: Locating Clutch Interlock/Upstop Switches

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPSTOP SWITCH (IF EQUIPPED)

2 - INTERLOCK SWITCH

3 - CONNECTOR

The clutch interlock/upstop switch (1) is an assembly consisting of two switches: an engine starter inhibit switch (interlock) (2) and a clutch pedal upstop switch (1). See Fig 1.

Fig 2: View Of Interlock Switch & Upstop Switches At Pedal Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPSTOP SWITCH (IF EQUIPPED)

2 - INTERLOCK SWITCH

3 - CLUTCH PEDAL

4 - CONNECTOR

The switch assembly (1,2) is located in the clutch/brake pedal (3) bracket assembly, each switch being fastened by four plastic wing tabs. See Fig 2.
