Washer Hoses: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

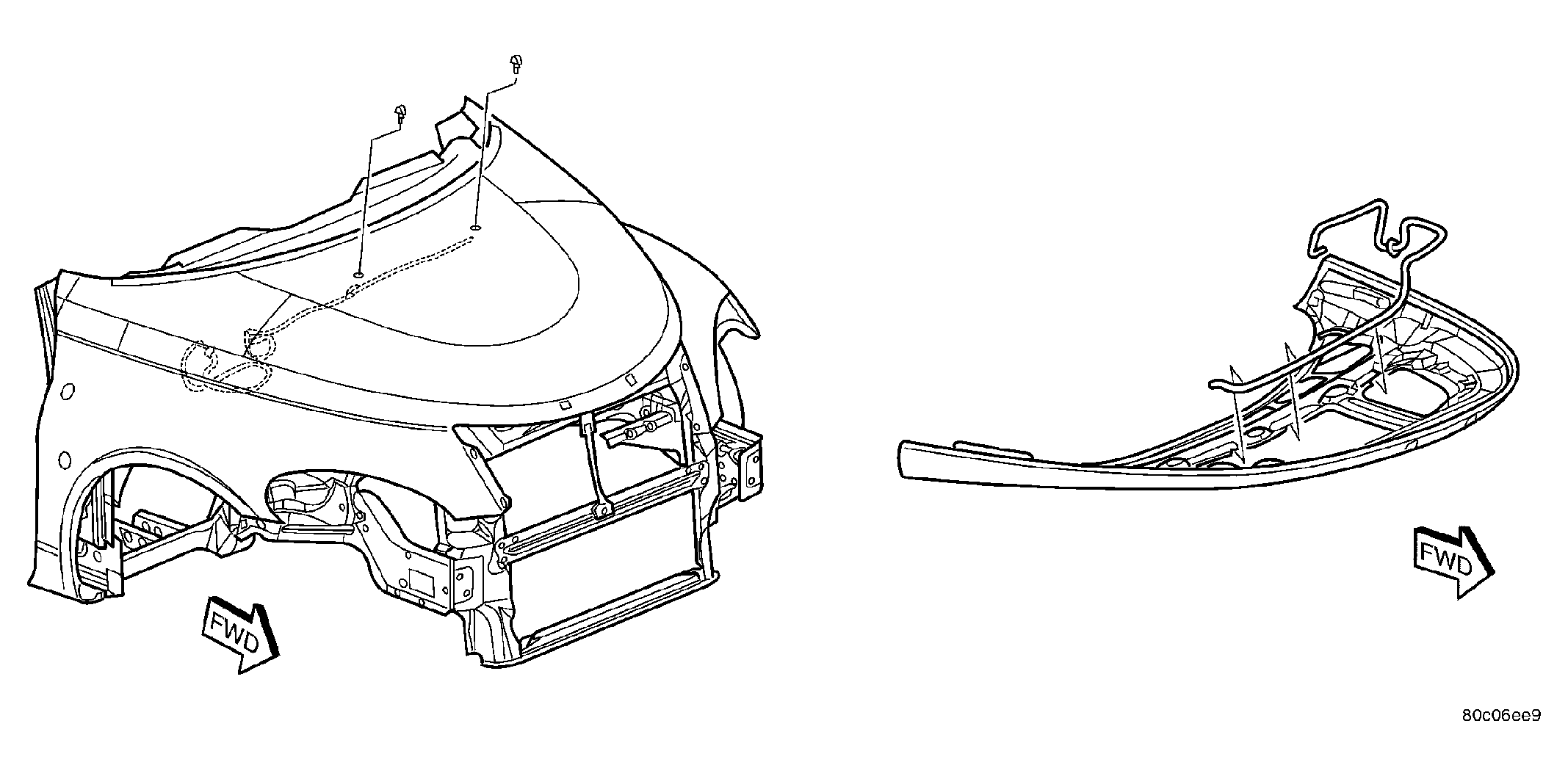

Fig 1: Body Hose Routing

Courtesy of DAIMLERCHRYSLER CORP.

For damaged or plugged windshield washer hose, remove the affected piece of hose and replace with bulk hose. It may be necessary to de-trim part of the vehicle to access damages hose. Refer to Exterior Body article.

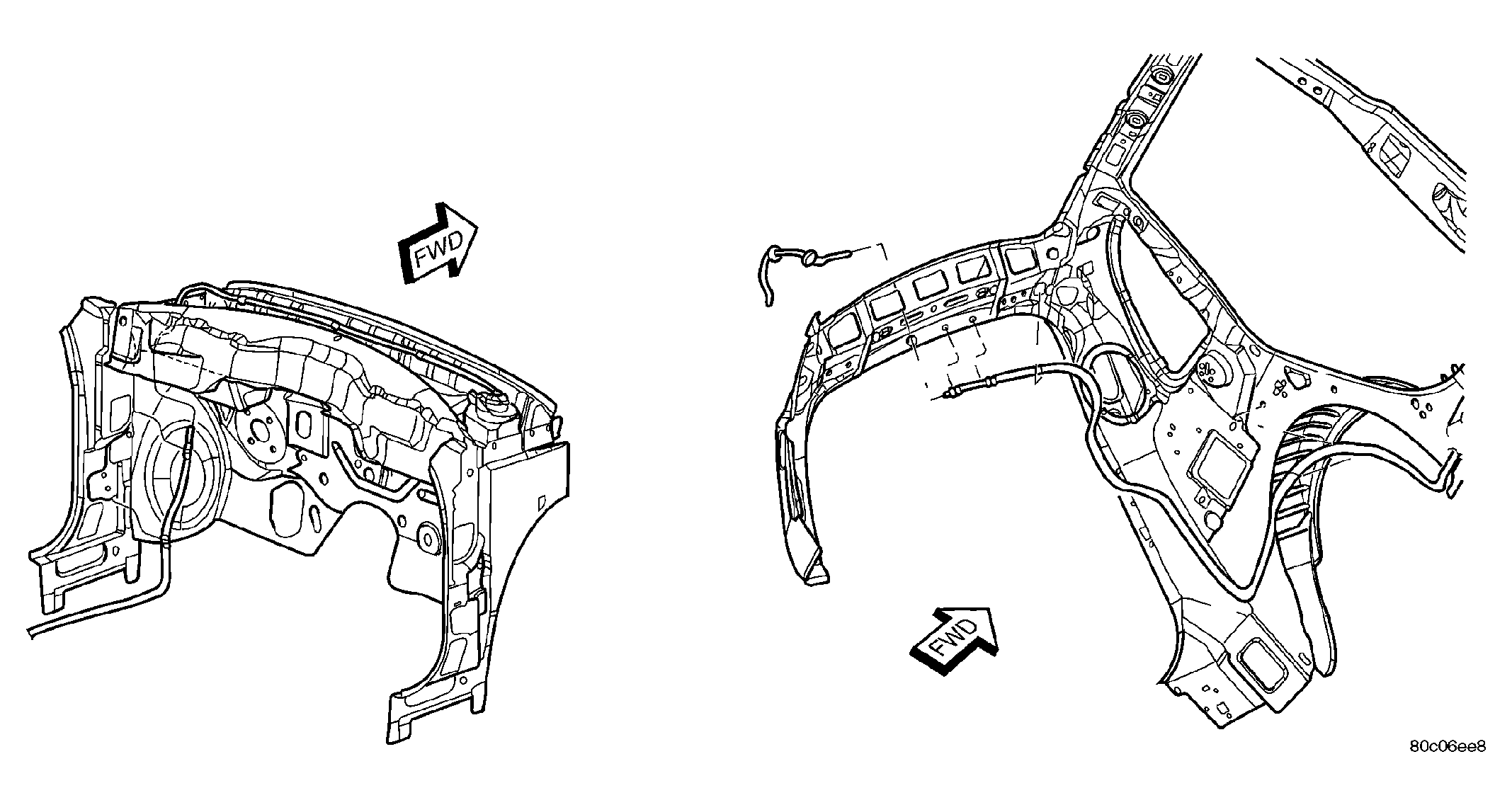

Fig 2: Front Cowl Area & Hose Routing

Courtesy of DAIMLERCHRYSLER CORP.

It may be necessary to de-trim parts of the interior to locate the problem portion of hose. Refer to Body, Interior component Removal and Installation.

Fig 3: Washer Nozzle Hose Routing
Courtesy of DAIMLERCHRYSLER CORP.
It may be necessary to de-trim parts of the hood/engine compartment to locate the problem portion of hose. Refer to Body section.
