Rear Wiper Arms: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Rear Wiper Arm

Courtesy of DAIMLERCHRYSLER CORP.

Remove the rear wiper arm nut cap.
Remove wiper arm retaining nut.

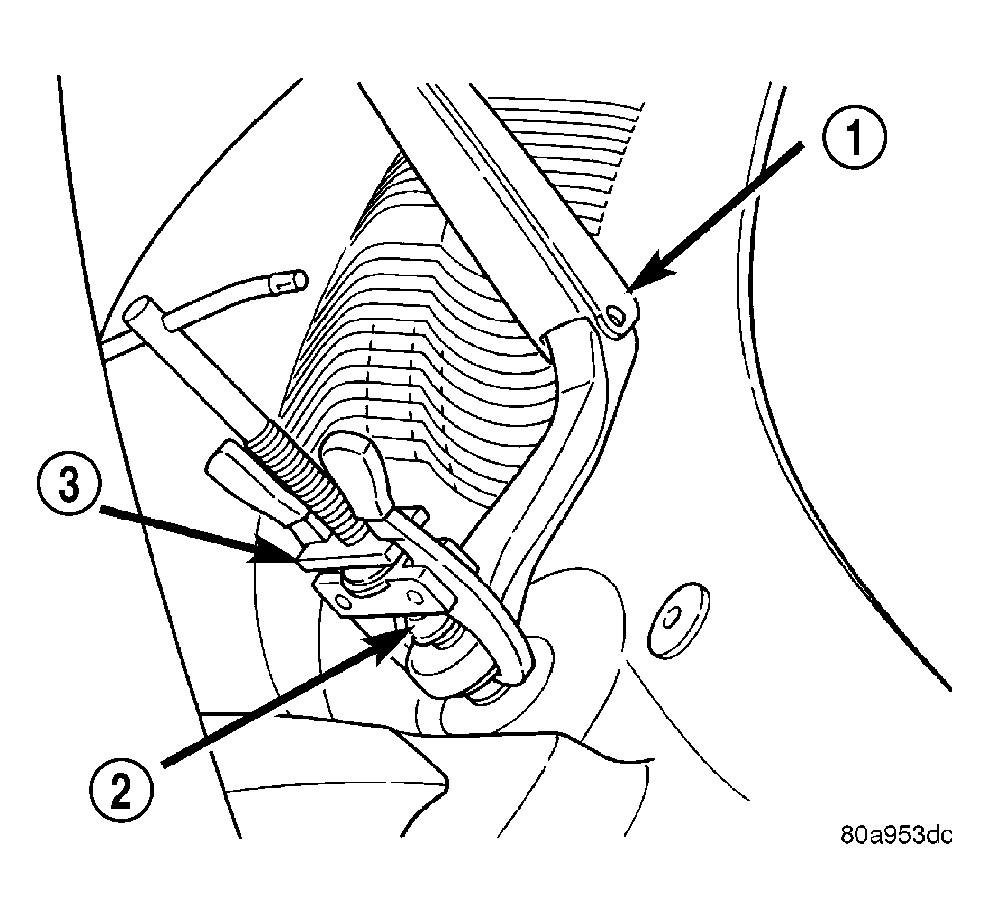

Fig 2: Disengaging Wiper Arm from Pivot Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Use a battery terminal puller to remove the wiper arm from the wiper pivot.
