Front Wiper Module: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

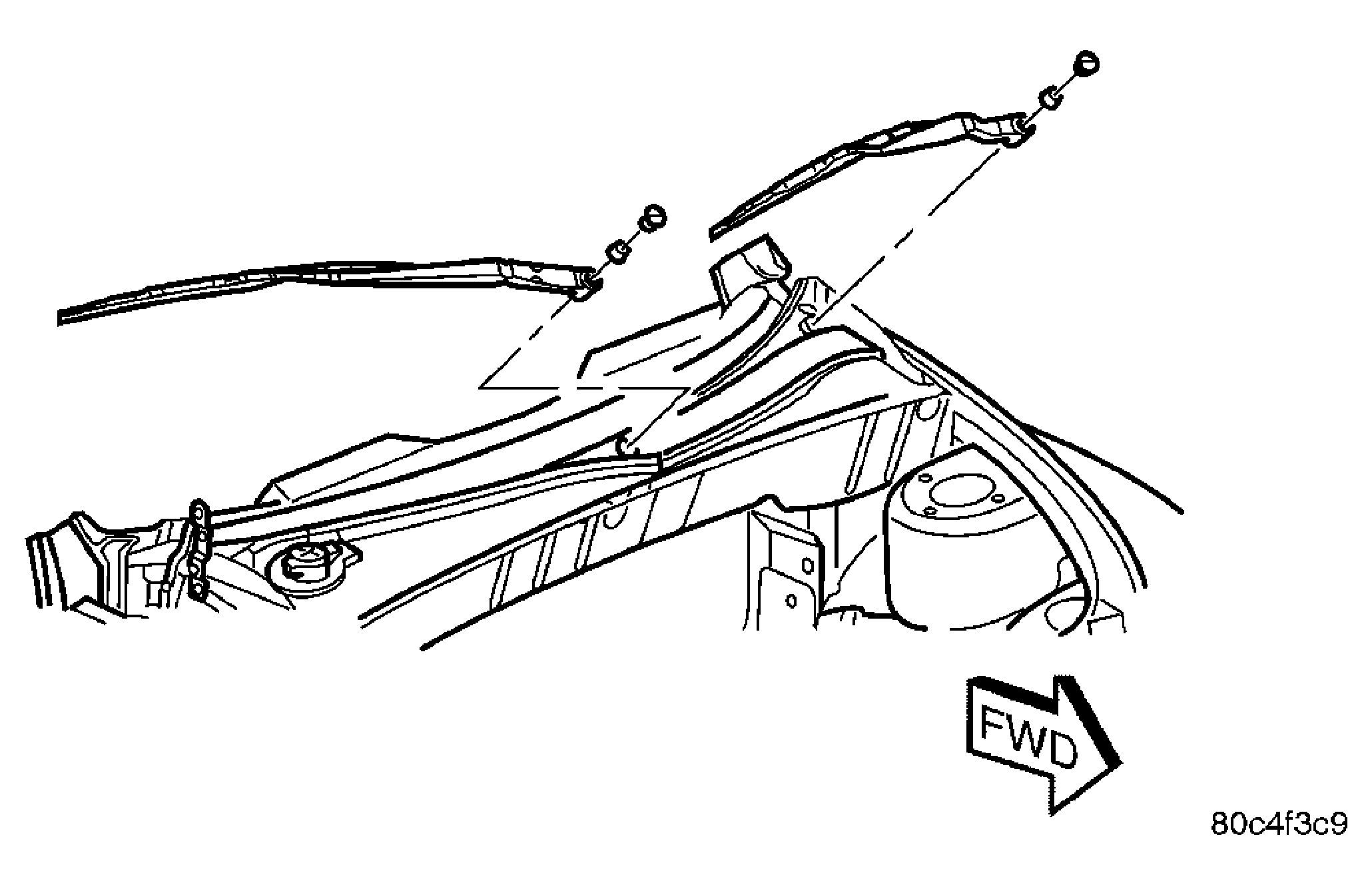

Fig 1: Removing/Installing Front Wiper Arm
GC0021955Courtesy of DAIMLERCHRYSLER CORP.
  1. Open hood.
  2. Disconnect and isolate the battery negative cable.
  3. Using a trim stick (special tool # C-4755) or equivalent, gently pry up on the wiper arm nut cap and remove.
  4. Remove wiper arm retaining nut.
  5. Remove the arm from the pivot using a rocking motion while the arm is in an over/centered position.

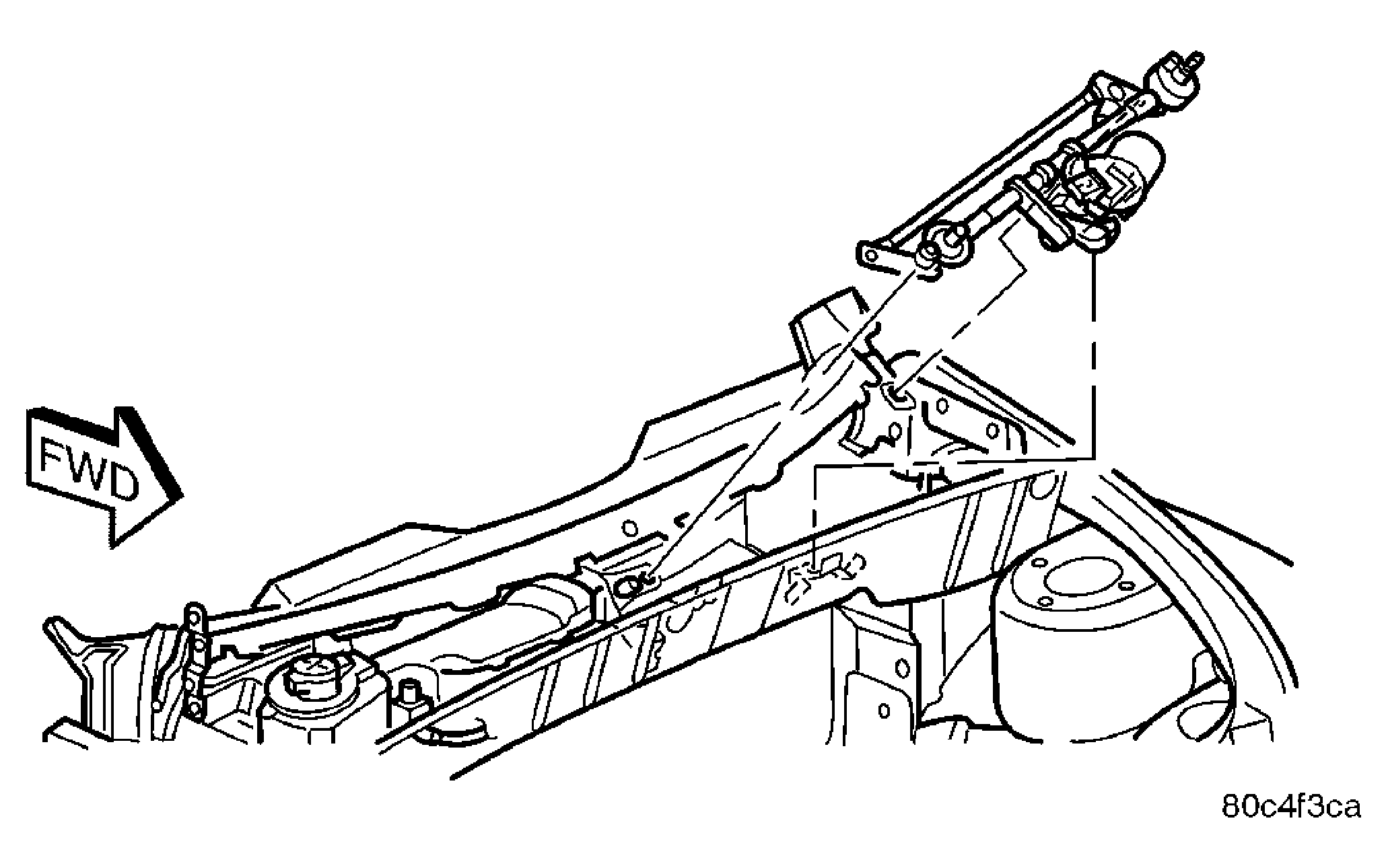

    Fig 2: Removing/Installing Front Wiper Module
    GC0021960Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the cowl cover. The right side cover overlaps the left side cover, so they both must be removed.
    • Remove the rear engine compartment seal at the cowl.
    • Remove the four push retainers to the right side cowl cover and remove from vehicle.
    • Remove the three push retainers to the left side cowl cover and remove from vehicle.
  7. Disconnect front wiper motor posi-lock harness connector.
  8. Remove three front wiper module mounting bolts and remove module from vehicle.
NOTE: If replacing the front wiper linkage, the wiper motor must be transferred to the new linkage.
  1. Disconnect drive link from motor crank ball joint.
  2. Remove three bolts to the front wiper motor and separate from linkage.
