Sunroof Trough Guide Assembly: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

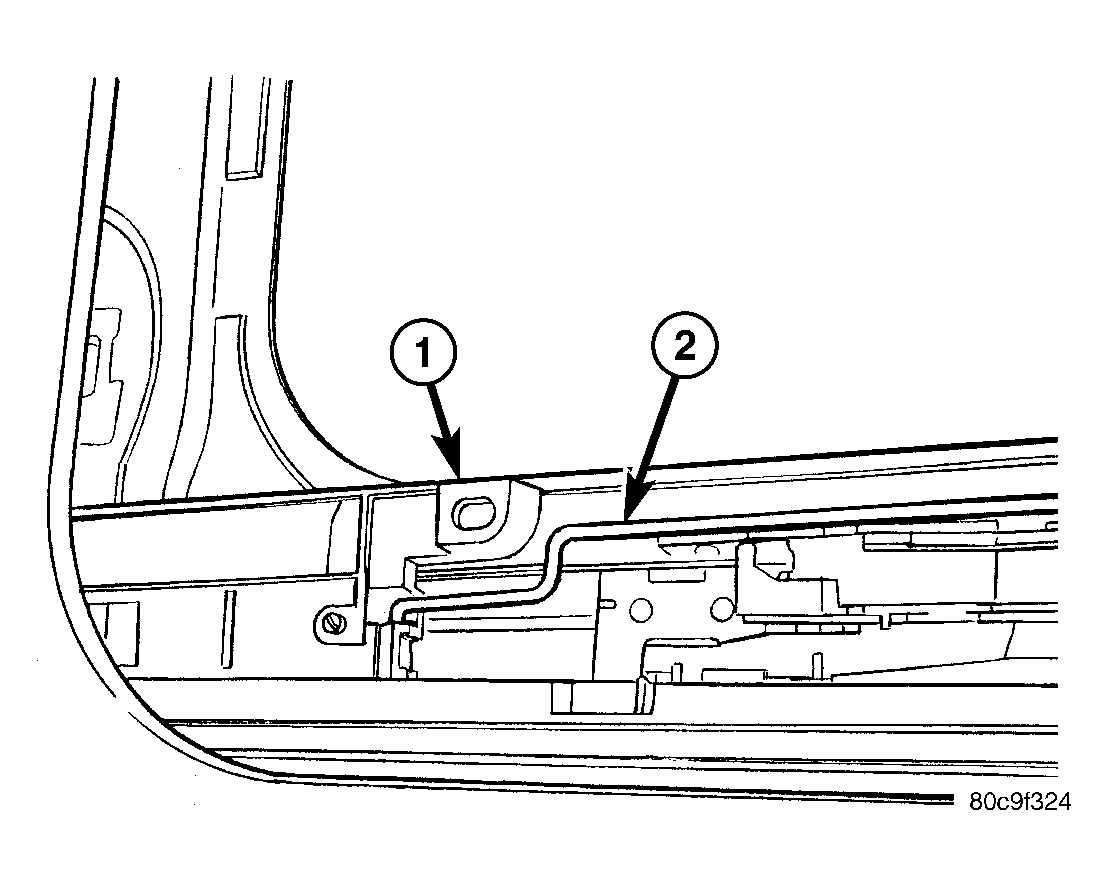

Fig 1: Trough Guides
GC0022591Courtesy of DAIMLERCHRYSLER CORP.
1 - TROUGH GUIDE
2 - GUIDE LINK
  1. Remove the sunroof glass panel (Refer to BODY/SUNROOF/GLASS PANEL - REMOVAL) .
  2. Place sunroof into the vent position.
  3. Remove screws from the trough assembly one on each side.
  4. Remove trough (1).
  5. Disconnect the guide link (2).
    Fig 2: Trough Guide Removal
    GC0022592Courtesy of DAIMLERCHRYSLER CORP.
    1 - TROUGH GUIDE
    2 - NOTCH
    3 - SLIDER
  6. Slide trough guide (1) forward and disengage the sliders (3) through the notches (2) in guide channels.
