PCV Valve: Description

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

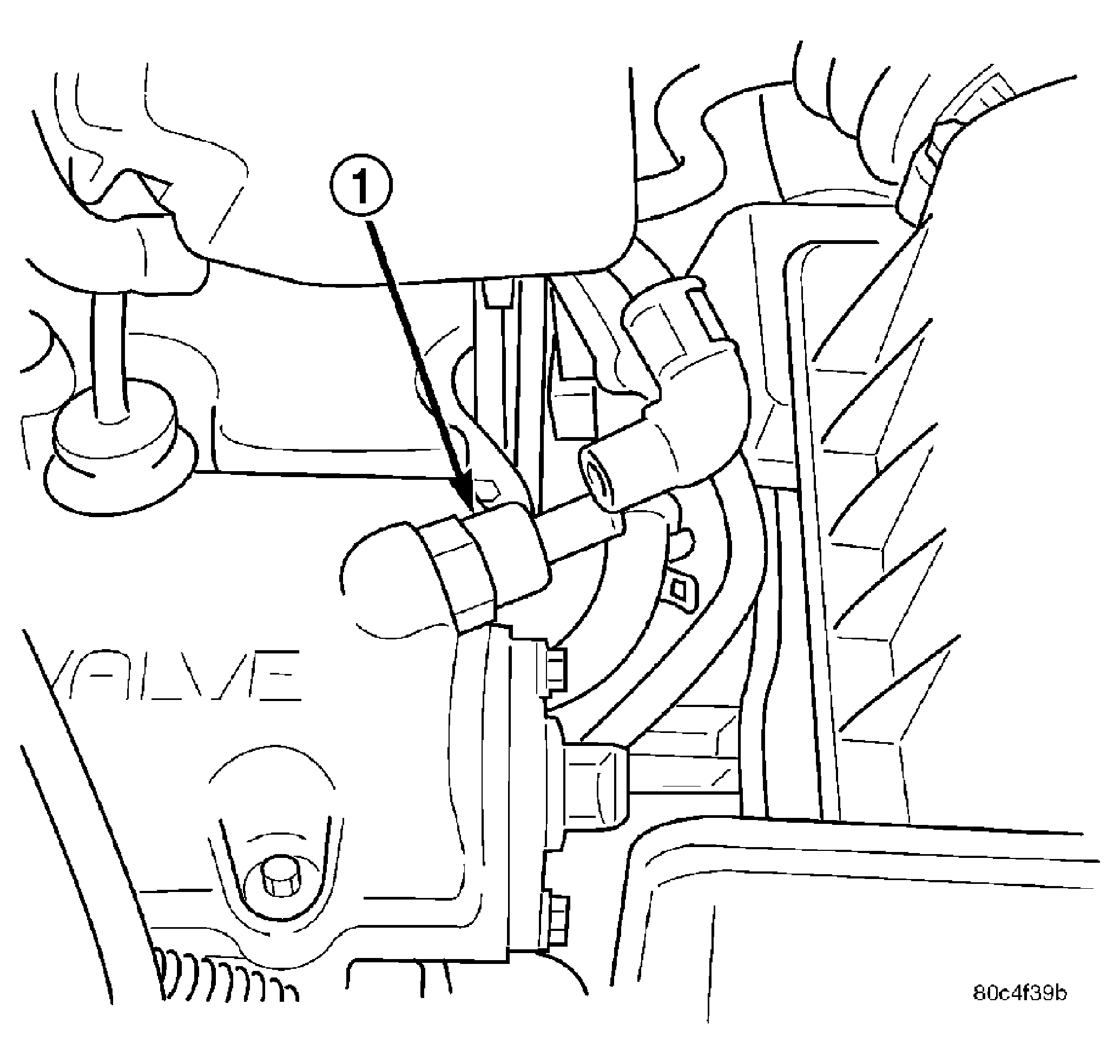

Fig 1: PCV System - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - PCV VALVE

It threads into the valve cover (1).
