Natural Vac Leak Detection ASSY: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

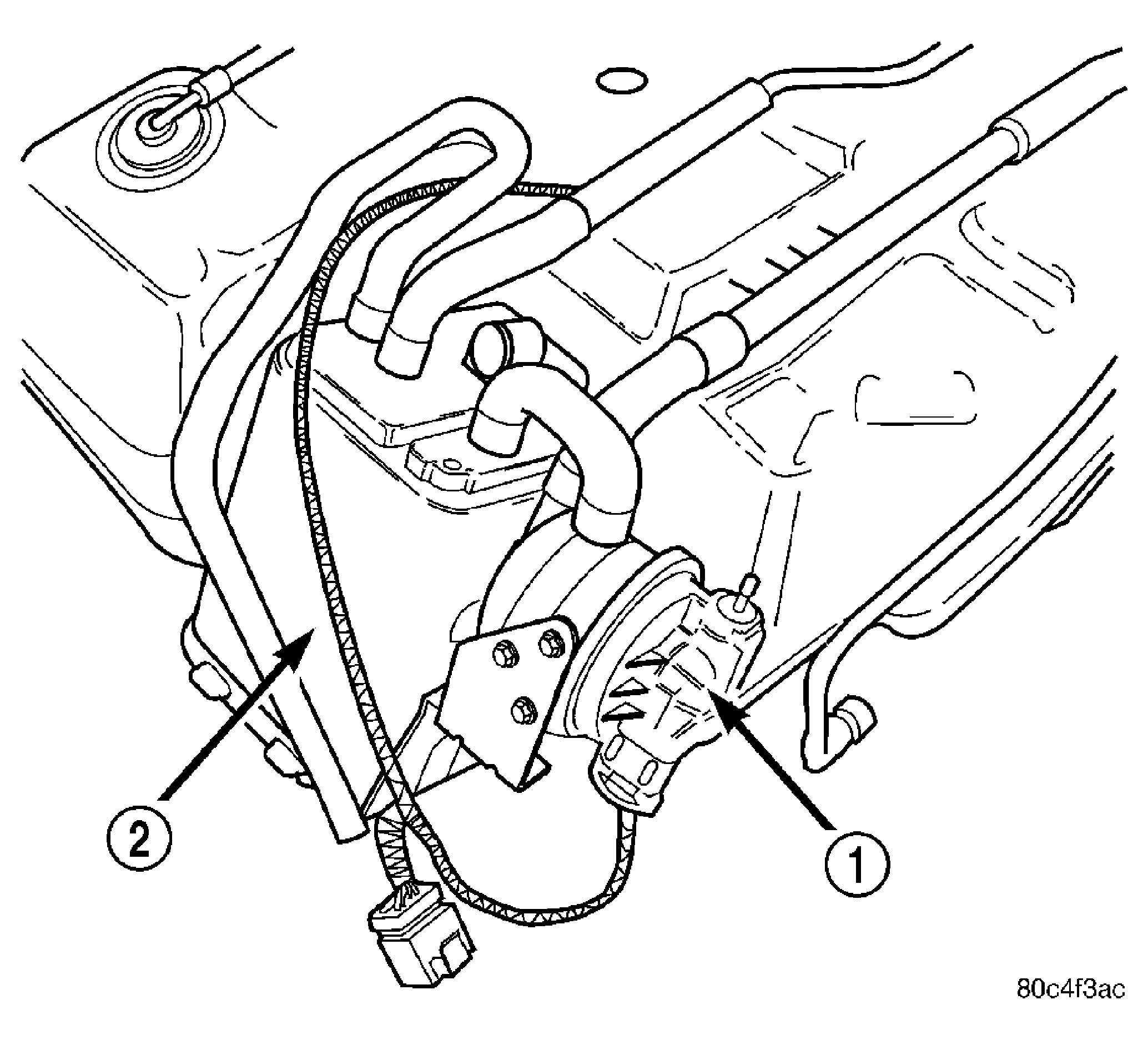

Fig 1: Identifying EVAP Canister & LDP
GC0021754Courtesy of DAIMLERCHRYSLER CORP.
1 - LDP
2 - EVAP CANISTOR
  1. Install NVLD assembly to the bracket (1).
  2. Install assembly to the fuel tank.
  3. Install hoses and lines.

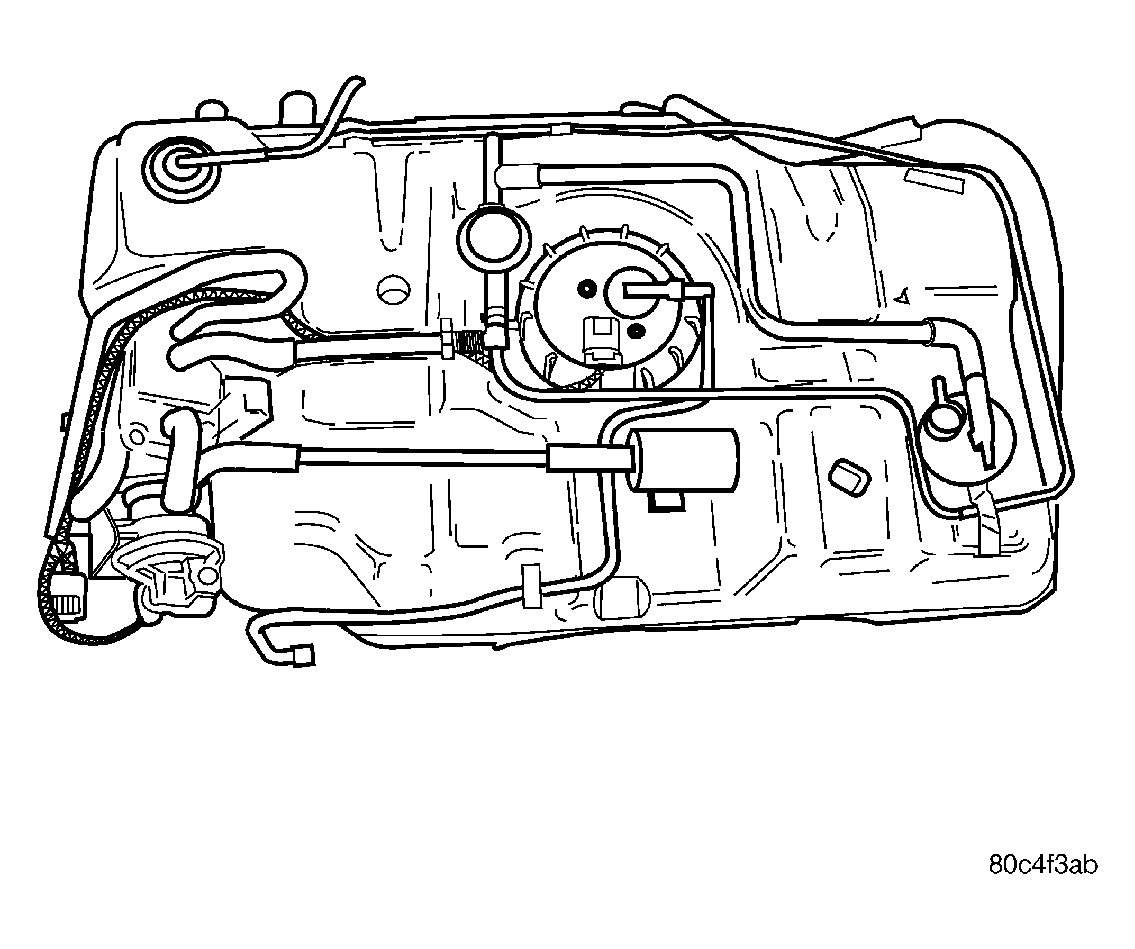

    Fig 2: Identifying Fuel Tank Assembly Components
    GC0021753Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the fuel tank and EVAP system, (Refer to FUEL SYSTEM/FUEL DELIVERY/FUEL TANK - INSTALLATION) .
  5. Lower vehicle.
  6. Install the negative battery cable.
  7. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
  8. Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
