Sensor-Camshaft Position: Installation: 2.0/2.4L
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

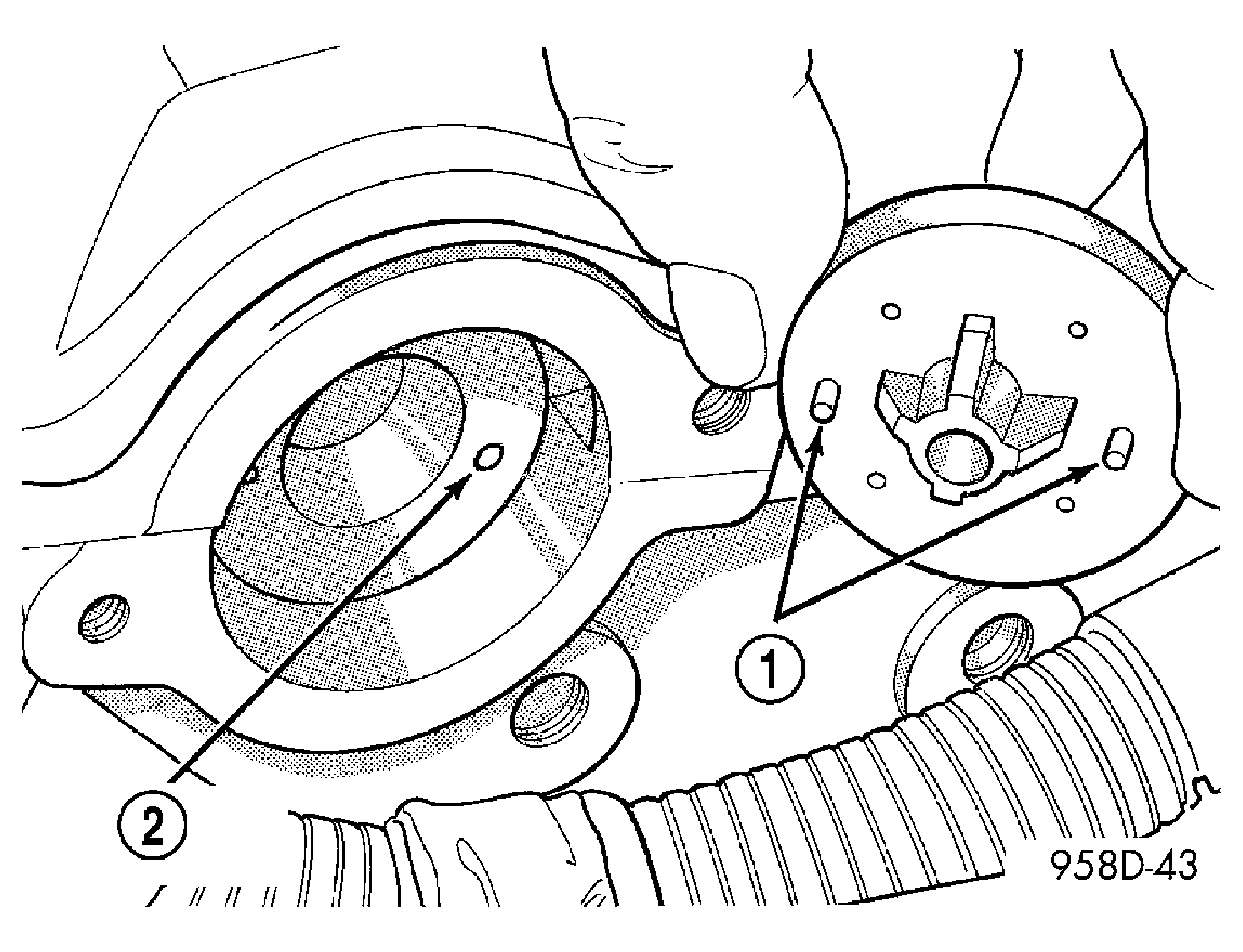

| 1 - LOCATING DOWELS |
| 2 - LOCATING HOLES (2) |
The target magnet has locating dowels (1) that fit into machined locating holes (2) in the end of the camshaft. See Fig 1.
- Install target magnet in end of camshaft. Tighten mounting screw to 3.5 N.m (32 in. lbs.) torque. Over torquing could cause cracks in magnet. If magnet cracks replace it.
- Install camshaft position sensor. Tighten sensor mounting screws to 9 N.m (80 in. lbs.) torque.
- Carefully attach electrical connector to camshaft position sensor. Installation at an angle may damage the sensor pins.
- Install the negative battery cable.
- Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
