Sensor-Camshaft Position: Installation: 1.6L

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

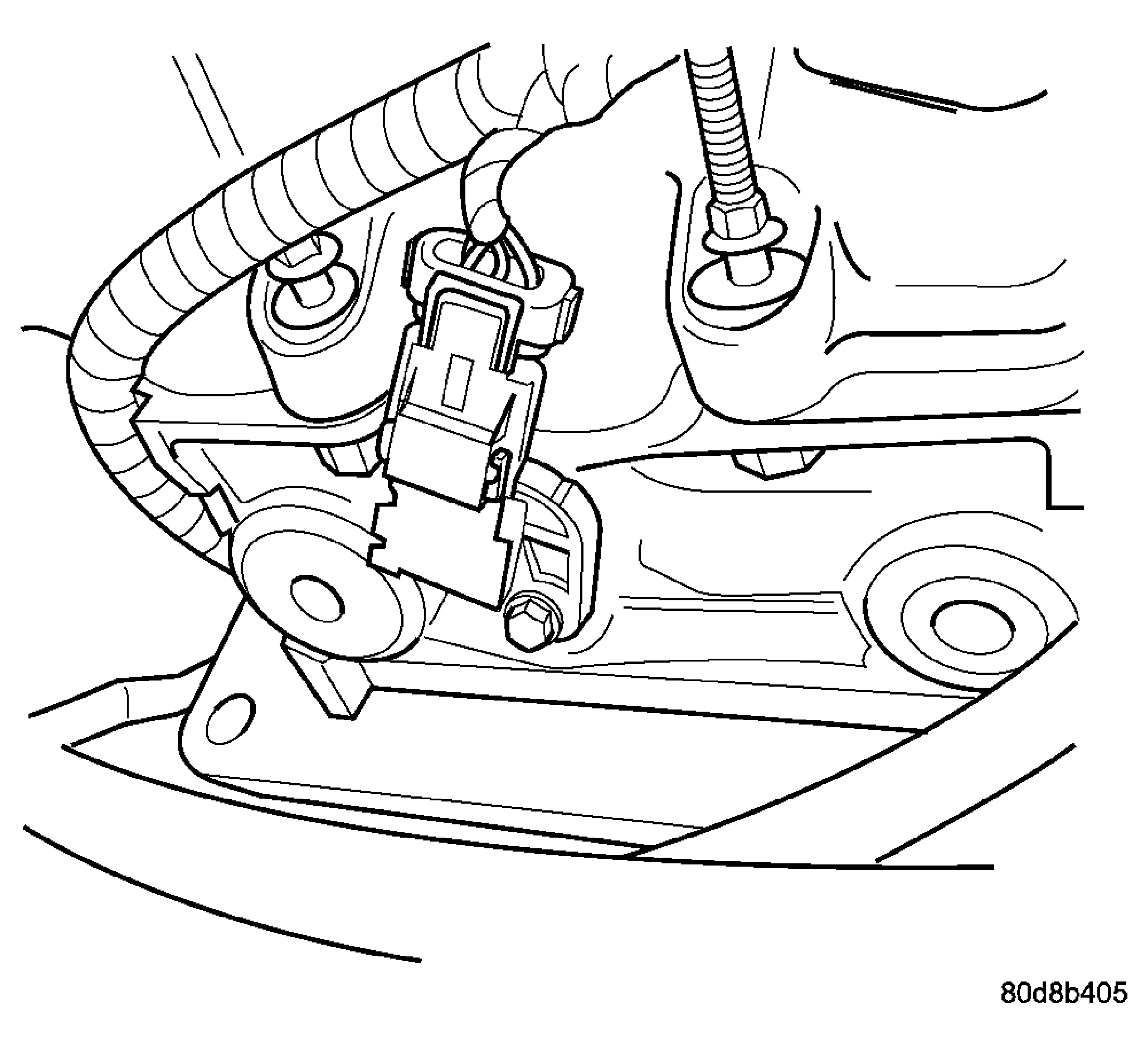

Fig 1: Camshaft Sensor Location - 1.6L
GC0022900Courtesy of DAIMLERCHRYSLER CORP.
  1. Install sensor to cylinder head. See Figure.
  2. Tighten screw to 9 N.m (80 in. lbs.).
  3. Connect the electrical connector to the sensor.
  4. Relocate the power steering return line.
  5. Connect the negative battery cable.
