Sensor-Camshaft Position: Description

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Camshaft Position Sensor - 2.0/2.4L DOHC

Courtesy of DAIMLERCHRYSLER CORP.

1 - PCV VALVE

2 - EGR VALVE

3 - CAMSHAFT POSITION SENSOR

On 2.0L (3) engines, the camshaft position sensor is mounted to the rear of the cylinder head.

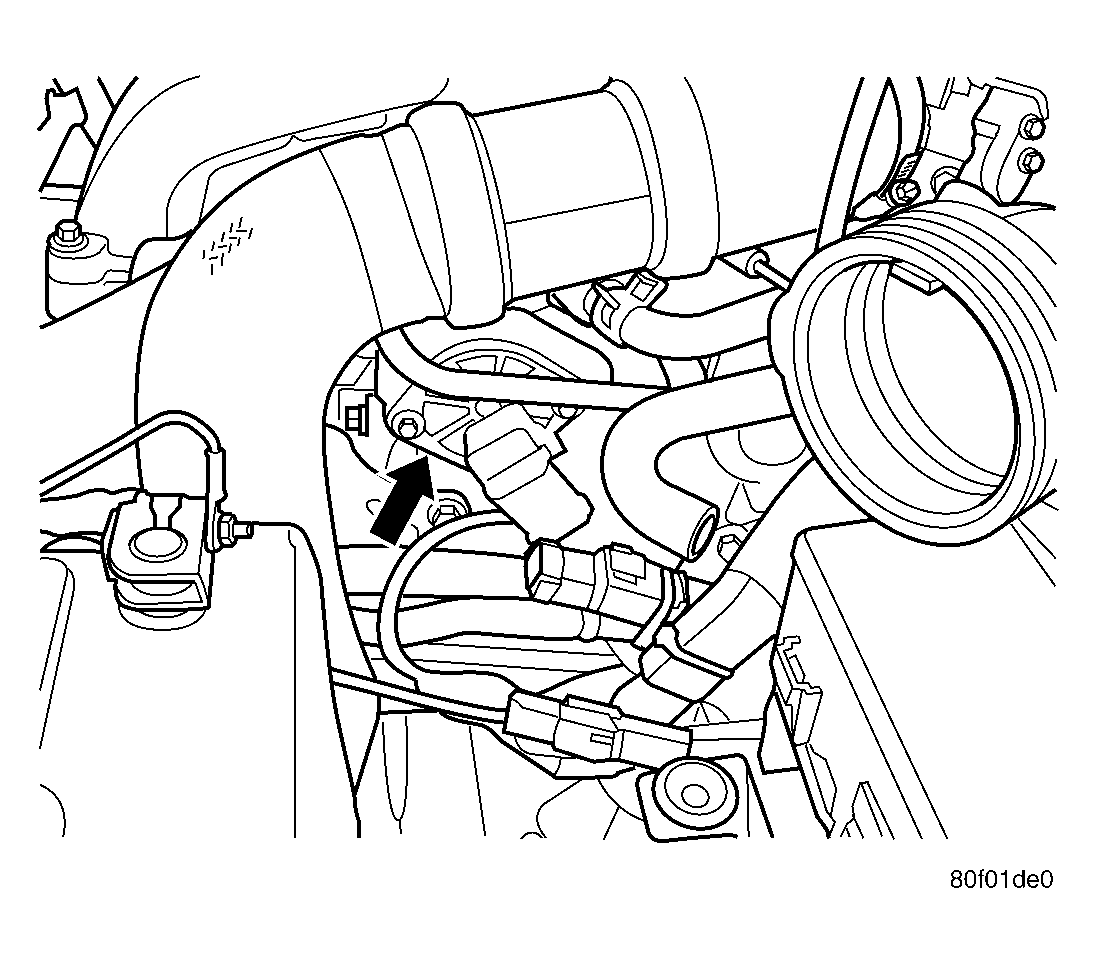

Fig 2: Camshaft Position Sensor - 2.4L Turbo

Courtesy of DAIMLERCHRYSLER CORP.

On 2.4L engines, the camshaft position sensor is mounted to the rear of the cylinder head.
