Ignition Switch: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. For ignition switch terminal and circuit identification, refer to the SYSTEM WIRING DIAGRAMS article.

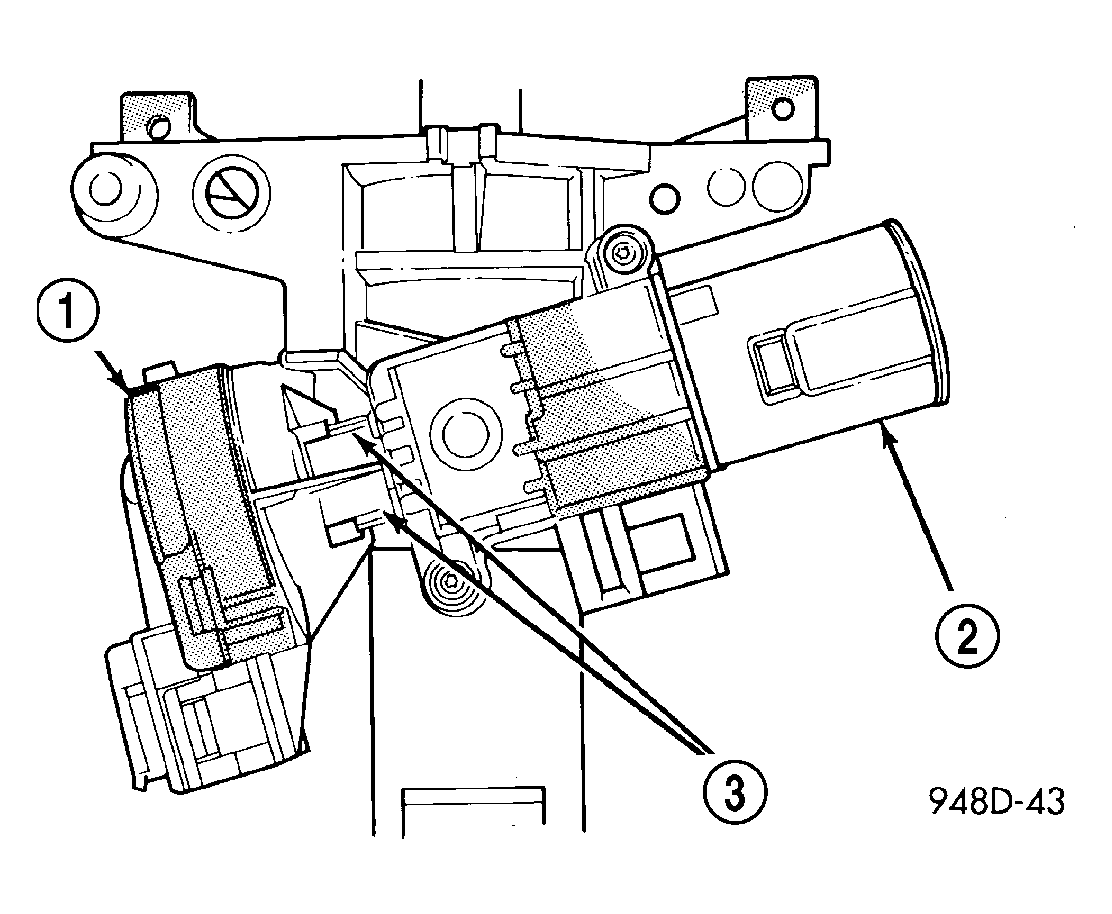

Fig 1: Ignition Switch - Viewed From Below Column

Courtesy of DAIMLERCHRYSLER CORP.

1 - IGNITION SWITCH

2 - LOCK CYLINDER HOUSING

3 - RETAINING TABS

Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
Disconnect negative cable from battery.

Place key cylinder in RUN position. Through the hole in the lower shroud, depress lock cylinder retaining tab and remove key cylinder.

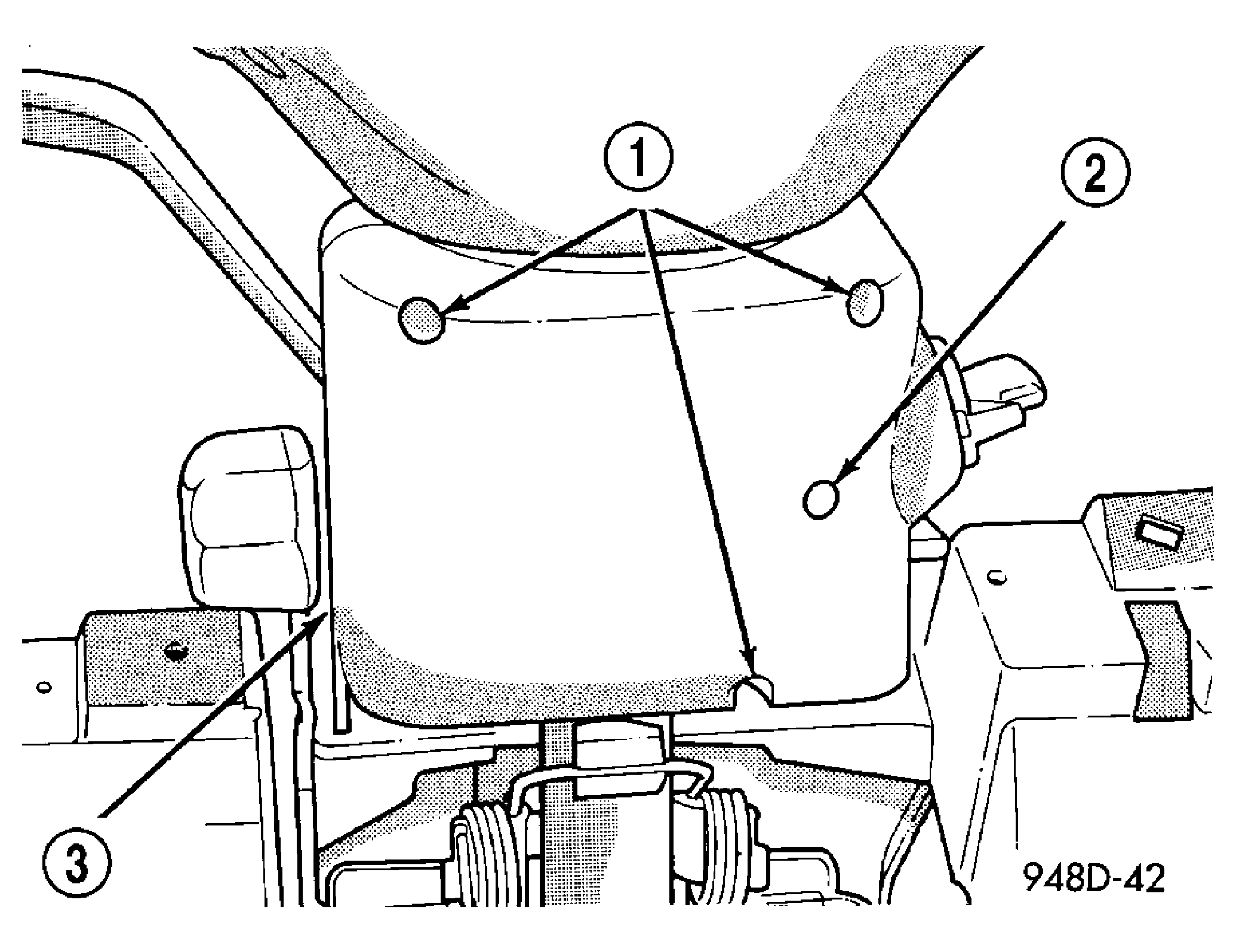

Fig 2: Steering Column Lower Shrouds

Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREW ACCESS HOLE

2 - TAB ACCESS HOLE

3 - LOWER SHROUD

Remove upper and lower shrouds from steering column.
Disconnect electrical connectors from ignition switch.

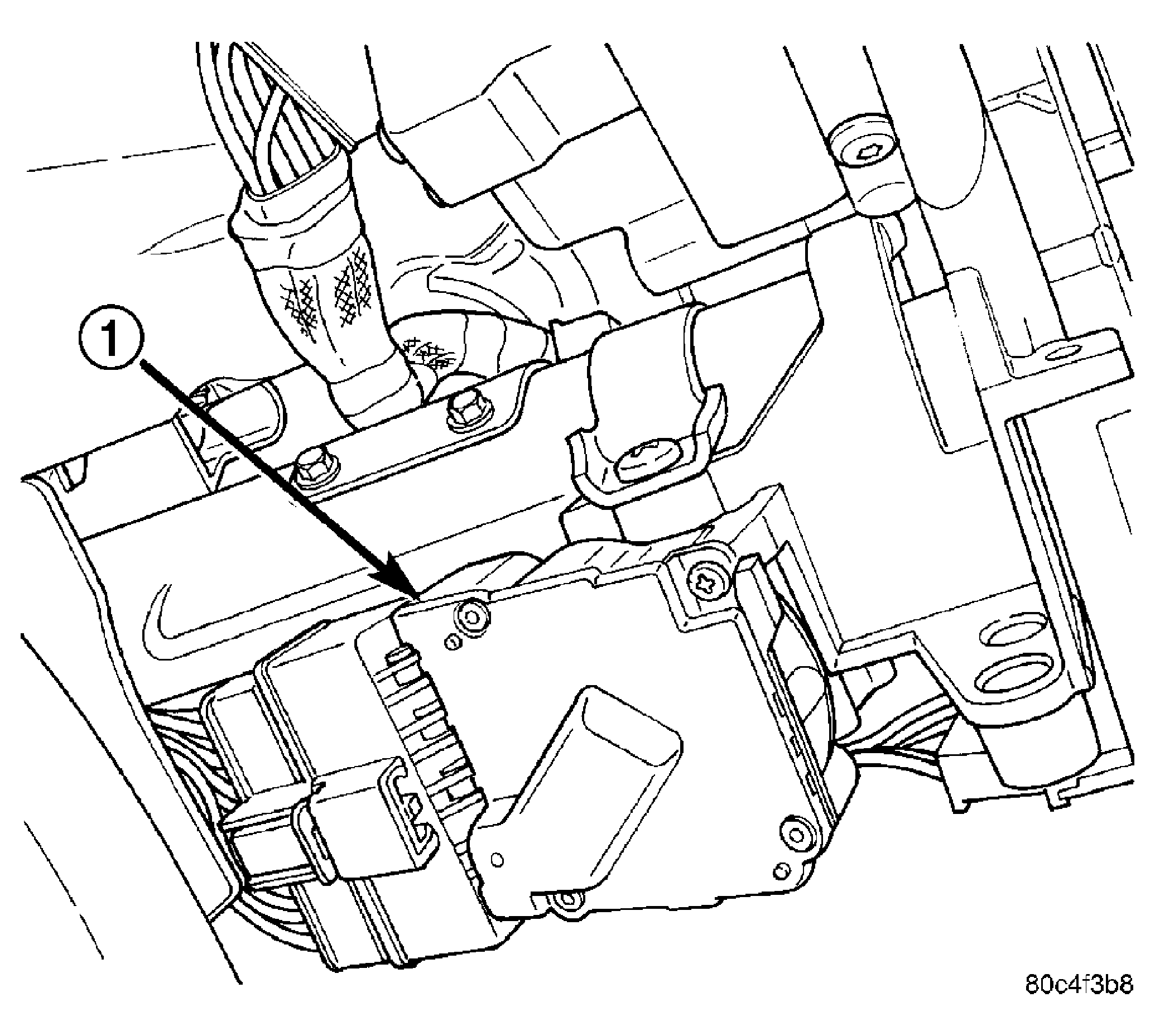

Fig 3: Ignition Switch
Courtesy of DAIMLERCHRYSLER CORP.

1 - IGNITION SWITCH
Remove the 2 screws on the top of the multi-function switch and relocate.

Fig 4: Removing/Installing Multi-Function Switch
Courtesy of DAIMLERCHRYSLER CORP.
Remove ignition switch mounting screw with a #10 Torx® bit.

Fig 5: Removing/Installing Ignition Switch Mounting Screw
Courtesy of DAIMLERCHRYSLER CORP.
Pull ignition switch from steering column.

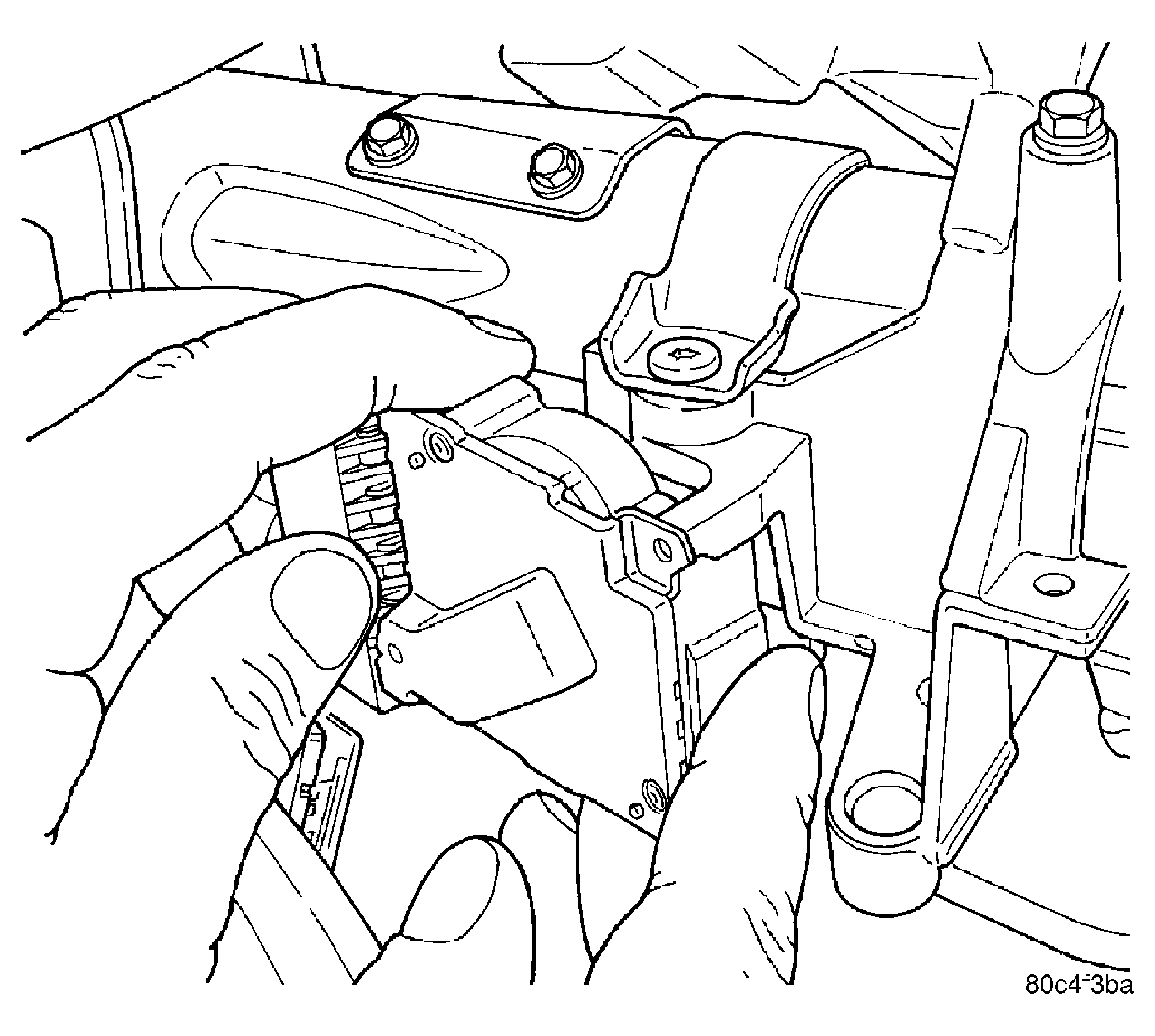

Fig 6: Removing/Installing Ignition Switch

Courtesy of DAIMLERCHRYSLER CORP.
