Switch-Adjustable Pedals: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

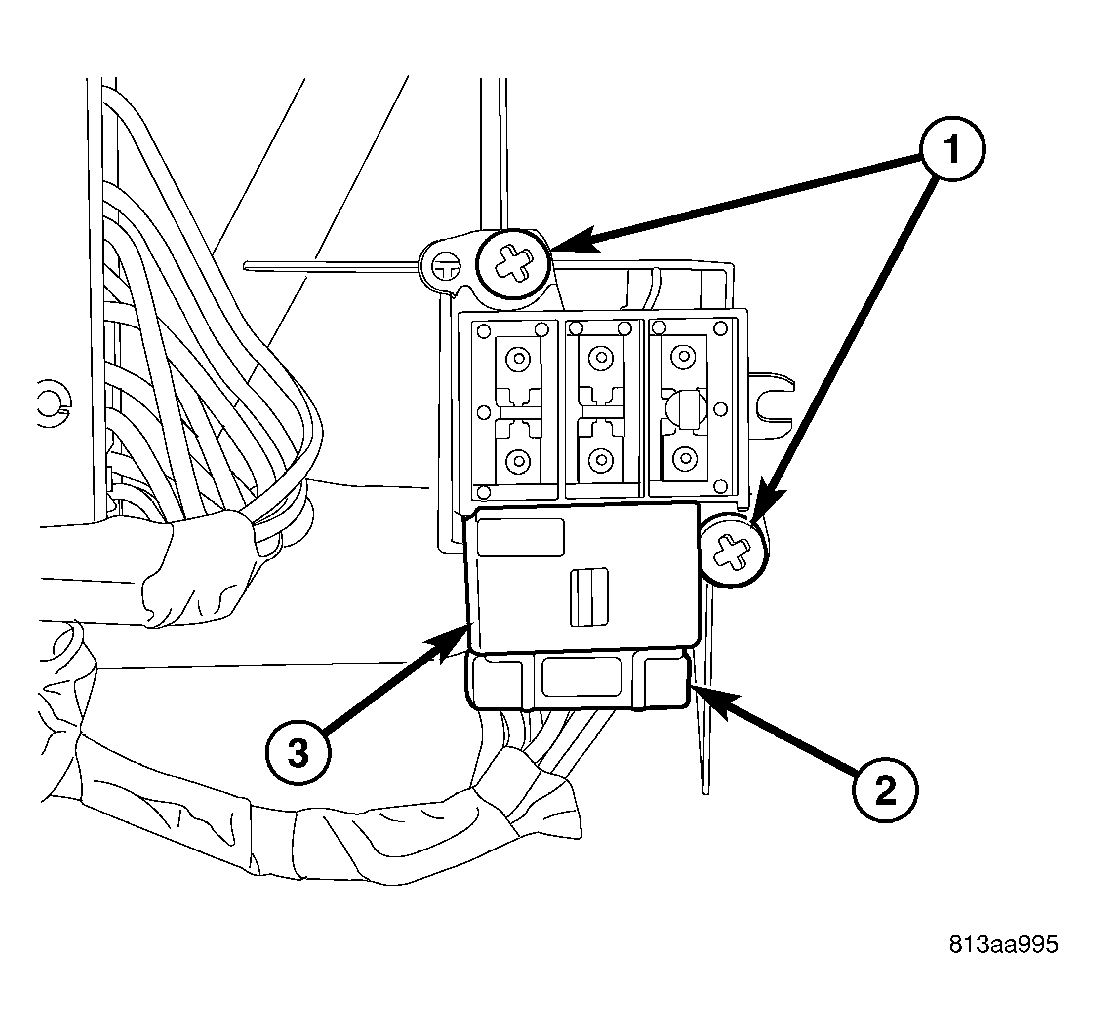

- Position switch (3) connector-side-down on the inside of the driver's seat cushion side trim.
- Install two screws (1) fastening switch in place.
- Connect wiring connector (2) to adjustable pedals switch (3).
- Position side trim on driver's seat cushion left side and install three screws fastening side trim in place.
- Install seat belt shield on driver's seat cushion left side trim.
- Connect negative battery cable to battery post. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
- Check operation of adjustable pedals.
- If vehicle is equipped with memory seats, the system will need to be initialized. Refer to appropriate diagnostic information.
