Switch-Adjustable Pedals: Description
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

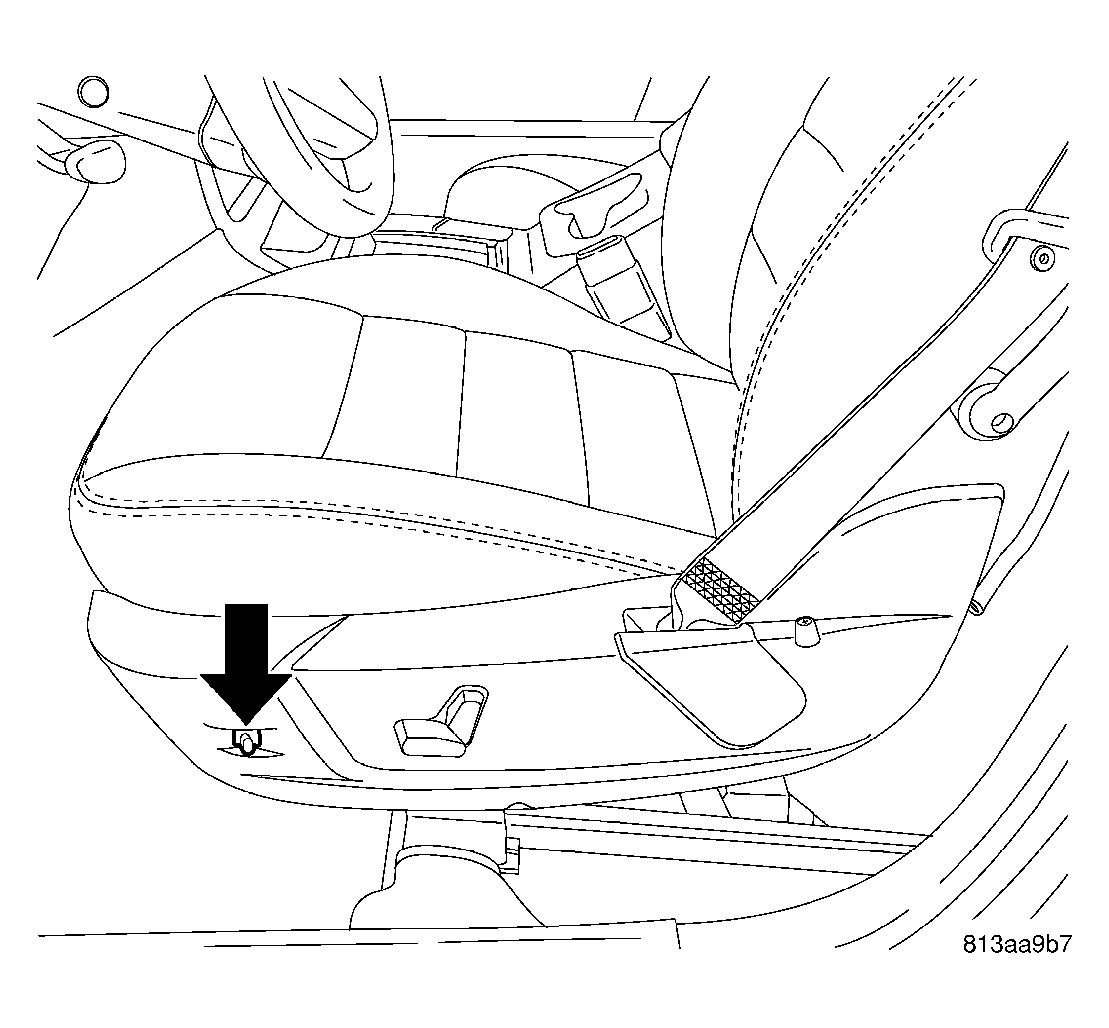

The adjustable pedals switch is located on the left side trim of the driver's seat cushion. Fore and Aft movement of the paddle-type switch allows front-to-rear travel of the adjustable pedals, up to approximately 76 mm (3 inches) total movement. Pushing the paddle forward moves the peddles away from the driver and vice-versa. Movement stops when the switch is released.
The switch actuates the electric motor-driven adjustable pedals mechanism through the memory seat module (MSM). MSM logic prevents pedal adjustment while the speed control is set and when the transmission is in Reverse.
