Sensor - Brake Fluid Level: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

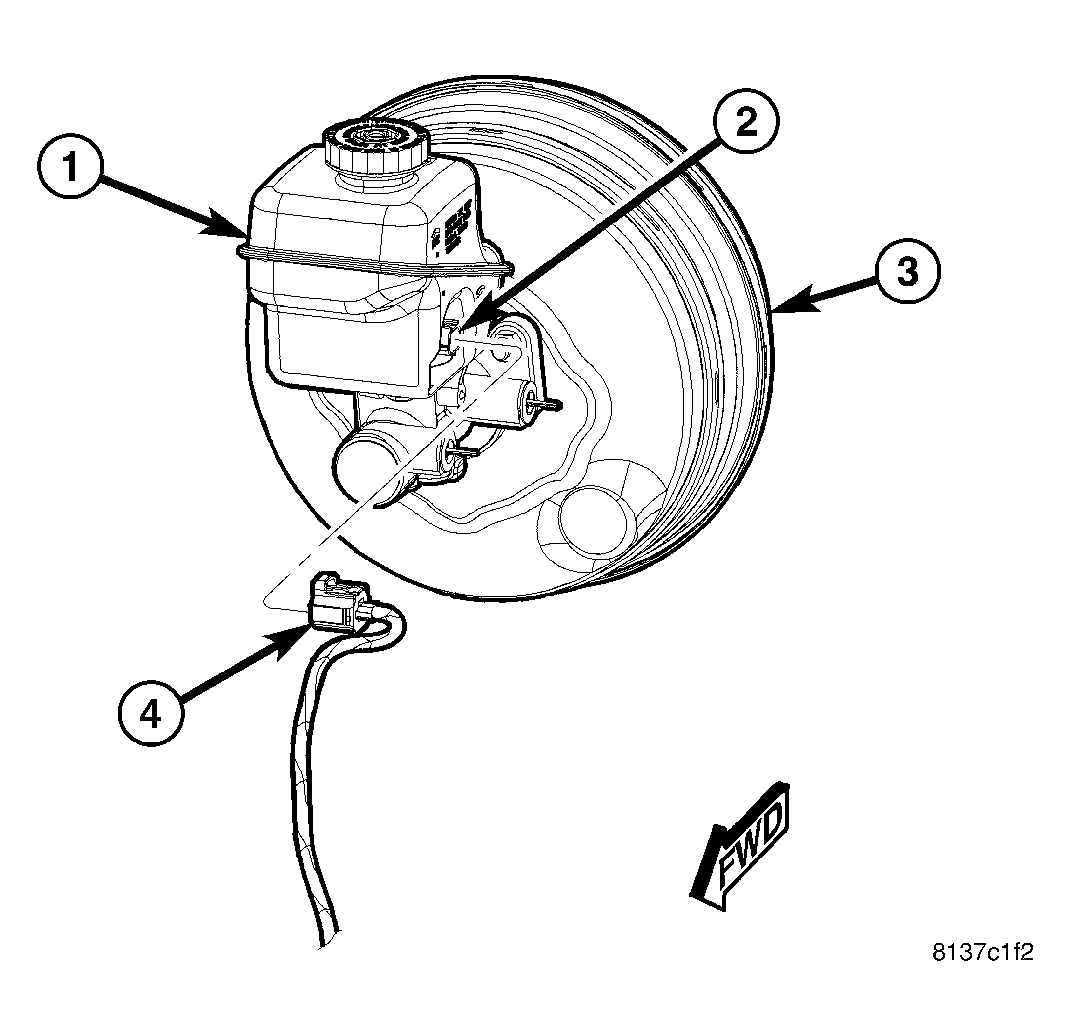

Fig 1: Brake Master Cylinder And Fluid Level Sensor Connection

Courtesy of DAIMLERCHRYSLER CORP.

The brake fluid level sensor (2) is an integral part of the master cylinder fluid reservoir (1). (Refer to REMOVAL )
