Section 11 (Mechanical Brake System - Base (Service Information)): Rotor: Installation: Rear

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect disc brake pads and parking brake shoes before installation. (Refer to BRAKES/HYDRAULIC/MECHANICAL/BRAKE PADS/SHOES - INSPECTION)

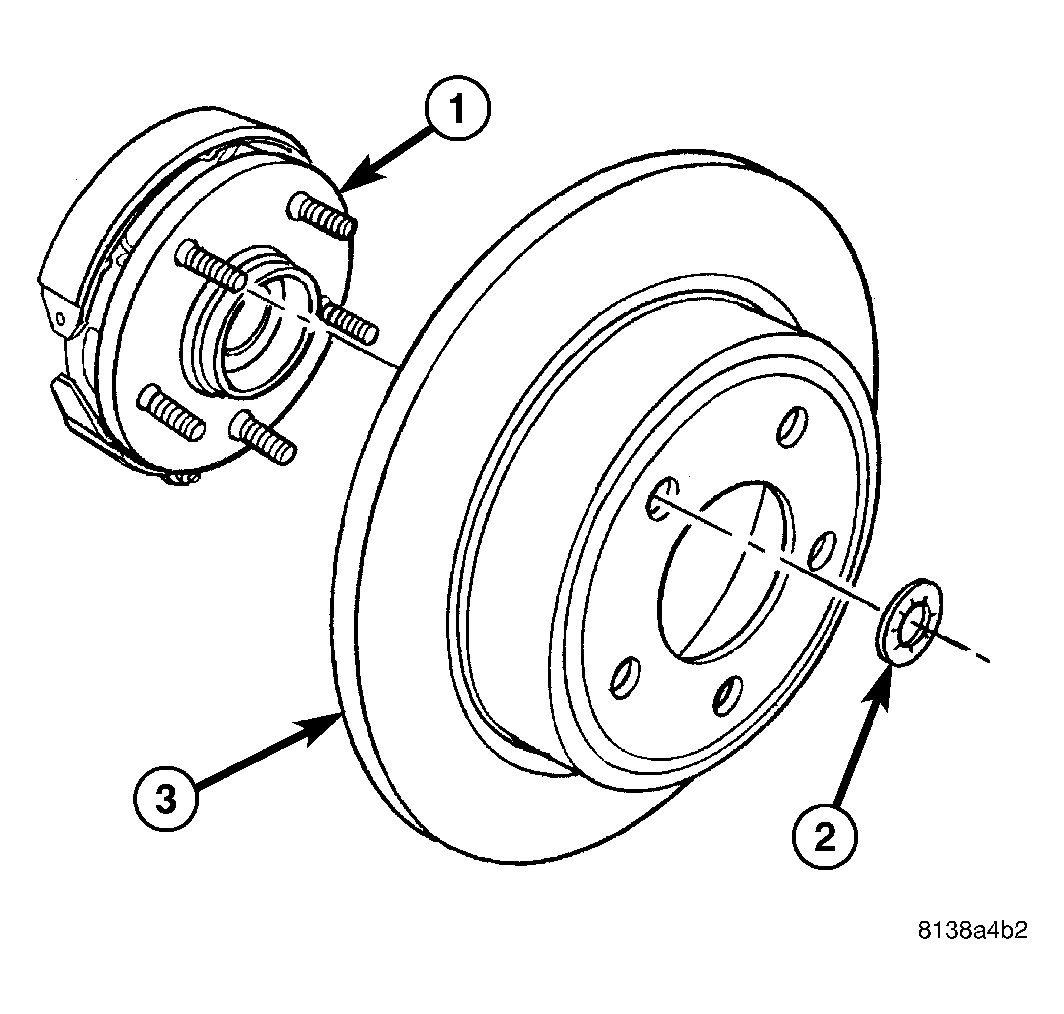

Fig 1: Solid Brake Rotor Mounting

Courtesy of DAIMLERCHRYSLER CORP.

Clean hub face to remove any dirt or corrosion where brake rotor mounts (1).
Install brake rotor (3) over wheel mounting studs and onto hub (1).

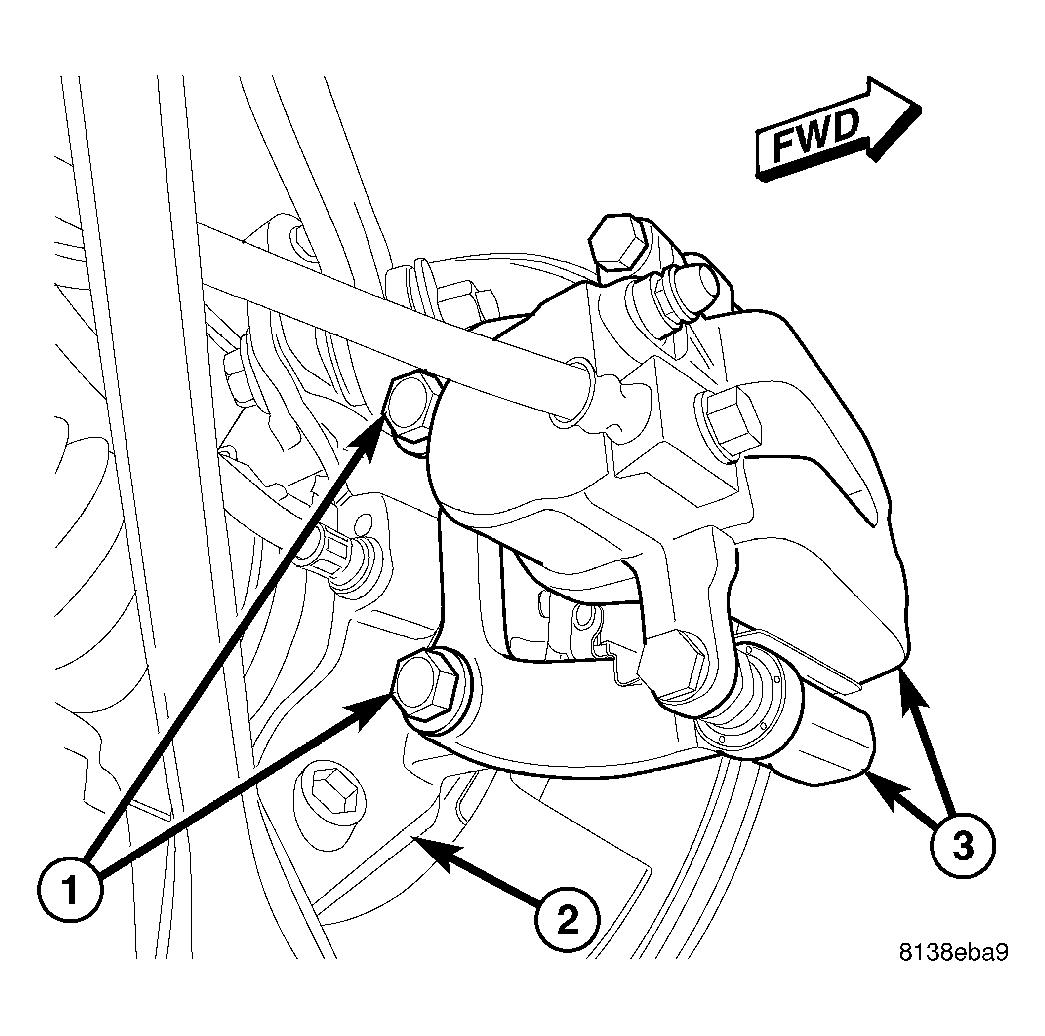

Fig 2: Rear Caliper and Adapter Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Install disc brake caliper and adapter assembly (3) over brake rotor.
Install mounting bolts (1) securing caliper adapter (3) to knuckle (2). Tighten bolts to 115 N.m (85 ft. lbs.) torque.

Fig 3: Tire And Wheel Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Install tire and wheel assembly (1) (Refer to TIRES/WHEELS - INSTALLATION) . Tighten wheel mounting nuts (3) to 150 N.m (110 ft. lbs.) torque.
Lower vehicle.
Pump brake pedal several times to ensure vehicle has a firm brake pedal before moving vehicle.

Fig 4: Reservoir Fluid Level Markings
Courtesy of DAIMLERCHRYSLER CORP.
Check and adjust brake fluid level in reservoir (1) as necessary.
CAUTION: If NEW brake rotors or pads have been installed, keep in mind that braking effectiveness might be somewhat reduced during the first brake applications following installation.
Road test vehicle and make several stops to wear off any foreign material on brakes and to seat brake shoes.
