Junction Block: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before proceeding, (Refer to BRAKES - WARNING) (Refer to BRAKES - CAUTION) .

Fig 1: Disconnecting/Connecting Battery Cables

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate battery negative cable (2) from battery post.
Using a brake pedal holding tool, depress brake pedal past its first inch of travel and hold it in this position. Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open.

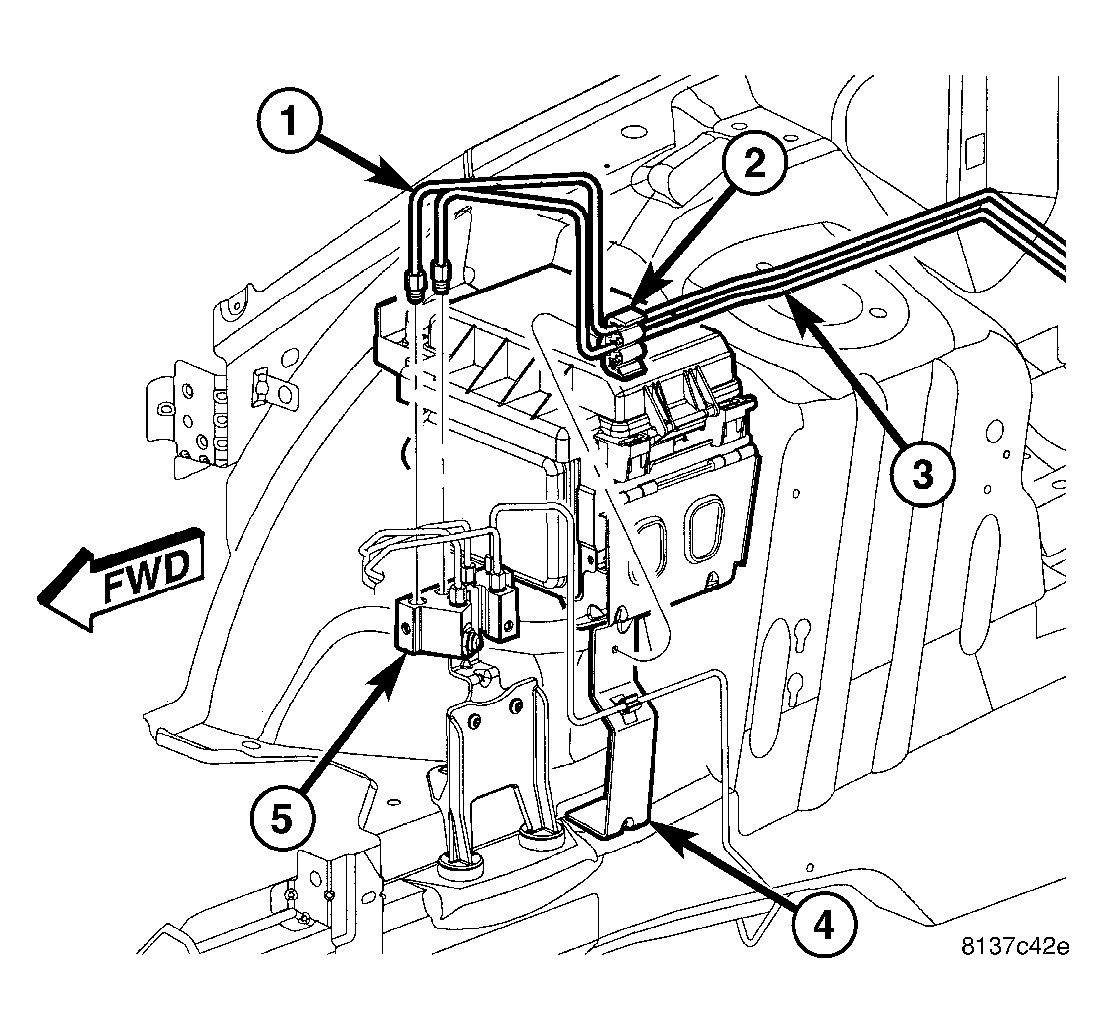

Fig 2: Junction Block and Brake Tubes
Courtesy of DAIMLERCHRYSLER CORP.
Remove brake tubes (1, 2, 3 and 10) at junction block (5).

Fig 3: Rear Tubes at Junction Block
Courtesy of DAIMLERCHRYSLER CORP.
Remove remaining brake tubes (1 and 3) at junction block (5).

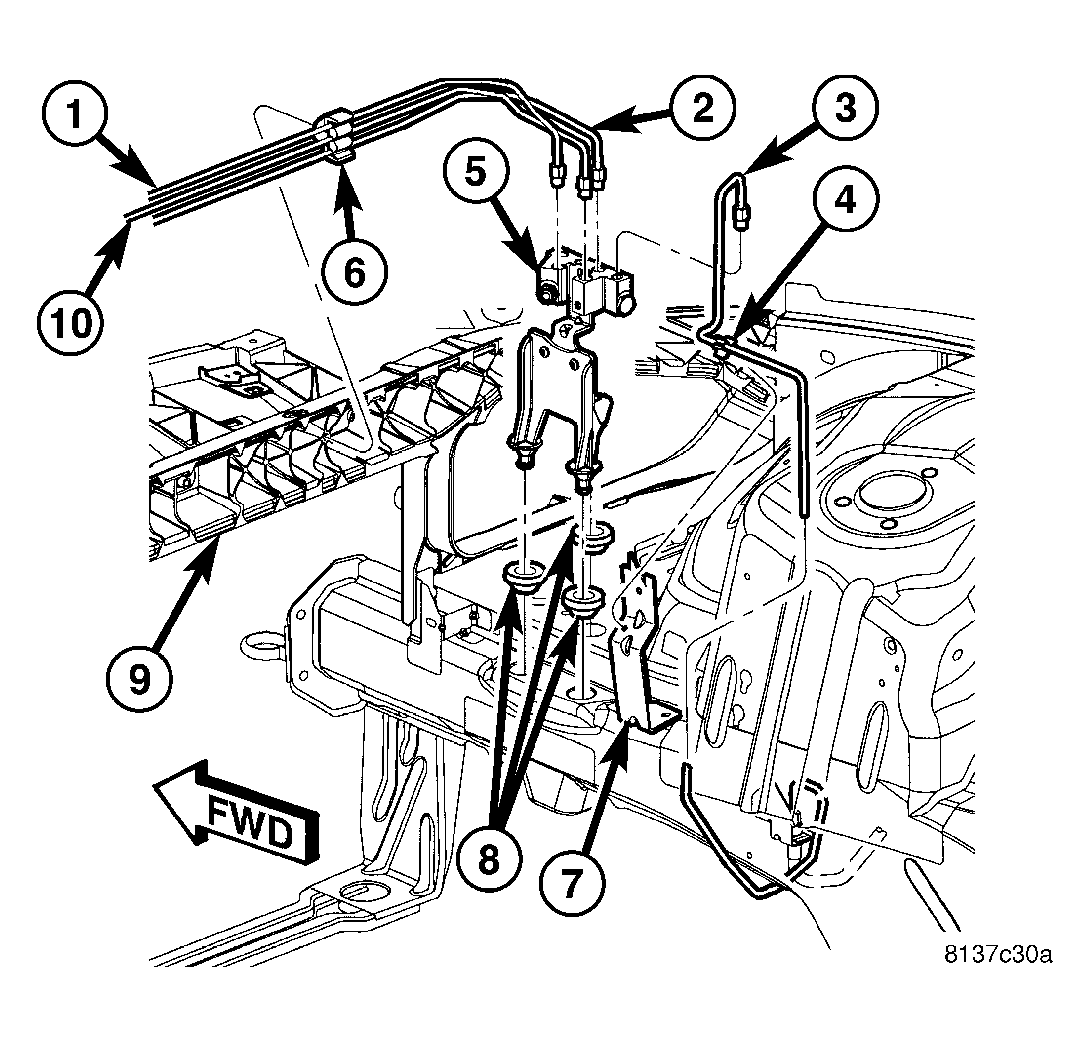

Fig 4: Junction Block and Brake Tubes
Courtesy of DAIMLERCHRYSLER CORP.
Pull up on junction block (5) and remove from mounting grommets (8).
